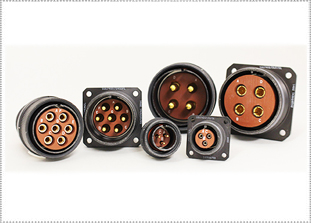

Amphenol BACC 5015 Series Connectors

Amphenol BACC 5015 Series Connectors




BOEING CERTIFIED 5015s BRING HIGH PERFORMANCE TO UNIQUE AIRCRAFT CHALLENGES

BACC connectors are qualified to Boeing specifications to satisfy general-purpose requirements and unique product challenges for shielding, environmental sealing, fluid resistance, and vibration.

The Amphenol BACC 5015 series connectors use front-release crimp contacts with a retention clip. These Amphenol connectors fill the gap between older MIL-DTL-5015s and the environmental and higher-performance demands of new technologies. They are sealed to withstand moisture, condensation, vibration and flash-over. Numerous layouts are available in arrangements that allow for just power, just signal, or a mix of both contact types. For more on the BACC 5015 series connectors, see below.
Amphenol

STEP 1: STYLE

AMPHENOL BACC 5015 SERIES - BACC63CD & CE PART NUMBER EXAMPLE

1

2A

3

2B

4

5

6

BACC63CE

18

-

4

P

W

H

SHELL STYLE

SHELL SIZE

CABLE CLAMP

LAYOUT

CONTACT

ROTATION

MODIFIER


WHEN CHOOSING LAYOUT:
First Number = Step 2A - Shell Size, Dash = Step 3 - Cable Clamp, Second Number = 2B - Layout


STEP 1: SELECT SHELL STYLE, PLUG OR RECEPTACLE

Arrow 1


BACC63CD



BACC63CE

BACC63CD
Front Mount Square Flange


BACC63CE
Plug



STEP 2: LAYOUT

STEP 2A: SELECT SHELL SIZE & STEP 2B: SELECT LAYOUT


Contacts

Degrees of Rotation


Layout Number

Total Number

16S

16

12

8

4

W

X

Y

Z

Service Rating

12S-3

2

2

-

-

-

-

70

145

215

290

A

14S-2

4

4

-

-

-

-

-

120

240

-

I

14S-5

5

5

-

-

-

-

-

110

-

-

I

14S-7

3

3

-

-

-

-

90

180

270

-

A

18-4

4

-

4

-

-

-

35

110

250

325

D

20-4

4

-

-

4

-

-

45

110

250

-

D

22-2

3

-

-

-

3

-

70

145

215

290

D

22-22

4

-

-

-

4

-

-

110

250

-

A

24-9

2

-

-

-

-

2

35

110

250

325

A

24-10

7

-

-

-

7

-

80

-

-

280

A

24-11

9

-

-

6

3

-

35

110

250

325

A

24-22

4

-

-

-

4

-

45

110

250

-

D

28-22

6

-

3

-

-

3

70

145

215

290

D

32-17

4

-

-

-

-

4

45

110

250

-

D



STEP 3: CABLE CLAMP

STEP 3: SELECT CABLE CLAMP
Arrow 2


- = No Cable Clamp
A = BACC10HV Straight Cable Clamp
B = BACC10HW Right Angle Cable Clamp

STEP 4: CONTACT

STEP 4: SELECT CONTACT
Arrow 3


P = Pin

S = Socket

STEP 5: ROTATION

STEP 5: SELECT ROTATION
Arrow 4


Blank = Normal
W, X, Y, Z = See Layout Table



STEP 6: MODIFIER

STEP 6: SELECT MODIFIER
Arrow 5


Note: H is not marked on part

H = Without contacts and Seal Plugs
Blank = With contacts and Seal Plugs
