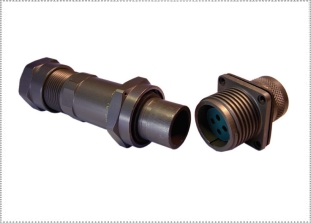

Amphenol Star-Line® Connectors

Amphenol Star-Line® Connectors
POWER & SIGNAL CONNECTORS PERFECT FOR OFFSHORE AND INDUSTRIAL USE
Heavy-duty, multi-pin, electrical connector designed for rugged and harsh environments. One-piece, two-keyed shell, coupling nut, cable adapter, gland and clamp nut are constructed of high-grade machined aluminum with a hard coat finish for superior corrosion resistance. Formerly Pyle Star Line.

Amphenol

FEATURES

AMPHENOL STAR-LINE® SERIES FEATURES

  • UL & CSA
    listed to UL1977/CSA C22.2 requirements

  • Environmental Resistance
    Design and materials withstand the most challenging operating conditions. Series has an IP 68-8 rating.

  • Solder, Crimp and Pressure Terminals Available

  • Easily Accessible Wire Terminals
    Conductors are readily terminated to contacts. Cable housings are slipped over conductors or leads after terminating. Cumbersome handling and seating of inserts with conductors attached is eliminated.

  • Large Wiring Space
    Ample wiring space is provided in cable housings and hardware.

  • Reversible Inserts
    A full range of contact inserts for power, signal and mixed applications are available. All are interchangeable and reversible to suit specific needs.

  • Double-Lead Thread Coupling
    Modified acme thread does not clog under adverse conditions of ice, snow, sand or mud and provides the quick coupling feature.

  • Hard Anodic Coating
    All machined aluminum parts finished with a hard, scratch-resistant coating per MIL-A-8625, type III. Dielectric strength 1800 volts. Heat resistance of 750°F.

  • High Tensile Strength Aluminum
    Bar stock components precision machined. Points of impact designed for extra strength.

  • Radsok® High Amperage Contacts
    Special arrangements are available with Radsok high amperage contacts. Standard Star-Line EX® inserts are not interchangeable with new Radsok contact insert arrangements.

  • RoHS Compliant Product Available

MATERIALS & FINISHES

AMPHENOL STAR-LINE® SERIES MATERIALS & FINISHES
Shell
Aluminium alloy or Stainless Steel
Shell Plating
Hard Anodic
Contacts
Copper alloy
Contact Platings
Silver or Gold Plated
Seals
Buna Rubber

ELECTRICAL DATA

AMPHENOL STAR-LINE® SERIES ELECTRICAL DATA
Wire Range Sizes
18 to 777MCM
Current Rating

Contact Size

Max. Current Rating per contact AMPS

18

3

16

16

12

30

10

40

8

50

4

90

1/0

155

4/0

225

313MCM

325

350MCM

325

373MCM

444MCM

500MCM

750

535MCM

646MCM

940

777MCM

1,135



MECHANICAL

AMPHENOL STAR-LINE® SERIES MECHANICAL
Operating Temperature
-67ºF to +257ºF (-55ºC to +125ºC)
Insulation Strip Length


Strip Length - Solder

Strip Length - Crimp

Contact Size

Inches

MM

Inches

MM

18

0.284

7.2

0.453

11.5

16

0.284

7.2

0.575

14.6

12

0.343

8.7

0.611

15.5

10

0.469

11.9

0.674

17.1

8

0.595

15.1

0.827

21.0

4

0.658

16.7

0.906

23.0

1/0

0.721

18.3

1.221

31.0

4/0

0.721

18.3

1.221

31.0

313MCM

0.843

21.4

1.319

33.5

350MCM

0.843

21.4

1.319

33.5

373MCM

0.843

21.4

1.319

33.5

444MCM

1.969

50.0

1.969

50.0

500MCM

1.969

50.0

1.969

50.0

535MCM

1.969

50.0

1.969

50.0

646-777MCM

1.969

50.0

1.969

50.0

Mating Life
500 cycles
Salt Spray
300 days
Vibration
10g
Shock
60g
Sealed
IP68
Contact Type
Solder, Crimp, Power, Signal and Coax
Number of Circuits
1 to 143
Polarization
Keyway with optional insert orientation
Approvals
UL #E184393
