PP 15/45 Premate Ground Powerpole® Connector (Up To 45 Amps)

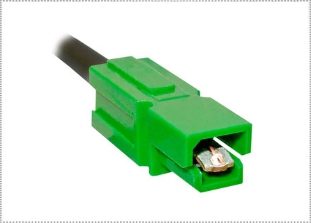

Anderson PP 15/45 Premate Ground Powerpole® Connector


PP 15/45 PREMATE GROUND POWERPOLE® CONNECTOR (UP TO 45 AMPS)

Designed with the same time-tested flat wiping technology as our standard Powerpoles, the Multipurpose Powerpole® contact is a make-first/ break-last connection when used in a multipole configuration with our standard 15/45 Powerpoles. The dovetailed housing allows you to interlock multiple housings into vertical or horizontal connector banks specific to your individual project requirements.

Powerpole® connectors provide 600 Volts continuous AC or DC operation. This contact accommodates wire sizes from #14 to #10 AWG (1.5 to 4 mm²). Contacts are available reeled or loose piece to accommodate production needs.

Anderson Power Products

FEATURES

PP 15/45 PREMATE GROUND POWERPOLE® CONNECTOR (UP TO 45 AMPS) FEATURES

  • Make-first / break-last connection when used in conjunction with our standard 15/45 Powerpoles

  • Housings available in green (US standard) or brown (EU standard)

  • Molded-In dovetails

  • UL listed for grounding


BENEFITS

PP 15/45 PREMATE GROUND POWERPOLE® CONNECTOR (UP TO 45 AMPS) BENEFITS

  • Provides safety and system integrity

  • Visual indication of ground terminal

  • Can be assembled with standard Powerpole® 15/45 housings to make pregrounded and multipole configurations

  • For use in pre-mate ground, signal, or auxiliary control applications
