PCB 25 Powerpole® Connector (Up To 25 Amps)

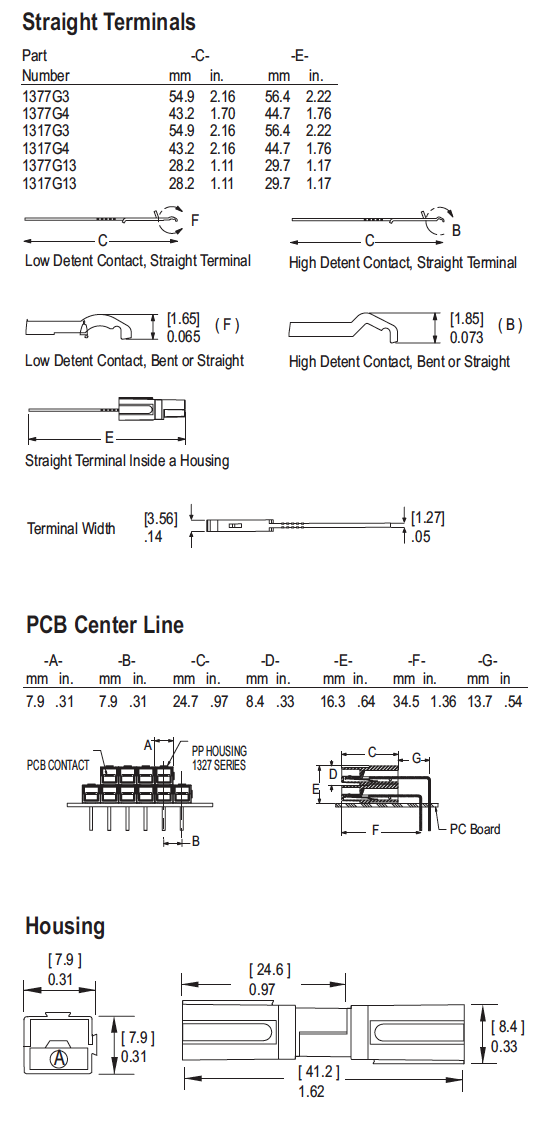

Anderson PCB 25 Powerpole® Connector

PCB 25 POWERPOLE® CONNECTOR (UP TO 25 AMPS)

Anderson Power Products® printed circuit board (PCB) contact series, when utilized with the Powerpole® 15/45 connector housings, provides a reliable wire to printed circuit board connection. They are rated at 25 amps, 600 volts, AC/DC. This contact is available in both straight and right angle terminations for perpendicular and parallel mounting and is ideal for all applications that require high current connections to the PCB.

Anderson Power Products

FEATURES

PCB 25 POWERPOLE® CONNECTOR (UP TO 25 AMPS) FEATURES

  • Straight & right angle terminals

  • Tin plated copper contacts

  • Fits standard housing & accessories

  • Two level right angle contacts


BENEFITS

PCB 25 POWERPOLE® CONNECTOR (UP TO 25 AMPS) BENEFITS

  • Flexibility of parallel or perpendicular mounting to the PCB

  • Minimal contact resistance at high currents

  • Allows for configurations that can be color coded & polarized

  • Duel level right angle powerpole assemblies provide high power density
