Home Anderson Power Products SPEC Pak® Sealed Connector Series 6 Position SPEC Pak® (15 To 45 Amps)

6 Position SPEC Pak® (15 To 45 Amps)

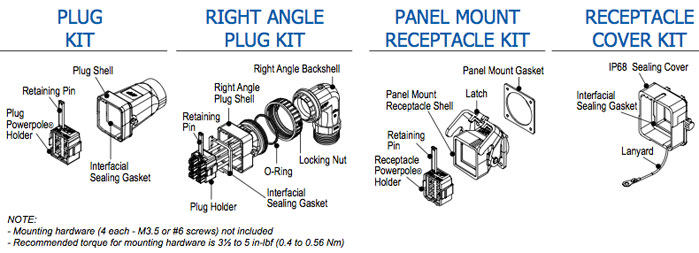

Anderson 6 Position SPEC Pak®


6 POSITION SPEC PAK®
(15 TO 45 AMPS)

APP®’s SPEC Pak® Connector Series uses rugged and environmentally sealed (IP68) shells to protect existing APP® Powerpole®contacts and housings. Customer configured SPEC Pak® Connectors may be used anywhere a rugged and waterproof high-power, signal and ground interconnect solution is required such as in; mass transportation, off-road vehicles, factory automation, oil and petrochemical exploration, agricultural equipment, and many more.

The core APP® Powerpole® technology within the SPEC Pak® is proven reliable and cost effective. The broad selection of touch safe, color coded Powerpole® housings with power, signal and ground contacts accept a broad range of wire gauges, #24 to #10 AWG (0.25 to 4.0 mm2), giving users thousands of flexible design solutions in a single interconnect.

Anderson Power Products

6 POSITION SPEC PAK® (15 TO 45 AMPS) FEATURES

  • Environmentally sealed (IP68) shells

  • Rugged, safe & versatile shells

  • 45A per contact at 600 volts

  • Power, signal & ground contacts available

  • Up to 6 power or 24 signal circuits

  • Touch safe connections on both sides

  • Color-coding capabilities for ease of assembly

  • Highly configurable with thousands of other design options available
