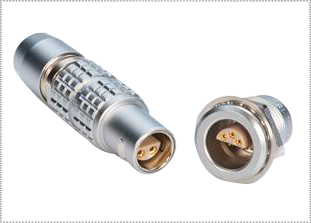

LEMO S-Series Connector

LEMO S-Series Connector

PRECISION-MADE CIRCULAR CONNECTOR

LEMO S-Series Connectors are the original push-pull connectors, offering the high performance and rugged design for which they are known. The S-Series is ideal for use in the audio/video field, machine industry, medical applications, research instrumentation and test & measurement environments. These connectors can be built with unipole, coaxial, multipole, or triaxial contacts (stepped inserts for alignment are available in the multipole version). The LEMO S-Series offers ample customization options with 8 sizes, 9 different color choices, and over 50 shell styles.
LEMO




FEATURES

LEMO S-SERIES FEATURES

  • Security of the Push-Pull self-latching system

  • 8 different sizes

  • Multipole with stepped inserts

  • 9 color codings

  • Over 50 shell styles

  • Solder or print contacts

  • Temp. range -55°C to 250°C

MATERIALS & FINISHES

LEMO S-SERIES MATERIALS & FINISHES
Shell
Brass, Stainless Steel, Aluminum alloy, POM, PEEK, PSU, PPSU, PPS
Shell Plating
Chrome, Gold-Plated, Nickel, Black Chrome, Anodized, Nickel
Contacts
Brass, Stainless Steel, Beryllium-Copper
Contact Platings
Copper, Nickel, Aluminum
Insulator
PEEK, PTFE, FEP, PI, PA6.6
O-ring and Gaskets
Silicone

ELECTRICAL DATA

LEMO S-SERIES ELECTRICAL DATA

Characteristics

Value

Standard

Shielding efficiency at 10 MHz

> 75 dB

IEC 60169-1-3

Shielding efficiency at 1 GHz

> 40 dB

IEC 60169-1-3



MECHANICAL

LEMO S-SERIES MECHANICAL

Characteristics

Value

Standard

Endurance

> 5000 cycles

IEC 60512-5 test 9a

Humidity

up to 95% at 60° C

Temperature range1)

- 55° C, +250° C

Resistance to vibrations

10-2000 Hz, 15 g

IEC 60512-4 test 6d

Shock resistance

100 g, 6 ms

IEC 60512-4 test 6c

Salt spray corrosion test

> 144h

IEC 60512-6 test 11f

Protection index (mated)2)

IP 50

IEC 60529

Climatical category

50/175/21

IEC 60068-1



Note: the various tests have been carried out with FFA and ERA connector pairs, with chrome-plated brass shell, PEEK insulator.
