Ulti-Mate Micro-D Vertical .100 X .100 Style 4 Connector

Ulti-Mate Micro-D Circuit Style 4

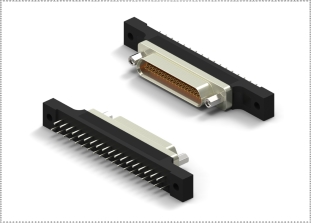

VERTICAL MOUNT PBC MICRO-D RECTANGULAR CONNECTOR

PEI-Genesis brings you Ulti-Mate’s Micro-D Circuit Series - Vertical .100 x .100 Style 4 (BS). A vertical-mount printed circuit board connector with exit leads on a .100 x .100 grid to meet your application head on. Built to MIL-DTL-83513 specifications, the complete line of Ulti-Mate Micro-D Circuit Series connectors are proven to be reliable under tough operating conditions. Stamped pins create consistency when pins are assembled in order of their manufacture, assuring dimensional consistency and assuring quality control. It has the same number of footprint rows as the mating face (i.e. 9-37 has 2 rows, the 51 has 3 rows and the 100 has 4 rows) as well as 24 AWG (.020 dia.) exit leads. Jackposts for coupling are optional. Style 4 configuration is in accordance with slash sheets 22-27 of MIL-DTL-83513. (“M” series only). For new applications, we suggest you consider Style 6 which has a denser footprint of .075. If downtime is a concern, other connectors cannot match the long-term durability and performance advantages of the MIL-DTL-83513 Micro-D by Ulti-Mate, brought to you by PEI-Genesis, and shipped within 48 hours of placing your order.

This e-mail address is being protected from spambots, you need JavaScript enabled to view it

Ulti-Mate Connector Inc.

MATERIALS & FINISHES

ULTI-MATE MICRO-D CIRCUIT VERTICAL .100 x .100 STYLE 4 MATERIALS & FINISHES
Pin Contacts
Beryllium Copper (C17200) per ASTM B194.
Socket Contacts
Copper alloy (C21000) per ASTM B36 or leaded commercial bronze (C314000) per ASTM B140.
Contact Plating
Gold plated per MIL-DTL-45204D. 50 microinches min. is the standard thickness.
Metal Shells
Aluminum alloy per SAE-AMS-QQ-A-200/8, type 6061-T6. Finish is cadmium per SAE-AMS-QQ-P-416, TYPE II, CLASS 3, with suitable underplate with yellow chromate, this plating is not RoHS compliant. Or Finish Electroless Nickel plate per SAE AMS2404, class 3 or 4, .0005 minimum thickness.
Insulator Material
Preferred material is Polyphenylene sulfide (PPS) per MIL-M-24519 or ASTM D5927 GST 40F. Color Black.
LCP
Liquid Crystal Polymer-Vectra 130 (optional).
Interfacial Seals
Fluorosilicone elastomer per MIL-R-25988. Standard on “M” Series socket face.
Hardware
Stainless Steel, passivated.
Standard Plating
Electroless Nickel or Cadmium.
Optional Plating
Tin, Olive Drab or Gold.


Stainless Steel shells are available in all configurations.

ELECTRICAL DATA

ULTI-MATE MICRO-D CIRCUIT VERTICAL .100 x .100 STYLE 4 MATERIALS & FINISHES
Contact Resistance
8 mΩ Maximum @ 2.5 A
Current Rating
3.0 A Maximum
Dielectric Withstanding Voltage
900 VAC at sea level, 300 VAC @ 70,000 ft. Solder cups and shielded cable same as MIL-DTL-83513; 600 VAC at sea level 150VAC @ 70,000 ft.
Insulation Resistance
5,000 MΩ Minimum


MECHANICAL

ULTI-MATE MICRO-D CIRCUIT VERTICAL .100 x .100 STYLE 4 ELECTRICAL DATA
Contact Engaging and Separating Forces
6 oz. max per MIL-DTL-83513 (contact average is 3 oz.); Separation force is 5.0 oz. minimum.
Contact Mating and Unmating Forces per MIL-DTL-83513
Mate = 10 oz. X number of contacts maximum. Unmate = 10.5 oz. X number of contacts minimum.
Vibration
No damage or interruption detected (one microsecond sensitivity) when subjected to Method 2005, Test Condition IV of MIL-STD-1344.
Shock
No damage or interruption detected (one microsecond sensitivity) when subjected to Test Condition E. Method 2004 of MIL-STD-1344.
Durability
No mechanical defects after 500 matings; Test criteria are mating force, contact resistance, contact engagement, and separation forces.
Salt Spray
No exposure of base metal or loss of performance after 96 hours for both Nickel and Cadmium plating.

HARDWARE

ULTI-MATE MICRO-D CIRCUIT VERTICAL .100 x .100 STYLE 4 HARDWARE

Description

Mil Spec

UMI

A Max.

B Max.

Thread

Used on Sizes

Jackscrew Lo Allen

Jackscrew Hi Allen

Jackscrew
Lo Slot

Jackscrew
Hi Slot

Jackpost

M83513/05-02

M83513/05-03

M83513/05-05

M83513/05-06

M83513/05-07

83041xxxx

83041xxxx

83041xxxx

83041xxxx

83041xxxx

.361
(9.17)

.868
(22.05)

.361
(9.17)

.868
(22.05)

.500
(12.70)

.103
(2.62)

.610
(15.49)

.103
(2.62)

.610
(15.49)

.190
(4.83)

2-56 UNC-2A

2-56 UNC-2A

2-56 UNC-2A

2-56 UNC-2A

2-56 UNC-2B




9 through 51


Jackscrew Lo Allen

Jackscrew Hi Allen

Jackscrew
Lo Slot

Jackscrew
Hi Slot

Jackpost

M83513/05-012

M83513/05-013

M83513/05-015

M83513/05-016

M83513/05-017

83041xxxx

83041xxxx

83041xxxx

83041xxxx

83041xxxx

.390
(9.91)

.902
(22.91)

.390
(9.91)

.902
(22.91)

.500
(12.70)

.103
(2.62)

.610
(15.49)

.103
(2.62)

.610
(15.49)

.185
(4.70)

4-40 UNC-2A

4-40 UNC-2A

4-40 UNC-2A

4-40 UNC-2A

4-40 UNC-2B




100






CONTACT ARRANGEMENTS

ULTI-MATE MICRO-D CIRCUIT VERTICAL .100 x .100 STYLE 4 CONTACT ARRANGEMENTS

Contact Arrangements

2 row

9, 15, 21, 25, 31, 37

3 row

51-3

4 row

100

Custom 2 row arrangements

From 5 to 65 position



Available in rugged metal & intermatable rugged plastic shell configurations or available in low profile Metal & intermatable low profile plastic shell configurations.

TERMINATIONS

ULTI-MATE MICRO-D CIRCUIT VERTICAL .100 x .100 STYLE 4 TERMINATIONS
Available Terminations
Pre-wired solid wire 24, 25 AWG Tin
Solder dipped or gold plated in standard and custom lead lengths


MOUNT TYPE

ULTI-MATE MICRO-D CIRCUIT VERTICAL .100 x .100 STYLE 4 MOUNT TYPE

Right angle or vertical mount. PC board or Flex circuit applications
