RECTANGULAR HERMAPHRODITIC NANOMINIATURE CONNECTOR TO MIL-DTL-32139

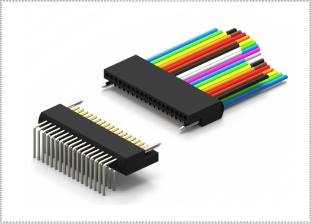

UIti-Mate Dual Row Hermaphroditic Nano connectors are ultra-low profile connectors available in fully molded Liquid Crystal Polymor or full metal bodies. Hermaphroditic connectors are designed so that pin and socket contacts are balanced in arrangement such that both mating connectors are identical. These wired, rectangular connectors are built in accordance with MIL-DTL-32139 and available in 8 to 80 contact layouts. Each pin contact is captured on a reel, in its order of manufacture, assuming consistency of design and more importantly quality control. It is not a discrete contact where each one is unique in manufacture. Typical applications are in the defense, avionics, UAV and space markets where extremely small interconnects are needed.

This e-mail address is being protected from spambots, you need JavaScript enabled to view it

Ulti-Mate Connector Inc.

MATERIALS & FINISHES

ULTI-MATE NANO DUAL ROW HERMAPHRODITIC MATERIALS & FINISHES
Pin & Socket Contacts
Pins: BeCu alloy strip per ASTM–B–194 / Sockets: BeCu per ASTM–B–194
Contact Plating
Gold plate per ASTM B488, or SAE AMS 2422
Molded Insulators into Metal housing or Full plastic housing:
Insulating compound per MIL–I–16923. Liquid Crystal Polymer (LCP), per MIL–M–24519 GLCP–30F, 30% Glass–Filled
Hardware
Corrosion resistant steel per ASTM A 582/A582 or ASTM A 581/A581M,Passivated per SAE AMS–2700
Plating
Electroless nickel or Cadmium
Note: Stainless Steel shells are available in most configurations.

ELECTRICAL DATA

ULTI-MATE NANO DUAL ROW HERMAPHRODITIC ELECTRICAL DATA
Contact Resistance
0.071 volt maximum drop @ 1.0 amps (.071 ohms)
Current Rating
1.0 Amp Maximum per contact
Dielectric Withstanding Voltage
250 V, RMS, 60 Hz
Insulation Resistance
5,000 MΩ Minimum @ 100 VDC


MECHANICAL

ULTI-MATE DUAL ROW HERMAPHRODITIC MECHANICAL
Contact Engaging and Separating Forces
5 Ounce Maximum, 0.4 Ounce Minimum
Standard Wire Sizes
#30–#32 AWG
Vibration
Tested in accordance with EIA–364–28, Condition IV. No Damage or resistance change greater than 10 omhs lasting longer than 10 ns
Shock
Tested in accordance with EIA–364–27, Condition G. No Damage or resistence change greater than 10 ns
Durability
200 connector mating cycles tested in accordance with EIA–364–09. No Damage or resistance change greater than 10ohms lasting longer than 10ns
Salt Spray
Mated connectors tested in accordance with EIA–364–26, Condition B. No exposure to base metal
Humidity
Mated connectors tested in accordance with EIA–364–31, Condition B (except steps 7a and 7b). Meet DWV and IR Requirements

CONTACT ARRANGEMENTS

ULTI-MATE NANO DUAL ROW HERMAPHRODITIC CONTACT ARRANGEMENTS
1 row Nano D
51 Positions
1 row Strip
2 to 40 positions
2 row Nano D
9, 15, 21, 25, 31, 37, 51, 65
2 row Hermaphroditic
8 to 80 positions


TERMINATIONS

ULTI-MATE NANO DUAL ROW HERMAPHRODITIC TERMINATIONS
Available Terminations
Pre-wired stranded wire 30, 32 AWG
Wide choice of stranded wire types
