PCB VERTICAL THRU-HOLE NANOMINIATURE TO MIL-DTL-32139

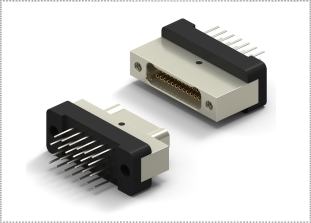

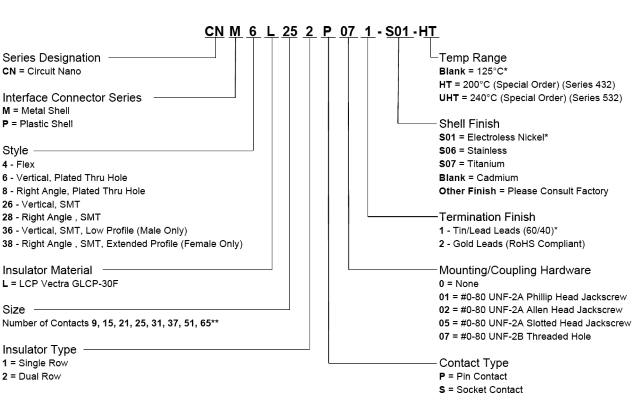

PEI-Genesis is now franchised to provide Ulti-Mate Nanominiature PCB Vertical Thru-Hole Connectors. Available in several layouts including: two-row metal or liquid crystal polymer shells, in sizes from 9 to 65. Ulti-Mate Nanominiature PCB Vertical Thru-Hole Plug and Receptacle are built in accordance with MIL-DTL-32139 specifications. The precision formed pin and socket contracts, are a single piece, crimp less contract, ready for PC board termination. Precision forming, allows for the production of a rectangular integral PC tail contact, eliminating the need for crimping a solid wire, crimp resistance and soldering issues. Not sure if your application requires a Vertical Thru-Hole nanominiature or other connector? Contact us today.

This e-mail address is being protected from spambots, you need JavaScript enabled to view it

Ulti-Mate Connector Inc.

MATERIALS & FINISHES

ULTI-MATE NANO PCB VERTICAL MOUNT THRU HOLE MATERIALS & FINISHES
Pin & Socket Contacts
Pins: BeCu alloy strip per ASTM–B–194 / Sockets: BeCu per ASTM–B–194
Contact Plating
Gold plate per ASTM B488, or SAE AMS 2422
Metal Shells
Aluminum with electroless nickel or electrodeposited cadmium plating,Stainless Steel per ASTM A582, Titanium Alloy per MIL–T–81556, Unplated
Molded Insulators into
Metal housing or Full
plastic housing:
Insulating compound per MIL–I–16923. Liquid Crystal Polymer (LCP), per MIL–M–24519 GLCP–30F, 30% Glass
Hardware
Corrosion resistant steel per ASTM A 582/A582 or ASTM A 581/A581M,Passivated per SAE AMS–2700
Plating
Electroless nickel or Cadmium
Note: Stainless Steel shells are available in most configurations.

ELECTRICAL

ULTI-MATE PCB VERTICAL MOUNT THRU HOLE ELECTRICAL DATA
Contact Resistance
0.071 volt maximum drop @ 1.0 amps (.071 ohms)
Current Rating
1.0 Amp Maximum per contact
Dielectric Withstanding Voltage
250 V, RMS, 60 Hz
Insulation Resistance
5,000 MΩ Minimum @ 100 VDC


MECHANICAL

ULTI-MATE NANO PCB VERTICAL MOUNT THRU HOLE MECHANICAL
Contact Engaging and Separating Forces
5 Ounce Maximum, 0.4 Ounce Minimum
Standard Wire Sizes
#30–#32 AWG
Vibration
Tested in accordance with EIA–364–28, Condition IV. No Damage or resistance change greater than 10 omhs lasting longer than 10 ns
Shock
Tested in accordance with EIA–364–27, Condition G. No Damage or resistence change greater than 10 ns
Durability
200 connector mating cycles tested in accordance with EIA–364–09. No Damage or resistance change greater than 10ohms lasting longer than 10ns
Salt Spray
Mated connectors tested in accordance with EIA–364–26, Condition B. No exposure to base metal
Humidity
Mated connectors tested in accordance with EIA–364–31, Condition B (except steps 7a and 7b). Meet DWV and IR Requirements

CONTACT ARRANGEMENTS

ULTI-MATE NANO PCB VERTICAL MOUNT THRU HOLE CONTACT ARRANGEMENTS
1 row Nano D
51 Positions
1 row Strip
2 to 40 positions
2 row Nano D
9, 15, 21, 25, 31, 37, 51, 65
2 row Hermaphroditic
8 to 80 positions


TERMINATIONS

ULTI-MATE NANO PCB VERTICAL MOUNT THRU HOLE TERMINATIONS
Available Terminations
Pre-wired stranded wire 30, 32 AWG
Wide choice of stranded wire types
