MICRO D SERIES HI-TEMP CONNECTORS FOR EXTREME CONDITIONS

PEI-Genesis offers Ulti-Mate’s Micro-D series, featuring low profile and standard profile series, high temperature rectangular connector solutions. These connectors are designed to meet the harsh environmental requirements exceeding the normal requirements of Mil-DTL-83513. Available for the first time at PEI-Genesis, these rectangular connectors are available in wired and circuit board configurations to operate at 240°C (464°F). Ideal oil, gas, and geothermic wells that subject electronic instruments to extreme conditions, these connectors utilize hi-temp materials that exceed your continuous working range. PEI-Genesis now offers this technology available to you within 48 hours of placing your order.

This e-mail address is being protected from spambots, you need JavaScript enabled to view it

Ulti-Mate Connector Inc.

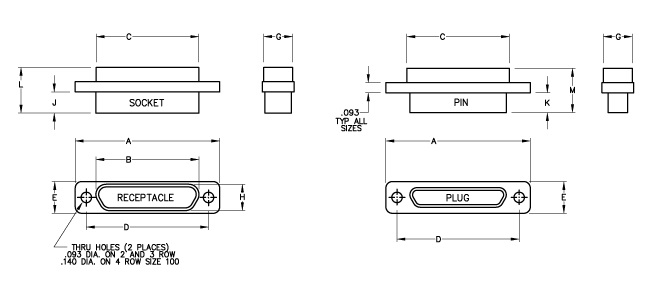

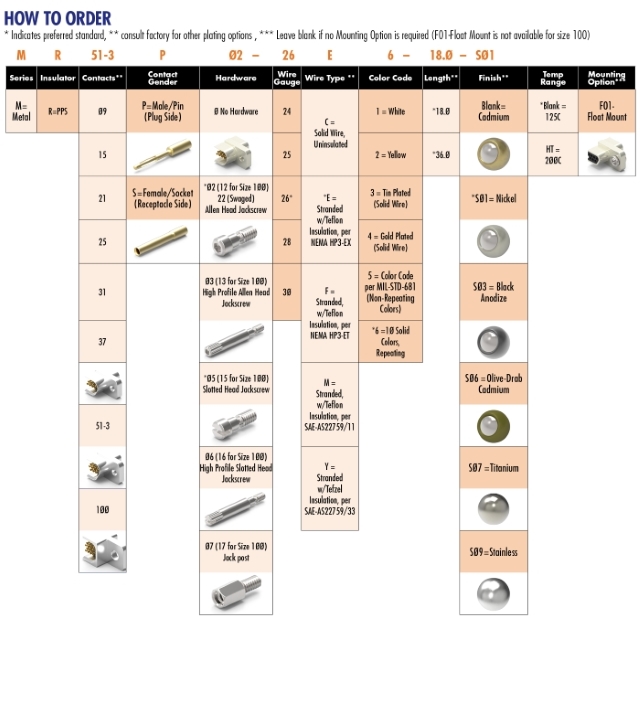

MATERIALS & FINISHES

ULTI-MATE WIRED MICRO-D HI-TEMP CONNECTOR MATERIALS & FINISHES
Pin Contacts
Beryllium Copper (C17200) per ASTM B194.
Socket Contacts
Copper alloy (C21000) per ASTM B36 or leaded commercial bronze (C314000) per ASTM B140.
Contact Plating
Gold plated per MIL-DTL-45204D. 50 microinches min. is the standard thickness.
Metal Shells
Aluminum alloy per SAE-AMS-QQ-A-200/8, type 6061-T6. Finish is cadmium per SAE-AMS-QQ-P-416, TYPE II, CLASS 3, with suitable underplate with yellow chromate, this plating is not RoHS compliant. Or Finish Electroless Nickel plate per SAE AMS2404, class 3 or 4, .0005 minimum thickness.
Insulator Material
Preferred material is Polyphenylene sulfide (PPS) per MIL-M-24519 or ASTM D5927 GST 40F. Color Black.
LCP
Liquid Crystal Polymer-Vectra 130 (optional).
Interfacial Seals
Fluorosilicone elastomer per MIL-R-25988. Standard on “M” Series socket face.
Hardware
Stainless Steel, passivated.


ELECTRICAL DATA

ULTI-MATE WIRED MICRO-D HI-TEMP CONNECTORS ELECTRICAL DATA
Contact Resistance
8 mΩ Maximum @ 2.5 A
Current Rating
3.0 A Maximum
Dielectric Withstanding Voltage
900 VAC at sea level, 300 VAC @ 70,000 ft. Solder cups and shielded cable same as
MIL-DTL-83513;
600 VAC at sea level 150VAC @ 70,000 ft.
Insulation Resistance
5,000 MΩ Minimum


MECHANICAL

ULTI-MATE WIRED MICRO-D HI-TEMP CONNECTORS MECHANICAL
Contact Engaging and Separating Forces
6 oz. max per MIL-DTL-83513 (contact average is 3 oz.); Separation force is 5.0 oz. minimum.
Contact Mating and Unmating Forces per MIL-DTL-83513
Mate = 10 oz. X number of contacts maximum. Unmate = 10.5 oz. X number of contacts minimum.
Vibration
No damage or interruption detected (one microsecond sensitivity) when subjected to Method 2005, Test Condition IV of MIL-STD-1344.
Shock
No damage or interruption detected (one microsecond sensitivity) when subjected to Test Condition E. Method 2004 of MIL-STD-1344.
Durability
No mechanical defects after 500 matings; Test criteria are mating force, contact resistance, contact engagement, and separation forces.
Salt Spray
No exposure of base metal or loss of performance after 96 hours for both Nickel and Cadmium plating.
