Amphenol 62GB Series Connectors
MIL-DTL-26482 PERFORMANCE WITHOUT MIS-MATING

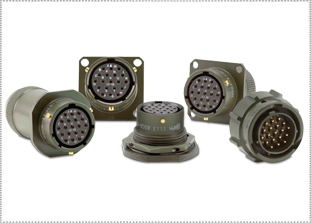

Amphenol’s 62GB series connectors are similar to MIL-DTL-26482 but with the advantage of keyway orientation to reduce mis-mating among multiple connectors. They feature aluminum shells with brass or stainless steel options available. PEI-Genesis is one of the largest assemblers of 62GB connectors in the world. For full product specifications on Amphenol 62GB Series connectors, please see the tables below.
Get shopping! Part numbers begin with 62GB.
|
FEATURESAMPHENOL 62GB SERIES FEATURES
MATERIALS & FINISHESAMPHENOL 62GB SERIES MATERIALS & FINISHES
Shell Aluminum Alloy, Brass, or Stainless Steel
Shell Plating Green Zinc Cobalt, Black Zinc Cobalt, Black Zinc Nickel, Cadmium, Anodized, Electroless Nickel, or Zinc Alloy
Contacts Copper alloy
Contact Platings Gold plate, 50 microinches minimum per MIL-G-45204 type II
Insulator Polychlroprene rubber compound
ELECTRICAL DATAAMPHENOL 62GB SERIES ELECTRICAL DATA
Operating Voltage & Test Voltage per BS9500 F0017, clause 7.1.2 Service Rating Test Altitude Nominal Working Voltage Peak DC or AC Voltage Proof DC or AC - DWV I II III Sea Level 700 1200 1500 2100 3000 3000 I II III 70,000 Feet 330 380 450 660 760 750 * Each insulator layout has a specific “service rating.” The service ratings for each layout are listed here. Current Rating Contact Size Test Current Amps (Working) Potential Drop (Millivolts) Initial Contact Resistance Milliohms (Max.) 20 7.5 <55 10 16 13 <50 10 12 23 <50 10 8 40 <50 10 Wire Range Sizes 24 to 8 AWG
Contact Resistance When tested to MIL-STD-1344 Method 3004, will not exceed voltage drops listed in table above. Consult MIL-DTL-26482, 3.6.4 for details.
Insulation Resistance 5,000 megohms minimum at 77˚F (25˚C)
MECHANICALAMPHENOL 62GB SERIES MECHANICAL
Operating Temperature -67ºF to +257ºF (-55ºC to +125ºC)
Sealing 48 hours in six feet of water per MIL-DTL-26482 4.6.14. Meets 10- and 20-day 50-95% humidity testing per MIL-STD-1344 Method 1002.2 per MIL-DTL-26482.
Insulation O.D. Limits: Inches (MM) Contact Size AWG Wire Size Min. Max. 20 24,22,20 .060 (1.52) .085 (2.16) 16 20, 18, 16 .066 (1.68) .109 (2.77) 12 12,14 .097 (2.46) .142 (3.78) 8 8 .135 (3.43) .145 (3.68) All dimensions in inches (millimeters in parentheses) Insulation Strip Length Contact Size Wire Size Strip Length 20 20-24 .275 (7.0) 16 16-20 .250 (6.4) 12 12-14 .250 (6.4) 8 8-10 .232 (5.9) All dimensions in inches (millimeters in parentheses) Mating Life 500 cycles minimum
Salt Spray 48 hours in mated conditions: 1974, clause 1.2.6.17 Severity 1 tested in mated conditions. The salt spray endurance of 62GB connectors with specific plating deviations could potentially be extended (for example, cadmium plating can withstand 500h, black zinc-nickel 200h exposure to salt spray and stainless steel as much as 2000h), but without testing, the plating on a 62GB connector performance cannot be guaranteed.
Heat +347˚F (+175˚C) for 1000 hours to MIL-STD-1344 Method 1005.1 per MIL-DTL-26482.
Chemical Resistance Immersion in solvents and fluids including aircraft fuels, lubricating oils and hydraulic fluids.
Vibration 10 to 2,000Hz (15g’s) 10 microseconds maximum discontinuity. To MIL-STD-1344 Method 2005 per MIL-DTL-26482.
Shock 100g limit. 11ms duration, three major axes. 10 microseconds maximum discontinuity. To MIL-STD-1344 Method 2004 per MIL-DTL-26482.
Contact Type Solder, crimp, PC
Number of Circuits 2 to 61
Contact Retention To MIL-STD-1344A Method 2007 per MIL-DTL-26482
Contact Size Axial
Load Min. 20 66.7 (15) 16 112 (25) 12 112 (25) 8 178 (40) Polarization Five-keyway, three-point bayonet with optional rotational polarization and keyway positions. For more detail, click here.
All dimensions in inches (millimeters in parentheses) COMPONENTSAMPHENOL 62GB SERIES COMPONENTS
|
|
AMPHENOL 62GB SERIES APPLICATIONS
Industrial, commercial and medical applications where mis-mating or cross-plugging are a concern.
|
|
STEP 1: SHELLAMPHENOL 62GB SERIES EXAMPLE
1 2 3 4 5 62GB-56TG 10-06 P W -416 SHELL STYLE LAYOUT CONTACT ROTATION OR KEYWAY MODIFIER
Click here to download full pdf
STEP 1: SELECT SHELL STYLE, PLUG OR RECEPTACLE
56T
56TG
16A
16E
16F
16J
16P
51T
11A
11E
11F
11J
11P
12E
10A
10E
10F
50T
10J
10P
12H
57A 14E 14F 57T 17P 17H
5030 STYLE CODE A = General-duty thread E = Environmentally-sealed F = Environmentally-sealed with strain relief J = Environmentally-sealed with cable gland seal P = Potting cup T = Barrel/shell assembly with rear threads, no endbell TG = Plug barrel (56 only) with rear threads, no endbell and EMI/RFI grounding fingers STEP 2: LAYOUTSTEP 2: SELECT LAYOUT
Contact Size Orientation º(Degrees) Insert Arrange- Service Rating Total Number of Contacts 20 16 12 8 Normal W X Y Z 08-02 I 2 2 0 58 122 - - 08-03 I 3 3 0 60 210 - - 08-33 I 3 3 0 90 - - - 08-04 I 4 4 0 45 - - - 08-98 I 3 3 0 - - - - 10-02 II 2 2 0 - - - - 10-06 I 6 6 0 90 - - - 10-07 I 7 7 0 - - - - 12-03 II 3 3 0 - - 180 - 12-08 I 8 8 0 90 112 203 292 12-10 I 10 10 0 60 155 270 295 12-14† I 14 14 0 - - - - 14-02 II 2 2 0 - - - - 14-04† I 4 4 0 45 - - - 14-05 II 5 5 0 40 92 184 273 14-12 I 12 8 4 0 43 90 - - 14-15 I 15 14 1 0 17 110 155 234 14-19 I 19 19 0 30 165 315 - 14-22 † III 5 1 4 0 45 - - - 16-04 III 4 4 0 - - - - 16-08 II 8 8 0 54 152 180 331 16-23 I 23 22 1 0 158 270 - - 16-26 I 26 26 0 60 - 275 338 18-11 II 11 11 0 62 119 241 340 18-02 † III 2 2* 0 - - - - 18-32 I 32 32 0 85 138 222 265 20-16 II 16 16 0 238 318 333 347 20-41 I 41 41 0 45 126 225 - 22-04† I 4 4* 0 - - - - 22-55 I 55 55 0 30 142 226 314 24-61 I 61 61 0 90 180 270 32 *Size 8 crimp contact not available † = Grommet not available 10-76 layout available, see separate catalog. Read Less LAYOUTS BY NUMBER OF CONTACTS
CONTACT LEGEND
SERIES LEGEND
Contacts 2 3
Shell Size/Layout 8-2 10-2 14-02 18-02† 08-03 08-33 08-98 12-03 # of Contacts 2-#20 2-#16 2-#12 2-#8* 3-#20 3-#20 3-#20 3-#16 Service Rating I II II III I I I II Series
Contacts 4 5 6
Shell Size/Layout 08-04 14-04 † 16-04 22-04† 14-05 14-22† 10-06 # of Contacts 4-#20 4-#12 4-#12 4-#8 * 5-#16 1-#20, 4-#12 6-#20 Service Rating I I III I II III I Series
Contacts 7 8 10 11 6
Shell Size/Layout 10-07 12-08 16-08 12-10 18-11 14-12 # of Contacts 7-#20 8-#20 8-#16 10-#20 11-#16 8-#20; Service Rating I II II I II II Series
Contacts 14 15 16 19 23
Shell Size/Layout 12-14† 14-15 20-16 14-19 16-23 # of Contacts 14-#20 1-#16; 14-#20 16-#16 19-#20 1-#16; 22-#20 Service Rating I II II I I Series
Contacts 26 32 41 55 61
Shell Size/Layout 16-26 18-32 20-41 22-55 24-61 # of Contacts 26-#20 32-#20 41-#20 55-#20 61-#20 Service Rating I I I I I Series * = Size 8 crimp contact not available † = Grommet not available Read Less STEP 4: ROTATIONSTEP 4: SELECT ROTATION OR KEYWAY
see chart
Normal position with pin contacts Alternative position of insert with socket contacts Alternative position of
insert with pin contacts Shell size 8, E & F AMPHENOL 62GB SERIES CHOOSE KEYWAY ORIENTATIONS
Shell Size † Values for α (Degrees) Values for Θ (Degrees) Values for β (Degrees) Values for Ψ (Degrees) Values for ω (Degrees) 8 N A B C E F 105 92 - - 118 82 35 35 - - 30 50 75 75 - - 100 75 50 50 50 50 30 45 60 47 - - 73 47 10 N A B C D E F 105 95 85 125 115 115 85 35 35 35 35 35 30 50 75 75 75 75 75 100 75 50 50 50 50 50 30 45 60 50 40 80 70 70 50 12 N A B C D E F 105 97 89 121 113 115 85 35 35 35 35 35 30 50 75 75 75 75 75 100 75 50 50 50 50 50 30 45 60 52 44 76 68 70 50 14 N A B C D E F 105 98 91 119 112 75 120 35 35 35 35 35 30 50 75 75 75 75 75 100 75 50 50 50 50 50 30 35 60 53 46 74 67 30 75 16 N A B C D E F 105 99 93 117 111 75 120 35 35 35 35 35 30 50 75 75 75 75 75 100 75 50 50 50 50 50 30 35 60 54 48 72 66 30 75 18 N A B C D E F 105 100 95 115 110 75 120 35 35 35 35 35 30 50 75 75 75 75 75 100 75 50 50 50 50 50 30 35 60 55 50 70 65 30 75 20 N A B C D E F 105 100 95 115 110 75 120 35 35 35 35 35 30 50 75 75 75 75 75 100 75 50 50 50 50 50 30 35 60 55 50 70 65 30 75 22 N A B C D E F 105 101 97 113 109 75 120 35 35 35 35 35 30 50 75 75 75 100 75 75 75 50 50 50 50 50 30 35 60 56 52 68 64 30 75 24 N A B C D E F 105 101 97 113 109 75 120 35 35 35 35 35 30 50 75 75 75 75 75 100 75 50 50 50 50 50 30 35 60 56 52 68 64 30 75 † Keying only. A & D keying inactive for new designs STEP 5: MODIFIERSTEP 5: SELECT MODIFIER
044 = Rough-grip heavy-duty coupling nut (plugs only) 046 = Box-mount plug (for 16 type only) 214 = F-style endbell without wire-sealing grommet 219 = Printed circuit board (12E & 57A only) 297 = Mint-mark date code only 301 = Less contacts 518 = Less coupling nut 760 = Crimp contacts 964 = With grommet, no endbell SCC = Self-closing cap flanged receptables (shell sizes 8, 10, 12 & 18) only. Shell Plating (omit for standard green zinc) (RoHS) 714 = Olive drab chromate over cadmium 416# = Electroless nickel (RoHS) 639 = Clear chromate over cadmium 608 = Black-anodized (RoHS) Non-conductive 771# = Black Zinc Cobalt (RoHS) 62 GBSS = Stainless Steel (Replaces 62GB at front of part no.)(RoHS) 62GBCU = Brass (Replaces 62GB at front of part no.)(RoHS) 62ZN = Black Zinc Nickel (Replaces 62GB at front of part no.)(RoHS) # Most popular |
= 20
= 16
= 12
= 8
= 62GB
= 62GB and
|
AMPHENOL 62GB SERIES CRIMP CONTACTS
PINS
Insertion Tool Extraction Tool Wire Sealing Range Inches (mm) Size Wire Size AWG Pin Wire Strip Lengths Inches (mm) Max. Min. Wire Hole Filler* Hand Crimp Tool Power Crimp Tool ƗƗ Turret Head Use Turret Head Locator Color Metal Insertion Tool Metal Extraction Tool 20 20-24 62-1525 0.314 (8.00) 0.047 (1.19) 0.085 (2.16) MS27488- 20-2 M22520/ 1-01 WA27F M22520/ 1-04 Red 62GB- 20-INS 62GB- 20-EXT 16 16-20 62-1708 .314 (8.00) .066 (1.68) .109 (2.77) MS27488- 16-2 M22520/ 1-01 WA27F M22520/ 1-02 Blue 62GB- 16-INS 62GB- 16-EXT 12 12-14 62-1621 .314 (8.00) .097 (2.46) .142 (3.78) MS27488- 12-2 M22520/ 1-01 WA27F M22520/ 1-02 Yellow 62GB- 12-INS 62GB- 12-EXT SOCKETS
Insertion Tool Extraction Tool Wire Sealing Range Inches (mm) Size Wire Size AWG Socket Wire Strip Lengths Inches (mm) Max. Min. Wire Hole Filler* Hand Crimp Tool Power Crimp Tool ƗƗ Turret Head Use Turret Head Locator Color Metal Insertion Tool Metal Extraction Tool 20 20-24 62-1563 0.314 (8.00) 0.047 (1.19) 0.085 (2.16) MS27488- 20-2 M22520/ 1-01 WA27F M22520/ 1-04 Red M22520/ 1-04 62GB- 20-EXT 16 16-20 62-1698 .314 (8.00) .066 (1.68) .109 (2.77) MS27488- 16-2 M22520/ 1-01 WA27F M22520/ 1-02 Blue 62GB- 16-INS 62GB- 16-EXT 12 12-14 62-1670 .314 (8.00) .097 (2.46) .142 (3.78) MS27488- 12-2 M22520/ 1-01 WA27F M22520/ 1-02 Yellow 62GB- 12-INS 62GB- 12-EXT ƗƗ Contact us for more tool accessories. Note: Size 8 contacts not available in crimp. * Insert head first. Trim off excess. |
|
RECEPTACLESAMPHENOL 62GB SERIES RECEPTACLE STYLES
62GB12E 62GB50T 62GB51T
62GB12/50/51/10/11 62GB12/50 62GB12E 62GB50T/62GB51T Shell Size M ±.005 N ±.001 P ±.005 R (TP) S T L1 KK Dia. Max. L2 L3 B Thread Class 2A Q Max. Sq. 8 0.445 (11.3) 0.473 (12.0) 0.062 (1.6) 0.594 (15.1) 0.817 (20.8) 0.120 (3.0) 0.800 (20.3) .434 (11.0) 0.978 (24.8) 0.978 (24.8) .4375-28 UNEF .817 (20.8) 10 0.445 (11.3) 0.590 (15.0) 0.062 (1.6) 0.719 (18.3) 0.942 (23.9) 0.120 (3.0) 0.800 (20.3) .558 (14.2) 0.978 (24.8) 0.978 (24.8) .5625-24 UNEF .942 (23.9) 12 0.445 (11.3) 0.750 (19.1) 0.062 (1.6) 0.812 (20.6) 1.036 (26.3) 0.120 (3.0) 0.800 (20.3) .683 (17.3) 0.978 (24.8) 0.978 (24.8) .6875-24 UNEF 1.036 (26.3) 14 0.445 (11.3) 0.875 (22.2) 0.062 (1.6) 0.906 (23.0) 1.130 (28.7) 0.120 (3.0) 0.800 (20.3) .808 (20.5) 0.978 (24.8) 0.978 (24.8) .8125-20 UNEF 1.130 (28.7) 16 0.445 (11.3) 1.000 (25.4) 0.062 (1.6) 0.969 (24.6) 1.223 (31.1) 0.120 (3.0) 0.800 (20.3) .933 (23.7) 0.978 (24.8) 0.978 (24.8) .9375-20 UNEF 1.223 (31.0) 18 0.445 (11.3) 1.125 (28.6) 0.062 (1.6) 1.062 (27.0) 1.317 (33.5) 0.120 (3.0) 0.800 (20.3) 1.057 (26.8) 0.978 (24.8) 0.978 (24.8) 1.0625-18 UNEF 1.317 (33.4) 20 0.555 (14.1) 1.250 (31.8) 0.080 (2.0) 1.156 (29.4) 1.442 (36.6) 0.120 (3.0) 0.875 (22.2) 1.182 (30.0) 1.048 (26.6) 1.048 (26.6) 1.1875-18 UNEF 1.442 (36.6) 22 0.555 (14.1) 1.375 (34.9) 0.080 (2.0) 1.250 (31.8) 1.567 (39.8) 0.120 (3.0) 0.875 (22.2) 1.307 (33.2) 1.048 (26.6) 1.048 (26.6) 1.3125-18 UNEF 1.567 (39.8) 24 0.590 (15.0) 1.500 (38.1) 0.080 (2.0) 1.375 (34.9) 1.692 (43.0) 0.147 (3.7) 0.875 (22.2) 1.432 (36.4) 1.048 (26.6) 1.048 (26.6) 1.4375-18 UNEF 1.692 (43.0) See panel cutouts & thickness. AMPHENOL 62GB SERIES RECEPTACLES
PCB Box Mount
62GB12E-219 Shell Size M ±.005 (± 0.13) N +.001 -.055 P R (TP) S T Dia. L1 Max. H Max. H Min. KK Dia. Max. K +/-.001 (0.025) J +/-.020 (0.51) 8 0.445 (11.3) 0.473 (12.0) 0.062 (1.6) 0.594 (15.1) 0.817 (20.8) 0.12 (3.0) 0.982 (24.85) 0.198 (5.03) 0.166 (4.22) 0.434 (11.0) 0.029 (0.73) 0.089 (2.26) 10 0.445 (11.3) 0.590 (15.0) 0.062 (1.6) 0.719 (18.3) 0.992 (23.9) 0.120 (3.0) 0.982 (24.85) 0.198 (5.03) 0.166 (4.22) 0.558 (14.2) 0.029 (0.73) 0.089 (2.26) 12 0.445 (11.3) 0.750 (19.1) 0.062 (1.6) 0.812 (20.6) 1.036 (26.3) 0.120 (3.0) 0.982 (24.85) 0.198 (5.03) 0.166 (4.22) 0.683 (17.3) 0.029 (0.73) 0.089 (2.26) 14 0.445 (11.3) 0.875 (22.2) 0.062 (1.6) 0.906 (23.0) 1.130 (28.7) 0.120 (3.0) 0.982 (24.85) 0.198 (5.03) 0.166 (4.22) 0.808 (20.5) 0.029 (0.73) 0.089 (2.26) 16 0.445 (11.3) 1.000 (25.4) 0.062 (1.6) 0.969 (24.6) 1.223 (31.1) 0.120 (3.0) 0.982 (24.85) 0.198 (5.03) 0.166 (4.22) 0.933 (23.7) 0.029 (0.73) 0.089 (2.26) 18 0.445 (11.3) 1.125 (28.6) 0.062 (1.6) 1.062 (27.0) 1.317 (33.5) 0.120 (3.0) 0.982 (24.85) 0.198 (5.03) 0.166 (4.22) 1.057 (26.8) 0.029 (0.73) 0.089 (2.26) 20 0.555 (14.1) 1.250 (31.8) 0.080 (2.4) 1.156 (29.4) 1.442 (36.6) 0.120 (3.0) 1.057 (26.85) 0.185 (4.70) 0.153 (3.89) 1.182 (30.0) 0.029 (0.73) 0.076 (1.93) 22 0.555 (14.1) 1.375 (34.9) 0.080 (2.4) 1.250 (31.8) 1.567 (39.8) 0.120 (3.0) 1.057 (26.85) 0.185 (4.70) 0.153 (3.89) 1.307 (33.2) 0.029 (0.73) 0.076 (1.93) 24 0.590 (15.0) 1.500 (38.1) 0.080 (2.4) 1.375 (34.9) 1.692 (43.0) 0.147 (3.7) 1.057 (26.85) 0.185 (4.70) 0.153 (3.89) 1.432 (36.4) 0.029 (0.73) 0.076 (1.93) PCB Jam Nut
62GB-57A-219 Shell Size B Thread Class 2A M1 ±.005 (± 0.13) N1 P1 ±.005 (± 0.13) R1 S1 L1 Max. H Min. H Max. D +/-.001 (0.025) 8 .5625-24 UNEF 0.706 (17.9) 0.473 (12.0) 0.117 (3.0) 0.750 (19.1) 0.942 (23.9) 0.976 (24.79) 0.133 (3.38) 0.173 (4.40) 0.029 (0.73) 10 .6875-24 UNEF 0.706 (17.9) 0.590 (15.0) 0.117 (3.0) 0.875 (22.2) 1.067 (27.1) 0.976 (24.79) 0.133 (3.38) 0.173 (4.40) 0.029 (0.73) 12 .8750-20 UNEF 0.706 (17.9) 0.750 (19.1) 0.117 (3.0) 1.062 (27.0) 1.255 (31.9) 0.976 (24.79) 0.133 (3.38) 0.173 (4.40) 0.029 (0.73) 14 1.0000-20 UNEF 0.706 (17.9) 0.875 (22.2) 0.117 (3.0) 1.187 (30.1) 1.380 (35.1) 0.976 (24.79) 0.133 (3.38) 0.173 (4.40) 0.029 (0.73) 16 1.1250-18 UNEF 0.706 (17.9) 1.000 (25.4) 0.117 (3.0) 1.312 (33.3) 1.505 (38.2) 0.976 (24.79) 0.133 (3.38) 0.173 (4.40) 0.029 (0.73) 18 1.2500-18 UNEF 0.706 (17.9) 1.125 (28.6) 0.117 (3.0) 1.437 (36.5) 1.630 (41.4) 0.976 (24.79) 0.133 (3.38) 0.173 (4.40) 0.029 (0.73) 20 1.3750-18 UNEF 0.894 (22.7) 1.250 (31.8) 0.148 (3.8) 1.562 (39.7) 1.817 (46.2) 1.195 (30.35) 0.133 (3.38) 0.173 (4.40) 0.029 (0.73) 22 1.5000-18 UNEF 0.894 (22.7) 1.375 (34.9) 0.148 (3.8) 1.687 (42.8) 1.942 (49.3) 1.195 (30.35) 0.133 (3.38) 0.173 (4.40) 0.029 (0.73) 24 1.6250-18 UNEF 0.927 (23.5) 1.500 (38.1) 0.148 (3.8) 1.812 (46.0) 2.067 (52.5) 1.228 (31.19) 0.133 (3.38) 0.173 (4.40) 0.029 (0.73) AMPHENOL 62GB SERIES JAM NUT RECEPTACLES
62GB 62GB57A 62GB57/62GB17P 62GB57A Panel Thickness Shell Size B Thread Class 2A M ±.005 N P ±.005 R S J Min. J Max. L Max. 8 .5625-24 UNEF 0.706 (17.9) 0.473 (12.0) 0.117 (3.0) 0.75 (19.1) 0.942 (23.9) 0.062 (1.6) 0.125 (3.2) 0.823 (20.9) 10 .6875-24 UNEF 0.706 (17.9) 0.590 (15.0) 0.117 (3.0) 0.875 (22.2) 1.067 (27.1) 0.062 (1.6) 0.125 (3.2) 0.823 (20.9) 12 .8750-20 UNEF 0.706 (17.9) 0.750 (19.1) 0.117 (3.0) 1.062 (27.0) 1.255 (31.9) 0.062 (1.6) 0.125 (3.2) 0.823 (20.9) 14 1.0000-20 UNEF 0.706 (17.9) 0.875 (22.2) 0.117 (3.0) 1.187 (30.1) 1.380 (35.1) 0.062 (1.6) 0.125 (3.2) 0.823 (20.9) 16 1.1250-18 UNEF 0.706 (17.9) 1.000 (25.4) 0.117 (3.0) 1.312 (33.3) 1.505 (38.2) 0.062 (1.6) 0.125 (3.2) 0.823 (20.9) 18 1.2500-18 UNEF 0.706 (17.9) 1.125 (28.6) 0.117 (3.0) 1.437 (36.5) 1.630 (41.4) 0.062 (1.6) 0.125 (3.2) 0.823 (20.9) 20 1.3750-18 UNEF 0.894 (22.7) 1.250 (31.8) 0.148 (3.8) 1.562 (39.7) 1.817 (46.2) 0.062 (1.6) 0.250 (6.4) 1.042 (26.5) 22 1.5000-18 UNEF 0.894 (22.7) 1.375 (34.9) 0.148 (3.8) 1.687 (42.8) 1.942 (49.3) 0.062 (1.6) 0.250 (6.4) 1.042 (26.5) 24 1.6250-18 UNEF 0.927 (23.5) 1.500 (38.1) 0.148 (3.8) 1.812 (46.0) 2.067 (52.5) 0.062 (1.6) 0.250 (6.4) 1.075 (27.3) 62GB57T 62GB14E 62GB14F 62GB57T 62GB14E 62GB14F 62GB17P Shell Size L1 Max. F Thread Class 2A L2 Max. F1 Min. G ±.005 L3 F2 L4 8 0.978 (24.8) .4375-28 UNEF 1.344 (34.1) 0.240 0.156 1.762 (44.8) 0.260 1.391 10 0.978 .5625-24 UNEF 1.344 0.302 0.188 1.762 0.463 1.391 12 0.978 .6875-24 UNEF 1.344 0.428 0.312 1.762 0.577 1.391 14 0.978 .8125-20 UNEF 1.344 0.552 0.375 1.762 0.590 1.391 16 0.978 .9375-20 UNEF 1.344 0.615 0.500 1.876 0.713 1.391 18 0.978 1.0625-18 UNEF 1.344 0.740 0.625 1.876 0.835 1.391 20 1.048 1.1875-18 UNEF 1.576 (40.0) 0.740 0.625 2.118 1.015 1.641 22 1.048 1.3125-18 UNEF 1.576 0.928 0.750 2.118 1.015 1.641 24 1.048 1.4375-18 UNEF 1.609 0.990 0.800 2.250 1.265 1.674 All dimensions in inches (millimeters in parentheses) ENDBELL STYLESAMPHENOL 62GB SERIES ENDBELL STYLES
62GB10A 62GB10E 62GB10F 62GB10P 62GB10J 62GB10A/11A 62GB10E/11E 62GB10F/11F 62GB10P/11P 62GB10J/11J F1 L1 KK1 Dia. Max. B1 Thread Class 2A L2 KK2 Dia. Max. F3 G3 L3 F4 L4 L5 XX Min. XX Max. 0.297 (7.5) 1.624 (41.2) 0.561 (14.2) .5000-28 UNEF 1.281 (32.5) 0.561 (14.2) 0.240 (6.1) 0.156 (4.0) 1.762 (44.8) 0.260 (6.6) 1.453 (36.9) 1.846 (46.9) 0.168 (4.3) 0.230 (5.8) 0.421 (10.7) 1.624 (41.2) 0.686 (17.4) .6250-24 UNEF 1.281 (32.5) 0.686 (17.4) 0.302 (7.7) 0.188 (4.8) 1.762 (44.8) 0.463 (11.8) 1.453 (36.9) 1.846 (46.9) 0.205 (5.2) 0.312 (7.9) 0.546 (13.9) 1.624 (41.2) 0.811 (20.6) .7500-20 UNEF 1.281 (32.5) 0.811 (20.6) 0.428 (10.9) 0.312 (7.9) 1.762 (44.8) 0.577 (14.7) 1.453 (36.9) 1.947 (49.5) 0.338 (8.6) 0.442 (11.2) 0.663 (16.8) 1.624 (41.2) 0.936 (23.8) .8750-20 UNEF 1.281 (32.5) 0.936 (23.8) 0.552 (14.0) 0.375 (9.5) 1.736 (44.1) 0.590 (15.0) 1.453 (36.9) 2.147 (54.5) 0.416 (10.6) 0.539 (13.7) 0.787 (20.0) 1.624 (41.2) 1.061 (26.9) 1.0000-20 UNEF 1.281 (32.5) 1.061 (26.9) 0.615 (15.6) 0.500 (12.7) 1.876 (47.7) 0.713 (18.1) 1.453 (36.9) 2.347 (59.6) 0.550 (14.0) 0.616 (15.6) 0.879 (22.3) 1.624 (41.2) 1.186 (30.1) 1.1875-18 UNEF 1.281 (32.5) 1.186 (30.1) 0.740 (18.8) 0.625 (15.9) 1.876 (47.7) 0.835 (21.2) 1.453 (36.9) 2.547 (64.7) 0.600 (15.2) 0.672 (17.1) 1.014 (25.8) 1.687 (42.8) 1.311 (33.3) 1.1875-18 UNEF 1.383 (35.1) 1.311 (33.3) 0.740 (18.8) 0.625 (15.9) 2.118 (53.8) 1.015 (25.8) 1.672 (42.5) 2.831 (71.9) 0.635 (16.1) 0.747 (19.0) 1.134 (28.8) 1.687 (42.8) 1.436 (36.5) 1.4375-18 UNEF 1.383 (35.1) 1.436 (36.5) 0.928 (23.6) 0.750 (19.1) 2.118 (53.8) 1.015 (25.8) 1.672 (42.5) 3.031 (77.0) 0.670 (17.0) 0.846 (21.5) 1.259 (32.0) 1.730 (43.9) 1.561 (39.6) 1.4375-18 UNEF 1.383 (35.1) 1.561 (39.6) 0.990 (25.1) 0.800 (20.3) 2.250 (57.2) 1.265 (32.1) 1.734 (44.0) 3.074 (78.1) 0.740 (18.8) 0.894 (22.7) All dimensions in inches (millimeters in parentheses) STRAIGHT PLUGAMPHENOL 62GB SERIES STRAIGHT PLUG
62GB56T/62GB56TG 62GB16A 62GB16E 62GB56T/62GB56TG 62GB16A 62GB16E Shell Size Q1 Max. Q2 L1 Max. B Thread Class 2A F L2 B2 Thread Class 2A L3 K Max. 8 0.750 (19.1) 0.865 (22.0) 0.976 (24.8) .4375-28 UNEF 0.297 (7.5) 1.614 (41.0) .5000-28 UNEF 1.281 (32.5) 0.561 (14.2) 10 0.859 (21.8) 0.986 (25.0) 0.976 (24.8) .5625-24 UNEF 0.421 (10.7) 1.614 (41.0) .6250-24 UNEF 1.281 (32.5) 0.686 (17.4) 12 1.013 (25.7) 1.137 (28.88) 0.976 (24.8) .6875-24 UNEF 0.546 (13.9) 1.614 (41.0) .7500-20 UNEF 1.281 (32.5) 0.811 (20.6) 14 1.262 (32.1) 1.156 (29.4) 0.976 (24.8) .8125-20 UNEF 0.663 (16.8) 1.614 (41.0) .8750-20 UNEF 1.281 (32.5) 0.936 (23.8) 16 1.281 (32.5) 1.396 (35.5) 0.976 (24.8) .9375-20 UNEF 0.787 (20.0) 1.614 (41.0) 1.0000-20 UNEF 1.281 (32.5) 1.061 (26.9) 18 1.319 (33.5) 1.500 (38.1) 0.976 (24.8) 1.0625-18 UNEF 0.879 (22.3) 1.614 (41.0) 1.1875-18 UNEF 1.281 (32.5) 1.186 (30.1) 20 1.531 (38.9) 1.646 (41.8) 0.976 (24.8) 1.1875-18 UNEF 1.014 (25.8) 1.614 (41.0) 1.1875-18 UNEF 1.281 (32.5) 1.311 (33.3) 22 1.656 (42.1) 1.771 (44.98) 0.976 (24.8) 1.3125-18 UNEF 1.134 (28.8) 1.614 (41.0) 1.4375-18 UNEF 1.281 (32.5) 1.436 (36.5) 24 1.777 (45.1) 1.892 (48.06) 0.976 (24.8) 1.4375-18 UNEF 1.259 (32.0) 1.658 (42.1) 1.4375-18 UNEF 1.281 (32.5) 1.561 (39.6) 62GB16F 62GB16P 62GB16J 62GB16F 62GB16P 62GB16J Shell Size F2 G L4 F L1 L2 Cable OD Cable OD 8 0.240 (6.1) 0.156 (4.0) 1.752 (44.5) 0.260 (6.6) 1.306 (33.2) 1.836 (46.6) 0.168 (4.3) 0.230 (5.8) 10 0.302 (7.7) 0.188 (4.8) 1.752 (44.5) 0.463 (11.8) 1.415 (35.9) 1.836 (46.6) 0.205 (5.2) 0.312 (7.9) 12 0.428 (10.9) 0.312 (7.9) 1.752 (44.5) 0.557 (14.1) 1.384 (35.2) 1.937 (49.2) 0.338 (8.6) 0.442 (11.2) 14 0.552 (14.0) 0.375 (9.5) 1.726 (43.8) 0.590 (15.0) 1.384 (35.2) 2.137 (54.3) 0.416 (10.6) 0.539 (13.7) 16 0.615 (15.6) 0.500 (12.7) 1.866 (47.4) 0.713 (18.1) 1.384 (35.2) 2.337 (59.4) 0.550 (14.0) 0.616 (15.6) 18 0.740 (18.8) 0.625 (15.9) 1.866 (47.4) 0.835 (21.2) 1.384 (35.2) 2.537 (64.4) 0.600 (15.2) 0.672 (17.1) 20 0.740 (18.8) 0.625 (15.9) 2.040 (51.8) 1.015 (25.8) 1.539 (39.1) 2.758 (70.1) 0.635 (16.1) 0.747 (19.0) 22 0.928 (23.6) 0.750 (19.1) 2.040 (51.8) 1.015 (25.8) 1.539 (39.1) 2.958 (75.1) 0.670 (17.0) 0.846 (21.5) 24 0.990 (25.1) 0.800 (20.3) 2.178 (55.3) 1.265 (32.1) 1.602 (40.7) 3.002 (76.3) 0.740 (18.8) 0.894 (22.7) All dimensions in inches (millimeters in parentheses) PANEL CUTOUT & THICKNESSAMPHENOL 62GB SERIES 62GB12E, 62GB50T, 62GB10
62GB12E Shell Size B Front Mount A P ±.005 Screw Size Panel Thickness 8 0.449 0.594 0.125 #4 0.087 10 0.573 0.719 0.125 #4 0.087 12 0.699 0.812 0.125 #4 0.087 14 0.823 0.906 0.125 #4 0.087 16 0.949 0.969 0.125 #4 0.087 18 1.073 1.062 0.125 #4 0.087 20 1.199 1.156 0.125 #4 0.212 22 1.323 1.250 0.125 #4 0.212 24 1.449 1.375 0.155 #6 0.212 AMPHENOL 62GB SERIES 62GB17P
62GB17P Panel Thickness Shell Size A1 +010-.000 (+.25-.00) B1 +.000-.010 (+.00-.25) Min. Max. 8 0.572 (14.5) 0.542 (13.8) 0.062 (1.6) 0.125 (3.2) 10 0.697 (17.7) 0.669 (17.0) 0.062 (1.6) 0.125 (3.2) 12 0.884 (22.5) 0.830 (21.1) 0.062 (1.6) 0.125 (3.2) 14 1.007 (25.6) 0.955 (24.3) 0.062 (1.6) 0.125 (3.2) 16 1.134 (28.8) 1.084 (27.5) 0.062 (1.6) 0.125 (3.2) 18 1.259 (32.0) 1.208 (30.7) 0.062 (1.6) 0.125 (3.2) 20 1.384 (35.2) 1.333 (33.9) 0.062 (1.6) 0.250 (6.4) 22 1.507 (38.3) 1.459 (37.1) 0.062 (1.6) 0.250 (6.4) All dimensions in inches (millimeters in parentheses) |
|
AMPHENOL 62GB SERIES ACCESSORIES - ENDBELLS OR TYPE T CONNECTORS
62GB Grommet Kits Shielded Gland Seal Endbells (Screened) Size Shell E Endbell F Endbell Right Angle Endbell Straight 75 Degree 8 62GB-584-08-XXP or S** 62GB-585-08-XXP or S** 62GB-711-08-XXP or S** 62GB-587-08-XXP or S** 62GB-5028-08-XXP or S** 10 62GB-584-10-XXP or S** 62GB-585-10-XXP or S** 62GB-711-10-XXP or S** 62GB-587-10-XXP or S** 62GB-5028-10-XXP or S** 12 62GB-584-12-XXP or S** 62GB-585-12-XXP or S** 62GB-711-12-XXP or S** 62GB-587-12-XXP or S** 62GB-5028-12-XXP or S** 14 62GB-584-14-XXP or S** 62GB-585-14-XXP or S** 62GB-711-14-XXP or S** 62GB-587-14-XXP or S** 62GB-5028-14-XXP or S** 16 62GB-584-16-XXP or S** 62GB-585-16-XXP or S** 62GB-711-16-XXP or S** 62GB-587-16-XXP or S** 62GB-5028-16-XXP or S** 18 62GB-584-18-XXP or S** 62GB-585-18-XXP or S** 62GB-711-18-XXP or S** - - 20 62GB-584-20-XXP or S** 62GB-585-20-XXP or S** 62GB-711-20-XXP or S** 62GB-587-20-XXP or S** 62GB-5028-20-XXP or S** 22 62GB-584-22-XXP or S** 62GB-585-22-XXP or S** 62GB-711-22-XXP or S** 62GB-587-22-XXP or S** - 24 62GB-584-24-XXP or S** 62GB-585-24-XXP or S** 62GB-711-24-XXP or S** 62GB-587-24-XXP or S** 62GB-5028-24-XXP or S** XX - Insert layout. Add -214 for endbells where no grommet is available. Example: 62GB-585-12-14P-214
62GB Endbell Kits Gland Seal Endbell/Grommet Kit Shell Size A Endbell Potting Cup J Endbell Shielded (Screened) AIA-5001 Cable Exit Max. Spring 8 62GB-776-08** 62GB-586-08 62GB-720-08** 62GB-1225-08** AIA5001-08- 00-00-10-AA** .255 (6.48) HE050 10 62GB-776-10** 62GB-586-10 62GB-720-10** 62GB-1225-10** AIA5001-10- 00-00-10-AA-** .317 (8.05) HE100 12 62GB-776-12** 62GB-586-12 62GB-720-12** 62GB-1225-12** AIA5001-12- 00-00-10-AA-** .443 (11.25) HE200 14 62GB-776-14** 62GB-586-14 62GB-720-14** 62GB-1225-14** AIA5001-14- 00-00-10-AA-** .505 (12.53) HE200 16 62GB-776-16** 62GB-586-16 62GB-720-16** - AIA5001-16- 00-00-10-AA-** .630 (16.00) HE200 18 62GB-776-18** 62GB-586-18 62GB-720-18** - AIA5001-18- 00-00-10-AA-** .755 (19.18) HE300 20 62GB-776-20** 62GB-586-20 62GB-720-20** - AIA5001-20- 00-00-10-AA-** .881 (22.38) HE300 22 62GB-776-22** 62GB-586-22 62GB-720-22** - AIA5001-22-00-00-10-AA-** 1.006 (25.55) HE300 24 62GB-776-24** 62GB-586-24 62GB-720-24** - AIA5001-24-00-00-10-AA-** 1.006 (25.55) HE300 ** = Plating Code (default) = Green Zinc Cobalt (RoHS) 771 = Black Zinc Cobalt (RoHS) 714 = Olive Drab Chromate over Cadmium 416 = Electroless Nickel (RoHS) 608 = Black-Anodized (RoHS) 62ZN = Black Zinc Nickel (Replaces 62GB at front of part no.)(RoHS) 62GBSS = Stainless Steel (Replaces 62GB at front of part no.)( (RoHS) 62GBCU = Brass (Replaces 62GB at front of part no.)(RoHS) Other diameters available. Please contact us for more details. Please contact us for heat shrink boot. AMPHENOL 62GB SERIES ACCESSORIES - DUST CAPS

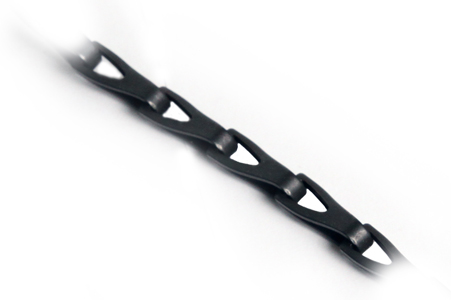

Cap Styles Lanyard Types
Standard Heavy Duty Sash Chain Polyester Cord Receptacles Shell Size Cap Style Lanyard Type Plugs Flanged Jam Nut In-Line Lanyard Length 8 Standard Arctic Grip Standard Arctic Grip Cord Chain 62GB-810-08-XXX* 62GB-1069-08-XXX 62GB-742-08-XXX 62GB-998-08-XXX 62GB-812-08-XXX* 62GB-1070-08-XXX 62GB-738-08-XXX Not Available 62GB-813-08-XXX* Not Available 62GB-736-08-XXX 62GB-997-08-XXX 62GB-814-08-XXX Not Available 62GB-737-08-XXX Not Available 3.00 (76.2) 10 Standard Arctic Grip Standard Arctic Grip Cord Chain 62GB-810-10-XXX* 62GB-1069-10-XXX 62GB-742-10-XXX 62GB-998-10-XXX 62GB-812-10-XXX* 62GB-1070-10-XXX 62GB-738-10-XXX Not Available 62GB-813-10-XXX* Not Available 62GB-736-10-XXX 62GB-997-10-XXX 62GB-814-10-XXX Not Available 62GB-737-10-XXX Not Available 3.00 (76.2) 12 Standard Arctic Grip Standard Arctic Grip Cord Chain 62GB-810-12-XXX* 62GB-1069-12-XXX 62GB-742-12-XXX 62GB-998-12-XXX 62GB-812-12-XXX* 62GB-1070-12-XXX 62GB-738-12-XXX Not Available 62GB-813-12-XXX* Not Available 62GB-736-12-XXX 62GB-997-12-XXX 62GB-814-12-XXX Not Available 62GB-737-12-XXX Not Available 3.50 (88.9) 14 Standard Arctic Grip Standard Arctic Grip Cord Chain 62GB-810-14-XXX* 62GB-1069-14-XXX 62GB-742-14-XXX 62GB-998-14-XXX 62GB-812-14-XXX* 62GB-1070-14-XXX 62GB-738-14-XXX Not Available 62GB-813-14-XXX* Not Available 62GB-736-14-XXX 62GB-997-14-XXX 62GB-814-14-XXX Not Available 62GB-737-14-XXX Not Available 3.50 (88.9) 16 Standard Arctic Grip Standard Arctic Grip Cord Chain 62GB-810-16-XXX* 62GB-1069-16-XXX 62GB-742-16-XXX 62GB-998-16-XXX 62GB-812-16-XXX* 62GB-1070-16-XXX 62GB-738-16-XXX Not Available 62GB-813-16-XXX* Not Available 62GB-736-16-XXX 62GB-997-16-XXX 62GB-814-16-XXX Not Available 62GB-737-16-XXX Not Available 3.50 (88.9) 18 Standard Arctic Grip Standard Arctic Grip Cord Chain 62GB-810-18-XXX* 62GB-1069-18-XXX 62GB-742-18-XXX 62GB-998-18-XXX 62GB-812-18-XXX* 62GB-1070-18-XXX 62GB-738-18-XXX Not Available 62GB-813-18-XXX* Not Available 62GB-736-18-XXX 62GB-997-18-XXX 62GB-814-18-XXX Not Available 62GB-737-18-XXX Not Available 3.50 (88.9) 20 Standard Arctic Grip Standard Arctic Grip Cord Chain 62GB-810-20-XXX* 62GB-1069-20-XXX 62GB-742-20-XXX 62GB-998-20-XXX 62GB-812-20-XXX* 62GB-1070-20-XXX 62GB-738-20-XXX Not Available 62GB-813-20-XXX* Not Available 62GB-736-20-XXX 62GB-997-20-XXX 62GB-814-20-XXX Not Available 62GB-737-20-XXX Not Available 4.00 (101.6) 22 Standard Arctic Grip Standard Arctic Grip Cord Chain 62GB-810-22-XXX* 62GB-1069-22-XXX 62GB-742-22-XXX 62GB-998-22-XXX 62GB-812-22-XXX* 62GB-1070-22-XXX 62GB-738-22-XXX Not Available 62GB-813-22-XXX* Not Available 62GB-736-22-XXX 62GB-997-22-XXX 62GB-814-22-XXX Not Available 62GB-737-22-XXX Not Available 4.00 (101.6) 24 Standard Arctic Grip Standard Arctic Grip Cord Chain 62GB-810-24-XXX* 62GB-1069-24-XXX 62GB-742-24-XXX 62GB-998-24-XXX 62GB-812-24-XXX* 62GB-1070-24-XXX 62GB-738-24-XXX Not Available 62GB-813-24-XXX* Not Available 62GB-736-24-XXX 62GB-997-24-XXX 62GB-814-24-XXX Not Available 62GB-737-24-XXX Not Available 4.00 (101.6)
For modified lanyard lengths please use codes below *Standard option most likely to be stocked Modification codes: XXX = Plating codes Omit = Green Zinc Cobalt (RoHS) 416 = Electroless Nickel (RoHS) 608 = Black Anodised (RoHS) 714 = Olive Drab Chromate over Cadmium 771 = Black Zinc Cobalt 62ZN = Black Zinc Nickel (Replaces 62GB at front of part no.) 62GBCU = Brass (Replaces 62GB at front of part no.) 62GBSS = Stainless Steel (Replaces 62GB at front of part no.) Lanyard length codes 1054 = No Lanyard 1057 = 3" lanyard length 1058 = 4" lanyard length 1059 = 5" lanyard length 1060 = 6" lanyard length 1062 = 8" lanyard length 1064 = 10" lanyard length AMPHENOL 62GB SERIES ACCESSORIES - GASKET
Shell Size Gasket 8 62GB-760-08 10 62GB-760-10 12 62GB-760-12 14 62GB-760-14 16 62GB-760-16 18 62GB-760-18 20 62GB-760-20 22 62GB-760-22 24 62GB-760-24 Material: Polychoroprene Thickness: .029 (.74) +/-0.13 (.33) |
|
SOLDER ASSEMBLYAMPHENOL 62GB SERIES SOLDER ASSEMBLY

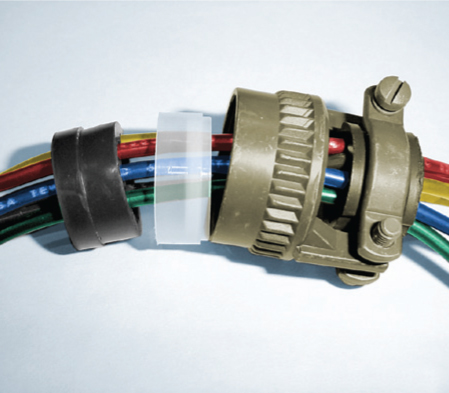

STEP 1: Slide the back-end accessories over the wire bundle in the proper sequence for reassembly: cable clamp and/or endbell first, then ferrule/follower and coupling nut (if used). STEP 2: Pre-tin the wire ends and insert the individual wires through the proper holes in the grommet. STEP 3: Solder the wires to the appropriate contacts on the rear of the connector.

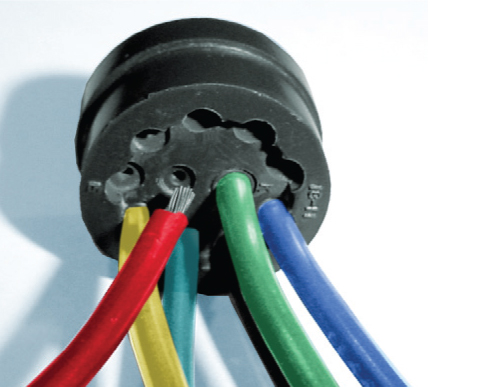

STEP 4: Place the connector in the fixture for reassembly using the endbell assembly tool or a mating connector with the contacts installed. STEP 5: Slide the grommet down the wires – lubricating the grommet with isopropyl alcohol will help. STEP 6: Fill each unused cavity in the grommet with a wire hole filler to maintain the sealing integrity of the connector. STEP 7: Slide ferrule and endbell accessories over the rear of the connector and tighten. CRIMP TOOL OPERATIONAMPHENOL 62GB SERIES CRIMP TOOL OPERATION
NOTE: Hand-crimp tools can be used with size 20, 16 and 12 contacts.

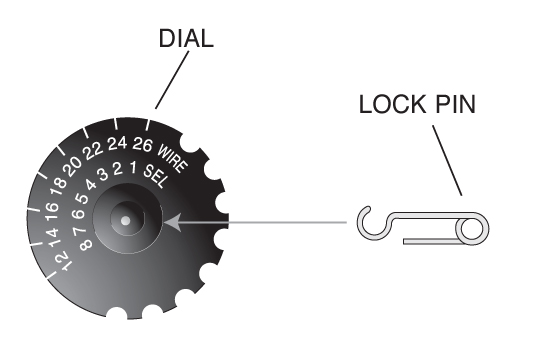

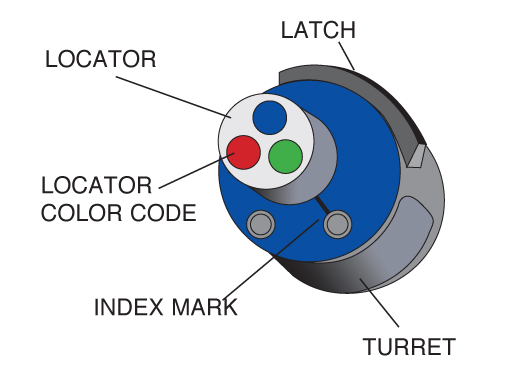

STEP 1: Strip the wires to the appropriate length. See strip lengths on the Contact Selection Guide. STEP 2: Open the crimp tool by squeezing the handles. Push the latch on the turret to release the locator. Attach the turret to the crimp tool using the two captive hex bolts in the turret. STEP 3: Select the proper locator position for your contact by rotating the locator until the proper color is aligned with the index mark. Push locator down until it snaps into position. Contact Size Color 20 Red 16 Blue 12 Yellow STEP 4: Adjust dial for proper wire gauge. To change the dial setting, remove the lock pin and lift center of dial. Turn to the desired wire gauge. Replace lock pin on dial.

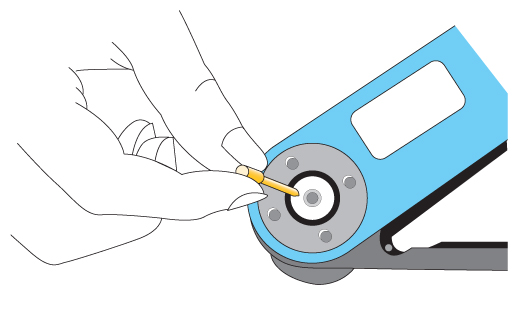

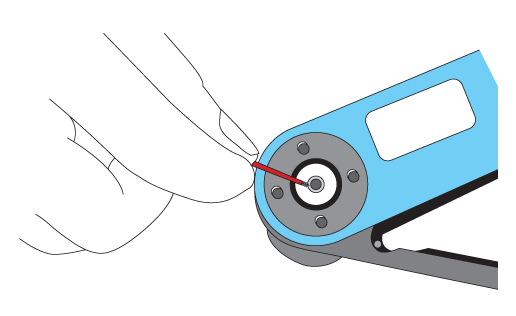

STEP 5: Cycle the tool before inserting the contact to be sure the tool is in the open position. Drop the contact, mating end first, into the crimp cavity of the tool. Squeeze the tool handle just enough to grip the contact without actually crimping it. STEP 6: Insert the stripped wire into the contact with a slight twisting motion. Be sure all wire strands are inside the contact. Squeeze the handle to cycle the tool. The handle will not release until the contact is completely crimped. STEP 7: Remove the crimped contact. Pull on the wire slightly to be sure it is properly crimped. Be sure the contact is not bent or damaged in any way. Visually inspect the crimp. CONTACT INSERTIONAMPHENOL 62GB SERIES CONTACT INSERTION

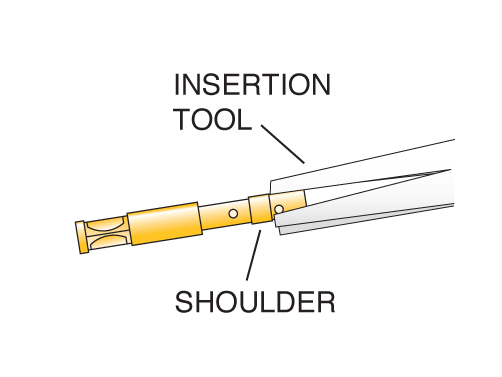

STEP 1: Slide the rear accessories over the wire bundle in the proper sequence for re-assembly: cable clamp and/or endbell first, then ferrule, and coupling nut. STEP 2: Use the proper insertion tool from the Contact Selection Chart. Place the contact in the tool. The tool should press against the shoulder of the contact. Contact sizes 20, 16, and 12 use a pliers-style tool. STEP 3: Lubricate the grommet with isopropyl alcohol (do not use any lubricant other than isopropyl alcohol). Insert the contact through the appropriate cavity in the grommet. STEP 4: Place the connector into an assembly fixture (fixtures are available for production use, contact us for information.)

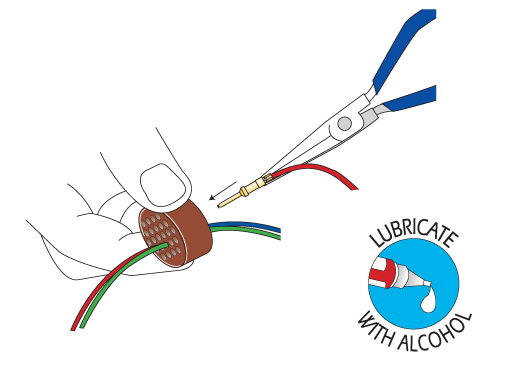

STEP 5: Lubricate the contact cavities of the connector insulator with isopropyl alcohol (do not use any other type of lubricant). STEP 6: Using guide pins where necessary, push straight down with a firm, even pressure until the contact snaps into position in the proper cavity. Start at the center of the pattern and work toward the outer edges. STEP 7: Fill any unused cavities with contacts.

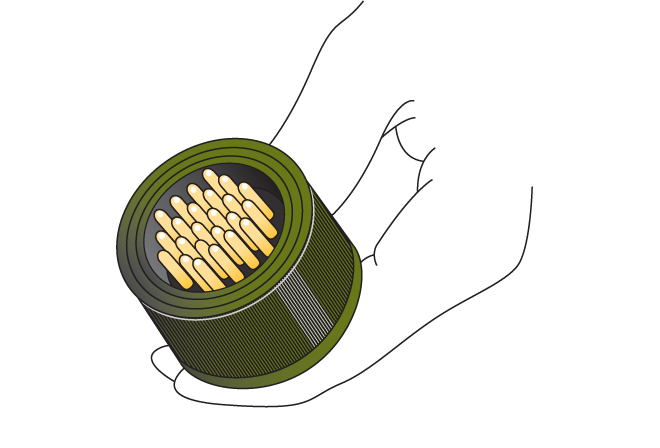

STEP 8: Check the mating face of the connector to ensure that all the same-sized contacts are on the same plane (fully inserted); If not, the contact is not fully inserted. Remove the contact using the proper extraction tool and procedure and reinsert. Do not attempt to reinsert the insertion tool to correct the problem. STEP 9: A wire hole filler must be inserted into the grommet behind the unused contacts to maintain the sealing integrity of the connector. See the Contact Selection Chart for wire hole fillers. STEP 10: Place the connector back in the fixture for re-assembly. Slide the connector accessories down the cable over the rear of the connector and tighten. Use the appropriate endbell tools. CONTACT EXTRACTIONAMPHENOL 62GB SERIES CONTACT EXTRACTION

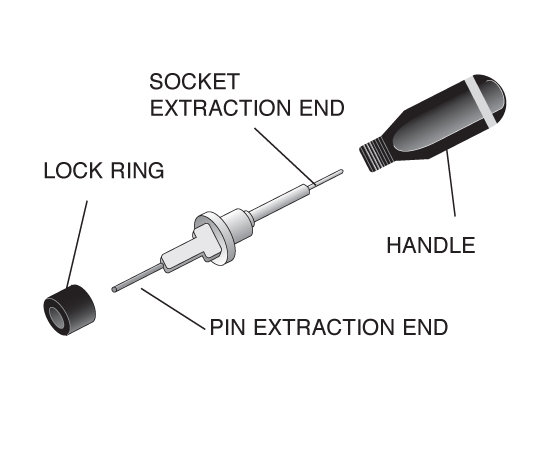

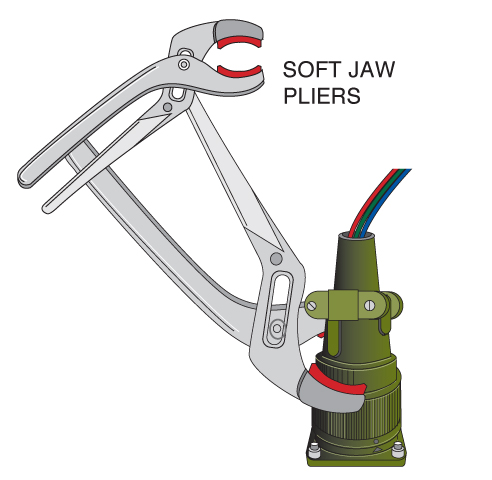

STEP 1: Remove the endbell accessories and slide them back over the wires. Use the appropriate endbell tools. STEP 2: Use the proper extraction tool from the Contact Selection Chart. The extraction tool can be used for both pin and socket contacts by removing the shaft from the handle and reversing it for pin or socket extraction. STEP 3: On the mating face of the connector, insert the tool over the pin contact or into the socket contact until the tool reaches bottom. Apply a slow, continuous pressure to push the contact through the rear of the connector. When the shoulder of the tool hits against the insulator, the contact is extracted. STEP 4: Carefully remove the extraction tool from the connector to avoid damage to the insulator. |
