Amphenol RJF RB Connectors
NO HAZARDOUS ON-FIELD CABLING AND GROUNDING
Amphenol RJF RB series connectors allow for the use of an Ethernet Class D/ CAT5e and Class E/CAT6 connection for Ethernet over twisted-pair networks in harsh environments. The Amphenol RJF RB series are plastic circular connectors with reverse tri-start threading coupling systems. These Amphenol RJF connectors are excellent for harsh conditions – the Amphenol RJ Field RB series’ RJStop® connection system protects from shock, dust and fluid. No hazardous on-field cabling and grounding required!
FEATURESAMPHENOL RJF RB SERIES CONNECTORS MAIN CHARACTERISTICS
AMPHENOL RJF RB SERIES CONNECTORS ENVIRONMENTAL PROTECTION
AMPHENOL RJF RB SERIES CONNECTORS DATA TRANSMISSION
TECH SPECSAMPHENOL RJF RB SERIES CONNECTORS TECH SPECS Series Shape Coupling System Material Data Type Number of possible Codings (polari-zations) RoHS Options
Available Mating Cycles RJF RB Circular Reverse bayonet Plastic CAT5e & CAT6 1 Yes 500 min. |
AMPHENOL RJF RB SERIES CONNECTORS APPLICATIONS
|
AMPHENOL RJF RB SERIES CONNECTORS SELECT PART NUMBER
Plug Receptacles Dustcaps Plug Jam Nut Straight Jam Nut IDC CAT6 IDC CAT6 IDC CAT6 Cordset Dustcap for Receptacle Types 71X & 72X Dustcap for Receptacle Type 73X RJFRB6 RJFRB71 RJFRB71RA RJFRB73U RJFRB73F RJFRB73S RJFRB72** RJFRBC7 RJFRBC75 ** Select for cordset length 03 = 11.81 (0.30M) 05 = 19.68 (0.50M) 10 = 39.37 (1.00M) 15 = 59.05 (1.50M) PCB available, please contact us. All dimensions in inches (millimeters in parentheses) |
RECEPTACLESAMPHENOL RJF RB SERIES CONNECTORS RJF RB 71

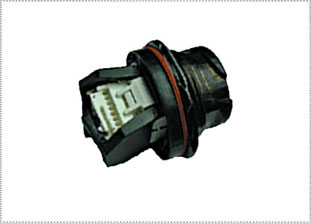

RJ45 Female Receptacle. AMPHENOL RJF RB SERIES CONNECTORS RJF RB 71 RA
RJ45 Right Angle Female Receptacle. AMPHENOL RJF RB SERIES CONNECTORS RJF RB 72XX 100BTX
RJ45 Cordset AMPHENOL RJF RB SERIES CONNECTORS RJF RB 73X
IDC CAT6 Termination (Rear Mount) AMPHENOL RJF RB SERIES CONNECTORS COMMON RECEPTACLE
DIMENSIONS
|
IP68 DUST CAPS
AMPHENOL RJF RB SERIES CONNECTORS
RJF RB C7 Cap for receptacles RJFRB71 / 71RA / 72xxx Cord length 2.76” (70.0)
AMPHENOL RJF RB SERIES CONNECTORS
RJF RB C75 Cap for receptacles RJFRB73x Cord length 3.93” (100.0) All dimensions in inches (millimeters in parentheses) CAT5EAMPHENOL RJF RB SERIES CABLE CAT5e
General construction: A four-pair, 24 AWG, 100 Ohm SFTP round patch cable, designed to the ISO / IEC 11801 Category 5e requirements (CAT5e on 76m). The cable contains four twisted pairs, cabled, double-shielded with Kevlar reinforcement strands, jacketed in black UV-resistant polyurethane HFFR. Designed for fixed or portable applications in harsh environments. AMPHENOL RJF RB SERIES PHYSICAL CHARACTERISTICS
Conductors 24 AWG (0.25 mm2)
Tinned copper, 7 x 0.2 mm
Insulation Color-coded 568-B, Linear lowdensity polyethylene, Nom. Dia. 0.039” (1mm)
Assembly Pairs cabled with Kevlar-strength members and separation-tape wrapped
Shields Inner: Aluminum mylar 100% coverage
Outer: Tinned-copper braid 80% coverage Jacket Black, special PUR compound
Weight 40 lbs / mft (59 kg/km)
Outside Dia. 0.28” (7.1 mm) nom.
Min. Bend Radius (During installation) 67.5mm (9 x O.D.)
Min. Bend Radius (During operation) 37.5mm (5 x O.D.)
Min. Flexes to Failure Passes IEC 61156-6 requirements
Temperature -40°F to +185°F (-40°C to +85°C)
Reel of Cable Length (M/FT) Part Number 100 m /~328 ft 190-038045-00 300 m /~984 ft 190-038045-01 AMPHENOL RJF RB SERIES ELECTRICAL CHARACTERISTICS
DC Resistance 96 Ohms/KM @ 20°C
Impedance 100 ± 15 Ohms 1-100 MHz
Attenuation
772 KHz - 2.70 db/100m nom.
1 MHz - 3.15 db/100m nom. 4 MHz - 6.45 db/100m nom. 10 MHz - 9.90 db/100m nom. 16 MHz - 12.3 db/100m nom. 20 MHz - 13.8 db/100m nom. 31.25 MHz - 17.7 db/100m nom. 62.5 MHz - 25.6 db/100m nom. 100 MHz - 33 db/100m nom. Capacitance 46pF/m nom. @ 1KHz
LCL 43 dB min. @ 64 KHz
Capacitance Unbalance 3.4 pF/m max. @ 1KHz (wire to ground)
Insulation Resistance 150 M Ohm min.
Votage Rating 230 VMS
Dielectric Strength VAC/1 min - 700 v/min.
Propagation Delay (100 MHz) 5.2 ns/m max. @ 100 MHz
Delay Skew 20 ns/100m max. @ 100 MHz
Resistance Unbalance 3% max. @ 20°
Structural Return Loss (100 MHz) 23 db/100m min. @ 1-20 MHz
Spark Test 3 KV (tested during production)
Velocity of propagation 67% nom.
All dimensions in inches (millimeters in parentheses) CAT6AMPHENOL RJF RB SERIES CABLE CAT6
General construction: A four-pair, 24 AWG, 100 Ohm SFTP round patch cable, designed to the ISO / IEC 11801 Category 5e requirements (CAT5e on 76m). The cable contains four twisted pairs, cabled, double-shielded with Kevlar reinforcement strands, jacketed in black UV-resistant polyurethane HFFR. Designed for fixed or portable applications in harsh environments. AMPHENOL RJF RB SERIES PHYSICAL CHARACTERISTICS
Conductors 26 AWG (0,14 mm²) tinned copper
Insulation Polythylene Nom. Dia. 0,039" (1mm)
Assembly Pairs cabled with Kevlar strength members and separation tape wrapped
Shields Inner: aluminium mylar 100% coverage
Outer: tinned copper braid 80% coverage Jacket Black, special PUR compound
Weight 36.9 lbs / mft (55 kg/km)
Outside Dia. 0.272"(6.9 mm) nom.
Min. Bend Radius (During installation) 72mm (10x O.D.)
Min. Bend Radius (During operation) 36mm (5 x O.D.)
Min. Flexes to Failure Passes IEC 61156-6 requirements
Temperature -40°F to +185°F (-40°C to +85°C)
Reel of Cable Length (M/FT) Part Number 100 m /~328 ft 191-031179-00 300 m /~984 ft 191-031179-01 AMPHENOL RJF RB SERIES ELECTRICAL CHARACTERISTICS
DC Resistance 290 Ohm/Km
Impedance 100+/-5 Ohm
Attenuation Frequency Insertion Loss N.E.X.T (Near End Crosstalk Loss) 1MHz 3.1 dB 75.3 dB min 4MHz 5.8 dB 66.3 dB min 8MHz 8.0 dB 61.8 dB min 10MHz 9.0 dB 60.3 dB min 16MHz 11.4 dB 57.2 dB min 20MHz 12.8 dB 55.8 dB min 25MHz 14.1 dB 54.3 dB min 31.25MHz 16.1 dB 52.8 dB min 62.5MHz 23.2 dB 48.4 dB min 100MHz 29.9 dB 45.3 dB min 200MHz 43.7 dB 40.8 dB min 250MHz 49.7 dB 39.3 dB min Capacitance 46pF/m nom. @ 1KHz
Capacitance Unbalance 3.4 pF/m max. @ 1KHz (wire to ground)
Insulation Resistance 150 M Ohm min.
Votage Rating 230 VMS
Dielectric Strength VVAC/1 min - 700 v/min.
Propagation Delay 4.6 ns/m
Delay Skew 45 ns/100m
Resistance Unbalance 2%
Structural Return Loss 15.6dB
Velocity of propagation 72% nom
All dimensions in inches (millimeters in parentheses) |
