Amphenol RJ Field Series Connectors
BAYONET COUPLING ACCORDING TO MIL-STD-26482 STANDARD

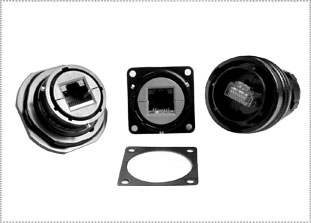

Amphenol RJ Field series connectors allow for the use of an Ethernet Class D/ CAT5e connection for Ethernet over twisted-pair networks in harsh environments. The Amphenol RJ Field series are circular metal connectors with tri-start threading coupling systems. These connectors are excellent for harsh conditions - the Amphenol RJ Field series’ RJStop® connection system protects from shock, dust and fluid. RoHS options are available for RJF series connectors. No hazardous on-field cabling and grounding required!
|
FEATURESAMPHENOL RJF SERIES MAIN CHARACTERISTICS
AMPHENOL RJF SERIES ENVIRONMENTAL PROTECTION
AMPHENOL RJF SERIES DATA TRANSMISSION
TECH SPECSAMPHENOL RJF SERIES TECH SPECS Series Shape Coupling System Material Data Type Number of possible Codings (polari- RoHS Options
Available Mating Cycles
RJF Circular Tri-start threading Metal CAT5e & 4 Yes 500 min. |
|
AMPHENOL RJF SERIES APPLICATIONS
|
|
RJFAMPHENOL RJF SERIES RJF
Plugs Receptacles Plating Cable Cable Standard Cordset Right Inline Inline PC Tails Recep- Cable Cable Black- RJF6B RJF6MB RJF21B†† RJF22B** RJF RJF2P RJF2P RJF RJF RJF Nickel RJF6N RJF6MN RJF21N†† RJF22N** RJF RJF2P RJF2P RJF RJF RJF Olive Drab RJF6G RJF6MG RJF21G†† RJF22G** RJF RJF2P RJF2PE RJF RJF RJF ** Select for cordset length 03 = 11.81 (0.30M) 05 = 19.68 (0.50M) 10 = 39.37 (1.00M) 15 = 59.05 (1.50M) BOLD = Stocked items †† Use prefix RJF6 for CAT6 version (receptacles only) All dimensions in inches (millimeters in parentheses) RJF TRANSVERSALLY-SEALEDAMPHENOL RJF SERIES RJF TRANSVERSALLY-SEALED

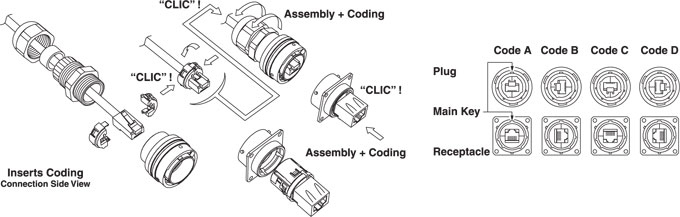

Receptacle Jam Nut Receptacle Plating Standard Sealed Box Mount Cordset Sealed Box Mount Right Angle Sealed Female RJ45 Standard Sealed Jam Nut Cordset Sealed Jam Nut Right Angle Sealed Female RJ45 Black-Anodized RJF2S*1B†† RJF2S*2B**100BTX†† RJF2S* RJF7S*1B†† RJF7S*2B**100BTX†† RJF7S* Nickel RJF2S*1N†† RJF2S*2N**100BTX†† RJF2S* RJF7S*1N†† RJF7S*2N**100BTX†† RJF7S* Olive Drab Cadmium RJF2S*1G†† RJF2S*2G**100BTX†† RJF2S* RJF7S*1G†† RJF7S*2G**100BTX†† RJF7S* * Coding A, B, C, D ** Select for Cordset Length 03 = 11.81 (0.30M) 05 = 19.68 (0.50M) 10 = 39.37 (1.00M) 15 = 59.05 (1.50M) †† Use prefix RJF6 for CAT6 version (receptacles only) All dimensions in inches (millimeters in parentheses) RJF HERMETICALLY SEALEDAMPHENOL RJF SERIES RJF HERMETICALLY SEALED
Receptacle Jam Nut Receptacle Plating Standard Hermetic Box Mount Cordset Hermetic Right Angle Hermetic Female RJ45 Standard Hermetic Jam Nut Cordset Hermetic Jam Nut Right Angle Hermetic Female RJ45 Black-Anodized RJF2H*1B†† RJF2H*2B**100BTX†† RJF2H* RJF7H*1B†† RJF7H*2B**100BTX†† RJF7H* Nickel RJF2H*1N†† RJF2H*2N**100BTX†† RJF2H* RJF7H*1N†† RJF7H*2N**100BTX†† RJF7H* Olive Drab Cadmium RJF2H*1G†† RJF2H*2G**100BTX†† RJF2H* RJF7H*1G†† RJF7H*2G**100BTX†† RJF7H* * Coding A, B, C, D ** Select for Cordset Length 03 = 11.81 (0.30M) 05 = 19.68 (0.50M) 10 = 39.37 (1.00M) 15 = 59.05 (1.50M) †† Use prefix RJF6 for CAT6 version (receptacles only) All dimensions in inches (millimeters in parentheses)
Jam Nut Receptacle Accessories Cable Gland Dust Cap+ Plating Standard Jam Nut Cordset Jam Nut Right Angle Female RJ45 Plastic Metal Plug§ Box Mount§ Jam Nut§ Insert Removal Tool Flange Gasket Black-Anodized RJF RJF72B**100BTX†† RJF RJFPE1B RJF RJFC6B RJFC2B RJFC7B RJFODE JE18 Nickel RJF RJF72N**100BTX†† RJF RJFPE1N RJF RJFC6N RJFC2N RJFC7N RJFODE JE18 Olive Drab Cadmium RJF RJF72G**100BTX†† RJF RJFPE1G RJF RJFC6G RJFC2G RJFC7G RJFODE JE18 ** Select for Cordset Length 03 = 11.81 (0.30M) 05 = 19.68 (0.50M) 10 = 39.37 (1.00M) 15 = 59.05 (1.50M) +Metallic Chains Available § Nylon Cord Lengths: Plugs - 6.30 (160.0) Box Mount and Jam Nut - 4.134 (105.0) †† Use prefix RJF6 for CAT6 version (receptacles only) All dimensions in inches (millimeters in parentheses) |
|

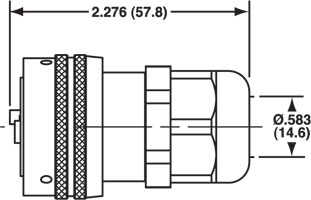

PLUGAMPHENOL RJF SERIES RJF 6
Plug with plastic or metal gland
Cable Exit Range .236 (6.0) to .512 (13.0) All dimensions in inches (millimeters in parentheses) RECEPTACLESAMPHENOL RJF SERIES RJF6 2 / RJF 2

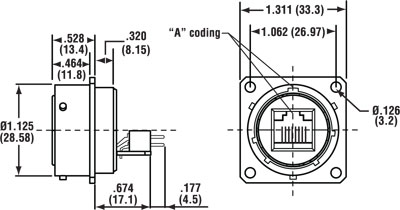

Square flange receptacle, 4 mounting holes
AMPHENOL RJF SERIES RJF6 7 / RJF 7
Jam nut receptacle Hexagonal-nut mounting

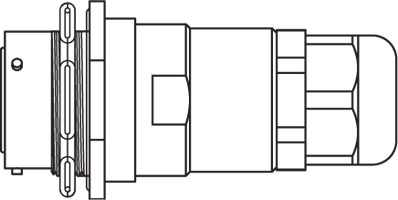

AMPHENOL RJF6 2PE/2PEM / RJF 2PE/2PEM

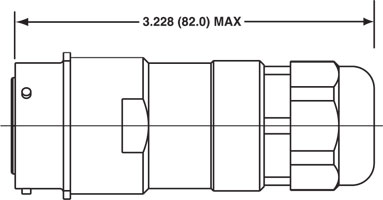

AMPHENOL RJF6 72PE/7PEM / RJF 72PE/7PEM IP68 inline receptacles with plastic or metal gland
All dimensions in inches (millimeters in parentheses) PCB TAILS RECEPTACLESAMPHENOL RJF SERIES RJF PCB LAYOUT
All dimensions in inches (millimeters in parentheses) |
|
AMPHENOL RJF SERIES SELF-CLOSING CAP
This self-closing cap automatically protects the RJ Field square flange receptacles (MIL-C-26482-type), protecting your system from dust and water projections. The same cap can be used to protect USB and IEEE1394 receptacles. A spring automatically closes the upper part of the cap when either the RJ Field plug, RJ45 cordset, USB or IEEE1394 cordset, or USB key are removed from the receptacle.
Plating RJ45 USB-A USB-B IEE1394 Black-Anodized RJF21BSCC USBF21BSCC USBBF21BSCC FWF21BSCC Nickel RJF21NSCC USBF21NSCC USBBF21NSCC FWF21NSCC |
|
CAT5EAMPHENOL RJF SERIES CABLE CAT5e
General construction: A four-pair, 24 AWG, 100 Ohm SFTP round patch cable, designed to the ISO / IEC 11801 Category 5e requirements (CAT5e on 76m). The cable contains four twisted pairs, cabled, double-shielded with Kevlar reinforcement strands, jacketed in black UV-resistant polyurethane HFFR. Designed for fixed or portable applications in harsh environments. AMPHENOL RJF SERIES PHYSICAL CHARACTERISTICS
Conductors 24 AWG (0.25 mm2)
Tinned copper, 7 x 0.2 mm
Insulation Color-coded 568-B, Linear lowdensity polyethylene, Nom. Dia. 0.039” (1mm)
Assembly Pairs cabled with Kevlar-strength members and separation-tape wrapped
Shields Inner: Aluminum mylar 100% coverage
Outer: Tinned-copper braid 80% coverage Jacket Black, special PUR compound
Weight 40 lbs / mft (59 kg/km)
Outside Dia. 0.28” (7.1 mm) nom.
Min. Bend Radius (During installation) 67.5mm (9 x O.D.)
Min. Bend Radius (During operation) 37.5mm (5 x O.D.)
Min. Flexes to Failure Passes IEC 61156-6 requirements
Temperature -40°F to +185°F (-40°C to +85°C)
Reel of Cable Length (M/FT) Part Number 100 m /~328 ft 190-038045-00 300 m /~984 ft 190-038045-01 AMPHENOL RJF SERIES ELECTRICAL CHARACTERISTICS
DC Resistance 96 Ohms/KM @ 20°C
Impedance 100 ± 15 Ohms 1-100 MHz
Attenuation
772 KHz - 2.70 db/100m nom.
1 MHz - 3.15 db/100m nom. 4 MHz - 6.45 db/100m nom. 10 MHz - 9.90 db/100m nom. 16 MHz - 12.3 db/100m nom. 20 MHz - 13.8 db/100m nom. 31.25 MHz - 17.7 db/100m nom. 62.5 MHz - 25.6 db/100m nom. 100 MHz - 33 db/100m nom. Capacitance 46pF/m nom. @ 1KHz
LCL 43 dB min. @ 64 KHz
Capacitance Unbalance 3.4 pF/m max. @ 1KHz (wire to ground)
Insulation Resistance 150 M Ohm min.
Votage Rating 230 VMS
Dielectric Strength VAC/1 min - 700 v/min.
Propagation Delay (100 MHz) 5.2 ns/m max. @ 100 MHz
Delay Skew 20 ns/100m max. @ 100 MHz
Resistance Unbalance 3% max. @ 20°
Structural Return Loss (100 MHz) 23 db/100m min. @ 1-20 MHz
Spark Test 3 KV (tested during production)
Velocity of propagation 67% nom.
All dimensions in inches (millimeters in parentheses) CAT6AMPHENOL RJF SERIES CABLE CAT6
General construction: A four-pair, 24 AWG, 100 Ohm SFTP round patch cable, designed to the ISO / IEC 11801 Category 5e requirements (CAT5e on 76m). The cable contains four twisted pairs, cabled, double-shielded with Kevlar reinforcement strands, jacketed in black UV-resistant polyurethane HFFR. Designed for fixed or portable applications in harsh environments. AMPHENOL RJF SERIES PHYSICAL CHARACTERISTICS
Conductors 26 AWG (0,14 mm²) tinned copper
Insulation Polythylene Nom. Dia. 0,039" (1mm)
Assembly Pairs cabled with Kevlar strength members and separation tape wrapped
Shields Inner: aluminium mylar 100% coverage
Outer: tinned copper braid 80% coverage Jacket Black, special PUR compound
Weight 36.9 lbs / mft (55 kg/km)
Outside Dia. 0.272"(6.9 mm) nom.
Min. Bend Radius (During installation) 72mm (10x O.D.)
Min. Bend Radius (During operation) 36mm (5 x O.D.)
Min. Flexes to Failure Passes IEC 61156-6 requirements
Temperature -40°F to +185°F (-40°C to +85°C)
Reel of Cable Length (M/FT) Part Number 100 m /~328 ft 191-031179-00 300 m /~984 ft 191-031179-01 AMPHENOL RJF SERIES ELECTRICAL CHARACTERISTICS
DC Resistance 290 Ohm/Km
Impedance 100+/-5 Ohm
Attenuation Frequency Insertion Loss N.E.X.T (Near End Crosstalk Loss) 1MHz 3.1 dB 75.3 dB min 4MHz 5.8 dB 66.3 dB min 8MHz 8.0 dB 61.8 dB min 10MHz 9.0 dB 60.3 dB min 16MHz 11.4 dB 57.2 dB min 20MHz 12.8 dB 55.8 dB min 25MHz 14.1 dB 54.3 dB min 31.25MHz 16.1 dB 52.8 dB min 62.5MHz 23.2 dB 48.4 dB min 100MHz 29.9 dB 45.3 dB min 200MHz 43.7 dB 40.8 dB min 250MHz 49.7 dB 39.3 dB min Capacitance 46pF/m nom. @ 1KHz
Capacitance Unbalance 3.4 pF/m max. @ 1KHz (wire to ground)
Insulation Resistance 150 M Ohm min.
Votage Rating 230 VMS
Dielectric Strength VVAC/1 min - 700 v/min.
Propagation Delay 4.6 ns/m
Delay Skew 45 ns/100m
Resistance Unbalance 2%
Structural Return Loss 15.6dB
Velocity of propagation 72% nom
All dimensions in inches (millimeters in parentheses) |
|
RJF TRANSVERSAL & HERMETICALLY SEALEDAMPHENOL RJF TRANSVERSAL & HERMETICALLY SEALED

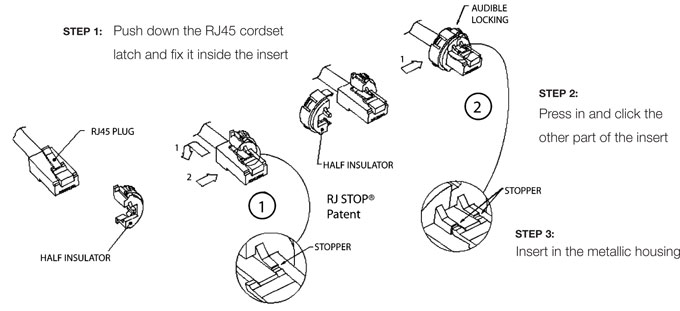

Easy and Safe: No field cabling tools required
|
