Amphenol RJFTV Series
TRI-START THREAD COUPLING WITH ANTI-DECOUPLING DEVICE

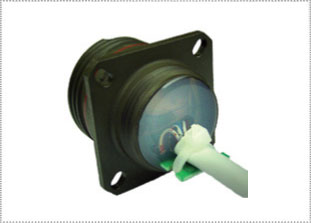

Amphenol RJFTV Series connectors allow for the use of an Ethernet Class D/ CAT5e connection for Ethernet over twisted-pair networks in harsh environments. The Amphenol RJFTV Series are metal circular connectors that use a Tri-Start Thread coupling mechanism (MIL-DTL-38999 series III-type) with anti-decoupling device. These connectors are excellent for harsh conditions – the Amphenol RJFTV Series’ RJStop® connection system protects from shock, dust and fluid. RoHS options are available for Amphenol RJFTV Series connectors. No hazardous on-field cabling and grounding required!
|
FEATURESAMPHENOL RJFTV SERIES MAIN CHARACTERISTICS
AMPHENOL RJFTV SERIES ENVIRONMENTAL PROTECTION
AMPHENOL RJFTV SERIES DATA TRANSMISSION
AMPHENOL RJFTV SERIES - WITH 360° EMI BACKSHELLS
RJFTV series receptacles and plugs with EMI backshells provide a solution with
360-degree shielding offering similar protection as the standard MIL-DTL-38999 series
III connectors. With those solutions, we recommend using our reinforced and
double-shielded CAT5e cable.
TECH SPECSAMPHENOL RJFTV SERIES TECH SPECS
Series Shape Coupling System Material Data Type Number of possible Codings (polari- RoHS Options
Available Mating Cycles
RJFTV Circular Tri-Start Thread Metal CAT5e & 4 Yes 500 min. |
|
AMPHENOL RJFTV SERIES APPLICATIONS
|
|
RJFTVAMPHENOL RJFTV SERIES RJFTV
Plug Receptacles Plating Cable Glands Plastic Cable Glands Metal Standard Box Mount Cordset Box Mount Right Angle Female RJ45 Cable Glands Plastic Cable Glands Metal Marine Bronze RJFTV6BZ RJFTV6MBZ RJFTV21BZ†† RJFTV22BZ RJFTV21 RJFTV2PE1BZ RJFTV2PEM1BZ Nickle RJFTV6N RJFTV6MN RJFTV21N†† RJFTV22N RJFTV21 RJFTV2PE1N RJFTV2PEM1N Olive Drab Cadmium RJFTV6G RJFTV6MG RJFTV21G†† RJFTV22G RJFTV21 RJFTV2PE1G RJFTV2PEM1G * Coding A, B, C, D ** Select for Cordset Length 03 = 11.81 (0.30M) 05 = 19.68 (0.50M) 10 = 39.37 (1.00M) 15 = 59.05 (1.50M) BOLD = Stocked Items †† Use prefix RJFTV6 for CAT6 version (receptacles only) All dimensions in inches (millimeters in parentheses)
Jam Nut Receptacle Accessories Plating Standard Jam Nut Cordset Jam Nut Right Angle Female RJ45 Cable Gland Cable Gland Dust Cap Dust Cap Dust Cap Self Closing Cap Insert Removal Tool Flange Gasket Marine Bronze RJFTV RJFTV RJFTV RJFTV RJFTV RJFTV RJFTV RJFTV - RJFODE JE19 Nickel RJFTV RJFTV72N RJFTV RJFTV RJFTV RJFTVC6N RJFTVC2N RJFTVC7N RJFTV RJFODE JE19 Olive Drab Cadmium RJFTV RJFTV72G RJFTV RJFTV RJFTV RJFTVC6G RJFTVC2G RJFTVC7G RJFTV RJFODE JE19 †† Use prefix RJFTV6 for CAT6 version (receptacles only) * Coding A, B, C, D ** Select for Cordset Length 03 = 11.81 (0.30M) 05 = 19.68 (0.50M) 10 = 39.37 (1.00M) 15 = 59.05 (1.50M) *** Only for RJFTV2 type flanged receptacles BOLD = Stocked Items All dimensions in inches (millimeters in parentheses) RJFTV TRANSVERSALLY-SEALEDAMPHENOL RJFTV SERIES RJFTV TRANSVERSALLY-SEALED
Receptacle Jam Nut Receptacle Plating Standard Sealed Box Mount Cordset Sealed Box Mount Right Angle Sealed Female RJ45 Standard Sealed Jam Nut Cordset Sealed Jam Nut Right Angle Sealed Female RJ45 Marine Bronze RJFTV2S RJFTV2S*2B**100BZTX†† RJFTV2S* RJFTV7S RJFTV7S*2B**100BZTX†† RJFTV7S Nickel RJFTV2S* RJFTV2S*2N**100BTX†† RJFTV2S RJFTV7S* RJFTV7S*2N**100BTX†† RJFTV7S Olive Drab Cadmium RJFTV2S* RJFTV2S*2G**100BTX†† RJFTV2S RJFTV7S* RJFTV7S*2G**100BTX†† RJFTV7S * Coding A, B, C, D ** Select for Cordset Length 03 = 11.81 (0.30M) 05 = 19.68 (0.50M) 10 = 39.37 (1.00M) 15 = 59.05 (1.50M) †† Use prefix RJFTV6 for CAT6 version (receptacles only) All dimensions in inches (millimeters in parentheses) RJFTV HERMETICALLY SEALEDAMPHENOL RJFTV SERIES RJFTV HERMETICALLY SEALED
Receptacle Jam Nut Receptacle Plating Standard Hermetic Cordset Hermetic Right Angle Hermetic Female RJ45 Standard Hermetic Cordset Hermetic Jam Nut Right Angle Hermetic Female RJ45 Marine Bronze RJFTV2H* RJFTV2H*2BZ**100BTX†† RJFTV2H RJFTV7H RJFTV7H*2BZ**100BTX†† RJFTV7H Nickel RJFTV2H* RJFTV2H*2N**100BTX†† RJFTV2H RJFTV7H* RJFTV7H*2N**100BTX†† RJFTV7H Olive Drab Cadmium RJFTV2H* RJFTV2H*2G**100BTX†† RJFTV2H RJFTV7H* RJFTV7H*2G**100BTX†† RJFTV7H * Coding A, B, C, D ** Select for Cordset Length 03 = 11.81 (0.30M) 05 = 19.68 (0.50M) 10 = 39.37 (1.00M) 15 = 59.05 (1.50M) BOLD = Stocked Items †† Use prefix RJFTV6 for CAT6 version (receptacles only) All dimensions in inches (millimeters in parentheses) SPECIALSAMPHENOL RJFTV SERIES SPECIALS
Through Bulkhead Receptacle Stand-Off Receptacle Plating Non Metallized Inserts Metallized Square Flange Jam Nut Nickel RJFTVB2NISOBRUT†† RJFTVB2NISONI†† RJFTV2S*5NF459†† RJFTV7S*5NF459†† Olive Drab Cadmium RJFTVB2GISOBRUT†† RJFTVB2GISONI†† RJFTV2S*5GF459†† RJFTV7S*5GNF459†† * Coding A, B, C, D †† Use prefix RJFTV6 for CAT6 version (receptacles only) All dimensions in inches (millimeters in parentheses) RJFTV - WITH 360º EMI BACKSHELLSAMPHENOL RJFTV SERIES- WITH 360º EMI BACKSHELLS
Receptacles Jam Nut Plug Plating Straight Right Angle Straight Right Angle Straight Right Angle Nickel KIT38082NI KIT40791NI KIT38204NI KIT40771NI KIT38081NI KIT40792NI Olive Drab Cadmium KIT38082 KIT40791 KIT38204 KIT40771 KIT38081 KIT40792 |
|

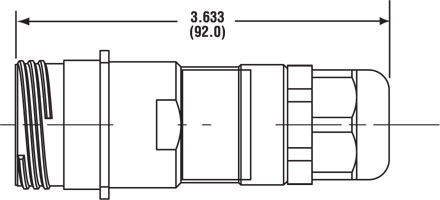

PLUGAMPHENOL RJFTV SERIES RJF TV 6
Plug with plastic or metal gland
Cable Exit Range .236 (6.0) to .512 (13.0) All dimensions in inches (millimeters in parentheses) RECEPTACLESAMPHENOL RJFTV SERIES RJF TV6 21 / RJF TV 21 Square flange AMPHENOL RJFTV SERIES COMMON RECEPTACLE DIMENSIONS
AMPHENOL RJFTV SERIES RJF TV6 21 RA / RJF TV 21 RA Right-angle square flange
AMPHENOL RJFTV SERIES RJF TV6 2 PE (M) / RJF TV 2 PE (M) RJF TV6 7 PE (M) / RJF TV 7 PE (M) IP68 backshell:

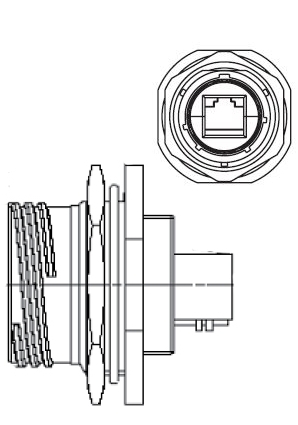

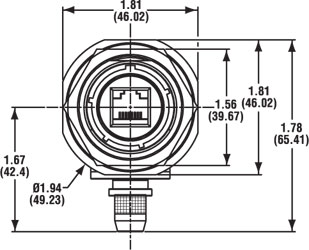

AMPHENOL RJF TV 6 71 / RJF TV 71 Jam nut receptacle AMPHENOL RJFTV SERIES COMMON RECEPTACLE DIMENSIONS
AMPHENOL RJF TV 6 71 RA / RJF TV 71 RA Right-angle jam nut

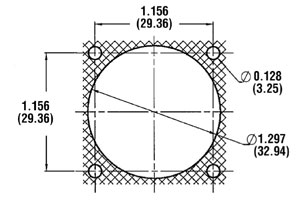

All dimensions in inches (millimeters in parentheses) SPECIALSAMPHENOL RJFTV SERIES THROUGH BULKHEAD RECEPTACLE
Max Panel Thickness
AMPHENOL RJFTV SERIES STAND-OFF RECEPTACLE

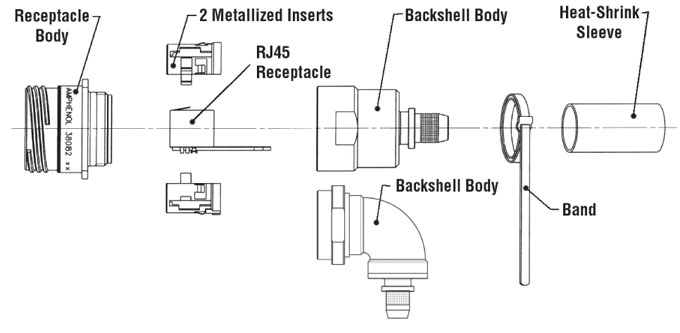

RJFTV - WITH 360° EMI BACKSHELLSAMPHENOL RJFTV SERIES SQUARE FLANGE RECEPTACLE STRAIGHT AMPHENOL RJFTV SERIES SQUARE FLANGE RECEPTACLE RIGHT ANGLE BACKSHELL
KIT38082,
AMPHENOL RJFTV SERIES JAM NUT RECEPTACLE STRAIGHT BACKSHELL AMPHENOL RJFTV SERIES JAM NUT RECEPTACLE RIGHT ANGLE BACKSHELL
KIT38204,

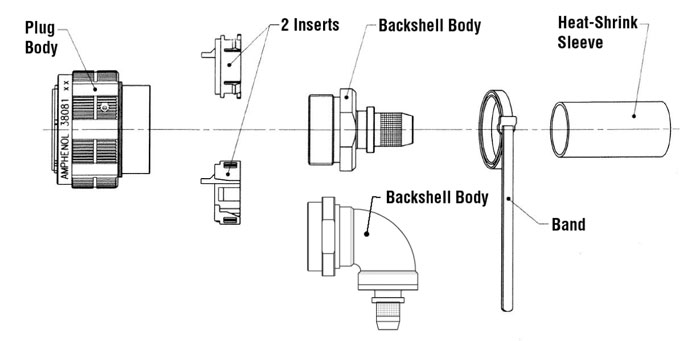

AMPHENOL RJFTV SERIES PLUG STRAIGHT BACKSHELL AMPHENOL RJFTV SERIES PLUG RIGHT ANGLE BACKSHELL
KIT38081,
IMPORTANT NOTE: With these plugs, the standard RJ45 plug is not provided. The crimping of a standard RJ45 onto the cable must be done by the user. We advise using our double shielded, reinforced CAT5e cable with these RJFTV series EMI connectors. Contact us to check backshell compatibility for other cable types. We also provide assembled cordsets (see examples below).

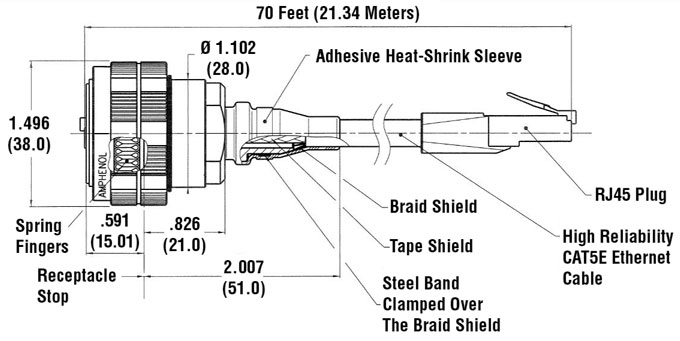

All dimensions in inches (millimeters in parentheses) |
|
CAT5EAMPHENOL RJFTV SERIES CABLE CAT5e
General construction: A four-pair, 24 AWG, 100 Ohm SFTP round patch cable, designed to the ISO / IEC 11801 Category 5e requirements (CAT5e on 76m). The cable contains four twisted pairs, cabled, double-shielded with Kevlar reinforcement strands, jacketed in black UV-resistant polyurethane HFFR. Designed for fixed or portable applications in harsh environments. AMPHENOL RJFTV SERIES PHYSICAL CHARACTERISTICS
Conductors 24 AWG (0.25 mm2)
Tinned copper, 7 x 0.2 mm
Insulation Color-coded 568-B, Linear lowdensity polyethylene, Nom. Dia. 0.039” (1mm)
Assembly Pairs cabled with Kevlar-strength members and separation-tape wrapped
Shields Inner: Aluminum mylar 100% coverage
Outer: Tinned-copper braid 80% coverage Jacket Black, special PUR compound
Weight 40 lbs / mft (59 kg/km)
Outside Dia. 0.28” (7.1 mm) nom.
Min. Bend Radius (During installation) 67.5mm (9 x O.D.)
Min. Bend Radius (During operation) 37.5mm (5 x O.D.)
Min. Flexes to Failure Passes IEC 61156-6 requirements
Temperature -40°F to +185°F (-40°C to +85°C)
Reel of Cable Length (M/FT) Part Number 100 m /~328 ft 190-038045-00 300 m /~984 ft 190-038045-01 AMPHENOL RJFTV SERIES ELECTRICAL CHARACTERISTICS
DC Resistance 96 Ohms/KM @ 20°C
Impedance 100 ± 15 Ohms 1-100 MHz
Attenuation
772 KHz - 2.70 db/100m nom.
1 MHz - 3.15 db/100m nom. 4 MHz - 6.45 db/100m nom. 10 MHz - 9.90 db/100m nom. 16 MHz - 12.3 db/100m nom. 20 MHz - 13.8 db/100m nom. 31.25 MHz - 17.7 db/100m nom. 62.5 MHz - 25.6 db/100m nom. 100 MHz - 33 db/100m nom. Capacitance 46pF/m nom. @ 1KHz
LCL 43 dB min. @ 64 KHz
Capacitance Unbalance 3.4 pF/m max. @ 1KHz (wire to ground)
Insulation Resistance 150 M Ohm min.
Votage Rating 230 VMS
Dielectric Strength VAC/1 min - 700 v/min.
Propagation Delay (100 MHz) 5.2 ns/m max. @ 100 MHz
Delay Skew 20 ns/100m max. @ 100 MHz
Resistance Unbalance 3% max. @ 20°
Structural Return Loss (100 MHz) 23 db/100m min. @ 1-20 MHz
Spark Test 3 KV (tested during production)
Velocity of propagation 67% nom.
All dimensions in inches (millimeters in parentheses) CAT6AMPHENOL RJFTV SERIES CABLE CAT6
General construction: A four-pair, 24 AWG, 100 Ohm SFTP round patch cable, designed to the ISO / IEC 11801 Category 5e requirements (CAT5e on 76m). The cable contains four twisted pairs, cabled, double-shielded with Kevlar reinforcement strands, jacketed in black UV-resistant polyurethane HFFR. Designed for fixed or portable applications in harsh environments. AMPHENOL RJFTV SERIES PHYSICAL CHARACTERISTICS
Conductors 26 AWG (0,14 mm²) tinned copper
Insulation Polythylene Nom. Dia. 0,039" (1mm)
Assembly Pairs cabled with Kevlar strength members and separation tape wrapped
Shields Inner: aluminium mylar 100% coverage
Outer: tinned copper braid 80% coverage Jacket Black, special PUR compound
Weight 36.9 lbs / mft (55 kg/km)
Outside Dia. 0.272"(6.9 mm) nom.
Min. Bend Radius (During installation) 72mm (10x O.D.)
Min. Bend Radius (During operation) 36mm (5 x O.D.)
Min. Flexes to Failure Passes IEC 61156-6 requirements
Temperature -40°F to +185°F (-40°C to +85°C)
Reel of Cable Length (M/FT) Part Number 100 m /~328 ft 191-031179-00 300 m /~984 ft 191-031179-01 AMPHENOL RJFTV SERIES ELECTRICAL CHARACTERISTICS
DC Resistance 290 Ohm/Km
Impedance 100+/-5 Ohm
Attenuation Frequency Insertion Loss N.E.X.T (Near End Crosstalk Loss) 1MHz 3.1 dB 75.3 dB min 4MHz 5.8 dB 66.3 dB min 8MHz 8.0 dB 61.8 dB min 10MHz 9.0 dB 60.3 dB min 16MHz 11.4 dB 57.2 dB min 20MHz 12.8 dB 55.8 dB min 25MHz 14.1 dB 54.3 dB min 31.25MHz 16.1 dB 52.8 dB min 62.5MHz 23.2 dB 48.4 dB min 100MHz 29.9 dB 45.3 dB min 200MHz 43.7 dB 40.8 dB min 250MHz 49.7 dB 39.3 dB min Capacitance 46pF/m nom. @ 1KHz
Capacitance Unbalance 3.4 pF/m max. @ 1KHz (wire to ground)
Insulation Resistance 150 M Ohm min.
Votage Rating 230 VMS
Dielectric Strength VVAC/1 min - 700 v/min.
Propagation Delay 4.6 ns/m
Delay Skew 45 ns/100m
Resistance Unbalance 2%
Structural Return Loss 15.6dB
Velocity of propagation 72% nom
All dimensions in inches (millimeters in parentheses) |
|

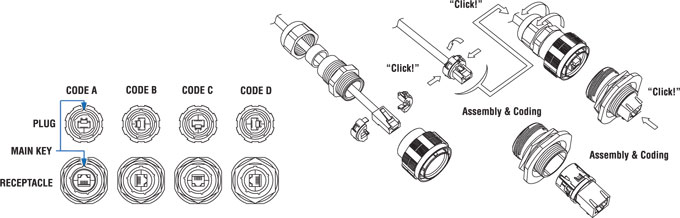

AMPHENOL RJFTV SERIES ASSEMBLY
|
