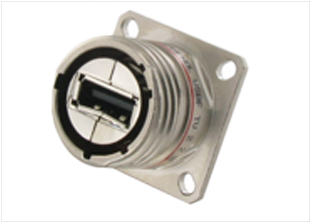

Amphenol USBFTV (USB-A) Series Connectors
TWO USER-DEFINED POLARIZATION POSSIBILITIES FOR USB-A 2.0 AND 3.0
Amphenol USBFTV-A series connectors allow for the use of a USB-A 2.0 and 3.0 data connection in harsh environments. The Amphenol USBFTV-A series RJ Field connectors are metal circular connectors that use a Tri-Start Thread coupling mechanism (MIL-DTL-38999 series III-type) with anti-decoupling device. The Amphenol USBFTV-A series allows for two mechanical coding/polarization possibilities to be defined by the user. These connectors are excellent for harsh environments – the Amphenol USBFTV-A series’ RJStop® connection system protects from shock, dust and fluid. No hazardous on-field cabling and grounding required!
|
FEATURESAMPHENOL USBFTV SERIES MAIN CHARACTERISTICS
AMPHENOL USBFTV SERIES ENVIRONMENTAL PROTECTION
AMPHENOL USBFTV SERIES DATA TRANSMISSION
TECH SPECSAMPHENOL USBFTV SERIES TECH SPECS Series Shape Coupling System Material Data Type Number of possible Codings (polari- RoHS Options
Available Mating Cycles
USBFTV (USB-A) Circular Tri-Start Thread Metal USB-A 2.0 & 4 Yes up to 1500 |
|
AMPHENOL USBFTV SERIES APPLICATIONS
|
|
USBFTV USB-AAMPHENOL USBFTV SERIES USBFTV USB-A
Plugs Receptacles Plating Standard Square Flange Receptacle Square Flange Receptacle Marine Bronze USBFTV6BZ USBFTV21BZ USBFTV2PE1BZ USBFTV22BZ USBFTV2PE2BZ USBFTV2PEM2BZ Nickel USBFTV6N USBFTV21N USBFTV2PE1N USBFTV22N USBFTV2PE2N USBFTV2PEM2N Olive Drab Cadmium USBFTV6G USBFTV21G USBFTV2PE1G USBFTV22G USBFTV2PE2G USBFTV2PEM2G BOLD = Stocked Items Note: Use prefix USB3FTV for 3.0 version on both plugs and receptacles. USBFTV TRANSVERSALLY-SEALEDAMPHENOL USBFTV SERIES RJF TRANSVERSALLY-SEALED
Square Flange Receptacle Plating Standard USB-A Plug Open Cable w/Backshell and Plastic Gland w/Backshell and Metal Gland Nickel USBFTV2S*2N**A USBFTV2S*2N**OPEN USBFTV2PES*2N**A USBFTV2PEMS*2N**A Olive Drab Cadmium USBFTV2S*2G**A USBFTV2S*2G**OPEN USBFTV2PES*2G**A USBFTV2PEMS*2G**A

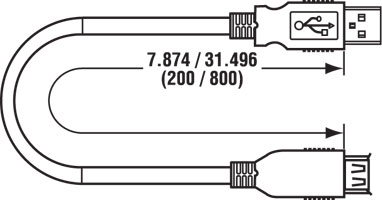

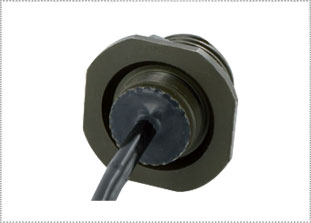

Jam Nut Receptacle Plating Standard USB-A Plug Open Cable w/Backshell and Plastic Gland w/Backshell and Metal Gland Nickel USBFTV7S*2N**A USBFTV7S*2N**OPEN USBFTV7PES*2N**A USBFTV7PEMS*2N**A Olive Drab Cadmium USBFTV7S*2G**A USBFTV7S*2G**OPEN USBFTV7PES*2G**A USBFTV7PEMS*2G**A * Coding A, B, C, D ** Select for Cordset Length 03 = 11.81 (0.30M) 05 = 19.68 (0.50M) 10 = 39.37 (1.00M) Note: Use prefix USB3FTV for 3.0 version on both plugs and receptacles.
Receptacles Accessories Jam Nut Receptacles Metallic Dust Caps Female USB-A Solder (4 Tinned Holes) Plug§ Box Mount§ Jam Nut§ Self Closing Cap Insert Removal Tool Flanged Gasket USBFTV USBFTV USBFTV USBFTV USBFTV USBFTV USBFTV USBFTV USBFTV USBFTV USBFTV USBFTV USBFTV USBFTV USBFTV USBFTV USBFTV USBFTV USBFTV USBFTV USBFTV USBFTV USBFTV USBFTV
§ Nylon Cord Lengths: Plugs - 6.30 (160.0) Box Mount and Jam Nut - 4.134 (105.0) BOLD = Stocked Items Note: Use prefix USB3FTV for 3.0 version on both plugs and receptacles. All dimensions in inches (millimeters in parentheses) |
|

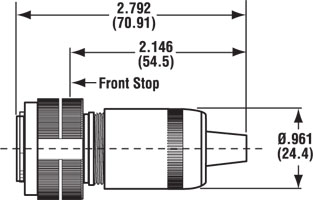

PLUGAMPHENOL USBFTV SERIES USB3FTV 6 / USBFTV 6

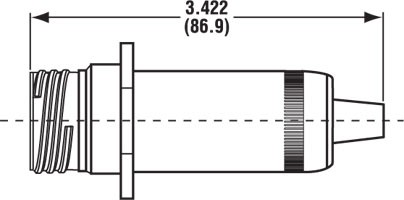

All dimensions in inches (millimeters in parentheses) RECEPTACLEAMPHENOL USBFTV SERIES USB3FTV 2 / USBFTV 2
Square flange receptacle, 4 mounting holes
AMPHENOL USBFTV SERIES USB3FTV 7 / USBFTV 7
Jam nut receptacle

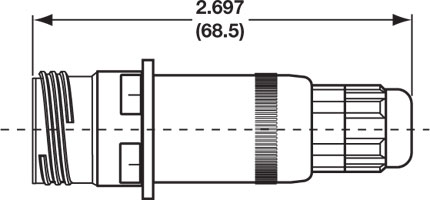

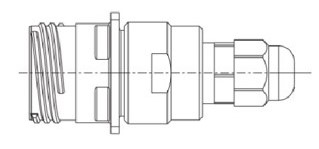

AMPHENOL USBFTV SERIES USB3F TV 2PE/7PE / USBF TV 2PE/7PE
Receptacle with backshell termination type 1
All dimensions in inches (millimeters in parentheses) |
|
AMPHENOL USBFTV SERIES SELF-CLOSING CAP
This self-closing cap automatically protects the RJ Field square flange receptacles (MIL-C-26482-type), protecting your system from dust and water projections. The same cap can be used to protect USB and IEEE1394 receptacles. A spring automatically closes the upper part of the cap when either the RJ Field plug, RJ45 cordset, USB or IEEE1394 cordset, or USB key are removed from the receptacle.
Plating RJ45 USB-A USB-B IEE1394 Black-Anodized RJF21BSCC USBF21BSCC USBBF21BSCC FWF21BSCC Nickel RJF21NSCC USBF21NSCC USBBF21NSCC FWF21NSCC |
|
AMPHENOL USBFTV SERIES REINFORCED USBFTV
AMPHENOL USBFTV SERIES ENVIRONMENTAL PROTECTION
OTHER FEATURES We offer reinforced USB memory keys in different capacities. They can ONLY be used with our USBFTV series receptacles. When mated on the receptacle, the system is IP68.
Reinforced USBFTV Memory Keys Plating 512MB 1024MB 2048MB 4096MB Nickel USBFTVKEY6*0512N** USBFTVKEY6*1024N** USBFTVKEY6*2048N** USBFTVKEY6*4096N** Olive Drab Cadmium USBFTVKEY6*0512G** USBFTVKEY6*1024G** USBFTVKEY6*2048G** USBFTVKEY6*4096G** * Coding A or B ** Blank = without CAP CAP = with CAP AMPHENOL USBFTV SERIES RUGGED USB
ENVIRONMENTAL PROTECTION
OTHER FEATURES We offer reinforced USB memory keys in different capacities. When mated, the system is IP68. Shells are metallic with 1/4-turn bayonet coupling. IMPORTANT NOTE: Compatible with any standard USB port.
Rugged USB Memory Keys Plating 512MB 1024MB 2048MB 4096MB Nickel USBFKEY0512N USBFKEY1024N USBFKEY2048N USBFKEY4096N Green USBFKEY0512G USBFKEY1024G USBFKEY2048G USBFKEY4096G Black USBFKEY0512B USBFKEY1024B USBFKEY2048B USBFKEY4096B AMPHENOL USBFTV SERIES REINFORCED USBFTV DIMENSIONS
COMMON DIMENSION
Reinforced USBFTV Memory Keys 8192MB 16384MB 16384GT MB 32768MB 64GB USBFTVKEY6*8192N** USBFTVKEY6*16384N** USBFTVKEY6*16384GTN** USBFTVKEY6*32768N** USBFTVKEY6*64N** USBFTVKEY6*8192G** USBFTVKEY6*16384G** USBFTVKEY6*16384GTG** USBFTVKEY6*32768G** USBFTVKEY6*64G** * Coding A or B ** Blank = without CAP CAP = with CAP AMPHENOL USBFTV SERIES RUGGED USB DIMENSIONS
COMMON DIMENSION
Rugged USB Memory Keys 8192MB 16384MB 16384GT MB 32768MB 64GB USBFKEY8192N USBFKEY16384N USBFKEY16384GTN USBFKEY32768N USBFKEY64N USBFKEY8192G USBFKEY16384G USBFKEY16384GTG USBFKEY32768G USBFKEY64G USBFKEY8192B USBFKEY16384B USBFKEY16384GTB USBFKEY32768B USBFKEY64B |
PLUG ASSEMBLYAMPHENOL USBFTV SERIES PLUG ASSEMBLY
STEP 1: If you need a full sealing to IP68, install the white sticker around the plug, covering the four holes of the overmolding. STEP 2: Insert the black o-ring around the front face of the USBA plug. This O-ring will ensure connection sealing. STEP 3: Insert the USB cordset into the metallic backshell. STEP 4: Insert the retention spacer laterally to the cable (this spacer is soft in order to adapt to different shapes of overmolding) and slide the overmolding of the USB-A plug into this retention spacer. IMPORTANT NOTE: The connection sealing is not done by the black retention spacer (which is slotted), but by the front O-Ring (fig. 2) AMPHENOL USBFTV SERIES TRANSVERSALLY SEALED PLUG
STEP 5: Insert the friction ring laterally to the cable. STEP 6: Choose the right coding (2 positions) and insert the USB-A plug into the protective plug. Note that at this step, the main key is used for polarization.
STEP 7: Screw the backshell onto the plug body.
A wrench may be necessary to fully tighten. RECEPTACLE ASSEMBLYAMPHENOL USBFTV SERIES RECEPTACLE ASSEMBLY
INSERTION
EXTRACTION
|
