Amphenol OCS High-Speed Connectors (Oval Contact System)
SMALLER, FASTER & MORE FLEXIBLE THAN QUADRAX
Amphenol OCS connectors (oval contact system) are the newest high-speed interconnects delivering data rates of up to 10 Gbps per pair. The Amphenol OCS series features improved signal integrity via reduced cross talk. OCS offers enhanced attenuation performance as compared to other industry-standard quadrax high-speed connectors. This rugged, durable connector is ideal for high-speed data transfer applications using protocols such as HDMI, 10G Base T, SATA 3.0, Serial RapidIO and more for the military, commercial and industrial markets. For full details about the Amphenol OCS (Oval Contact System) high-speed connector line, please see the product specifications below.
|
AMPHENOL OCS SERIES APPLICATIONS
High Speed Applications; for use with but not limited to, the following electrical protocols*:
* Cable selection may limit data rate of above protocols. |
|
STEP 1: CONNECTOR TYPEAMPHENOL OCS SERIES PART NUMBER EXAMPLE
1 2 3 4 5 6 7 TVP 00 RZW- 13-53 P B -A24 CONNECTOR TYPE SHELL STYLE SERVICE CLASS SHELL SIZE CONTACT TYPE ALTERNATE KEYING POSITIONS CABLE ORDER DESIGNATOR STEP 1: SELECT A CONNECTOR TYPE
TV Tri-Start Series Connector with metal shells
TVP Back panel mounted receptacle with metal shells
CTV Tri-Start Series Connector with composite shells
CTVP Back panel mounted receptacle with composite shells
STEP 2: SHELLSTEP 2: SELECT A SHELL STYLE
00 Wall mount receptacle
06 Straight plug
07 Jam nut receptacle
STEP 3: SERVICE CLASSSTEP 3: SELECT A SERVICE CLASS
Threaded Shell Style Integral Shell Style* Description RZF RYF Electroless nickel-plated RGZF RGYF Electroless nickel-plated ground plane RZW RYW Olive drab cadmium-plated ground plane RGZW RGYW Olive drab cadmium-plated ground plane RZB RYB NiAlBronze RGZB RGYB NiAlBronze ground plane RZK RYK Corrosion-resistant stainless steel RGZK RGYK Stainless steel ground plane ZDT YDT Durmalon-plated, nickel-PTFE alternative to cadmium GZDT GYDT Groundplane Durmalon *Integral Shell Style - an integral backshell connector style that eliminates the need for costly backshell accessories, and allows the user to attach the shield of their cable directly to the connector. The integral shell style also provides superior EMI shielding and ease for overmold applications. STEP 4: LAYOUTSTEP 4: SELECT A SHELL SIZE AND INSERT ARRANGEMENT
Shell Size and Insert Arrangement are together. First number represents Shell Size, second number is the Insert Arrangement. Currently 13-53 is available only; however, consult us for availability of other shell sizes in the near future.

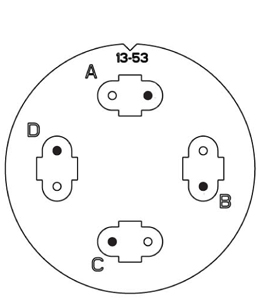

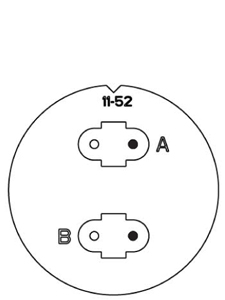

Insert Arrangements - Front face of pins illustrated Contacts 1 2 4 6

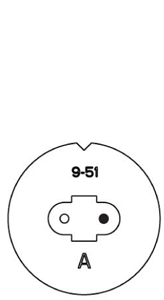

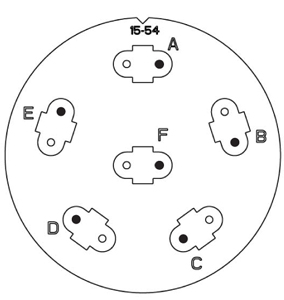

Insert Arrangement 9-51 11-52 13-53 15-54 # of Contacts 1 2 4 6 Contacts 8 10 14

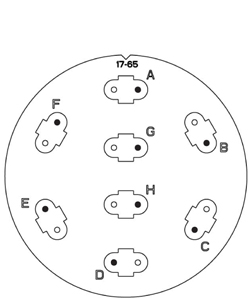

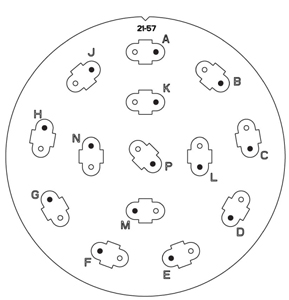

Insert Arrangement 17-65 19-86 21-57 # of Contacts 8 10 14 Contacts 18 21

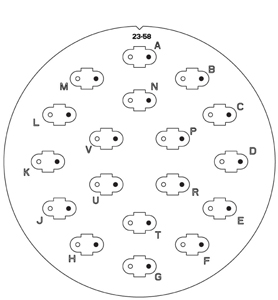

Insert Arrangement 23-58 25-49 # of Contacts 18 21  - Designates pin 1 location within the OCS contact assembly
STEP 6: POLARIZATIONSTEP 6: SELECT AN ALTERNATE KEYING POSITION
Locksmith keying–rotation of minor keys. See Series III Alternate Positions below “N” not required for normal position Tri-Start Alternate Positions
Shell Size Key & Keyway Arrangement Identification Letter AR° or AP° BSC BR° or BP° BSC CR° or CP° BSC DR° or DP° BSC
N A B C D E 95 113 90 53 119 51 141 156 145 156 146 141 208 182 195 220 176 184 236 292 252 255 298 242 STEP 7: CABLESTEP 7: SELECT A CABLE
A = MX10G-24HP*. Order removal tool for OCS contacts using part number 10-6460C1-001 * Designates Length and Inches

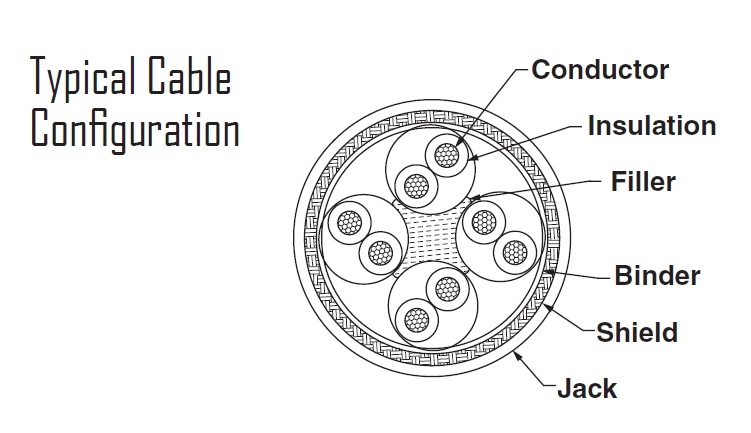

AMPHENOL OCS SERIES CABLE CONFIGURATION
Cable Order Designator Cable Part Number Pairs Conductor Insulation Temperature Range Impedance A Thermax MX 10G-24HP Four (4) Bonded Pairs 24 AWG 19 X 36 silver plated copper alloy Extruded Fluoropolymer –65°C to 150°C 100 Ohms ±15% B Thermax MX 10G-24 Four (4) Bonded Pairs 24 AWG 19 X 36 silver plated copper alloy Extruded Fluoropolymer –65°C to 150°C 100 Ohms ±15% C Thermax MX 10G-24FLX Four (4) Bonded Pairs 24 AWG 19 X 36 silver plated copper alloy Fluoropolymer –65°C to 200°C 100 Ohms ±15% |
|
TVP00 / CTVP00AMPHENOL OCS SERIES - TVP00 - METAL & CTVP00 - COMPOSITE
Wall Mounting Receptacle
Shell Size B Thread Class 2A 0.1P-0.3L-TS (Plated) L Max. (TV) L' Max. (CTV) M +.000- M1 +.000- R1 R2 S Max. T ±.008 9 0.625 1.039 1.086 0.82 0.773 0.719 0.594 0.948 0.128 11 0.75 1.039 1.086 0.82 0.773 0.812 0.719 1.043 0.128 13 0.875 1.039 1.086 0.82 0.773 0.906 0.812 1.137 0.128 15 1 1.039 1.086 0.82 0.773 0.969 0.906 1.232 0.128 17 1.1875 1.039 1.086 0.82 0.773 1.062 0.969 1.323 0.128 19 1.25 1.039 1.086 0.82 0.773 1.156 1.062 1.449 0.128 21 1.375 1.069 1.118 0.79 0.741 1.25 1.156 1.575 0.128 23 1.5 1.069 1.118 0.79 0.741 1.375 1.25 1.701 0.154 25 1.625 1.069 1.118 0.79 0.741 1.5 1.375 1.823 0.154 Shell Size A1 Back Panel Mount A2 Front Panel Mount AA Max. Panel Thickness LL +.006-.000 (TV) LL' ±.005 (CTV) TT ±.008 V Thread Metric 9 0.655 0.516 0.234 0.905 0.908 0.216 M12X1-6g 11 0.796 0.625 0.234 0.905 0.908 0.194 M15X1-6g 13 0.922 0.75 0.234 0.905 0.908 0.194 M18X1-6g 15 1.047 0.906 0.234 0.905 0.908 0.173 M22X1-6g 17 1.219 1.016 0.234 0.905 0.908 0.194 M25X1-6g 19 1.297 1.141 0.234 0.905 0.908 0.194 M28X1-6g 21 1.442 1.266 0.204 0.905 0.904 0.194 M31X1-6g 23 1.547 1.375 0.204 0.905 0.904 0.242 M34X1-6g 25 1.672 1.484 0.204 0.905 0.904 0.242 M37X1-6g All dimensions in inches. For reference only. Red band indicates fully mated. The rear accessory shown above is provided kitted with each connector and is for environmental sealing. The grommet included is insert arrangement specific, shown at right is the 13-53 pattern. TV06R / CTV06RAMPHENOL OCS SERIES - TV06R - METAL & CTV06R - COMPOSITE
Straight Plug
Shell Size B Thread 0.1P-0.3L-TS-2B (Plated) Q Dia. Max. V Thread Metric 9 0.625 0.858 M12X1-6g 11 0.75 0.984 M15X1-6g 13 0.875 1.157 M18X1-6g 15 1 1.28 M22X1-6g 17 1.1875 1.406 M25X1-6g 19 1.25 1.516 M28X1-6g 21 1.375 1.642 M31X1-6g 23 1.5 1.768 M34X1-6g 25 1.625 1.89 M37X1-6g All dimensions in inches. For reference only. The rear accessory shown above is provided kitted with each connector and is for environmental sealing. The grommet included is insert arrangement specific, shown at right is the 13-53 pattern. TV07R / CTV07RAMPHENOL OCS SERIES - TV07R - METAL & CTV07R - COMPOSITE
Jam Nut Receptacle
Shell Size B Thread Class 2A 0.1P-0.3L-TS (Plated) C Max. D1 +.010-.000 D2 +.000-.010 H Hex +.017-.016 K Ref. S ±.010 V Thread Metric 9 0.625 1.199 0.693 0.657 0.875 0.871 1.062 M12X1-6g 11 0.75 1.386 0.825 0.77 1 0.871 1.25 M15X1-6g 13 0.875 1.511 1.01 0.955 1.188 0.878 1.375 M18X1-6g 15 1 1.636 1.135 1.085 1.312 0.878 1.5 M22X1-6g 17 1.1875 1.761 1.26 1.21 1.438 0.878 1.625 M25X1-6g 19 1.25 1.949 1.385 1.335 1.562 0.878 1.812 M28X1-6g 21 1.375 2.073 1.51 1.46 1.688 0.878 1.938 M31X1-6g 23 1.5 2.199 1.635 1.585 1.812 0.878 2.062 M34X1-6g 25 1.625 2.323 1.76 1.71 2 0.878 2.188 M37X1-6g All dimensions in inches. For reference only. Red band indicates fully mated. The rear accessory shown above is provided kitted with each connector and is for environmental sealing. The grommet included is insert arrangement specific, shown at right is the 13-53 pattern. |
|
AMPHENOL OCS SERIES CONTACT PART NUMBERS
21-033585-001 (Pin)21-033586-001 (Socket) AMPHENOL OCS SERIES CONTACT TOOL PART NUMBER
10-6460C1-001 (Removal Tool)
|
|
