Amphenol µCom-10Gb+ Series Miniaturized Connectors
MINIATURIZATION AND HIGH SPEED IN THE HARSHEST ENVIRONMENTS
Amphenol µCom-10Gb+ series (pronounced, Microcom) is designed to meet industry demands for miniaturized connectors with rapid transmission speeds and high resistance in extreme environments. Environmentally tested to MIL-DTL-38999 Series III military specifications, these miniature connectors with a 15mm (.59˝) max. external diameter can exceed 10Gb/s per IEEE 802.3an-2006 even in the harshest environments. A 2000 mating cycle coupling provides end users with one of the most rugged and micro sized interconnect solutions on the market.
Features and Benefits
- 500h salt spray RoHS compliant plating
- Solder, crimp and PCB contact styles
- IP68 sealing for mated/unmated receptacles
- Temperature range: -55ºC/ +125ºC
- Available in threaded and push pull style plugs
The rugged IP68 design features four completely insulated twisted wire pairs throughout the connector to minimize cross-talk. A threaded coupling mechanism provides high vibration resistance. The design provides IP68 sealing for mated and unmated receptacles with 500 hours of salt spray resistance.
AMPHENOL SOCAPEX μCOM - 10Gb+ SERIES FEATURES
- 10Gb+ exceeds 10Gb/s Ethernet following IEEE 802.3an-2006 : 10GBase-T
- CAT.6A connector according to TIA568C.2 and ISO/IEC11801 standard
- Environmental testing based on MIL-DTL-38999 series III military specifications
- Miniature : 15 mm(.59") max external diameter
- 4 pairs totally insulated throughout the connector
minimum cross-talk between the four pairs
- Patent pending special interfacial shapes
minimum perturbation at the interface of each pair
- Thread coupling mechanism
2000 mating cycles & high vibration resistance
- IP68 sealing mated and unmated for PCB receptacles
AMPHENOL SOCAPEX μCOM - 10Gb+ SERIES MATERIALS & FINISHES
Shell Platings Olive Drab Chromate over Cadmium, Black Nickel, & unplated
Plating Gold-plated 50 microinches per MIL-G-45204 type II, grade C, class I

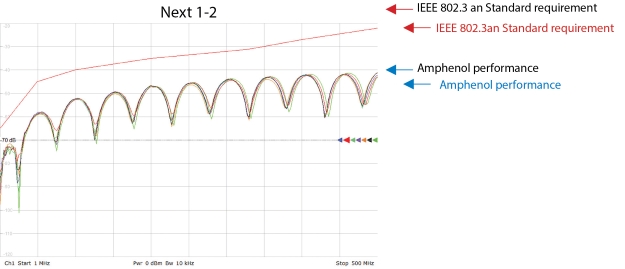

AMPHENOL SOCAPEX μCOM - 10Gb+ SERIES ELECTRICAL DATA
Dielectric Withstanding,
60 Hz 1500Vrms @ Sea Level
Transmission Data exceeds 10Gb/s following IEEE 802.3an-2006: 10GBase-T
AMPHENOL SOCAPEX μCOM - 10Gb+ SERIES MECHANICAL
Temperature Range -67°F to 257°F (-55°C to 125°C)
Vibration 10-2000 Hz / 60g reference MIL-DTL-38999 Series
Seal Rating IP68 in mated condition, PCB in unmated condition
RoHS Compliant Yes; CAD OD plating is not RoHS
Cable Used for cordsets
CAT 7 HFFR according to
EN 50288-4-2
- Stranded bare copper wire (26 AWG)
- 4 screened twisted pairs: 2 wires twisted to a pair, Aluminate foil overlapped
- Shield braiding of tinned copper wires, about 80% coverage
- Strain member of Kevlar
- Jacket in black Polyurethane (PUR), glossy finish, acc to DIN VDE 0282
- External diameter 7.0 +/-0.3 mm
- UV & Hydrolysis resistant, Halogen free, RoHS compliant
- Max Pull force: 800 N, Weight : about 54 kg/km
- Temperature : - 40°C to + 85°C (- 40°F to + 185°F)
- Min. bending radius allowed: repeated 8 x 0, single 4 x 0
|
AMPHENOL SOCAPEX μCOM – 10Gb+ SERIES APPLICATIONS
- Cockpit
- Communications
- Airline Seats
- In-flight Entertainment
- Railway
- Heavy Equipment
- Business Jets
|
|
AMPHENOL SOCAPEX μCOM – 10Gb+ SERIES HOW TO ORDER
with Cable Gland Backshell for Cable Diameter
.295" (7.5mm) with Metallic Band
Backshell # with Metallic Band
Backshell # Crimp: UCOM10G+PTC*GA
Solder: UCOM10G+PTS*GA Crimp: UCOM10G+PTC*B
Solder: UCOM10G+PTS*B Crimp: UCOM10G+RC*
Solder: UCOM10G+RS* with Cable Gland Backshell for Cable Diameter
.295" (7.5mm) with Metallic Band
Backshell # Crimp: UCOM10G+LC*GA
Solder: UCOM10G+LS*GA Crimp: UCOM10G+LC*B
Solder: UCOM10G+LS*B
* Select Plating
B = black nickel
G = olive drab cadmium
U = unplated brass
# Metallic Band and heat shrink sleeve are provide with connector
AMPHENOL SOCAPEX μCOM - 10Gb+ PLUG - μCOM PLUG CORDSET
μCOM Plug to no connector

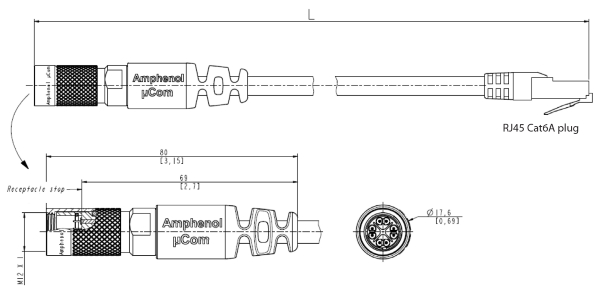

AMPHENOL SOCAPEX μCOM - 10Gb+ PLUG - RJ45 CAT6A PLUG CORDSET
μCOM Plug to RJ45 CAT 6A Plug
AMPHENOL SOCAPEX μCOM - 10Gb+ PANEL MOUNT RECEPTACLE - RJ45 CAT6A PLUG
μCOM Panel Mount Receptacle to RJ45 CAT 6A Plug μCOM Panel Mount Receptacle to no connector

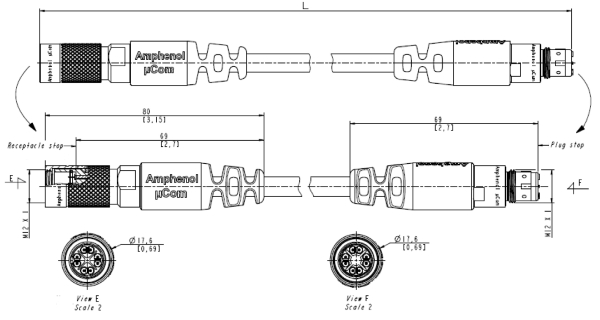

AMPHENOL SOCAPEX μCOM - 10Gb+ PLUG - μCOM INLINE RECEPTACLE
μCOM Plug to μCOM In-Line Receptacle μCOM Plug to no connector
* Select Plating
B = black nickel
G = olive drab cadmium
U = unplated brass
** Select Total Length Cordset
005 - 50cm (19.68")
010 - 1.0m (39.37")
015 - 1.5m (59.05")
020 - 2.0m (78.74")
050 - 5.0m (196.85")
100 - 10.0m (393.70")
## Select Total Length Cordset
A - 50cm (19.68")
B - 1.0m (39.37")
C - 1.5m (59.05")
D - 2.0m (78.74")
E - 5.0m (196.85")
F - 10.0m (393.70")
Cable Used for cordsets
CAT 7 HFFR according to
EN 50288-4-2
- Stranded bare copper wire (26 AWG)
- 4 screened twisted pairs: 2 wires twisted to a pair, Aluminate foil overlapped
- Shield braiding of tinned copper wires, about 80% coverage
- Strain member of Kevlar
- Jacket in black Polyurethane (PUR), glossy finish, acc to DIN VDE 0282
- External diameter 7.0 +/-0.3 mm
- UV & Hydrolysis resistant, Halogen free, RoHS compliant
- Max Pull force: 800 N, Weight : about 54 kg/km
- Temperature : - 40°C to + 85°C (- 40°F to + 185°F)
- Min. bending radius allowed: repeated 8 x 0, single 4 x 0
Note:
UCOM for order desgination
µCOM for marking on connector
|
|
AMPHENOL SOCAPEX μCOM – 10Gb+ SERIES TOOLING
All dimensions in inches (millimeters in parentheses)
AMPHENOL SOCAPEX μCOM – 10Gb+ SERIES OTHER TOOLING
Nut clamping tool for
panel mount receptacle
P/N: 31055
Brazing Tool for receptacles
P/N: 31132
Brazing Tool for plugs
P/N: 31133
Contacts Included with Connector
|
|
AMPHENOL SOCAPEX μCOM – 10Gb+ SERIES PLUGS

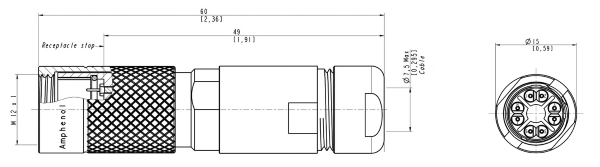

Amphenol μCOM Plug with Cable Gland Backshell
Amphenol μCOM Plug with Metalic Band Backshell
AMPHENOL SOCAPEX μCOM – 10Gb+ SERIES RECEPTACLES

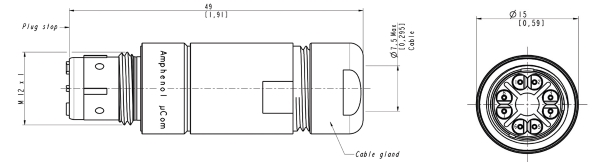

Amphenol μCOM In-Line Receptacle with Cable Gland Backshell
Amphenol μCOM In-Line Receptacle with Metallic Band Backshell
Amphenol μCOM Panel Mount Receptacle for Printed Circuit Board
Amphenol μCOM Panel Mount Receptacle with Metallic Band Backshell
AMPHENOL SOCAPEX μCOM – 10Gb+ SERIES CORDSETS
Amphenol μCOM Plug - μCOM Plug Cordset
Amphenol μCOM Plug - RJ45 CAT6A Plug Cordset
Amphenol μCOM Panel Mount Receptacle - RJ45 CAT6A Plug
Amphenol μCOM Plug - μCOM InLine Receptacle
|
|
AMPHENOL SOCAPEX μCOM – 10Gb+ SERIES DUST CAPS

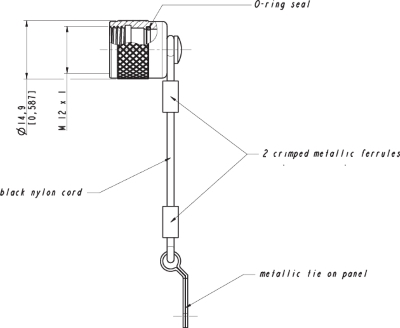

Metal Dust Cap for Receptacles (IP68) 31057*
Cord Length is 68 mm (2.677 in)
Metallic Tie Diameter is 4.1 mm (0.161 in)
* Select Plating:
B = Black Nickel Plating
G = Olive Drab Cadmium
U = Unplated Brass
AMPHENOL SOCAPEX μCOM – 10Gb+ NEOPRENE CAPS
For Panel Receptale 31091
 For In-Line Receptacle 31093
 For Plug 31092
AMPHENOL SOCAPEX μCOM – 10Gb+ SERIES DUMMY RECEPTACLE
Dummy Receptacle 31131*
* Select Plating:
B = Black Nickel Plating
G = Olive Drab Cadmium Plating
U = Unplated Brass
|
