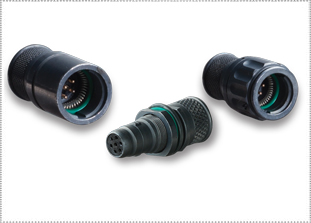

Amphenol Terrapin / SCE2 Connectors
MINIATURE PUSH-PULL CONNECTOR FOR HARSH APPLICATIONS
Amphenol Terrapin SCE2 series of miniature Push-Pull connectors are environmentally-sealed for use in harsh environments. Amphenol Terrapin SCE2 connectors offer silent mating with high mating cycles and a lockable coupling ring to prevent connector break-away. For more product details on our Amphenol Terrapin SCE2 series connectors, please see full specifications below.
|
MATERIALS & FINISHESAMPHENOL SCE2/TERRAPIN SERIES MATERIALS & FINISHES
Shell Material Brass / Aluminum
Shell Plating Black-silver (non-reflective) / Black Zinc Nickel (Aluminum Only)
Contact Material Copper alloy
Contact Plating 1μM of gold over nickel
ELECTRICAL DATAAMPHENOL SCE2/TERRAPIN SERIES ELECTRICAL DATA
Current Rating 26AWG contacts: 1.5A DC / 20AWG contacts: 7.5A DC
Shell-to-Shell Continuity 10mΩ max (shielded) / 200mΩ max (unshielded)
Contact Resistance 5mΩ initial 10mΩ maximum
Insulation Resistance 1000mΩ minimum production tested to 500mΩ
Working Voltage 400Vac (rms)
Dielectric Withstanding Voltage 2mA maximum leakage
TECHNICALAMPHENOL SCE2/TERRAPIN SERIES TECHNICAL
Mating Durability 2000+ cycles
Backshell Overtorque 19.914 lb.f.in. / 2.25 Nm
Panel Nut Overtorque 19.914 lb.f.in. / 2.25 Nm
Non-magnetic Yes
ENVIRONMENTALAMPHENOL SCE2/TERRAPIN SERIES ENVIRONMENTAL
Operating Temperature Range -67°F to + 248°F (-55°C to + 125°C)
Temperature Endurance 250 hours +125°C
Sealing (mated and unmated) IP68, 1 hour at 2 meters*
Air Leakage Less than 1cc per hour
Salt Spray Black-silver 1000-hours, Black Zinc Nickel: 500-hours
Altitude Immersion 70,000 feet
RoHS-Compliant Yes
Suitable for RoHS-Compliant Soldering Yes
* Contact us if greater depth/duration of sealing is required |
|
AMPHENOL SCE2/TERRAPIN SERIES APPLICATIONS
|
|
HOW TO ORDERAMPHENOL SCE2/TERRAPIN SERIES RECEPTACLES
Cable-Mount Receptacles (Pins) Solder Buckets Only Panel-Mount Receptacles (Pins)
# of Contacts 01K Receptacle with Integral Backshell 01T Receptacle with Threaded Backshell L1K Locking Receptacle w/Integral Backshell L1T Locking Receptacle w/Threaded Backshell 07A Rear Mount Jam Nut Receptacle 71A Front Mount Jam Nut Receptacle Shell Size 7 SCE2-B- SCE2-B- SCE2-B- SCE2-B- SCE2-B- SCE2-B- 6 10 SCE2-B- SCE2-B- SCE2-B- SCE2-B- SCE2-B- SCE2-B- 7 12 SCE2-B- SCE2-B- SCE2-B- SCE2-B- SCE2-B- SCE2-B- 7 14 SCE2-B- SCE2-B- SCE2-B- SCE2-B- SCE2-B- SCE2-B- 7 19 SCE2-B- SCE2-B- SCE2-B- SCE2-B- SCE2-B- SCE2-B- 8 26 SCE2-B- SCE2-B- SCE2-B- SCE2-B- SCE2-B- SCE2-B- 9 37 SCE2-B- SCE2-B- SCE2-B- SCE2-B- SCE2-B- SCE2-B- 10 * = Include keyway orientations N,A,B,C,D Add -985 for grounding spring on L1K and L1T types only XXX = Contact Termination Code use -001 for PCB use -002 for Solder Buckets Click here for layouts and keyways. ↑ Mates With ↓ AMPHENOL SCE2/TERRAPIN SERIES PLUGS
In-Line Plugs (Sockets)
# of Contacts 76A Rear Mount Jam Nut Plug 67A Front Mount Jam Nut Plug 76T Rear Mount Jam Nut w/Threaded Backshell Plug 06K In-Line Plug w/Integral Backshell 06T In-Line Plug w/ Threaded Backshell Shell Size 7 SCE2-B-76A06-07S*-XXX SCE2-B-67A06-07S*-XXX SCE2-B-76T06-07S*-002 SCE2-B-06K06-07S* SCE2-B-06T06-07S*-003 6 10 SCE2-B-76A07-10AS*-XXX SCE2-B-67A07-10AS*-XXX SCE2-B-76T07-10AS*-002 SCE2-B-06K07-10AS* SCE2-B-06T07-10AS*-003 7 12 SCE2-B-76A07-12S*-XXX SCE2-B-67A07-12S*-XXX SCE2-B-76T07-12S*-002 SCE2-B-06K07-12S* SCE2-B-06T07-12S*-003 7 14 SCE2-B-76A07-14S*-XXX SCE2-B-67A07-14S*-XXX SCE2-B-76T07-14S*-002 SCE2-B-06K07-14S* SCE2-B-06T07-14S*-003 7 19 SCE2-B-76A08-19S*-XXX SCE2-B-67A08-19S*-XXX SCE2-B-76T08-19S*-002 SCE2-B-06K08-19S* SCE2-B-06T08-19S*-003 8 26 SCE2-B-76A09-26S*-XXX SCE2-B-67A09-26S*-XXX SCE2-B-76T09-26S*-002 SCE2-B-06K09-26S* SCE2-B-06T09-26S*-003 9 37 SCE2-B-76A10-37S*-XXX SCE2-B-67A10-37S*-XXX SCE2-B-76T10-37S*-002 SCE2-B-06K10-37S* SCE2-B-06T10-37S*-003 10 XXX = Contact termination code use -001 for PCB use -002 for solder buckets * = Include keyway orientations N,A,B,C,D Click here for layouts and keyways. NOTE: Use prefix SCE2-ZN for Black Zinc Nickel aluminum version. AMPHENOL SCE2/TERRAPIN SERIES RECEPTACLE ACCESSORIES
Dustcaps for Receptacles Shrink Boots
Metal Rubber Metal Rubber Metal Rubber Shell Size with Crimp Ferrule with Eyelet with Large Eyelet for Jam Nut Straight Cable Exit Dia. Right Angle Cable Exit Dia. 6 390-5056-06-###-02 390-5063-06-###-02 390-5056-06-###-03 390-5063-06-###-03 390-5056-06-###-05 390-5063-06-###-05 123GB-0798-06-S 0.24 (6.10) 123GB-0798-06-R 0.22 (5.59) 7 390-5056-07-###-02 390-5063-07-###-02 390-5056-07-###-03 390-5063-07-###-03 390-5056-07-###-05 390-5063-07-###-05 123GB-0798-07-S 0.24 (6.10) 123GB-0798-07-R 0.25 (6.35) 8 390-5056-08-###-02 390-5063-08-###-02 390-5056-08-###-03 390-5063-08-###-03 390-5056-08-###-05 390-5063-08-###-05 123GB-0798-08-S 0.24 (6.10) 123GB-0798-08-R 0.25 (6.35) 9 390-5056-09-###-02 390-5063-09-###-02 390-5056-09-###-03 390-5063-09-###-03 390-5056-09-###-05 390-5063-09-###-05 123GB-0798-09-S 0.24 (6.10) 123GB-0798-09-R 0.25 (6.35) 10 390-5056-10-###-02 390-5063-10-###-02 390-5056-10-###-03 390-5063-10-###-03 390-5056-10-###-05 390-5063-10-###-05 123GB-0798-10-S 0.24 (6.10) 123GB-0798-10-R 0.25 (6.35)
AMPHENOL SCE2/TERRAPIN SERIES PLUG ACCESSORIES
Dustcaps for Receptacles Shrink Boots
Metal Rubber Metal Rubber Metal Rubber Shell Size with Crimp Ferrule with Eyelet with Large Eyelet for Jam Nut Straight Cable Exit Dia. Right Angle Cable Exit Dia. 6 390-5057-06-###-02 390-5064-06-###-02 390-5057-06-###-03 390-5064-06-###-03 390-5057-06-###-05 390-5064-06-###-05 123GB-0798-06-S 0.24 (6.10) 123GB-0798-06-R 0.22 (5.59) 7 390-5057-07-###-02 390-5064-07-###-02 390-5057-07-###-03 390-5064-07-###-03 390-5057-07-###-05 390-5064-07-###-05 123GB-0798-07-S 0.24 (6.10) 123GB-0798-07-R 0.25 (6.35) 8 390-5057-08-###-02 390-5064-08-###-02 390-5057-08-###-03 390-5064-08-###-03 390-5057-08-###-05 390-5064-08-###-05 123GB-0798-08-S 0.24 (6.10) 123GB-0798-08-R 0.25 (6.35) 9 390-5057-09-###-02 390-5064-09-###-02 390-5057-09-###-03 390-5064-09-###-03 390-5057-09-###-05 390-5064-09-###-05 123GB-0798-09-S 0.24 (6.10) 123GB-0798-09-R 0.25 (6.35) 10 390-5057-10-###-02 390-5064-10-###-02 390-5057-10-###-03 390-5064-10-###-03 390-5057-10-###-05 390-5064-10-###-05 123GB-0798-10-S 0.24 (6.10) 123GB-0798-10-R 0.25 (6.35) ### = Length of cord 060,130,180 mm (other options available, please contact us.) All dimensions in inches (millimeters in parentheses) PART NUMBERAMPHENOL SCE2/TERRAPIN SERIES INSERT ARRANGEMENTS REAR VIEW OF THE PLUG
SHELL SIZE 06 07
Layout 06-07 06-09 07-10A 07-12 07-14 SHELL SIZE 07 08 09 10
Layout 07-19 08-19 09-26 10-37 AMPHENOL SCE2/TERRAPIN SERIES PLUG AND RECEPTACLE KEYWAY ORIENTATION
Keyway Orientation Letter Plug Keyway Orientation Receptacle Keyway Orientation
AMPHENOL SCE2/TERRAPIN SERIES TERMINOLOGY
L1T L1K 01K
|
23AWG contacts
20AWG contacts
28AWG contacts
|
RECEPTACLES PINSAMPHENOL SCE2/TERRAPIN SERIES SCE2-X-01K - IN-LINE RECEPTACLE WITH INTEGRAL BACKSHELL
Shell Size ØF ØH ØJ K L M N 6 .462 (11.73) .399 (10.13) .440 (11.18) .900 (22.86) .525 (13.34) .330 (8.38) .090 (2.29) 7 .575 (14.61) .460 (11.68) .505 (12.83) .900 (22.86) .525 (13.34) .330 (8.38) .090 (2.29) 8 .620 (15.75) .581 (14.76) .620 (15.75) .900 (22.86) .525 (13.34) .330 (8.38) .090 (2.29) 9 .690 (17.51) .651(16.54) .690 (17.53) .970 (24.64) .525 (13.34) .400 (10.16) .090 (2.29) 10 .760 (19.29) .721(18.31) .760 (19.30) .970 (24.64) .525 (13.34) .400 (10.16) .090 (2.29) All dimensions in inches (millimeters in parentheses) AMPHENOL SCE2/TERRAPIN SERIES SCE2-X-L1K - IN-LINE LATCHING RECEPTACLE WITH INTEGRAL BACKSHELL
Shell Size ØF ØH ØJ K L M N 6 .540 (13.75) .399 (10.14) .440 (11.18) .902 (22.91) .527 (13.39) .330 (8.38) .090 (2.29) 7 .610 (15.50) .447 (11.35) .505 (12.83) .902 (22.91) .527 (13.39) .330 (8.38) .090 (2.29) 8 .700 (17.77) .581 (14.75) .620 (15.75) .902 (22.91) .527 (13.39) .330 (8.38) .090 (2.29) 9 .770 (19.56) .651 (16.54) .690 (17.53) .972 (24.69) .527 (13.39) .400 (10.16) .090 (2.29) 10 .840 (21.34) .721 (18.31) .760 (19.30) .972 (24.69) .527 (13.39) .400 (10.16) .090 (2.29) All dimensions in inches (millimeters in parentheses) AMPHENOL SCE2/TERRAPIN SERIES SCE2-X-01T - IN-LINE RECEPTACLE WITH THREADED BACKSHELL

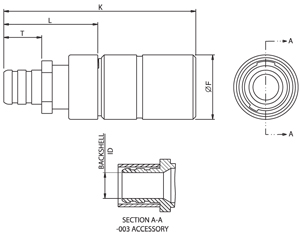

Backshell ID 6 .462 (11.73) 1.377 (34.98) .674 (17.12) .272 (6.91) .185 (4.70) 7 .575 (14.61) 1.377 (34.98) .674 (17.12) .272 (6.91) .265 (6.73) 8 .620 (15.75) 1.377 (34.98) .674 (17.12) .345 (8.76) .345 (8.76) 9 .690 (17.53) 1.447 (36.75) .674 (17.12) .345 (8.76) .425 (10.80) 10 .760 (19.30) 1.447 (36.75) .674 (17.12) .345 (8.76) .505 (12.83) All dimensions in inches (millimeters in parentheses) AMPHENOL SCE2/TERRAPIN SERIES SCE2-X-L1T - IN-LINE LATCHING RECEPTACLE WITH THREADED BACKSHELL
Backshell ID 6 .540 (13.70) 1.379 (35.03) .674 (17.12) .465 (11.81) .185 (4.70) 7 .610 (15.50) 1.379 (35.03) .674 (17.12) .465 (11.81) .265 (6.73) 8 .700 (17.77) 1.379 (35.03) .674 (17.12) .465 (11.81) .345 (8.76) 9 .770 (19.56) 1.449 (36.80) .674 (17.12) .465 (11.81) .425 (10.80) 10 .840 (21.34) 1.470 (37.34) .674 (17.12) .465 (11.81) .505 (12.83) All dimensions in inches (millimeters in parentheses) AMPHENOL SCE2/TERRAPIN SERIES SCE2-X-07A - JAM NUT - REAR MOUNT RECEPTACLE

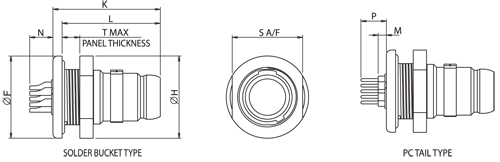

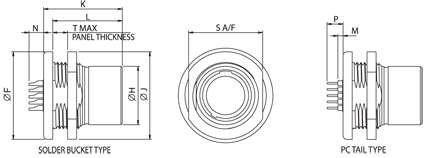

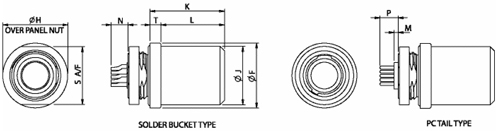

Shell Size ØF ØH ØJ K L M N P S A/F T Max. 6 .750 (19.05) .462 (11.73) .750 (19.05) .835 (21.21) .738 (18.75) .055 (1.40) .155 (3.94) .170 (4.42) .665 (16.88) .157 (4.45) 7 .895 (22.73) .575 (14.61) .895 (22.73) .835 (21.21) .738 (18.75) .055 (1.40) .155 (3.94) .170 (4.42) .750 (19.05) .157 (4.45) 8 .930 (23.62) .620 (15.75) .930 (23.62) .835 (21.21) .738 (18.75) .055 (1.40) .155 (3.94) .170 (4.42) .785 (19.94) .157 (4.45) 9 1.000 (25.38) .690 (17.53) 1.005 (25.53) .905 (22.99) .808 (20.52) N/A .155 (3.94) .170 (4.42) .863 (21.92) .157 (4.45) 10 1.070 (27.18) .760 (19.30) 1.080 (27.43) .905 (22.99) .808 (20.52) N/A .155 (3.94) .170 (4.42) .940 (23.88) .157 (4.45) All dimensions in inches (millimeters in parentheses) AMPHENOL SCE2/TERRAPIN SERIES SCE2-X-71A - JAM NUT - FRONT MOUNT RECEPTACLE
Shell Size ØF ØH ØJ K L M N P S A/F T Max. 6 N/A .531 (13.48) .550 (13.97) .677 (17.19) N/A .015 (0.38) .113 (2.87) .130 (3.30) .470 (11.94) N/A 7 .750 (19.04) .575 (14.61) .750 (19.04) .677 (17.19) .577 (14.65) .015 (0.38) .113 (2.87) .130 (3.30) .665 (16.89) .100 (2.54) 8 .760 (19.30) .620 (15.75) .760 (19.30) .877 (22.28) .677 (17.20) .015 (0.38) .113 (2.87) .130 (3.30) .825 (20.96) .100 (2.54) 9 .890 (22.61) .690 (17.53) .890 (22.61) .947 (24.05) .747 (18.97) N/A .113 (2.87) .060 (1.52) .955 (24.26) .100 (2.54) 10 .930 (20.62) .760 (19.30) .930 (20.62) .947 (24.05) .747 (18.97) N/A .113 (2.87) .060 (1.52) .995 (25.27) .100 (2.54) All dimensions in inches (millimeters in parentheses) PLUGS SOCKETSAMPHENOL SCE2/TERRAPIN SERIES SCE2-X-76A - JAM NUT - REAR MOUNT PLUG
Shell Size ØF ØH K L M N P S A/F T Max. 6 .550 .550 .716 .655 .055 .155 .170 .470 .118 7 .620 .600 .716 .655 .055 .155 .170 .510 .118 8 .760 .760 .716 .655 .055 .155 .170 .706 .118 9 .890 .830 .802 .725 .114 .069 .234 .745 .125 10 .930 .900 .802 .725 .114 .069 .234 .808 .125 All dimensions in inches (millimeters in parentheses) AMPHENOL SCE2/TERRAPIN SERIES SCE2-X-67A - JAM NUT - FRONT MOUNT PLUG

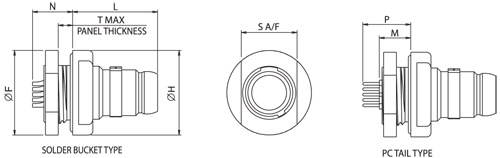

Shell Size ØF ØH L M N P S A/F T Max. 6 .590 (14.99) .590 (14.99) .592 (13.04) .324 (8.23) .279 (7.09) .424 (10.78) .525 (13.34) .100 (2.54) 7 .750 (19.05) .750 (19.05) .592 (13.04) .324 (8.23) .279 (7.09) .444 (11.27) .665 (16.89) .100 (2.54) 8 .760 (19.30) .760 (19.30) .592 (13.04) .324 (8.23) .279 (7.09) .444 (11.27) .706 (17.93) .100 (2.54) 9 .890 (22.61) .890 (22.61) .662 (16.82) .254 (6.45) .209 (5.31) .354 (8.99) .955 (24.26) .100 (2.54) 9 .930 (23.62) .930 (23.62) .662 (16.82) .254 (6.45) .209 (5.31) .354 (8.99) .995 (25.27) .100 (2.54) All dimensions in inches (millimeters in parentheses) AMPHENOL SCE2/TERRAPIN SERIES SCE2-X-06K - IN-LINE PLUG WITH INTEGRAL BACKSHELL

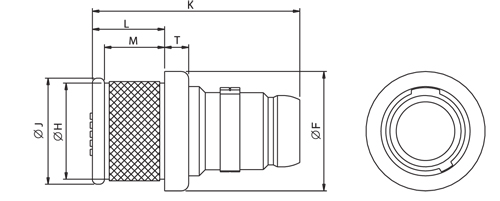

Shell Size ØF ØH ØJ K L M T 6 .495 (12.57) .412 (10.46) .440 (11.18) .862 (21.89) .300 (7.62) .250 (6.35) .100 (2.54) 7 .575 (14.61) .460 (11.68) .505 (12.83) .862 (21.89) .300 (7.62) .250 (6.35) .100 (2.54) 8 .650 (16.51) .593 (15.06) .620 (15.75) .862 (21.89) .300 (7.62) .250 (6.35) .100 (2.54) 9 .720 (18.23) .663 (16.84) .690 (17.53) .932 (23.67) .317 (8.05) .267 (6.78) .100 (2.54) 10 .790 (20.06) .733 (18.61) .760 (19.30) .932 (23.67) .317 (8.05) .267 (6.78) .100 (2.54) All dimensions in inches (millimeters in parentheses) AMPHENOL SCE2/TERRAPIN SERIES SCE2-X-06T - IN-LINE PLUG WITH THREADED BACKSHELL
Backshell ID 6 .550 (13.97) 1.292 (32.82) .451 (11.46) .141 (3.58) .185 (4.70) 7 .630 (16.00) 1.292 (32.82) .451 (11.46) .141 (3.58) .265 (6.73) 8 .705 (17.91) 1.292 (32.82) .451 (11.46) .141 (3.58) .345 (8.76) 9 .780 (19.81) 1.362 (34.60) .521 (13.23) .141 (3.58) .425 (10.80) 10 .855 (21.72) 1.362 (34.60) .521 (13.23) .141 (3.58) .505 (12.83) All dimensions in inches (millimeters in parentheses) AMPHENOL SCE2/TERRAPIN SERIES SCE2-X-76T - JAM NUT - REAR MOUNT PLUG WITH SCREW-ON BACKSHELL
Shell Size ØH ØJ K L M S A/F T Max. 6 .460 (11.68) .490 (12.45) 1.150 (29.21) .655 (16.64) .330 (8.38) .470 (11.94) .118 (3.00) 7 .600 (15.24) .560 (14.21) 1.150 (29.21) .655 (16.64) .330 (8.38) .510 (12.95) .118 (3.00) 8 .730 (18.54) .730 (18.53) 1.150 (29.21) .655 (16.64) .330 (8.38) .706 (17.93) .118 (3.00) 9 .790 (20.07) .793 (20.13) 1.237 (31.40) .725 (18.42) .330 (8.38) .745 (18.92) .125 (3.18) 10 .860 (21.84) .900 (22.86) 1.220 (30.99) .725 (18.42) .330 (8.38) .808 (20.52) .125 (3.18) All dimensions in inches (millimeters in parentheses) |
|

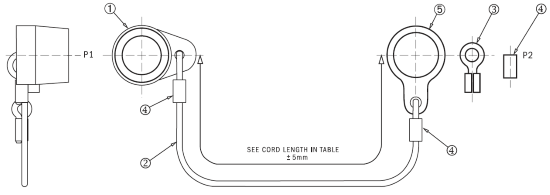

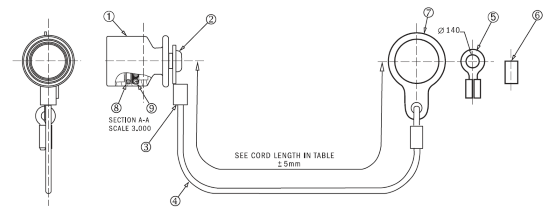

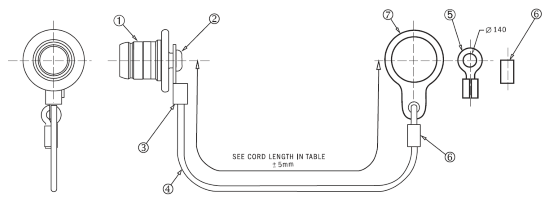

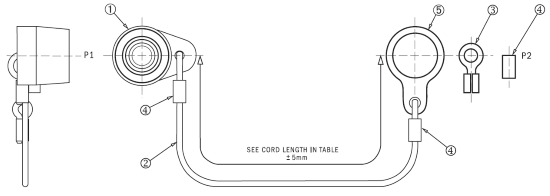

AMPHENOL SCE2/TERRAPIN SERIES 390-5057 - METAL DUSTCAP FOR PLUGS
Item 1 - Cap Shell Size Part Number ØF K 6 390-5057-06-XXX-XX .464 (11.79) .794 (20.17) 7 390-5057-07-XXX-XX .545 (13.84) .794 (20.17) 8 390-5057-08-XXX-XX .620 (15.75) .794 (20.17) 9 390-5057-09-XXX-XX .695 (17.65) .794 (20.17) 10 390-5057-10-XXX-XX .770 (19.56) .794 (20.17) XXX = Length of cord 060, 130, 180 mm XX = 02 = Crimp ferrule 03 = Eyelet 05 = Large eyelet for jamnut AMPHENOL SCE2/TERRAPIN SERIES 390-5056 - METAL DUSTCAP FOR RECEPTACLES
Item 1 - Cap Shell Size Part Number ØF K 6 390-5056-06-XXX-XX .575 (14.61) .664 (16.87) 7 390-5056-07-XXX-XX .575 (14.61) .664 (16.87) 8 390-5056-08-XXX-XX .750 (19.05) .664 (16.87) 9 390-5056-09-XXX-XX .825 (20.95) .664 (16.87) 10 390-5056-10-XXX-XX .900 (22.86) .664 (16.87) XXX = Length of cord 060, 130, 180 mm XX = 02 = Crimp ferrule 03 = Eyelet 05 = Large eyelet for jamnut AMPHENOL SCE2/TERRAPIN SERIES 390-5064 - RUBBER DUSTCAP FOR PLUGS
Item 1 - Cap Shell Size Part Number ØF K 6 390-5064-06-XXX-XX .450 (11.43) .550 (13.97) 7 390-5064-07-XXX-XX .525 (13.34) .550 (13.97) 8 390-5064-08-XXX-XX .595 (15.11) .550 (13.97) 9 390-5064-09-XXX-XX .665 (16.89) .550 (13.97) 10 390-5064-10-XXX-XX .735 (18.67) .550 (13.97) XXX = Length of cord 060, 130, 180 mm XX = 02 = Crimp ferrule 03 = Eyelet 05 = Large eyelet for jamnut AMPHENOL SCE2/TERRAPIN SERIES 390-5063 - RUBBER DUSTCAP FOR RECEPTACLES
Item 1 - Cap Shell Size Part Number ØF K 6 390-5063-06-XXX-XX .625 (15.88) .550 (13.97) 7 390-5063-07-XXX-XX .725 (18.42) .550 (13.97) 8 390-5063-08-XXX-XX .780 (19.81) .550 (13.97) 9 390-5063-09-XXX-XX .870 (22.10) .550 (13.97) 10 390-5063-10-XXX-XX .940 (23.88) .550 (13.97) XXX = Length of cord 060, 130, 180 mm XX = 02 = Crimp ferrule 03 = Eyelet 05 = Large eyelet for jamnut All dimensions in inches (millimeters in parentheses) |
|
AMPHENOL SCE2/TERRAPIN SERIES RECOMMENDED SOLDER EQUIPMENT
STEP 1: Slide the rear accessories over the wire bundle in the proper sequence for reassembly. STEP 2: Strip wires .200” (5.08). STEP 3: Pre-tin wire to be terminated.
STEP 4: Pre-tin the solder bucket. This should be done using the minimum temperature required while achieving the wetted solder joint. Remember to ensure a good solder bridge. Place the iron tip inside the bucket. STEP 5: Terminate wire to the solder bucket, again using minimum heat while ensuring the required wetting. Place the iron tip inside the bucket and slide in the wire to be terminated. Always clean solder joints, ensuring that the contacts are not damaged. STEP 6: Repeat steps for additional contacts. Terminate shield using banding termination or other method. Recover heat shrink boot starting on the connector and moving downward towards the cable. Adhesive should flow out of the boot. AMPHENOL SCE 2/TERRAPIN SERIES ETHERNET WIRING
Termination process for 07-14 layout to CAT 6 Ethernet Cable
Temperatures are °F (°C). All Dimensions in inches (millimeters in parenthesis). |
