SB^® MULTIPOLE CONNECTOR (UP TO 450 AMPS)

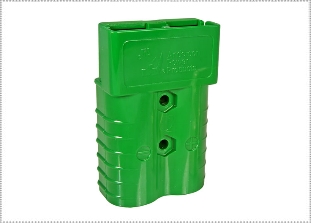

The innovative Anderson Power Products™ SB^® 350 connector provides cost-effective reliability, design flexibility and safety for your products' manufacture, installation and maintenance.

Anderson Power Product's 2 pole connector is available with a 350 amp rating, 600 Volts continuous AC or DC operation. There are Anderson Power Products™ SB^® 350 connectors for many applications and wire sizes, 2/0 AWG to 300 mcm (67.4 to 152.0 mm2). Mechanical keys ensure that Anderson Power Products™ SB^® 350 connectors will only mate with connectors of the same color. Different color housings are selected to identify voltages, thus preventing mismatching of the power supply system.

FEATURES
SPECIFICATIONS
MECHANICAL
DRAWING
TOOLING
PDFS

FEATURES

SB^® 350 MULTIPOLE CONNECTOR (UP TO 450 AMPS) FEATURES

Mechanical keyed housings

Single-piece housing and unitized construction

Genderless design

BENEFITS

SB^® 350 MULTIPOLE CONNECTOR (UP TO 450 AMPS) BENEFITS

Prevents accidental mating of components operating at different voltage levels

Provides industrial quality and durability

Makes assembly quick and easy and reduces number of parts stocked

SB^® 350 MULTIPOLE CONNECTOR (UP TO 450 AMPS) SPECIFICATIONS

Electrical

Current Rating (Amperes)*

350*

Voltage Rating (AC/DC)

600*

Contact Barrel Wire Size (AWG)

2/0 to 300 mcm

Contact Barrel Wire Size (mm²)

67.4 to 152.0

Maximum Wire Insulation Diameter (inches)

1.10

Maximum Wire Insulation Diameter (mm)

27.9

Average Contact Resistance* (micro-ohms)

Insulation Withstanding Test Voltage (Volts AC/DC)

2,200

Operating Temperature (°C)**

-20° to 105°

Operating Temperature (°F)

-4° to 221°

Mechanical

Contact Retention Force (lbf)

500

Average Connection/Disconnect (lbf)

LIFE

a. No Load (Contact/Disconnect Cycles)

To 10,000

b. Under Load (Hot Plug 250 mating cycles @ 120V)

100A

Material

Flammability Rating of Housing Material

UL94 V-0

* UL Rated for 65°C largest wire or cable size
** Contact us for higher temperature rated connector SB^®, UL and CSA Reference: This equipment is an Underwriters Laboratories Inc^® recognized component. It is also listed by the Canadian Standards Association as certified.

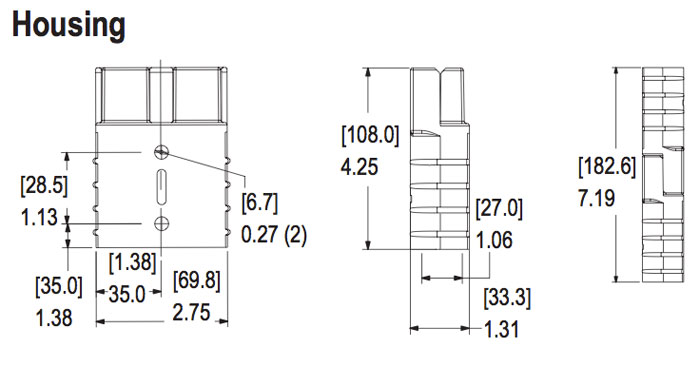

SB^® 350 MULTIPOLE CONNECTOR (UP TO 450 AMPS) MECHANICAL DRAWING

SB 350 Multipole Connector
