Anderson Power Products™ SBE^® 80 Multipole Connector (Up To 80 Amps)

Anderson Power Products™ SBE<sup>®</sup> 80 Multipole Connector

SBE^® 80 MULTIPOLE CONNECTOR
(UP TO 80 AMPS)

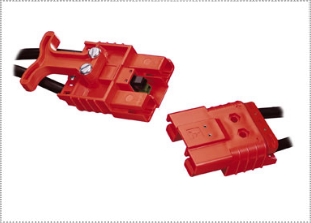

This Anderson Power Products™ SBE^® 80 connector is for hot-plug use at 60 amps. The Anderson Power Products™ SBE^® 80 connector contains recessed contacts and a ribbed nose housing, thus providing finger proofing in environments where human contact is a consideration. Available in different colors, this genderless Anderson Power Products™ SBE^® 80 connector is mechanically keyed to ensure connectors will only mate with connectors of the same color.

With the silver-plated copper contacts, the Anderson Power Products™ SBE^® 80 connector has a maximum connect/disconnect life of 10,000 cycles, with 150 volts continuous AC/DC operation. Accessories, such as integral cable clamp and handle, provide strain relief and ease of use.

FEATURES
SPECIFICATIONS
MECHANICAL
DRAWING
TOOLING
PDFS

FEATURES

SBE^® 80 MULTIPOLE CONNECTOR (UP TO 80 AMPS) FEATURES

Meets UL 1950 finger probe test

Auxiliary contacts

Handle

BENEFITS

SBE^® 80 MULTIPOLE CONNECTOR (UP TO 80 AMPS) BENEFITS

Each half offers finger proofing and can be connected to two energized sources up to 150 volts AC

Provides additional poles up to 30 amps for auxiliary power, control or sensing

Eases connector use and relieves unnecessary strain on cables when disconnecting

SBE^® 80 MULTIPOLE CONNECTOR (UP TO 80 AMPS) SPECIFICATIONS

Electrical

Current Rating (Amperes)*

Maximum Operating Voltage AC/DC

150

Largest Wire Size (AWG)

#6 (60 amps)

Largest Wire Size (mm²)

16 (80 amps)

Maximum Wire Insulation Diameter (inches)

0.44

Maximum Wire Insulation Diameter (mm)

11.2

Average Contact Resistance* (micro-ohms)

200

Dielectric Withstanding Voltage (AC)

1,300

Operating Temperature (°C)**

-20° to 105°

Operating Temperature (°F)

-4° to 221°

Mechanical

Contact Retention Force (lbf)

LIFE

a. No Load (Mating Cycles)

To 10,000

b. Under Load (Hot Plug 250 mating cycles @ 120V)

60A

Material

Flammability Rating of Housing Material

UL94 V-0

Contact Material

Silver plated copper

* UL Rated for 65°C largest wire or cable size

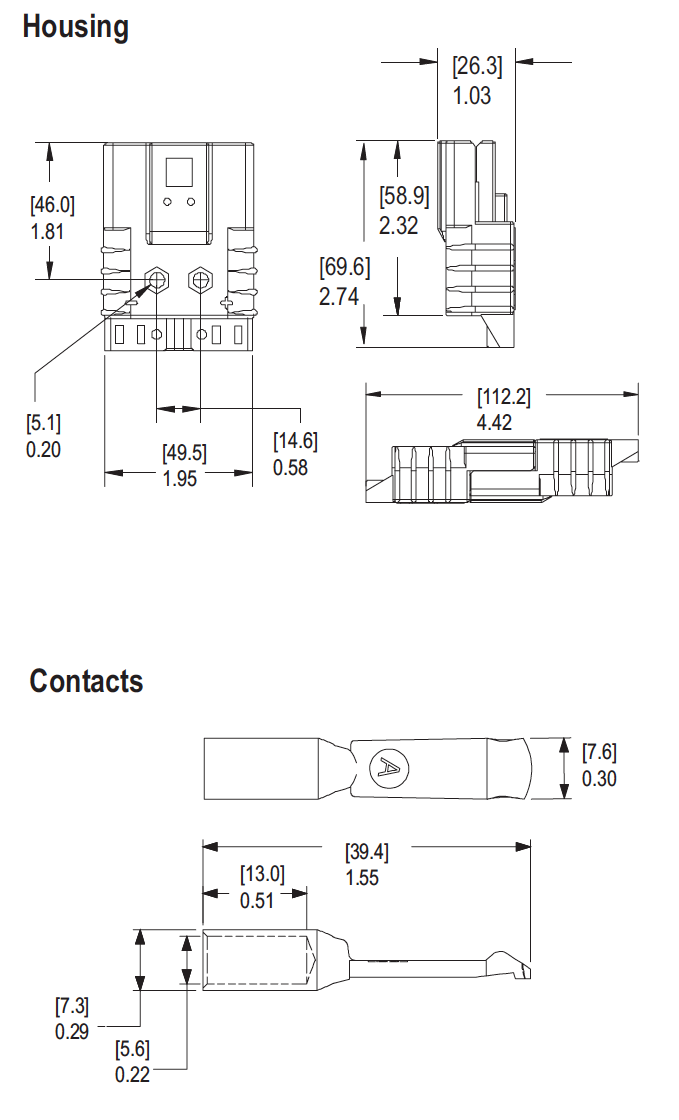

SBE^® 80 MULTIPOLE CONNECTOR (UP TO 80 AMPS) MECHANICAL DRAWING

SBE 80 Multipole Connector

SBE^® 80 MULTIPOLE CONNECTOR (UP TO 80 AMPS) TOOLING PDFS

1309 Mechanical Crimp Tool Operating Procedure

1368 Hydraulic Hand Crimp Tool

1367G1 Pneumatic Crimp Tool Data Sheet

1387G1 & 1387G2 Pneumatic Crimp Tool Data Sheet

Reeled Contacts Crimp Tooling
