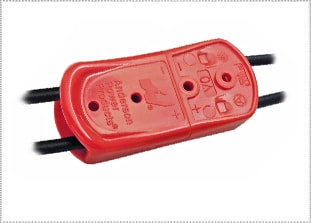

SBS® Mini Connectors by Anderson Power Products™
COMPACT RUGGED DC POWER CONNECTOR FOR UAVS AND PORTABLE POWER
Anderson Power Products™ SBS® Mini Connectors series are APP’s smallest DC power connector in their SB group. These rugged industrial Anderson Power Products™ SBS® Mini connectors feature a touch safe one-piece housing that insulates each contact position to achieve 600V capability. This housing is rated to UL94 and V-0 for flammability. Common uses for Anderson Power Products™ SBS® Mini connectors include UAVs, portable power storage & generation, emergency equipment and other industrial applications.
|
ANDERSON SBS® MINI CONNECTOR FEATURES
- Touch Safe Housing
- Color-Coded Mechanical Keys
- Compact & Ergonomic Housing
- UL Hot Plug Rated to 45A, 72V
ANDERSON SBS® MINI CONNECTOR MATERIALS & FINISHES
Housing Plastic Resin: Polycarbonate
Contact Retention Spring: Stainless Steel
Housing Flammability Rating UL94: V-0
Contact Base: Copper Alloy
Plating: Tin or Silver
Contact Termination Methods Crimp: Wire Contacts
Hand Solder: 1331 & 1332
ANDERSON SBS® MINI CONNECTOR ELECTRICAL DATA
Voltage Rating AC/DC UL 1977: 600
Dielectric Withstanding Voltage Volts AC: 2,200
Avg. Mated Contact Resistance Milliohm** Wire Contact with 5/8” of #16 AWG - 0.875
Wire Contact with 5/8” of #12 AWG - 0.600
Wire Contact with 5/8” of #10 AWG - 0.525
Hot Plug Current Rating Amperes† 250 cycles at 72V DC - 45A
* Based on: 105°C rated or better cable of the largest size. Properly calibrated APP® recommended tooling, and a 25°C ambient temperature. UL rating not to exceed the maximum operating temperature. CSA rating below a 30°C temperature rise.
** Use APP® recommended tooling only. Alternate tools may adversely affect the performance of our connectors along with UL and CSA recognition.
† Based on 261G3 with 10 AWG wire.
ANDERSON SBS® MINI CONNECTOR MECHANICAL
Wire Size Range 20 to 10 AWG
0.75 to 4.0 mm2
Max. Wire Insulation Diameter 0.183 in. (4.65 mm)
Operating Temperature -4° to 221° F (-20° to 105° C)
Mating Cycles No Load by Plating 10 - 12 AWG: 1,500 Silver (Ag), 200 Tin (Sn)
14 - 18 AWG: 8,000 Silver (Ag), 200 Tin (Sn)
Avg. Mating / Unmating Force* 10 AWG: 10 to 11 Lbf, 45 to 49 N
12 to 18 AWG: 4 to 7 Lbf, 17 to 31 N
Min. Contact / Spring Retention Force 20 Lbf.
90 N
* Contact customer service for contacts with a higher disconnect force.
|
|
ANDERSON SBS® MINI CONNECTOR APPLICATIONS
- UAV’s
- Emergency Equipment
- Portable Power Storage & Generation
- Small-to-mid kVA capacity UPS systems
|
