Anderson Power Products™ PP75 Powerpole® Connector (Up To 120 Amps)
PP 75 POWERPOLE® CONNECTOR HOUSINGS (UP TO 120 AMPS)

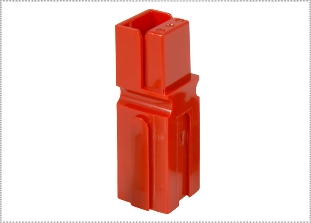

The Anderson Power Products™ Powerpole® connector provide cost-effective reliability, design flexibility and safety for your products' manufacture, installation and maintenance. PP75 Powerpole® Connector housings can be used for wire-to-wire, wire-to-board, and wire-to-busbar applications or for low insertion/ withdrawal force applications. These housings include the capability to secure Powerpole® housings to each other and to mounting pads.
The housings are modular and genderless. This Powerpole® connector series provides 600 Volts continuous, AC or DC operation. Wire sizes range from #6 to #16 AWG (13.3 to 1.3 mm²). Powerpole® connector Contact are available in reeled and loose piece designs to support all production needs from engineering prototype, low volume and high volumes products. Low-detent contacts are also offered for low insertion/withdrawal force applications.
|
PP 75 POWERPOLE® CONNECTOR (UP TO 120 AMPS) FEATURES
- Flat wiping contact system
- Colored modular housings
- Molded-In dovetails
PP 75 POWERPOLE® CONNECTOR (UP TO 120 AMPS) BENEFITS
- Minimal contact resistance at high current, wiping action cleans contact surface during connection/disconnection
- Provides visual identification of proper mating connector
- Can be assembled with standard Powerpole® 15/45 housings to make pregrounded and multipole configurations
- Secures individual connectors into "keyed" assemblies which prevents misconnection with similar configurations
|
|
PP 75 POWERPOLE® CONNECTOR (UP TO 120 AMPS) SPECIFICATIONS
Current Rating (Amperes)* Contact Barrel Wire Size (AWG) Contact Barrel Wire Size (mm2) Maximum Wire Insulation Diameter (inches) Maximum Wire Insulation Diameter (mm) Average Contact Resistance* (micro-ohms) Dielectric Withstanding Voltage (AC/DC) Operating Temperature (°C)*** Operating Temperature (°F)
Contact Retention Force (lbf) Contact Retention Force (N) a. No Load (Contact/Disconnect Cycles) b. Under Load (Hot Plug 250 mating cycles @ 120V) Connect / Disconnect (lbf)
5 - Low detent
7 - High detent 22 - Low detent
31 - High detent
Flammability Rating of Housing Material
* UL Rated for 75°C largest wire or cable size
** Both AC & DC Voltage
*** Contact us for higher temperature rated connectors
|
|
PP 75 POWERPOLE® CONNECTOR (UP TO 120 AMPS) MECHANICAL DRAWING
|
|
PP 75 POWERPOLE® CONNECTOR (UP TO 120 AMPS) TOOLING PDFS
|
