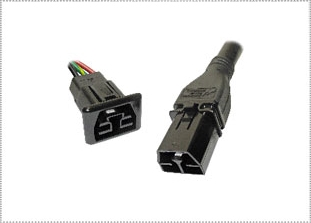

Anderson Power Products Saf-D-Grid 600 VDC Receptacle & Power Cord (Up To 20 Amps)

Anderson Saf-D-Grid 600 VDC Receptacle & Power Cord

HOT PLUG RATED DC CONNECTOR

The Anderson Power Saf-D-Grid plug and receptacle provides for the direct connection of DC electronic devices to a DC micro-grid powered by renewable energy or high efficiency DC sources. The Saf-D-Grid connector meets international safety requirements for hazardous, low voltage applications including UL 950 and IEC 60950. The Saf-D-Grid receptacle connector has a depth designed for touch safety and arc protection and is designed to replace the IEC320 C14 inlet connector for DC power sources up to 600 volts. The APP Saf-D-Grid receptacle has the same height and width as the IEC320 C14 inlet connector and snaps into the standard 19.9mm by 26.8mm panel cut-out.

FEATURES
SPECIFICATIONS
MECHANICAL
DRAWING

FEATURES

SAF-D-GRID ^® 600 VDC RECEPTACLE & POWER CORD (UP TO 20 AMPS) FEATURES

Touch Safe

Arcing Protection

Hot Plug Rated

First Make, Last Break Ground Contact

Integral Latch

BENEFITS

SAF-D-GRID ^® 600 VDC RECEPTACLE & POWER CORD (UP TO 20 AMPS) BENEFITS

Minimizes the risk of personal contact with a hazardous voltage. Passes UL & IEC finger probe (plug & receptacle) and 3mm probe tests (receptacle).

Housings contain the arc if connectors are mated or unmated while under load minimizing risk to personnel.

The connectors are hot plug rated for both electronic (capacitive) and electrical (resistive) loads.

Provides the safety of an earthing path before engagement of the power contacts.

Connectors cannot be accidentally unmated, preventing unwanted power loss to critical equipment.

SAF-D-GRID ^® 600 VDC RECEPTACLE & POWER CORD (UP TO 20 AMPS) SPECIFICATIONS

Electrical

Voltage (AC/DC)

UL 1977 / CSA 22.2

600

IEC

400

Wire Range (AWG)

#12 to #18

Wire Range (mm²)

2.5 to 0.75

Hot Plug Rated

250 cycles

400V @ 300A in-rush

250 cycles (UL)

400V @ 20A load

Dielectric Withstanding Voltage

3,300

Operating Temperature (°C)

-20° to 80°

Operating Temperature (°F)

-4° to 176°

Creep & Clearance per UL & IEC 60950

8.0mm between live parts of different polarity, earthing circuit and the mating surface

Mechanical

Contact Retention (lbf)

Contact Retention (N)

Latch Retention (lbf)

Latch Retention (N)

Durability

5,000 cycles - no load
1,000 cycles - 6.25A load

Material

Housings

Polycarbonate UL94 V-0

Springs

Stainless Steel

Contacts

Copper, Silver Plate

Cable / Strain Relief

Thermoplastic UL94 V-2

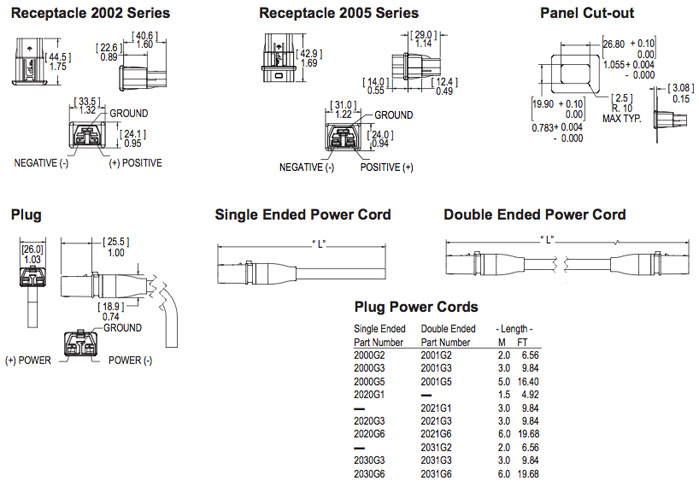

SAF-D-GRID ^® 600 VDC RECEPTACLE & POWER CORD (UP TO 20 AMPS) MECHANICAL DRAWING

Saf-D-Grid 600V DC Receptacle & Power Cord
