LEMO E-Series Push Pull IP68 Connectors

INDUSTRIAL WATERPROOF PUSH-PULL CONNECTORS

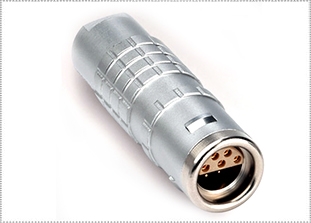

LEMO E-Series IP68 connectors are used in military applications, medical devices, oil and gas applications, public sector, industrial control and test & measurement environments. All models of this Series are waterproof and watertight when mated and correctly assembled to an appropriate cable to give a protection index of IP68 as per IEC 60529 standard (IP66 in unmated condition). Self-latching IP68 connectors with stepped inserts for alignment (of multipole version) and rugged housing for extreme working conditions.

TECH
SPECS
APPLICATIONS
CREATE
PART NUMBER

FEATURES

LEMO E-SERIES FEATURES

Push-Pull self-latching for secure connections

7 sizes / 22 shell styles

Stepped inserts for blind mating

Temp. range -55°C to 200°C

Solder or print contacts

Shielding: >95dB at 10Mhz / >80dB at 1GHz

UL listed

MATERIALS & FINISHES

LEMO E-SERIES MATERIALS & FINISHES

Shell

Brass, Stainless Steel, Aluminum alloy, POM, PEEK, PSU, PPSU, PPS

Shell Plating

Chrome, Gold-Plated, Nickel, Black Chrome, Anodized, Nickel

Contacts

Brass, Stainless Steel, Beryllium-Copper

Contact Platings

Copper, Nickel, Aluminum

Insulator

PEEK, PTFE, FEP, PI, PA6.6

O-ring and Gaskets

Silicone

ELECTRICAL DATA

LEMO E-SERIES ELECTRICAL DATA

Characteristics

Value

Standard

Shielding efficiency at 10 MHz

> 95 dB

IEC 60169-1-3

Shielding efficiency at 1 GHz

> 80 dB

IEC 60169-1-3

MECHANICAL

LEMO E-SERIES MECHANICAL

Characteristics

Value

Standard

Endurance

> 5000 cycles

IEC 60512-5 test 9a

Humidity

up to 95% at 60° C

Temperature range¹⁾

- 55° C, +200° C

Resistance to vibrations

10-2000 Hz, 15 g

IEC 60512-4 test 6d

Shock resistance

100 g, 6 ms

IEC 60512-4 test 6c

Salt spray corrosion test

> 144h

IEC 60512-6 test 11f

Protection index (mated)²⁾

IP 68/IP 66

IEC 60529

Climatical category

50/175/21

IEC 60068-1

Note: the various tests have been carried out with FFA and ERA connector pairs, with chrome-plated brass shell, PEEK insulator and silicone O-ring.

¹⁾ minimum operating temperature is -20°C for sockets fitted with an FPM (Viton®) O-ring.
²⁾ IP68 achieved providing that the cable is perfectly circular and that assembly process ensures a high integrity seal.

LEMO E-SERIES APPLICATIONS

Aviation

Automotive

Audio / Video

Communications

Industrial Control

Machine industry

Medical

Military

Nuclear

Petroleum

Public Sector

Research

Robotics

Test & Measurement

LEMO E-SERIES CREATE PART NUMBER

Click here to create your part number.
