1381G2-BK

Anderson Power Products - Connector

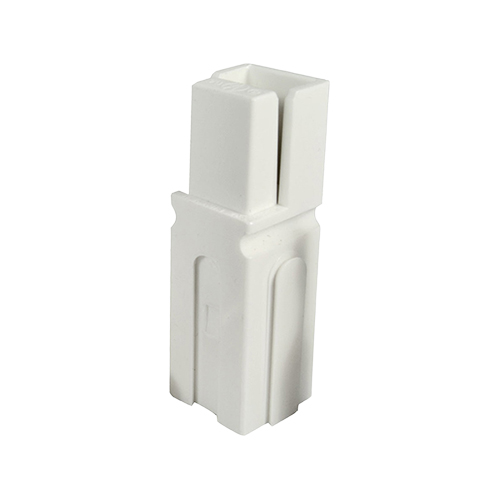

Powerpole® 180 Housing,White

PP 180 POWERPOLE® CONNECTOR (UP TO 350 AMPS)

Anderson Power Products™ Powerpole® connectors provide cost effective reliability, design flexibility and safety for your products' manufacture, installation and maintenance. Powerpoles are stackable and color-coded.

The housings are modular and genderless. Powerpole® connectors provide 600 Volts continuous, AC or DC operation. With the addition of the extended range contacts, the PP Plus Connector now accepts a 3/0 wire size, increasing the amperage using the same robust housing. Wire sizes range from 3/0 to #10 AWG (85.0 to 5.3 mm²).

** Actual product appearance may vary **

Price Information

Available Qty: 47
Order Qty:
CAN SHIP:in 24 hrs

Need more? Click Quote Button For Pricing & Delivery.

Questions? We can help.
QuantityPrice
1 - 9$9.87$9.87
10 - 24$9.52$9.52
25 - 47$8.90$8.90
48+
PRODUCT INFORMATION
Sealing:IP10
Mounting Type:Panel - Bulkhead, Inline
Shell Color:White
Operating Temperature °F (°C):-4 to +221 (-20 to +105)
Contact Mating Life:10000
Export Class: EAR / EAR99
RoHS: Yes
Weight (lbs): 0.07937
Weight (g): 36.00000
