5916G4-BK

Anderson Power Products - Connector

Powerpole® 75 Standard Housings, Black

PP 75 POWERPOLE® CONNECTOR HOUSINGS (UP TO 120 AMPS)

The Anderson Power Products™ Powerpole® connector provide cost-effective reliability, design flexibility and safety for your products' manufacture, installation and maintenance. PP75 Powerpole® Connector housings can be used for wire-to-wire, wire-to-board, and wire-to-busbar applications or for low insertion/ withdrawal force applications. These housings include the capability to secure Powerpole® housings to each other and to mounting pads.

The housings are modular and genderless. This Powerpole® connector series provides 600 Volts continuous, AC or DC operation. Wire sizes range from #6 to #16 AWG (13.3 to 1.3 mm²). Powerpole® connector Contact are available in reeled and loose piece designs to support all production needs from engineering prototype, low volume and high volumes products. Low-detent contacts are also offered for low insertion/withdrawal force applications.

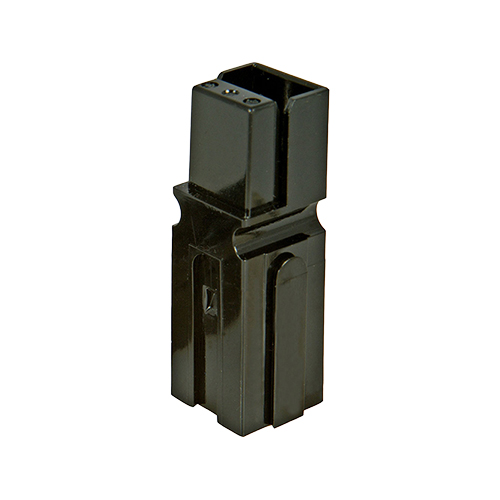

** Actual product appearance may vary **

Price Information

Available Qty: 0
Quote Qty:

More arriving soon, press QUOTE for more details.

Price available by Quote only
PRODUCT INFORMATION
Sealing:IP10
Mounting Type:Panel - Bulkhead, Inline, Through Hole Solder
Shell Color:Black
Operating Temperature °F (°C):-4 to +221 (-20 to +105)
Contact Mating Life:10000
Export Class: EAR / EAR99
RoHS: Yes
Weight (lbs): 0.01764
Weight (g): 8.00000
