CF-599611-01M

Amphenol - Optic Connector

FO MT CAD STR PL 1 PIN POS D

The MT38999 multi-channel connectors from Amphenol Aerospace offer high-density MT fiber optics in a compact, rugged MIL-DTL-38999 Series III circular connector design.

Features include:

  • 12- or 24-fiber ferrules in multimode or single-mode configurations,
  • Precise alignment via three mechanisms: Shell-to-shell with keying to allow for alternate positions, insert plug to insert receptable, and MT contact guide pins.
  • Two shell sizes available, shell size 11 with one ferrule, and shell size 21 with four ferrules.

Fiber Optic Interconnects Markets:

  • Military & Commercial Aviation
  • Military Vehicles
  • Radar, Missiles & Battlefield Equipment
  • Medical & Test Equipment
  • C4ISR (Command, Control, Communications, Computers, Intelligence, Surveillance, and Reconnaissance).

Robust solutions for harsh environments. Additional tools and accessories are available for customization.

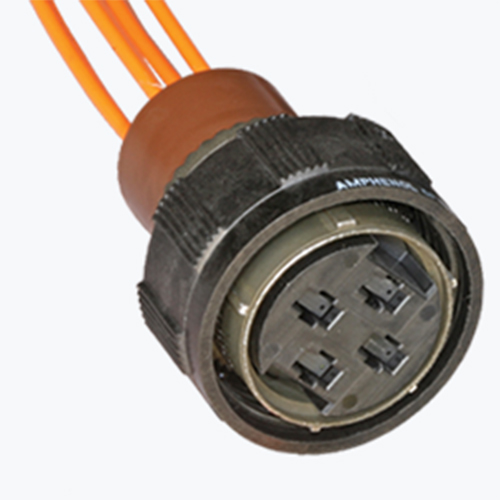

** Actual product appearance may vary **

Price Information

Available Qty: 4
Order Qty:
CAN SHIP:in 24 hrs

Need more? Click Quote Button For Pricing & Delivery.

Questions? We can help.
QuantityPrice
1 - 4$687.25$687.25
5+
Tariffs may apply. Final tariff charges are calculated at time of shipment and will appear on invoice.
PRODUCT INFORMATION
Shielding:65dB MIN AT 10 GHz
Connector Type:Multi-Channel Fiber Optic Connector
Connector Style:Plug
Mounting Type:Straight
Contacts, # of:1
Contact Style:Socket
Termination Method:MT Terminus - Flat Ribbon Cable
Contact Size:11
Contacts Supplied:Yes
Shell Material:Aluminum
Shell Plating:Cadmium
Operating Temperature °F (°C):-87 to +347 (-65 to +175)
Contact Mating Life:500
Insert Rotation/Keying:D
Export Class: EAR / EAR99
RoHS: No
Weight (lbs): Unknown
Weight (g): Unknown
