L717HDE15PD1CH4R
Amphenol
Dsub, Stamped Signal 3A, High Density, Right Angle PCB Thru Hole, FP=8.89mm (.350"), 15 Pin, Flash Gold, 4-40 Rear Threaded Insert, Ground Tab, With Boardlock
ECONOMICAL DUAL PORT CONNECTORS
Amphenol Communication Solutions (ACS) D-Sub Connectors are offered in multiple styles for use in various applications in Telecommunications, Data, Consumer, Industrial, Military, Instrumentation and Medical applications. The ACS D-Sub 17H dual port connectors utilize front metal shells for improved EMI / RFI shielding in harsh/rugged environments.
The D-ST Screw Termination D-Sub series permits easier wiring without specific tools. D and DF series connectors offer a broad selection of termination options. The SD series features precision-formed contacts and insulators with closed entry contact cavities. The more compact DFR connectors are a good fit for peripheral equipment where space is at a premium.

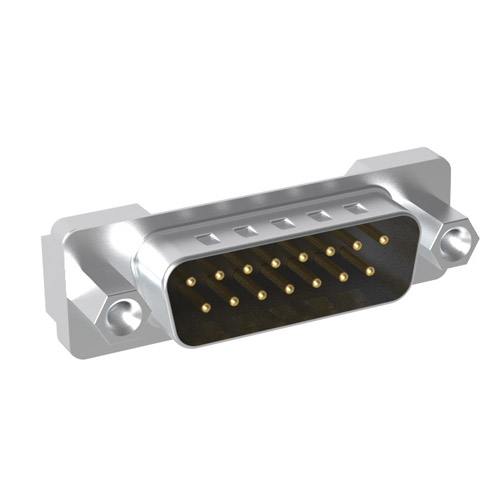

** Actual product appearance may vary **
PRODUCT INFORMATION
| Specification: | UL94 V0 |
| Connector Type: | D-Sub Connector |
| Connector Style: | Straight PCB Termination |
| Contacts, # of: | 15 |
| Contact Style: | Socket |
| Contacts Supplied: | Yes |
| Contact Material: | Brass |
| Contact Plating: | Selected gold in mating area |
| Shell Material: | Steel |
| Shell Plating: | Tin over Nickel |
| Shell Color: | Silver |
| Insert Material: | Glass-filled thermoplastic |
| Amperage Rating: | 3A |
| Operating Voltage AC V RMS Max: | 250V AC/rms 50Hz |
| Operating Temperature °F (°C): | -67 to +221 (-55 to +105) |
| Export Class: | EAR / EAR99 |
| RoHS: | Yes |
| Weight (lbs): | Unknown |
| Weight (g): | Unknown |
