MS27508E22F55P

Amphenol - 38999 Connector

JT 55C 55#20 PIN RECP

LIGHT-WEIGHT, LOW-PROFILE, SPACE-SAVING DESIGN

The Amphenol MIL-DTL-38999 series II JT connector offers high-density contact arrangements and shell types in a small size. They were designed for high-performance requirements, including military and commercial aviation applications that require a very low profile. The Amphenol MIL-DTL-38999 series II JT connector is environmentally-sealed and have a wide operating temperature range to meet the demand of harsh environments/conditions.

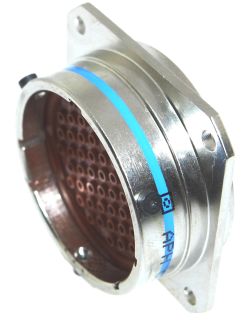

** Actual product appearance may vary **

Available Qty: 0

Quote Qty:

Press QUOTE for price and availability (or Call us).

Price available by Quote only

Specs

PRODUCT INFORMATION

Connector Style:	Receptacle
Contacts, # of:	55
Contact Style:	Socket
Termination Method:	Crimp
Insert Arrangement:	23-55
Contact Material:	Copper Alloy
Contact Plating:	50 microinches Gold Plate
Shell Material:	Aluminum Alloy
Shell Plating:	Nickel
Shell Color:	Nickel
Insert Material:	Hard Dielectric
Amperage Rating:	3A & 5A & 7.5A
Contact Mating Life:	500
Export Class:	EAR / EAR99
RoHS:	Yes
Weight (lbs):	0.07567
Weight (g):	34.32200
