RAP-07RF19-5P1N0

Amphenol LTD

Raptor Series, Rear Mount Jam Nut Receptacle, electroless nickel plate, size 19 shell, tapped hole with locking flats termination, pin contact, copper contact, normal keyway, no Backshell

Raptor Series connectors is Amphenol LTD’s new range of high-power connectors engineered for high voltage and high current systems in E- Flight, E-VTOL and hybrid applications.

Key features:

TALON high temperature contacts
Shell Sizes 15 to 25
Silver Plated Copper Contact
Nickel Plated Aluminum Connector housings
Insulator material for High Voltage
Increased creepage & clearance distances
Improved insulation geometry for HV electric fields
Designed for increased operating voltages at aircraft altitudes

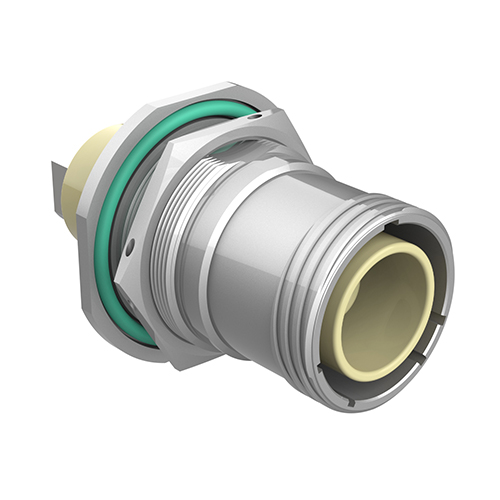

** Actual product appearance may vary **

Available Qty: 5

Order Qty:

CAN SHIP:in 4 days

Need more? Click Quote Button For Pricing & Delivery.

Questions? We can help.

Quantity		Price
1 - 5	$669.35	$	669.35
6+

Specs
Mates

PRODUCT INFORMATION

Specification:	MIL-DTL-38999 style
Sealing:	IP68
Shielding:	Yes
Connector Type:	Circular
Connector Style:	Rear Mount Jam Nut Receptacle
Mounting Type:	Panel
Contacts, # of:	1
Contact Style:	Pin
Termination Method:	Bolt
Contacts Supplied:	Yes
Contact Material:	Copper alloy
Contact Plating:	Silver
Shell Material:	Aluminium
Shell Plating:	Electroless Nickel
Shell Color:	Silver
Insert Material:	PEEK
Grommet & Seals Material:	Fluorosilicone
Amperage Rating:	450A
Operating Voltage AC V RMS Max:	2.5KV
Operating Temperature °F (°C):	-85F to +300F (-65C to +150C)
Contact Mating Life:	500
Insert Rotation/Keying:	Normal
Operating Voltage DC:	3.5KV
Orientation:	Straight
Export Class:	EAR / EAR99
RoHS:	Yes
Weight (lbs):	0.28660
Weight (g):	130.00000
