VN02 036 0026 6

Amphenol Tuchel

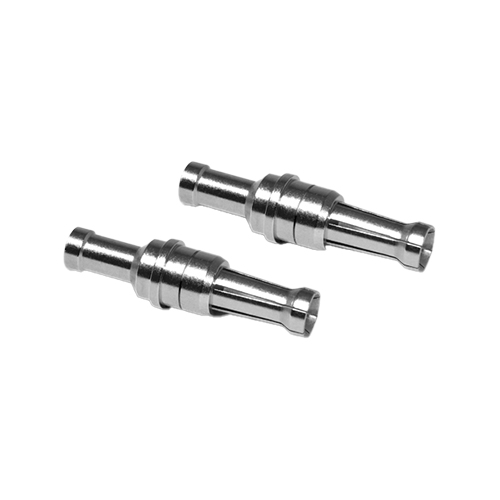

Female Contact #8, Machined, 6mm², Nickel (only for Isobus)

BAYONET IP65 CONNECTORS FOR HARSH ENVIRONMENTS

Amphenol Tuchel Industrial’s ecomate® C16 Series of connectors provide an IP65 rating (in mated condition) for rough environmental conditions, and incorporates the latest technology in a sealed, robust, lightweight, thermoplastic design. ecomate® C16 connectors feature a circular bayonet coupling system for easy, reliable mating/unmating. Two types of connectors are available: Field- installable, screw termination, and a cost-effective, crimp version for machine processing.

Features and Benefits

  • IP Rating: IP65 Rated (in mated condition)
  • IP Rating Specifications: "IP65 Rated
    • (Resistant from Water Jets, in mated condition)"
  • Size/Insert Arr: 2 Shell Sizes/11 Insert Arrangements
  • Unique Feature: Circular Thermoplastic
  • Max Amp/Volt: Up to 50A @ 40°C/900V
  • Op Temp: -40°C to +125°C
  • Coupling System: Circular Bayonet
  • Housing Body: Thermoplastic, UL 94-V0
  • Contact Types: Stamped & Formed
  • Wire AWG Range: 28 - 10AWG (0.09 - 6.0 mm²)
  • Contact Termination: Screw (Field Install), Crimp
  • Sealing Material: Neoprene
  • Mating Cycles: >500
  • Shielding: None
  • Flammability Rating: UL 94 V-0
  • Fluid Resistance: Gas, oil, mineral oil, acid bath, basic bath
  • Insulation Resistance: ≥ 10⁸ Ω
  • Approvals: VDE, UL and CSA
  • RohS Compliant: Yes

Vibration-safe connections are provided by a solid bayonet coupling. For safety, pre-earth first-mate last-break contacts are standard. Screw and crimp terminations are available for these C16 IP65 connectors for easy field installation and cost-effective machine processing.

** Actual product appearance may vary **

Price Information

Available Qty: 0
Quote Qty:

Press QUOTE for price and availability (or Call us).

Price available by Quote only
Tariffs may apply. Final tariff charges are calculated at time of shipment and will appear on invoice.
PRODUCT INFORMATION
Sealing:Unsealed
Connector Type:Contact
Connector Style:Machined
Contact Style:Socket
Contact Size:#8
Contacts Supplied:No
Contact Material:Copper Alloy
Shell Plating:Nickel
Amperage Rating:60A
Connector Series:A Series
Series:DuraMate AHDP, ISOBUS, IBIC Series
Export Class: EAR / EAR99
RoHS: Yes
Weight (lbs): Unknown
Weight (g): Unknown
