Ulti-Mate Micro Miniature Circular Connectors

MICRO QUICK DISCONNECT PUSH-PULL CONNECTORS

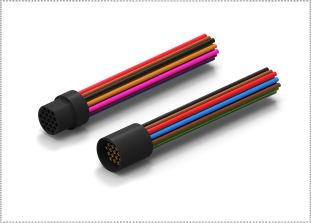

Ulti-Mate’s Micro Miniature Circular Connectors are a collection of push-pull connectors with quick disconnect capability. These micro miniature circular connectors are designed for missiles, UAVs and other aviation and aerospace and defense applications. Micro miniature circular connectors are easy to couple, easy to mount (front or rear panel mount) and have a small footprint, making them a great choice when space is at a premium. These micro miniature circular connectors are available in an inline plastic version that protects the contacts with insulators during mating and unmating.

TECH
SPECS
HOW
TO ORDER
DIMENSIONS

ELECTRICAL DATA

ULTI-MATE MICRO CIRCULAR ELECTRICAL DATA

Contact Resistance

8m½ max. @ 2.5 A

Current Rating (Signal Contacts)

3 A max.

Dielectric Withstanding Voltage

600 VAC at sea level,300 VAC at 70,000 ft.

Insulation Resistance

5,000 M½ min.

MECHANICAL

ULTI-MATE MICRO CIRCULAR MECHANICAL

Contact Engaging and Separating Forces

6 oz max.(Contact average is 3 oz.), Seperating force is 0.5 oz.min.

Connector Mating and Unmating Forces

10 oz. x number of contacts max., Unmating Force = 10 oz. x number of contacts min.

Vibration

No Damage or interruption detected (one microsecond sensitivity) EIA-364-28 Condition IV

Shock

No Damage or interruption detected (one microsecond sensitivity) EIA-364-27 Condition E

Durability

No machanical or electrical defects after 500 matings

Salt Spray

No exposure of base matal or lass performance after 96 hours of both Nickel and codmium plating

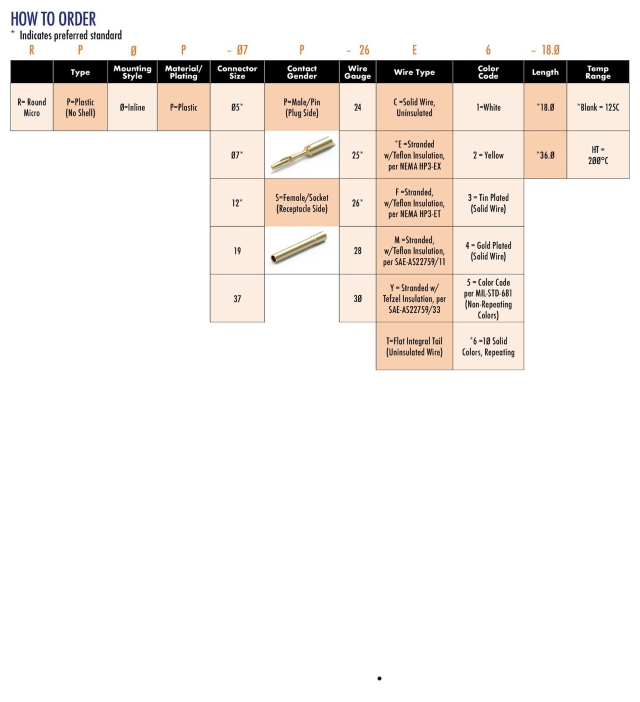

ULTI-MATE MICRO CIRCULAR HOW TO ORDER

ULTI-MATE MICRO CIRCULAR DIMENSIONS
