Ulti-Mate Micro-D Circuit Right Angle .100 X .100 Style 1 Rectangular Connector
CONDENSED RIGHT ANGLE MOUNT MICRO-D CONNECTOR
The Ulti-Mate Micro-D Circuit Series - Right Angle .100 x .100 Style 1 (CBR) rectangular connector series is built to MIL-DTL-83513 specifications and are proven to be reliable under tough operating conditions. This micro-d rectangular connector series is the original condensed right angle mount p/c board connector with 90-degree termination exit leads on a .100 x .100 grid. Mounting thru-holes are provided, jackposts to receive jackscrews are optional. This Style 1 rectangular connector is in accordance with slash sheets 10-15 of MIL-DTL-83513 (“M” series only).
|
ULTI-MATE MICRO-D CIRCUIT RIGHT ANGLE .100 x.100 STYLE 1 MATERIALS & FINISHES
Pin Contacts Beryllium Copper (C17200) per ASTM B194.
Socket Contacts Copper alloy (C21000) per ASTM B36 or leaded commercial bronze (C314000) per ASTM B140.
Contact Plating Gold plated per MIL-DTL-45204D. 50 microinches min. is the standard thickness.
Metal Shells Aluminum alloy per SAE-AMS-QQ-A-200/8, type 6061-T6. Finish is cadmium per SAE-AMS-QQ-P-416, TYPE II, CLASS 3, with suitable underplate with yellow chromate, this plating is not RoHS compliant. Or Finish Electroless Nickel plate per SAE AMS2404, class 3 or 4, .0005 minimum thickness.
Insulator Material Preferred material is Polyphenylene sulfide (PPS) per MIL-M-24519 or ASTM D5927 GST 40F. Color Black.
LCP Liquid Crystal Polymer-Vectra 130 (optional).
Interfacial Seals Fluorosilicone elastomer per MIL-R-25988. Standard on “M” Series socket face.
Hardware Stainless Steel, passivated.
Standard Plating Electroless Nickel or Cadmium.
Optional Plating Tin, Olive Drab or Gold.
Stainless Steel shells are available in all configurations.
ULTI-MATE MICRO-D CIRCUIT RIGHT ANGLE .100 x.100 STYLE 1 ELECTRICAL DATA
Contact Resistance 8 mΩ Maximum @ 2.5 A
Current Rating 3.0 A Maximum
Dielectric Withstanding Voltage 900 VAC at sea level, 300 VAC @ 70,000 ft. Solder cups and shielded cable same as MIL-DTL-83513; 600 VAC at sea level 150VAC @ 70,000 ft.
Insulation Resistance 5,000 MΩ Minimum
ULTI-MATE MICRO-D CIRCUIT RIGHT ANGLE .100 x.100 STYLE 1 MECHANICAL
Contact Engaging and Separating Forces 6 oz. max per MIL-DTL-83513 (contact average is 3 oz.); Separation force is 5.0 oz. minimum.
Contact Mating and Unmating Forces per MIL-DTL-83513 Mate = 10 oz. X number of contacts maximum. Unmate = 10.5 oz. X number of contacts minimum.
Vibration No damage or interruption detected (one microsecond sensitivity) when subjected to Method 2005, Test Condition IV of MIL-STD-1344.
Shock No damage or interruption detected (one microsecond sensitivity) when subjected to Test Condition E. Method 2004 of MIL-STD-1344.
Durability No mechanical defects after 500 matings; Test criteria are mating force, contact resistance, contact engagement, and separation forces.
Salt Spray No exposure of base metal or loss of performance after 96 hours for both Nickel and Cadmium plating.
ULTI-MATE MICRO-D CIRCUIT RIGHT ANGLE .100 x.100 STYLE 1 CONTACT HARDWARE
Jackscrew Lo Allen Jackscrew Hi Allen Jackscrew
Lo Slot Jackscrew
Hi Slot Jackpost
M83513/05-02
M83513/05-03
M83513/05-05
M83513/05-06
M83513/05-07
83041xxxx
83041xxxx
83041xxxx
83041xxxx
83041xxxx
.361
(9.17) .868
(22.05) .361
(9.17) .868
(22.05) .500
(12.70) .103
(2.62) .610
(15.49) .103
(2.62) .610
(15.49) .190
(4.83) 2-56 UNC-2A
2-56 UNC-2A
2-56 UNC-2A
2-56 UNC-2A
2-56 UNC-2B
Jackscrew Lo Allen Jackscrew Hi Allen Jackscrew
Lo Slot Jackscrew
Hi Slot Jackpost
M83513/05-012
M83513/05-013
M83513/05-015
M83513/05-016
M83513/05-017
83041xxxx
83041xxxx
83041xxxx
83041xxxx
83041xxxx
.390
(9.91) .902
(22.91) .390
(9.91) .902
(22.91) .500
(12.70) .103
(2.62) .610
(15.49) .103
(2.62) .610
(15.49) .185
(4.70) 4-40 UNC-2A
4-40 UNC-2A
4-40 UNC-2A
4-40 UNC-2A
4-40 UNC-2B

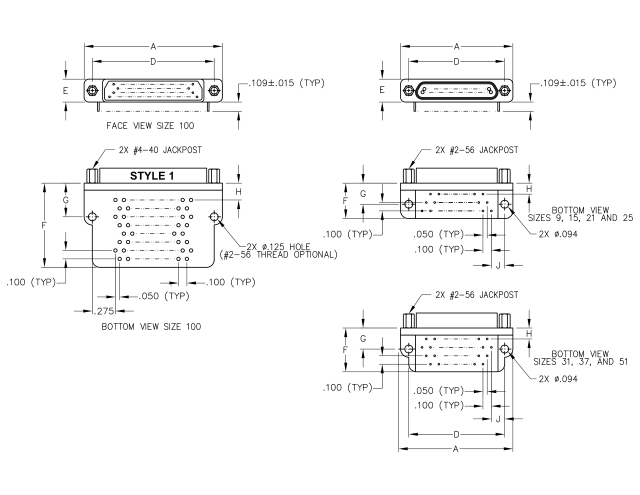

ULTI-MATE MICRO-D CIRCUIT RIGHT ANGLE .100 x.100 STYLE 1 CONTACT ARRANGEMENTS
Custom 2 row arrangements
Available in rugged metal & intermatable rugged plastic shell configurations or available in low profile Metal & intermatable low profile plastic shell configurations.
ULTI-MATE MICRO-D CIRCUIT RIGHT ANGLE .100 x.100 STYLE 1 TERMINATIONS
Available Terminations Pre-wired solid wire 24, 25 AWG Tin
Solder dipped or gold plated in standard and custom lead lengths
ULTI-MATE MICRO-D CIRCUIT RIGHT ANGLE .100 x.100 STYLE 1 MOUNT TYPE
Right angle or vertical mount. PC board or Flex circuit applications
|
|
