Ulti-Mate Wired Nanominiature Single Row, Single Ended Connector
WIRED NANOMINIATURE SINGLE ROW SINGLE ENDED CONNECTOR TO MIL-DTL-32139
PEI-Genesis is now franchised to provide Ulti-Mate Nanominiature Single Row, Single Ended Connectors. Available in several layouts including: single-row metal or liquid crystal polymer shells, in up to 51 sizes. Ulti-Mate Nanominiature Single Row, Single Ended Plug and Receptacle are built in accordance with MIL-DTL-32139 specifications. The precision formed pin and socket contracts, are stamped and inserted in order of manufacture, creating consistency and dependability where you need it most. Not sure if your application requires a Single Row, Single Ended nanominiature or other connector? Contact us today.
|
ULTI-MATE NANO WIRED SINGLE ROW SINGLE ENDED MATERIALS & FINISHES
Pin & Socket Contacts Pins: BeCu alloy strip per ASTM–B–194 / Sockets: BeCu per ASTM–B–194
Contact Plating Gold plate per ASTM B488, or SAE AMS 2422
Metal Shells Aluminum with electroless nickel or electrodeposited cadmium plating, Stainless Steel per ASTM A582, Titanium Alloy per MIL–T–81556, Unplated
Molded Insulators into
Metal housing or Full
plastic housing: Insulating compound per MIL–I–16923.Liquid Crystal Polymer (LCP), per MIL–M–24519 GLCP–30F, 30% Glass
Hardware Corrosion resistant steel per ASTM A 582/A582 or ASTM A 581/A581M, Passivated per SAE AMS–2700
Plating Electroless nickel or Cadmium
Note: Stainless Steel shells are available in most configurations.
ULTI-MATE NANO WIRED SINGLE ROW SINGLE ENDED ELECTRICAL DATA
Contact Resistance 0.071 volt maximum drop @ 1.0 amps (.071 ohms)
Current Rating 1.0 Amp Maximum per contact
Dielectric Withstanding Voltage 250 V, RMS, 60Hz
Insulation Resistance 5,000 Megaohms Minimum @ 100 VDC
ULTI-MATE NANO WIRED SINGLE ROW SINGLE ENDED MECHANICAL
Contact Engaging and Separating Forces 5 Ounce Maximum, 0.4 Ounce Minimum
Standard Wire Sizes #30–#32 AWG
Vibration Tested in accordance with EIA–364–28, Condition IV. No Damage or resistance change greater than 10 omhs lasting longer than 10 ns
Shock Tested in accordance with EIA–364–27, Condition G. No Damage or resistence change greater than 10 ns
Durability 200 connector mating cycles tested in accordance with EIA–364–09. No Damage or resistance change greater than 10ohms lasting longer than 10ns
Salt Spray Mated connectors tested in accordance with EIA–364–26, Condition B. No exposure to base metal
Humidity Mated connectors tested in accordance with EIA–364–31, Condition B (except steps 7a and 7b). Meet DWV and IR Requirements
ULTI-MATE NANO WIRED SINGLE ROW SINGLE ENDED CONTACT ARRANGEMENTS
1 row Strip 2 to 40 positions
2 row Nano D 9, 15, 21, 25, 31, 37, 51, 65
2 row Hermaphroditic 8 to 80 positions
ULTI-MATE NANO WIRED SINGLE ROW SINGLE ENDED TERMINATIONS
Available Terminations Pre-wired stranded wire 30, 32 AWG
Wide choice of stranded wire types
|
|

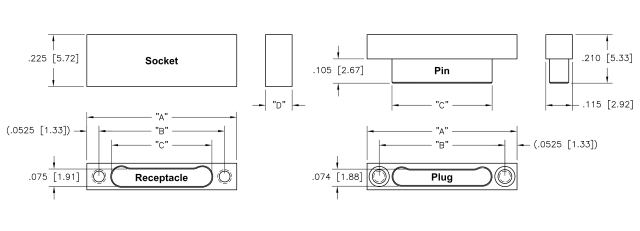

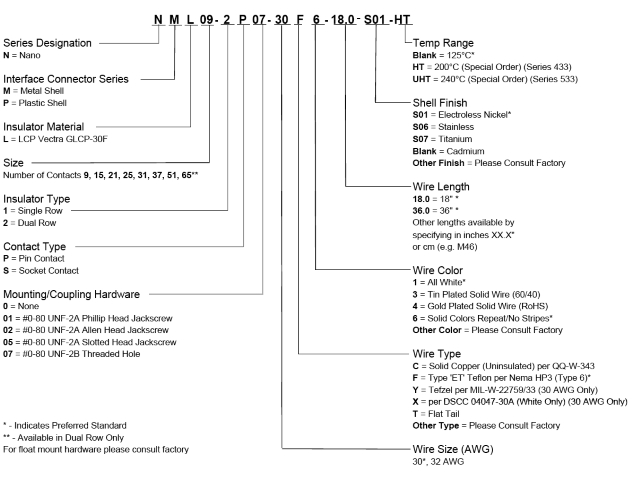

ULTI-MATE NANO WIRED SINGLE ROW SINGLE ENDED CREATE PART NUMBER
|
|
ULTI-MATE NANO WIRED SINGLE ROW SINGLE ENDED HARDWARE
|
