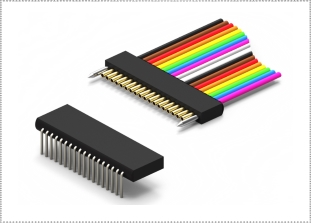

Ulti-Mate Nanominiature Wired Single Row Strip & PCB Connectors
NANOMINIATURE WIRED SINGLE ROW STRIP & PCB TO MIL-DTL-32139
PEI-Genesis is now franchised to provide Ulti-Mate Nanominiature Wired Single Row Strip & PCB rectangular Connectors. Available in several layouts including: single-row metal or liquid crystal polymer shells, in sizes from 2 to 40. Ulti-Mate Nanominiature Wired Single Row Strip & PCB Plug and Receptacle are built in accordance with MIL-DTL-32139 specifications. The precision formed pin and socket contacts, are a single piece, crimp-less contact, ready for PC board termination. Precision forming, allows for the production of a rectangular integral PC tail contact, eliminating the need for crimping a solid wire, crimp resistance and soldering issues. Uses key codes NSR. Not sure if your application requires a Wired Single Row Strip & PCB nanominiature or other connector? Contact us today.
|
ULTI-MATE NANO WIRED SINGLE ROW & PCB MATERIALS & FINISHES
Pin & Socket Contacts Pins: BeCu alloy strip per ASTM–B–194 / Sockets: BeCu per ASTM–B–194
Contact Plating Gold plate per ASTM B488, or SAE AMS 2422
Molded Insulators into
Metal housing or Full
plastic housing: Insulating compound per MIL–I–16923. Liquid Crystal Polymer (LCP), per MIL–M–24519 GLCP–30F, 30% Glass–Filled
Hardware Corrosion resistant steel per ASTM A 582/A582 or ASTM A 581/A581M,Passivated per SAE AMS–2700
Plating Electroless nickel or Cadmium
Note: Stainless Steel shells are available in most configurations.
ULTI-MATE NANO WIRED SINGLE ROW & PCB ELECTRICAL DATA
Contact Resistance 0.071 volt maximum drop @ 1.0 amps (.071 ohms)
Current Rating 1.0 Amp Maximum per contact
Dielectric Withstanding Voltage 250 V, RMS, 60 Hz
Insulation Resistance 5,000 Megaohms Minimum @ 100 VDC
ULTI-MATE NANO WIRED SINGLE ROW & PCB MECHANICAL
Contact Engaging and Separating Forces 5 Ounce Maximum, 0.4 Ounce Minimum
Standard Wire Sizes #30–#32 AWG
Vibration Tested in accordance with EIA–364–28, Condition IV. No Damage or resistance change greater than 10 omhs lasting longer than 10 ns
Shock Tested in accordance with EIA–364–27, Condition G. No Damage or resistence change greater than 10 ns
Durability 200 connector mating cycles tested in accordance with EIA–364–09. No Damage or resistance change greater than 10ohms lasting longer than 10ns
Salt Spray Mated connectors tested in accordance with EIA–364–26, Condition B. No exposure to base metal
Humidity Mated connectors tested in accordance with EIA–364–31, Condition B (except steps 7a and 7b). Meet DWV and IR Requirements
ULTI-MATE NANO WIRED SINGLE ROW & PCB CONTACT ARRANGEMENTS
1 row Strip 2 to 40 positions
2 row Nano D 9, 15, 21, 25, 31, 37, 51, 65
2 row Hermaphroditic 8 to 80 positions
ULTI-MATE NANO WIRED SINGLE ROW & PCB TERMINATIONS
Available Terminations Pre-wired stranded wire 30, 32 AWG
Wide choice of stranded wire types
|
|

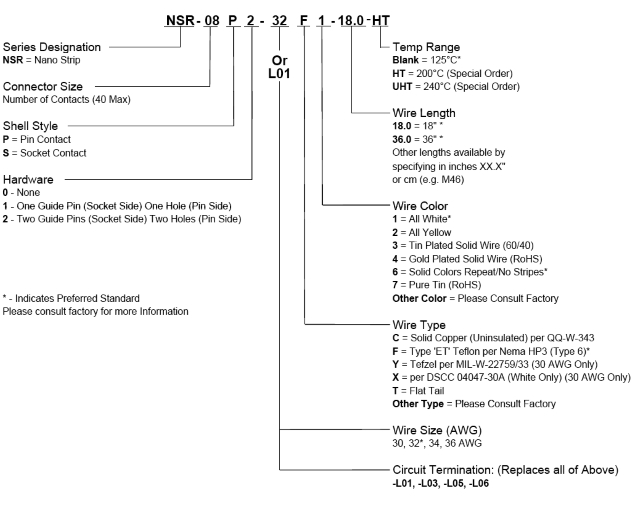

ULTI-MATE NANO WIRED SINGLE ROW & PCB CREATE PART NUMBER
|
|
ULTI-MATE NANO WIRED SINGLE ROW & PCB DIMENSIONS
|
|
ULTI-MATE NANO WIRED SINGLE ROW & PCB HARDWARE
Consult factory to determine if optional hardware is available.
|
