AMPHENOL CRIMP RING & BAND LOCK ADAPTER
Many cable terminations where heat shrink boots are used will require provision for terminating the screens also. This is achieved in this type of backshell through a crimp ring, which can be crimped to the backshell body, holding the screens in between. In another method of termination of screens, tempered bands are tightened over the shields, which are then pulled over the banding area, using special assembly tools. Suitable to go over heat shrink boot or some other method. Both crimp ring and banded terminations give a low DC resistance.
|
MATERIALS & FINISHESAMPHENOL CRIMP RING & BAND LOCK ADAPTER MATERIALS & FINISHES
Aluminum Parts: As per ASTM B 211, 221, 209, 85, 26
Steel Parts: 300 series, as per AMS-QQ-S-763/ASTM A 582
Elastomers: Fluorosilicone, Silicone
Other Parts: Suitable corrosion resistant material
AMPHENOL CRIMP RING & BAND LOCK ADAPTER TABLE-2 PLATING FINISHES
Amphenol Designation MIL Designation Finish Guiding Specifications/Requirements A A Anodize, Black* To meet AS85049 requirements B Anodize, Hard* AMS-A-8625, Type-III, Class -1 L Nickel, Bright AMS-QQ-290, Class-1, Grade-F M Electroless Nickel AMS-C-26074, Class-4, Grade-B N N Electroless Nickel To meet AS85049 requirements T Cadmium, Bright AMS-QQ-P-416, Type-I, Class-2 U Cadmium, Olive Drab AMS-QQ-P-416, Type-II, Class-3 V Cadmium, Olive drab over AMS-QQ-P-416, Type-II, Class-3 (Cadium); AMS-C-26074, Class-4, Grade-B (Nickel) W W Cadmium, Olive drab over To meet AS85049 requirements Y Zinc-Cobalt, Dark Olive drab ASTM-BB40 Z Zinc-Cobalt, Black ASTM-BB40 *Non conductive coatings ASSEMBLY TORQUE VALUESAMPHENOL CRIMP RING & BAND LOCK ADAPTER ASSEMBLY TORQUE VALUES
Connector Shell Size Torque (Inch-Pounds) 8, 9 40 3, 10, 10SL, 11 40 7, 12, 12S, 13 40 14, 14S, 15 40 16, 16S, 17 40 18, 19, 27 40 20, 21, 37 80 22, 23 80 24, 25, 61 80 28 100 32 100 36 100 40 100 44 100 STYLE-2 CONFIGURATIONAMPHENOL CRIMP RING & BAND LOCK ADAPTER STYLE-2 CONFIGURATION

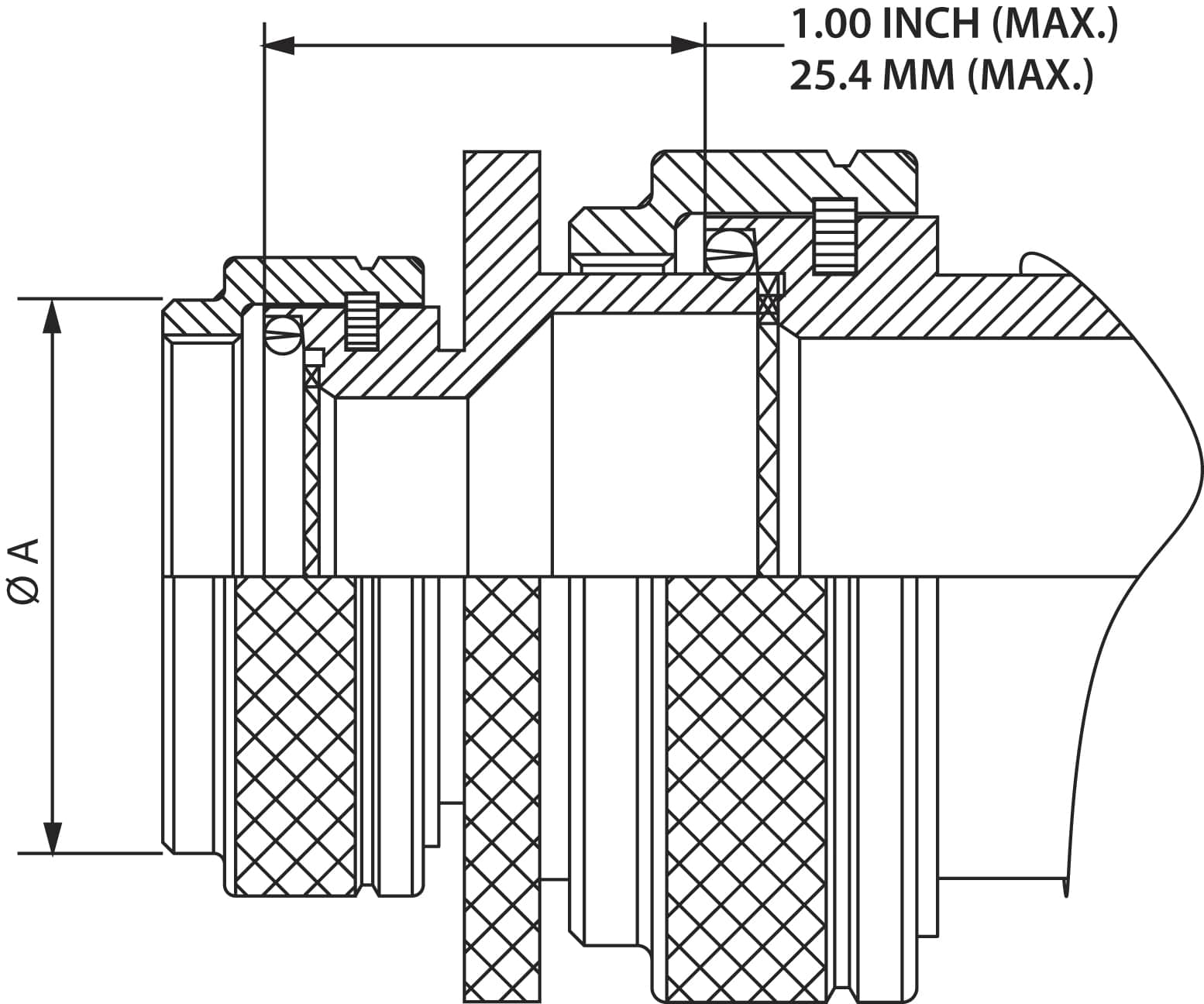

Some design consideration will require bigger diameter cable to be terminated in the smaller shell size connectors. Cable with heavy/thicker shielding, many wires for different branches/routing are some of the examples. Such cable termination will require a bigger adapter body with cable entry dimensions greater than the connector rear side dimensions. Amphenol also supports this kind of application. The coupling end of the adapter will be modified to Style-2 design as shown in the figure below in such cases. The overall length of the Style-2 design adapters would be increased by approx. 1 inch (25.mm) as shown. This alternative design is applicable for all the Backshell Families listed in this catalog.
|
|
M85049/26AMPHENOL CRIMP RING ADAPTER M85049/26 MIL-DTL-26482 SERIES II, MIL-DTL-5015 (MS345X), MIL-DTL-83723 SERIES III STRAIGHT CREATE PART NUMBER EXAMPLE: M85049/26-1-10W
1 2 3 4 5 M85049/ 26 -1 -10 W MIL SERIES SLASH SHEET CRIMP RING DASH NUMBER FINISH M85049/33AMPHENOL CRIMP RING ADAPTER M85049/33 MIL-DTL-38999 SERIES I & II STRAIGHT CREATE PART NUMBER EXAMPLE: M85049/33-2-12W
1 2 3 4 5 M85049/ 33 -2 -12 W MIL SERIES SLASH SHEET CRIMP RING DASH NUMBER FINISH M85049/20AMPHENOL CRIMP RING ADAPTER M85049/20 MIL-DTL-38999 SERIES III & IV STRAIGHT CREATE PART NUMBER EXAMPLE: M85049/20-11W
1 2 3 4 M85049/ 20 -11 W MIL SERIES SLASH SHEET SHELL SIZE FINISH M85049/82/84/83AMPHENOL BAND LOCK ADAPTER M85049/82/84/83 MIL-DTL-26482 SERIES II, MIL-DTL-5015 (MS345X), MIL-DTL-83723 SERIES III STRAIGHT, 90º, AND 45º SELF-LOCK CREATE PART NUMBER EXAMPLE: M85049/82-10W02
1 2 3 4 5 M85049/ 82 -10 W 02 MIL SERIES SLASH SHEET SHELL SIZE FINISH ENTRY SIZE M85049/85/87/86AMPHENOL BAND LOCK ADAPTER M85049/85/87/86 MIL-DTL-38999 SERIES I & II STRAIGHT, 90º, AND 45º SELF-LOCK CREATE PART NUMBER EXAMPLE: M85049/85-10W02
1 2 3 4 5 M85049/ 85 -10 W 02 MIL SERIES SLASH SHEET SHELL SIZE FINISH ENTRY SIZE M85049/88/90/89AMPHENOL BAND LOCK ADAPTER M85049/88/90/89 MIL-DTL-38999 SERIES III & IV STRAIGHT, 90º, AND 45º SELF-LOCK CREATE PART NUMBER EXAMPLE: M85049/88-11W03
1 2 3 4 5 M85049/ 88 -11 W 03 MIL SERIES SLASH SHEET SHELL SIZE FINISH ENTRY SIZE |
|
M85049/26AMPHENOL CRIMP RING ADAPTER M85049/26 MIL-DTL-26482 SERIES II, MIL-DTL-5015 (MS345X), MIL-DTL-83723 SERIES III STRAIGHT DIMENSIONS

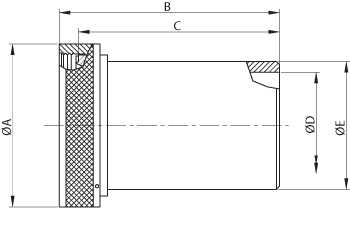

Table - A MIL Part Number Dash No. Connector A Dia. B C D Dia. E Dia. 08 08 0.62 (15.67) 1.28 (32.34) 0.96 (24.38) 0.25 (6.35) 0.35 (8.81) 10 10 0.73 (18.64) 1.28 (32.34) 0.96 (24.38) 0.33 (8.26) 0.50 (12.70) 12 07 / 12 0.86 (21.79) 1.28 (32.34) 0.96 (24.38) 0.42 (10.67) 0.51 (12.95) 14 12 / 14 0.98 (24.99) 1.28 (32.34) 0.96 (24.38) 0.54 (13.72) 0.63 (16.00) 16 19 / 16 1.11 (28.24) 1.28 (32.34) 0.96 (24.38) 0.67 (17.02) 0.76 (19.30) 18 27 / 18 1.22 (30.94) 1.28 (32.34) 0.96 (24.38) 0.79 (20.04) 0.89 (22.61) 20 37 / 20 1.35 (34.16) 1.28 (32.34) 0.96 (24.38) 0.91 (23.22) 1.01 (25.65) 22 22 1.47 (37.29) 1.28 (32.34) 0.96 (24.38) 1.04 (26.39) 1.13 (28.70) 24 24 1.59 (40.46) 1.28 (32.34) 0.96 (24.38) 1.11 (28.24) 1.20 (30.48) 28 28 1.97 (50.01) 1.44 (36.55) 0.96 (24.38) 1.39 (35.28) 1.56 (39.62) 32 32 2.22 (56.36) 1.44 (36.55) 0.96 (24.38) 1.64 (41.53) 1.81 (45.97) 36 36 2.47 (62.71) 1.44 (36.55) 0.96 (24.38) 1.85 (46.99) 2.06 (52.32) 40 40 2.72 (69.06) 1.44 (36.55) 0.96 (24.38) 2.07 (52.45) 2.31 (58.67) 44 44 2.97 (75.41) 1.44 (36.55) 0.96 (24.38) 2.32 (58.93) 2.56 (65.02) 48 48 3.22 (81.76) 1.44 (36.55) 0.96 (24.38) 2.57 (65.28) 2.81 (71.37) All dimensions in inches (millimeters in parentheses) All dimensions for reference only.
Table - B MIL Part Number

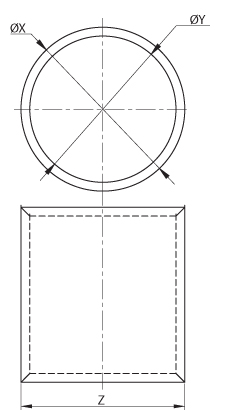

Dash No. Part No. Color Shell Size Min. Max. Min. Max. 08 Green 08 0.45 (11.38) 0.46 (11.63) 0.40 (10.16) 0.41 (10.41) 0.25 (6.35) 10 Red 10 0.66 (16.76) 0.68 (17.27) 0.59 (14.86) 0.60 (15.11) 0.44 (11.18) 12 Red 07 / 12 0.66 (16.76) 0.68 (17.27) 0.59 (14.86) 0.60 (15.11) 0.44 (11.18) 14 Blue 12 / 14 0.78 (19.81) 0.80 (20.32) 0.71 (17.91) 0.72 (18.16) 0.44 (11.18) 15 Gray 19 / 16 0.91 (23.11) 0.93 (23.62) 0.84 (21.21) 0.86 (21.46) 0.44 (11.18) 18 Brown 27 / 18 1.08 (27.43) 1.10 (27.94) 1.01 (25.53) 1.02 (25.78) 0.44 (11.18) 20 Green 37 / 20 1.20 (30.48) 1.22 (30.99) 1.13 (28.58) 1.14 (28.83) 0.44 (11.18) 22 Pink 22 1.32 (33.53) 1.34 (34.04) 1.25 (31.62) 1.26 (31.88) 0.44 (11.18) 24 Yellow 24 1.39 (35.23) 1.41 (35.74) 1.31 (33.32) 1.32 (33.58) 0.44 (11.18) 28 Red 28 1.74 (44.20) 1.76 (44.70) 1.67 (42.29) 1.68 (42.55) 0.44 (11.18) 32 Gray 32 1.99 (50.55) 2.01 (51.05) 1.92 (48.64) 1.93 (48.90) 0.44 (11.18) 36 Green 36 2.24 (56.90) 2.26 (57.40) 2.17 (54.99) 2.18 (55.25) 0.44 (11.18) 40 Orange 40 2.49 (63.49) 2.51 (63.75) 2.42 (61.34) 2.43 (61.60) 0.44 (11.18) 44 Yellow 44 2.74 (69.20) 2.76 (70.10) 2.67 (67.69) 2.68 (67.95) 0.44 (11.18) 48 Blue 48 2.99 (75.95) 3.01 (76.45) 2.92 (74.04) 2.93 (74.30) 0.44 (11.18) All dimensions in inches (millimeters in parentheses) All dimensions for reference only. M85049/33AMPHENOL CRIMP RING ADAPTER M85049/33 MIL-DTL-38999 SERIES I & II STRAIGHT DIMENSIONS

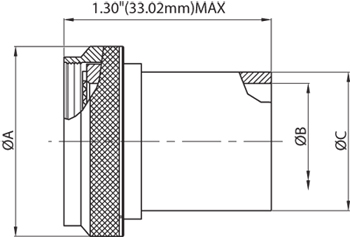

Table - C MIL Part Number Designator Dash No. Connector A Dia. B C Dia. D Dia. 08 08 / 09 0.75 (19.05) 1.14 (28.96) 0.27 (6.86) 0.35 (8.89) 10 10 / 11 0.85 (21.59) 1.14 (28.96) 0.34 (8.64) 0.50 (12.70) 12 12 / 13 1.00 (25.59) 1.14 (28.96) 0.44 (11.18) 0.51 (12.95) 14 14 / 15 1.10 (27.94) 1.14 (28.96) 0.56 (14.22) 0.63 (16.00) 16 16 / 17 1.25 (31.75) 1.14 (28.96) 0.69 (17.53) 0.76 (19.30) 18 18 / 19 1.40 (35.56) 1.14 (28.96) 0.80 (20.32) 0.89 (22.61) 20 20 / 21 1.50 (38.10) 1.14 (28.96) 0.93 (23.62) 1.01 (25.65) 22 22 / 23 1.65 (41.91) 1.14 (28.96) 1.05 (26.67) 1.13 (28.70) 24 24 / 25 1.75 (44.95) 1.14 (28.96) 1.13 (28.70) 1.20 (30.48) All dimensions in inches (millimeters in parentheses) All dimensions for reference only. M85049/20AMPHENOL CRIMP RING ADAPTER M85049/20 MIL-DTL-38999 SERIES III & IV STRAIGHT DIMENSIONS
Table - D MIL Part Number Designator Connector Shell Size Connector Shell Size / Code (Ref.) A Dia. B Dia. C Dia. 09 09 / A 0.75 (19.05) 0.27 (6.73) 0.35 (8.81) 11 11 / B 0.85 (21.59) 0.34 (8.71) 0.50 (12.65) 13 13 / C 1.00 (25.40) 0.44 (11.10) 0.51 (12.95) 15 15 / D 1.10 (27.94) 0.56 (14.27) 0.63 (16.00) 17 17 / E 1.25 (31.75) 0.69 (17.45) 0.76 (19.30) 19 19 / F 1.40 (35.56) 0.80 (20.62) 0.89 (22.61) 21 21 / G 1.50 (38.10) 0.93 (23.80) 1.01 (25.65) 23 23 / H 1.65 (41.91) 1.05 (26.57) 1.13 (28.70) 25 25 / J 1.75 (44.45) 1.13 (28.58) 1.20 (30.53) All dimensions in inches (millimeters in parentheses) All dimensions for reference only. M85049/82/84/83AMPHENOL BAND LOCK ADAPTER M85049/82/84/83 MIL-DTL-26482 SERIES II, MIL-DTL-5015 (MS345X),
MIL-DTL-83723 SERIES III STRAIGHT, 90º, AND 45º SELF-LOCK DIMENSIONS Straight 90 Degree 45 Degree Table-E MIL Part Number Designator Connector A Dia. B Dia. C Dia. D Dia. E Dia. F Dia. G Dia. Accessory Shell Size Entry Size +0.00 (+0.00) -0.02
02 03
0.89 (22.48) N/A (N/A) 0.26 (6.60) 0.87 (22.10) 1.16 (29.46) 1.19 (30.18) 1.42 (35.99) N/A (N/A) 0.56 (14.22)
02 03
1.01 (25.65) N/A (N/A) 0.32 (8.13) 0.89 (22.61) 1.18 (29.97) 1.28 (32.54) 1.48 (37.59) N/A (N/A) 0.63 (16.00)
02 03
1.14 (28.83) 0.32 (8.13) 0.45 (11.43) 0.92 (23.37) 1.20 (30.48) 1.41 (35.71) 1.54 (39.17) 0.63 (16.00) 0.75 (19.05)
02 03
1.26 (32.00) 0.45 (11.43) 0.57 (14.48) 0.94 (23.88) 1.22 (30.99) 1.53 (38.89) 1.61 (40.77) 0.75 (19.05) 0.89 (22.61)
02 03
1.39 (35.18) 0.51 (12.95) 0.64 (16.26) 0.96 (24.38) 1.25 (31.75) 1.66 (42.06) 1.67 (42.34) 0.82 (20.83) 0.95 (24.13)
02 03
1.51 (38.35) 0.64 (16.26) 0.76 (19.30) 0.98 (24.38) 1.26 (32.00) 1.72 (43.64) 1.73 (43.94) 0.95 (24.13) 1.07 (27.18)
02 03
1.64 (41.53) 0.64 (16.26) 0.82 (20.83) 1.00 (25.40) 1.29 (32.77) 1.84 (46.84) 1.79 (45.52) 0.95 (24.13) 1.13 (28.07)
02 03
1.76 (44.70) 0.70 (17.78) 0.95 (24.13) 1.03 (26.16) 1.31 (33.27) 1.94 (49.23) 1.85 (46.99) 1.02 (25.99) 1.26 (32.00)
02 03
1.89 (47.88) 0.76 (19.30) 1.01 (25.65) 1.05 (26.67) 1.34 (34.04) 2.09 (53.16) 1.92 (48.69) 1.07 (27.18) 1.32 (33.53)
02 03
2.14 (54.23) 0.89 (22.61) 1.14 (27.94) 1.10 (27.94) 1.38 (35.05) 2.53 (64.29) 2.04 (51.87) 1.19 (30.23) 1.47 (37.34) All dimensions in inches (millimeters in parentheses) All dimensions for reference only. M85049/85/87/86AMPHENOL BAND LOCK ADAPTER M85049/85/87/86 MIL-DTL-38999 SERIES I & II STRAIGHT, 90º, AND 45º SELF-LOCK DIMENSIONS
Straight 90 Degree 45 Degree Table-F MIL Part Number Designator Connector A Dia. B Dia. C Dia. D Dia. E Dia. F Dia. G Dia. Accessory Shell Size Entry Size Series +0.00 (+0.00) -0.02 (-0.50)
0.86 0.26 0.87 1.16 1.38 1.42 0.56
0.99 0.32 0.90 1.19 1.44 1.48 0.63
02 03
1.16 (29.46) 0.32 (8.13) 0.45 (11.43) 0.92 (23.37) 1.21 (30.73) 1.56 (39.67) 1.55 (39.45) 0.63 (16.00) 0.75 (19.05)
02 03
1.28 (32.54) 0.45 (11.43) 0.57 (14.48) 0.95 (24.13) 1.24 (31.50) 1.69 (42.85) 1.61 (41.00) 0.75 (19.05) 0.89 (22.61)
02 03
1.41 (35.71) 0.51 (12.95) 0.64 (16.26) 0.98 (24.89) 1.26 (32.00) 1.75 (44.45) 1.68 (42.62) 0.82 (20.83) 0.95 (24.13)
02 03
1.52 (38.51) 0.64 (16.26) 0.76 (19.30) 0.98 (24.89) 1.27 (32.26) 1.88 (47.63) 1.73 (44.02) 0.95 (24.13) 1.07 (27.18)
02 03
1.64 (41.68) 0.64 (16.26) 0.82 (20.83) 1.01 (25.65) 1.30 (33.02) 1.94 (49.23) 1.80 (45.62) 0.95 (24.13) 1.13 (28.07)
02 03
1.77 (44.86) 0.70 (17.78) 0.95 (24.13) 1.04 (26.42) 1.33 (33.78) 2.06 (52.37) 1.86 (47.22) 1.02 (25.99) 1.26 (32.00)
02 03
1.89 (48.03) 0.76 (19.30) 1.01 (25.65) 1.07 (27.18) 1.35 (34.29) 2.13 (53.98) 1.92 (48.69) 1.07 (27.18) 1.32 (33.53) All dimensions in inches (millimeters in parentheses) All dimensions for reference only. M85049/88/90/89AMPHENOL BAND LOCK ADAPTER M85049/88/90/89 MIL-DTL-38999 SERIES III & IV STRAIGHT, 90º, AND 45º
SELF-LOCK DIMENSIONS Straight 90 Degree 45 Degree Table-G MIL Part Number Designator Connector A Dia. B Dia. C Dia. D Dia. E Dia. F Dia. G Dia. Accessory Shell Size Entry Size Code (Ref.) +0.00 (+0.00) -0.02 (-0.50)
02 03
0.86 (21.82) N/A (N/A) 0.26 (6.60) 1.01 (25.65) 1.16 (29.46) 1.38 (34.93) 1.42 (35.99) N/A (N/A) 0.56 (14.22)
02 03
0.99 (25.04) N/A (N/A) 0.32 (8.13) 1.03 (26.16) 1.19 (30.23) 1.44 (36.50) 1.48 (37.59) N/A (N/A) 0.63 (16.00)
02 03
1.16 (29.36) 0.32 (8.13) 0.45 (11.43) 1.06 (26.92) 1.21 (30.73) 1.56 (39.67) 1.55 (39.45) 0.63 (16.00) 0.75 (19.05)
02 03
1.28 (32.54) 0.45 (11.43) 0.57 (14.48) 1.08 (27.43) 1.24 (31.50) 1.69 (42.85) 1.61 (41.00) 0.75 (19.05) 0.89 (22.61)
02 03
1.41 (35.71) 0.51 (12.95) 0.64 (16.26) 1.11 (28.19) 1.26 (32.00) 1.75 (44.45) 1.68 (42.62) 0.82 (20.83) 0.95 (24.13)
02 03
1.52 (38.51) 0.64 (16.26) 0.76 (19.30) 1.12 (28.45) 1.27 (32.26) 1.88 (47.63) 1.77 (45.03) 0.95 (24.13) 1.07 (27.18)
02 03
1.64 (41.68) 0.64 (16.26) 0.82 (20.83) 1.15 (29.21) 1.30 (33.02) 1.94 (49.23) 1.80 (45.62) 0.95 (24.13) 1.13 (28.07)
02 03
1.77 (44.86) 0.70 (17.78) 0.95 (24.13) 1.17 (29.72) 1.33 (33.78) 2.06 (52.37) 1.86 (47.22) 1.02 (25.99) 1.26 (32.00)
02 03
1.89 (48.03) 0.76 (19.30) 1.01 (25.65) 1.20 (30.48) 1.35 (34.29) 2.13 (53.98) 1.92 (48.74) 1.07 (27.18) 1.32 (33.53) All dimensions in inches (millimeters in parentheses) All dimensions for reference only. |
