Amphenol M85049 Environmental Backshells
ENVIRONMENTAL PROTECTION TO MIL SPEC M85049
These MIL SPEC M85049 environmental backshells from Amphenol provide cable support and strain relief. Additionally, these M85049 environmental backshells are designed to ensure cable sealing and environment protection with a high quality sealing grommet and grommet follower. The strain relief nut is tightened by squeezing the grommet on to the cable jacket during assembly. These M85049 environmental backshells from Amphenol give six feet of water sealing protection when used with perfectly jacketed cables, and are suitable for harsh environment applications.
|
MATERIALS & FINISHESAMPHENOL ENVIRONMENTAL BACKSHELL MATERIALS & FINISHES
Aluminum Parts: As per ASTM B 211, 221, 209, 85, 26
Steel Parts: 300 series, as per AMS-QQ-S-763/ASTM A 582
Elastomers: Fluorosilicone, Silicone
Other Parts: Suitable corrosion resistant material
AMPHENOL ENVIRONMENTAL BACKSHELL TABLE-2 PLATING FINISHES
Amphenol Designation MIL Designation Finish Guiding Specifications/Requirements A A Anodize, Black* To meet AS85049 requirements B Anodize, Hard* AMS-A-8625, Type-III, Class -1 L Nickel, Bright AMS-QQ-290, Class-1, Grade-F M Electroless Nickel AMS-C-26074, Class-4, Grade-B N N Electroless Nickel To meet AS85049 requirements T Cadmium, Bright AMS-QQ-P-416, Type-I, Class-2 U Cadmium, Olive Drab AMS-QQ-P-416, Type-II, Class-3 V Cadmium, Olive drab over AMS-QQ-P-416, Type-II, Class-3 (Cadium); AMS-C-26074, Class-4, Grade-B (Nickel) W W Cadmium, Olive drab over Electroless Nickel To meet AS85049 requirements Y Zinc-Cobalt, Dark Olive drab ASTM-BB40 Z Zinc-Cobalt, Black ASTM-BB40 *Non conductive coatings ASSEMBLY TORQUE VALUESAMPHENOL ENVIRONMENTAL BACKSHELL ASSEMBLY TORQUE VALUES
Connector Shell Size Torque (Inch-Pounds) 8, 9 40 3, 10, 10SL, 11 40 7, 12, 12S, 13 40 14, 14S, 15 40 16, 16S, 17 40 18, 19, 27 40 20, 21, 37 80 22, 23 80 22, 23 80 24, 25, 61 80 28 100 32 100 36 100 40 100 44 100 STYLE-2 CONFIGURATIONAMPHENOL ENVIRONMENTAL BACKSHELL STYLE-2 CONFIGURATION
Some design consideration will require bigger diameter cable to be terminated in the smaller shell size connectors. Cable with heavy/thicker shielding, many wires for different branches/ routing are some of the examples. Such cable termination will require a bigger adapter body with cable entry dimensions greater than the connector rear side dimensions. Amphenol also supports this kind of application. The coupling end of the adapter will be modified to Style-2 design as shown in the figure below in such cases. The overall length of the Style-2 design adapters would be increased by approx. 1 inch (25.mm) as shown. This alternative design is applicable for all the Backshell Families listed in this catalog.
|
|
M85049/9, /7AMPHENOL ENVIRONMENTAL BACKSHELL M85049/9, /7 MIL-DTL-26482 SERIES II, MIL-DTL-5015 (MS345X),
MIL-DTL-83723 SERIES III 90º AND 45º SPIN COUPLING CREATE PART NUMBER EXAMPLE: M85049/9-10W 1 2 3 4 M85049/ 9 -10 W MIL SERIES SLASH SHEET DASH NUMBER FINISH M85049/11AMPHENOL ENVIRONMENTAL BACKSHELL M85049/11 MIL-DTL-26482 SERIES II, MIL-DTL-5015 (MS345X), MIL-DTL-83723 SERIES III STRAIGHT SPIN COUPLING CREATE PART NUMBER EXAMPLE: M85049/11-10W
1 2 3 4 M85049/ 11 -10 W MIL SERIES SLASH SHEET DASH NUMBER FINISH |
|

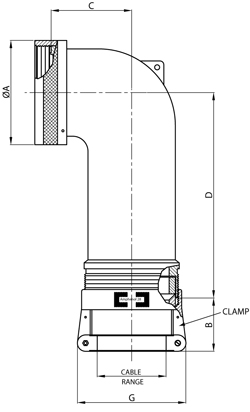

M85049/9, /7AMPHENOL ENVIRONMENTAL BACKSHELL M85049/9, /7 MIL-DTL-26482 SERIES II, MIL-DTL-5015 (MS345X), MIL-DTL-83723 SERIES III 90º AND 45º SPIN COUPLING DIMENSIONS
90 Degree 45-Degree Table - A MIL Part Number Designator Cable Shell Size Dash No. Connector A Dia. B Ref. C Max. D Max. E Max. F Max. G Max. Min. Wire Max. Wire 08 03 08 0.62 1.03 0.67 1.26 0.63 1.25 0.96 0.13 0.25
04 49* 05
0.73 0.73 0.73 1.03 1.03 1.03 0.76 1.52 0.76 1.98 2.00 1.38 0.96 1.50 0.69 1.92 1.98 1.31 0.96 1.15 1.15 0.13 0.25 0.25 0.31 0.44 0.38
06 71* 07 08
0.86 0.86 0.86 0.86 1.03 1.03 1.03 1.03 0.77 1.81 0.77 0.77 2.00 2.16 2.00 1.40 0.75 1.65 0.75 0.75 1.98 2.18 1.98 1.98 0.96 1.33 1.15 1.33 0.13 0.35 0.25 0.35 0.31 0.63 0.44 0.50
09 10 50* 74
0.98 0.98 0.98 0.98 1.03 1.03 1.06 1.03 0.87 0.87 1.89 0.87 2.07 1.72 2.33 2.07 0.81 0.81 1.84 0.81 2.07 1.72 2.37 2.07 1.15 1.33 1.55 0.96 0.25 0.35 0.50 0.13 0.44 0.58 0.75 0.31
11 12 40 51* 75
1.11 1.11 1.11 1.11 1.11 1.03 1.06 1.03 1.16 1.03 1.05 1.05 1.05 1.05 2.05 2.16 1.81 2.16 2.44 2.16 0.91 0.91 0.91 1.94 0.91 2.18 1.82 2.18 2.52 2.18 1.15 1.55 1.33 1.77 0.96 0.25 0.50 0.35 0.63 0.13 0.44 0.70 0.63 0.94 0.31
13 14 41 42 52 72*
1.22 1.22 1.22 1.22 1.22 1.22 1.03 1.16 1.03 1.03 1.06 1.16 1.14 1.14 1.14 1.14 1.14 2.05 2.33 1.98 2.33 2.33 2.33 2.44 1.09 1.09 1.09 1.09 1.09 1.94 2.37 2.00 2.37 2.37 2.37 2.52 1.33 1.77 0.96 1.15 1.55 1.77 0.35 0.63 0.13 0.25 0.50 0.63 0.63 0.78 0.31 0.44 0.75 0.94
15 16 43 54 55
1.35 1.35 1.35 1.35 1.35 1.03 1.16 1.03 1.06 1.38 1.14 1.14 1.14 1.14 2.14 2.33 1.98 2.33 2.33 2.61 1.09 1.09 1.09 1.09 2.06 2.37 2.00 2.37 2.37 2.57 1.33 1.77 1.15 1.55 2.11 0.35 0.63 0.25 0.50 0.88 0.63 0.90 0.44 0.75 1.25
17 18 44 45 56 57 58*
1.47 1.47 1.47 1.47 1.47 1.47 1.47 1.06 1.38 1.03 1.03 1.03 1.16 1.38 1.29 1.29 1.29 1.29 1.29 1.29 2.14 2.44 2.09 2.44 2.44 2.44 2.44 2.61 1.19 1.19 1.19 1.19 1.19 1.19 2.06 2.52 2.16 2.52 2.52 2.52 2.52 2.57 1.55 2.11 0.96 1.15 1.33 1.77 2.11 0.50 0.88 0.13 0.25 0.35 0.63 0.88 0.75 1.03 0.31 0.44 0.63 0.94 1.25
19 20 46 59 73*
1.59 1.59 1.59 1.59 1.59 1.06 1.38 1.03 1.16 1.38 1.29 1.29 1.29 1.29 2.15 2.44 2.09 2.44 2.44 2.61 1.19 1.19 1.19 1.19 2.06 2.52 2.16 2.52 2.52 2.57 1.55 2.11 1.33 1.77 2.12 0.50 0.88 0.35 0.63 0.88 0.75 1.14 0.63 0.94 1.25
21 22 60 61
1.97 1.97 1.97 1.97 1.16 1.50 1.06 1.38 1.39 1.39 1.39 1.39 2.61 2.26 2.61 2.61 1.31 1.31 1.31 1.31 2.57 2.22 2.57 2.57 1.77 2.36 1.55 2.11 0.63 1.00 0.50 0.88 0.94 1.38 0.75 1.25
23 24 25 62
2.22 2.22 2.22 2.22 1.16 1.38 1.78 1.50 1.74 1.74 1.74 1.74 2.86 2.86 2.51 2.86 1.38 1.38 1.38 1.38 2.67 2.67 2.32 2.67 1.77 2.11 2.77 2.36 0.63 0.88 1.25 1.00 0.94 1.25 1.63 1.38
26 27 28 47 63 64
2.47 2.47 2.47 2.47 2.47 2.47 1.16 1.50 1.83 1.06 1.38 1.78 1.94 1.94 1.94 1.94 1.94 1.94 2.83 2.83 2.48 2.83 2.83 2.83 1.41 1.41 1.41 1.41 1.41 1.41 2.76 2.76 2.41 2.76 2.76 2.76 1.77 2.36 3.02 1.55 2.11 2.77 0.63 1.00 1.44 0.50 0.88 1.25 0.94 1.38 1.84 0.75 1.25 1.63
29 30 31 48 65 66
2.72 2.72 2.72 2.72 2.72 2.72 1.16 1.50 1.83 1.06 1.38 1.78 2.69 2.69 2.69 1.94 2.69 2.69 2.83 2.83 2.48 2.83 2.83 2.83 2.16 2.16 2.16 2.16 2.16 2.16 2.76 2.76 2.41 2.76 2.76 2.76 1.77 2.36 3.02 1.55 2.11 2.77 0.63 1.00 1.44 0.50 0.88 1.25 0.94 1.38 1.88 0.75 1.25 1.63
32 33 34 67 68
2.97 2.97 2.97 2.97 2.97 1.16 1.50 1.83 1.38 1.78 2.69 2.69 2.69 2.69 2.69 2.83 2.83 2.48 2.83 2.83 2.16 2.16 2.16 2.16 2.16 2.76 2.76 2.41 2.76 2.76 1.77 2.36 3.02 2.11 2.77 0.63 1.00 1.44 0.88 1.25 0.94 1.38 1.88 1.25 1.63
35 36 37 69 70

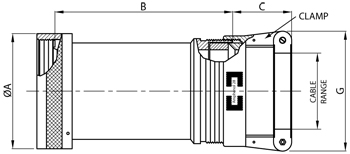

3.22 3.22 3.22 3.22 3.22 1.16 1.50 1.83 1.38 1.78 2.69 2.69 2.69 2.69 2.69 2.83 2.83 2.48 2.83 2.83 2.16 2.16 2.16 2.16 2.16 2.76 2.76 2.41 2.76 2.76 1.77 2.36 3.02 2.11 2.77 0.63 1.00 1.44 0.88 1.25 0.94 1.38 1.88 1.25 1.63 * Denotes Style-2 (See Tech Specs Style-2 Configuration) All dimensions for reference only. All dimensions in inches (millimeters in parentheses) M85049/11AMPHENOL ENVIRONMENTAL BACKSHELL M85049/11 MIL-DTL-26482 SERIES II, MIL-DTL-5015 (MS345X), MIL-DTL-83723 SERIES III STRAIGHT DIMENSIONS
Straight Table - B MIL Part Number Designator Cable Range Shell Size Dash No. Connector A Dia. B Max. C Ref. G Max. Min. Wire Max. Wire 08 05 06 07* 08* 08 0.62 (15.67) 0.62 (15.67) 0.62 (15.67) 0.62 (15.67) 2.13 (54.10) 3.13 (79.50) 2.88 (73.15) 3.88 (98.55) 1.03 (26.09) 1.03 (26.09) 1.03 (26.09) 1.03 (26.09) 0.96 (24.31) 0.96 (24.31) 1.15 (29.08) 1.15 (29.08) 0.13 (3.18) 0.13 (3.18) 0.25 (6.35) 0.25 (6.35) 0.25 (6.35) 0.25 (6.35) 0.44 (11.10) 0.44 (11.10) 10 09 10 11* 12* 136 137 10 0.73 (18.64) 0.73 (18.64) 0.73 (18.64) 0.73 (18.64) 0.73 (18.64) 0.73 (18.64) 2.13 (54.10) 3.13 (79.50) 2.88 (73.15) 3.88 (98.55) 2.13 (54.10) 3.13 (79.50) 1.03 (26.09) 1.03 (26.09) 1.03 (26.09) 1.03 (26.09) 1.03 (26.09) 1.03 (26.09) 0.96 (24.31) 0.96 (24.31) 1.15 (29.08) 1.15 (29.08) 1.15 (29.08) 1.15 (29.08) 0.13 (3.18) 0.13 (3.18) 0.25 (6.35) 0.25 (6.35) 0.25 (6.35) 0.25 (6.35) 0.31 (7.92) 0.31 (7.92) 0.44 (11.10) 0.44 (11.10) 0.38 (9.53) 0.38 (9.53) 12 13 14 15* 16* 111 114 115 138 139 07 / 12 0.86 (21.79) 0.86 (21.79) 0.86 (21.79) 0.86 (21.79) 0.86 (21.79) 0.86 (21.79) 0.86 (21.79) 0.86 (21.79) 0.86 (21.79) 2.13 (54.10) 3.13 (79.50) 2.88 (73.15) 3.88 (98.55) 2.13 (54.10) 2.13 (54.10) 3.13 (79.50) 2.13 (54.10) 3.13 (79.50) 1.03 (26.09) 1.03 (26.09) 1.03 (26.09) 1.03 (26.09) 1.03 (26.09) 1.03 (26.09) 1.03 (26.09) 1.03 (26.09) 1.03 (26.09) 1.15 (29.08) 1.15 (29.08) 1.33 (33.83) 1.33 (33.83) 1.33 (33.83) 0.96 (24.31) 0.96 (24.31) 1.33 (33.83) 1.33 (33.83) 0.25 (6.35) 0.25 (6.35) 0.35 (8.89) 0.35 (8.89) 0.35 (8.89) 0.13 (3.18) 0.13 (3.18) 0.35 (8.89) 0.35 (8.89) 0.44 (11.10) 0.44 (11.10) 0.63 (15.88) 0.63 (15.88) 0.50 (12.70) 0.31 (7.92) 0.31 (7.92) 0.50 (12.70) 0.50 (12.70) 14 17 18 19* 20* 116 117 150 151 12 / 14 0.98 (24.99) 0.98 (24.99) 0.98 (24.99) 0.98 (24.99) 0.98 (24.99) 0.98 (24.99) 0.98 (24.99) 0.98 (24.99) 2.13 (54.10) 3.13 (79.50) 2.88 (73.15) 3.88 (98.55) 2.13 (54.10) 3.13 (79.50) 2.13 (54.10) 3.13 (79.50) 1.03 (26.09) 1.03 (26.09) 1.06 (26.90) 1.06 (26.90) 4.88 (123.95) 4.88 (123.95) 4.88 (123.95) 4.88 (123.95) 1.33 (33.83) 1.33 (33.83) 1.55 (39.40) 1.55 (39.40) 1.15 (29.08) 1.15 (29.08) 0.96 (24.31) 0.96 (24.31) 0.35 (8.89) 0.35 (8.89) 0.50 (12.70) 0.50 (12.70) 0.25 (6.35) 0.25 (6.35) 0.13 (3.18) 0.13 (3.18) 0.58 (14.61) 0.58 (14.61) 0.75 (19.05) 0.75 (19.05) 0.44 (11.10) 0.44 (11.10) 0.31 (7.92) 0.31 (7.92) 16 21 22 23* 24* 112 113 118 119 152 153 19 / 16 1.11 (28.24) 1.11 (28.24) 1.11 (28.24) 1.11 (28.24) 1.11 (28.24) 1.11 (28.24) 1.11 (28.24) 1.11 (28.24) 1.11 (28.24) 1.11 (28.24) 2.13 (54.10) 3.13 (79.50) 2.88 (73.15) 3.88 (98.55) 2.13 (54.10) 3.13 (79.50) 2.13 (54.10) 3.13 (79.50) 2.13 (54.10) 3.13 (79.50) 1.06 (26.90) 1.06 (26.90) 1.16 (29.36) 1.16 (29.36) 1.03 (26.09) 1.03 (26.09) 1.03 (26.09) 1.03 (26.09) 1.03 (26.09) 1.03 (26.09) 1.55 (39.40) 1.55 (39.40) 1.77 (44.96) 1.77 (44.96) 1.15 (29.08) 1.15 (29.08) 1.33 (33.83) 1.33 (33.83) 0.96 (24.31) 0.96 (24.31) 0.50 (12.70) 0.50 (12.70) 0.63 (15.88) 0.63 (15.88) 0.25 (6.35) 0.25 (6.35) 0.35 (8.89) 0.35 (8.89) 0.13 (3.18) 0.13 (3.18) 0.70 (17.78) 0.70 (17.78) 0.94 (23.80) 0.94 (23.80) 0.44 (11.10) 0.44 (11.10) 0.63 (15.88) 0.63 (15.88) 0.31 (7.92) 0.31 (7.92) 18 25 26 27 28 29* 30* 120 121 122 123 27 / 18 1.22 (30.94) 1.22 (30.94) 1.22 (30.94) 1.22 (30.94) 1.22 (30.94) 1.22 (30.94) 1.22 (30.94) 1.22 (30.94) 1.22 (30.94) 1.22 (30.94) 2.13 (54.10) 3.13 (79.50) 2.13 (54.10) 3.13 (79.50) 2.88 (73.15) 3.88 (98.55) 2.13 (54.10) 3.13 (79.50) 2.13 (54.10) 3.13 (79.50) 1.03 (26.09) 1.03 (26.09) 1.06 (26.90) 1.06 (26.90) 1.16 (29.36) 1.16 (29.36) 1.03 (26.09) 1.03 (26.09) 1.03 (26.09) 1.03 (26.09) 1.33 (33.83) 1.33 (33.83) 1.55 (39.40) 1.55 (39.40) 1.77 (44.96) 1.77 (44.96) 0.96 (24.31) 0.96 (24.31) 1.15 (29.08) 1.15 (29.08) 0.35 (8.89) 0.35 (8.89) 0.50 (12.70) 0.50 (12.70) 0.63 (15.88) 0.63 (15.88) 0.13 (3.18) 0.13 (3.18) 0.25 (6.35) 0.25 (6.35) 0.63 (15.88) 0.63 (15.88) 0.75 (19.05) 0.75 (19.05) 0.94 (23.80) 0.94 (23.80) 0.31 (7.92) 0.31 (7.92) 0.44 (11.10) 0.44 (11.10) 20 31 32 33 34 35* 36* 37* 38* 124 125 140 141 37 / 20 1.35 (34.16) 1.35 (34.16) 1.35 (34.16) 1.35 (34.16) 1.35 (34.16) 1.35 (34.16) 1.35 (34.16) 1.35 (34.16) 1.35 (34.16) 1.35 (34.16) 1.35 (34.16) 1.35 (34.16) 3.13 (79.50) 4.13 (104.90) 3.13 (79.50) 4.13 (104.90) 3.88 (98.55) 4.88 (123.95) 3.88 (98.55) 4.88 (123.95) 3.13 (79.50) 4.13 (104.90) 3.13 (79.50) 4.13 (104.90) 1.03 (26.09) 1.03 (26.09) 1.06 (26.90) 1.06 (26.90) 1.16 (29.36) 1.16 (29.36) 1.38 (34.93) 1.38 (34.93) 1.03 (26.09) 1.03 (26.09) 1.16 (29.36) 1.16 (29.36) 1.33 (33.83) 1.33 (33.83) 1.55 (39.40) 1.55 (39.40) 1.77 (44.96) 1.77 (44.96) 2.11 (53.67) 2.11 (53.67) 1.15 (29.08) 1.15 (29.08) 1.77 (44.96) 1.77 (44.96) 0.35 (8.89) 0.35 (8.89) 0.50 (12.70) 0.50 (12.70) 0.63 (15.88) 0.63 (15.88) 0.88 (22.23) 0.88 (22.23) 0.25 (6.35) 0.25 (6.35) 0.63 (15.88) 0.63 (15.88) 0.63 (15.88) 0.63 (15.88) 0.75 (19.05) 0.75 (19.05) 0.94 (23.80) 0.94 (23.80) 1.25 (31.75) 1.25 (31.75) 0.44 (11.10) 0.44 (11.10) 0.90 (22.96) 0.90 (22.96) 22 39 40 41 42 43 44 45* 46* 126 127 128 129 142 143 22 1.47 (37.29) 1.47 (37.29) 1.47 (37.29) 1.47 (37.29) 1.47 (37.29) 1.47 (37.29) 1.47 (37.29) 1.47 (37.29) 1.47 (37.29) 1.47 (37.29) 1.47 (37.29) 1.47 (37.29) 1.47 (37.29) 1.47 (37.29) 3.13 (79.50) 4.13 (104.90) 3.13 (79.50) 4.13 (104.90) 3.13 (79.50) 4.13 (104.90) 3.88 (98.55) 4.88 (123.95) 3.13 (79.50) 4.13 (104.90) 3.13 (79.50) 4.13 (104.90) 3.13 (79.50) 4.13 (104.90) 1.03 (26.09) 1.03 (26.09) 1.06 (26.90) 1.06 (26.90) 1.16 (29.36) 1.16 (29.36) 1.38 (34.93) 1.38 (34.93) 1.03 (26.09) 1.03 (26.09) 1.03 (26.09) 1.03 (26.09) 1.38 (34.93) 1.38 (34.93) 1.33 (33.83) 1.33 (33.83) 1.55 (39.40) 1.55 (39.40) 1.77 (44.96) 1.77 (44.96) 2.11 (53.67) 2.11 (53.67) 0.96 (24.31) 0.96 (24.31) 1.15 (29.08) 1.15 (29.08) 2.11 (53.67) 2.11 (53.67) 0.35 (8.89) 0.35 (8.89) 0.50 (12.70) 0.50 (12.70) 0.63 (15.88) 0.63 (15.88) 0.88 (22.23) 0.88 (22.23) 0.13 (3.18) 0.13 (3.18) 0.25 (6.35) 0.25 (6.35) 0.88 (22.23) 0.88 (22.23) 0.63 (15.88) 0.63 (15.88) 0.75 (19.05) 0.75 (19.05) 0.94 (23.80) 0.94 (23.80) 1.25 (31.75) 1.25 (31.75) 0.31 (7.92) 0.31 (7.92) 0.44 (11.10) 0.44 (11.10) 1.03 (26.14) 1.03 (26.14) 24 47 48 49 50 51 52 53* 54* 130 131 144 145 24 1.59 (40.46) 1.59 (40.46) 1.59 (40.46) 1.59 (40.46) 1.59 (40.46) 1.59 (40.46) 1.59 (40.46) 1.59 (40.46) 1.59 (40.46) 1.59 (40.46) 1.59 (40.46) 1.59 (40.46) 3.13 (79.50) 4.13 (104.90) 3.13 (79.50) 4.13 (104.90) 3.13 (79.50) 4.13 (104.90) 3.88 (98.55) 4.88 (123.95) 3.13 (79.50) 4.13 (104.90) 3.13 (79.50) 4.13 (104.90) 1.06 (26.90) 1.06 (26.90) 1.16 (29.36) 1.16 (29.36) 1.16 (29.36) 1.16 (29.36) 1.38 (34.93) 1.38 (34.93) 1.03 (26.09) 1.03 (26.09) 1.38 (34.93) 1.38 (34.93) 1.55 (39.40) 1.55 (39.40) 1.77 (44.96) 1.77 (44.96) 1.77 (44.96) 1.77 (44.96) 2.11 (53.67) 2.11 (53.67) 1.33 (33.83) 1.33 (33.83) 2.11 (53.67) 2.11 (53.67) 0.50 (12.70) 0.50 (12.70) 0.63 (15.88) 0.63 (15.88) 0.63 (15.88) 0.63 (15.88) 0.88 (22.23) 0.88 (22.23) 0.35 (8.89) 0.35 (8.89) 0.88 (22.23) 0.88 (22.23) 0.75 (19.05) 0.75 (19.05) 0.81 (20.62) 0.81 (20.62) 0.94 (23.80) 0.94 (23.80) 1.25 (31.75) 1.25 (31.75) 0.63(15.88) 0.63(15.88) 1.14 (29.06) 1.14 (29.06) 28 55 56 57 58 59 60 61 62 28 1.97 (50.01) 1.97 (50.01) 1.97 (50.01) 1.97 (50.01) 1.97 (50.01) 1.97 (50.01) 1.97 (50.01) 1.97 (50.01) 3.13 (79.50) 4.13 (104.90) 3.13 (79.50) 4.13 (104.90) 3.13 (79.50) 4.13 (104.90) 3.13 (79.50) 4.13 (104.90) 1.06 (26.90) 1.06 (26.90) 1.16 (29.36) 1.16 (29.36) 1.38 (34.93) 1.38 (34.93) 1.50 (38.10) 1.50 (38.10) 1.55 (39.40) 1.55 (39.40) 1.77 (44.96) 1.77 (44.96) 2.11 (53.67) 2.11 (53.67) 2.36 (60.02) 2.36 (60.02) 0.50 (12.70) 0.50 (12.70) 0.63 (15.88) 0.63 (15.88) 0.88 (22.23) 0.88 (22.23) 1.00 (25.40) 1.00 (25.40) 0.75 (19.05) 0.75 (19.05) 0.94 (23.80) 0.94 (23.80) 1.25 (31.75) 1.25 (31.75) 1.38 (34.93) 1.38 (34.93) 32 63 64 65 66 67 68 69 70 32 2.22 (56.36) 2.22 (56.36) 2.22 (56.36) 2.22 (56.36) 2.22 (56.36) 2.22 (56.36) 2.22 (56.36) 2.22 (56.36) 3.13 (79.50) 4.13 (104.90) 3.13 (79.50) 4.13 (104.90) 3.13 (79.50) 4.13 (104.90) 3.13 (79.50) 4.13 (104.90) 1.16 (29.36) 1.16 (29.36) 1.38 (34.93) 1.38 (34.93) 1.50 (38.10) 1.50 (38.10) 1.78 (45.24) 1.78 (45.24) 1.77 (44.96) 1.77 (44.96) 2.11 (53.67) 2.11 (53.67) 2.36 (60.02) 2.36 (60.02) 2.77 (70.36) 2.77 (70.36) 0.63 (15.88) 0.63 (15.88) 0.88 (22.23) 0.88 (22.23) 1.00 (25.40) 1.00 (25.40) 1.25 (31.75) 1.25 (31.75) 0.94 (23.80) 0.94 (23.80) 1.25 (31.75) 1.25 (31.75) 1.38 (34.93) 1.38 (34.93) 1.63 (41.28) 1.63 (41.28) 36 71 72 73 74 75 76 77* 78* 132 133 146 147 148 149 36 2.47 (62.71) 2.47 (62.71) 2.47 (62.71) 2.47 (62.71) 2.47 (62.71) 2.47 (62.71) 2.47 (62.71) 2.47 (62.71) 2.47 (62.71) 2.47 (62.71) 2.47 (62.71) 2.47 (62.71) 2.47 (62.71) 2.47 (62.71) 4.13 (104.90) 5.13 (130.30) 4.13 (104.90) 5.13 (130.30) 4.13 (104.90) 5.13 (130.30) 5.01 (127.25) 6.01 (152.65) 4.13 (104.90) 5.13 (130.30) 4.13 (104.90) 5.13 (130.30) 4.13 (104.90) 5.13 (130.30) 1.38 (34.93) 1.38 (34.93) 1.50 (38.10) 1.50 (38.10) 1.78 (45.24) 1.78 (45.24) 1.83 (46.48) 1.83 (46.48) 1.06 (26.90) 1.06 (26.90) 1.83 (46.48) 1.83 (46.48) 1.16 (29.36) 1.16 (29.36) 2.11 (53.67) 2.11 (53.67) 2.36 (60.02) 2.36 (60.02) 2.77 (70.36) 2.77 (70.36) 3.02 (76.71) 3.02 (76.71) 1.55 (39.40) 1.55 (39.40) 3.02 (76.71) 3.02 (76.71) 1.77 (44.96) 1.77 (44.96) 0.88 (22.23) 0.88 (22.23) 1.00 (25.40) 1.00 (25.40) 1.25 (31.75) 1.25 (31.75) 1.44 (36.50) 1.44 (36.50) 0.50 (12.70) 0.50 (12.70) 1.44 (36.50) 1.44 (36.50) 0.63 (15.88) 0.63 (15.88) 1.25 (31.75) 1.25 (31.75) 1.38 (34.93) 1.38 (34.93) 1.63 (41.28) 1.63 (41.28) 1.88 (47.63) 1.88 (47.63) 0.75 (19.05) 0.75 (19.05) 1.84 (46.74) 1.84 (46.74) 0.94 (23.80) 0.94 (23.80) 40 79 80 81 82 83 84 85 86 134 135 156 157 40 2.72 (69.06) 2.72 (69.06) 2.72 (69.06) 2.72 (69.06) 2.72 (69.06) 2.72 (69.06) 2.72 (69.06) 2.72 (69.06) 2.72 (69.06) 2.72 (69.06) 2.72 (69.06) 2.72 (69.06) 4.13 (104.90) 5.13 (130.30) 4.13 (104.90) 5.13 (130.30) 4.13 (104.90) 5.13 (130.30) 4.13 (104.90) 5.13 (130.30) 4.13 (104.90) 5.13 (130.30) 4.13 (104.90) 5.13 (130.30) 1.38 (34.93) 1.38 (34.93) 1.50 (38.10) 1.50 (38.10) 1.78 (45.24) 1.78 (45.24) 1.83 (46.48) 1.83 (46.48) 1.06 (26.90) 1.06 (26.90) 1.16 (29.36) 1.16 (29.36) 2.11 (53.67) 2.11 (53.67) 2.36 (60.02) 2.36 (60.02) 2.77 (70.36) 2.77 (70.36) 3.02 (76.71) 3.02 (76.71) 1.55 (39.40) 1.55 (39.40) 1.77 (44.96) 1.77 (44.96) 0.88 (22.23) 0.88 (22.23) 1.00 (25.40) 1.00 (25.40) 1.25 (31.75) 1.25 (31.75) 1.44 (36.50) 1.44 (36.50) 0.50 (12.70) 0.50 (12.70) 0.63 (15.88) 0.63 (15.88) 1.25 (31.75) 1.25 (31.75) 1.38 (34.93) 1.38 (34.93) 1.63 (41.28) 1.63 (41.28) 1.88 (47.63) 1.88 (47.63) 0.75 (19.05) 0.75 (19.05) 0.94 (23.80) 0.94 (23.80) 44 87 88 89 90 91 92 93 94 154 155 44 2.97 (75.41) 2.97 (75.41) 2.97 (75.41) 2.97 (75.41) 2.97 (75.41) 2.97 (75.41) 2.97 (75.41) 2.97 (75.41) 2.97 (75.41) 2.97 (75.41) 4.13 (104.90) 5.13 (130.30) 4.13 (104.90) 5.13 (130.30) 4.13 (104.90) 5.13 (130.30) 4.13 (104.90) 5.13 (130.30) 4.13 (104.90) 5.13 (130.30) 1.38 (34.93) 1.38 (34.93) 1.50 (38.10) 1.50 (38.10) 1.78 (45.24) 1.78 (45.24) 1.83 (46.48) 1.83 (46.48) 1.16 (29.36) 1.16 (29.36) 2.11 (53.67) 2.11 (53.67) 2.36 (60.02) 2.36 (60.02) 2.77 (70.36) 2.77 (70.36) 3.02 (76.71) 3.02 (76.71) 1.77 (44.96) 1.77 (44.96) 0.88 (22.23) 0.88 (22.23) 1.00 (25.40) 1.00 (25.40) 1.25 (31.75) 1.25 (31.75) 1.44 (36.50) 1.44 (36.50) 0.63 (15.88) 0.63 (15.88) 1.25 (31.75) 1.25 (31.75) 1.38 (34.93) 1.38 (34.93) 1.63 (41.28) 1.63 (41.28) 1.88 (47.63) 1.88 (47.63) 0.94 (23.80) 0.94 (23.80) 48 95 96 97 98 99 100 101 102 48 3.22 (81.76) 3.22 (81.76) 3.22 (81.76) 3.22 (81.76) 3.22 (81.76) 3.22 (81.76) 3.22 (81.76) 3.22 (81.76) 4.13 (104.90) 5.13 (130.30) 4.13 (104.90) 5.13 (130.30) 4.13 (104.90) 5.13 (130.30) 4.13 (104.90) 5.13 (130.30) 1.38 (34.93) 1.38 (34.93) 1.50 (38.10) 1.50 (38.10) 1.78 (45.24) 1.78 (45.24) 1.83 (46.48) 1.83 (46.48) 2.11 (53.67) 2.11 (53.67) 2.36 (60.02) 2.36 (60.02) 2.77 (70.36) 2.77 (70.36) 3.02 (76.71) 3.02 (76.71) 0.88 (22.23) 0.88 (22.23) 1.00 (25.40) 1.00 (25.40) 1.25 (31.75) 1.25 (31.75) 1.44 (36.50) 1.44 (36.50) 1.25 (31.75) 1.25 (31.75) 1.38 (34.93) 1.38 (34.93) 1.63 (41.28) 1.63 (41.28) 1.88 (47.63) 1.88 (47.63) * Denoted Style-2 (See Tech Specs Style-2 Configuration) All dimensions for reference only. All dimensions in inches (millimeters in parentheses) |
