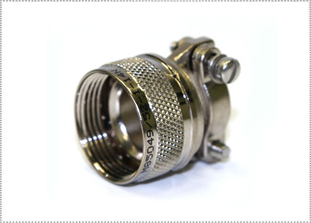

Amphenol M85049 Strain Relief Clamps
AMPHENOL STRAIN RELIEF CLAMP
Amphenol strain relief clamps not only tidy-up the cable after termination but provide good strain relief at the termination area. Strain relief clamps are a cost effective cable holding option when environmental protection is not a concern, and weight saving is a major consideration.
|
MATERIALS & FINISHESAMPHENOL STRAIN RELIEF CLAMP MATERIALS
Aluminum Parts: As per ASTM B 211, 221, 209, 85, 26
Steel Parts: 300 series, as per AMS-QQ-S-763/ASTM A 582
Elastomers: Fluorosilicone, Silicone
Other Parts: Suitable corrosion resistant material
AMPHENOL STRAIN RELIEF CLAMP TABLE-2 PLATING FINISHES
Amphenol Designation MIL Designation Finish Guiding Specifications/Requirements A A Anodize, Black* To meet AS85049 requirements B Anodize, Hard* AMS-A-8625, Type-III, Class -1 L Nickel, Bright AMS-QQ-290, Class-1, Grade-F M Electroless Nickel AMS-C-26074, Class-4, Grade-B N N Electroless Nickel To meet AS85049 requirements T Cadmium, Bright AMS-QQ-P-416, Type-I, Class-2 U Cadmium, Olive Drab AMS-QQ-P-416, Type-II, Class-3 V Cadmium, Olive drab over AMS-QQ-P-416, Type-II, Class-3 (Cadium); AMS-C-26074, Class-4, Grade-B (Nickel) W W Cadmium, Olive drab over To meet AS85049 requirements Y Zinc-Cobalt, Dark Olive drab ASTM-BB40 Z Zinc-Cobalt, Black ASTM-BB40 *Non conductive coatings ASSEMBLY TORQUE VALUESAMPHENOL STRAIN RELIEF CLAMP ASSEMBLY TORQUE VALUES
Connector Shell Size Torque (Inch-Pounds) 8, 9 40 3, 10, 10SL, 11 40 7, 12, 12S, 13 40 14, 14S, 15 40 16, 16S, 17 40 18, 19, 27 40 20, 21, 37 80 22, 23 80 24, 25, 61 80 28 100 32 100 36 100 40 100 44 100 STYLE-2AMPHENOL STRAIN RELIEF CLAMP STYLE-2 CONFIGURATION
Some design consideration will require bigger diameter cable to be terminated in the smaller shell size connectors. Cable with heavy/thicker shielding, many wires for different branches/ routing are some of the examples. Such cable termination will require a bigger adapter body with cable entry dimensions greater than the connector rear side dimensions. Amphenol also supports this kind of application. The coupling end of the adapter will be modified to Style-2 design as shown in the figure below in such cases. The overall length of the Style-2 design adapters would be increased by approx. 1 inch (25.mm) as shown. This alternative design is applicable for all the Backshell Families listed in this catalog.
|
|
M85049/52/51/43AMPHENOL STRAIN RELIEF CLAMP M85049/52/51/43 FOR MIL-DTL-26482 SERIES II, MIL-DTL-5015 MATRIX (MS345X),

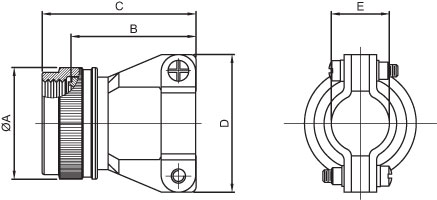

MIL-DTL-83723 SERIES III STRAIGHT, 90° AND 45° SELF-LOCK/NON SELF-LOCK 1 2 3 4 5 M85049/ 51 S 10 W MIL SERIES SLASH SHEET COUPLING DASH NUMBER FINISH M85049/118/120AMPHENOL STRAIN RELIEF CLAMP M85049/118/120 FOR MIL-DTL-26482 SERIES II, MIL-DTL-5015 (MS345X), MIL-DTL-83723 SERIES III STRAIGHT SELF-LOCK/NON SELF-LOCK

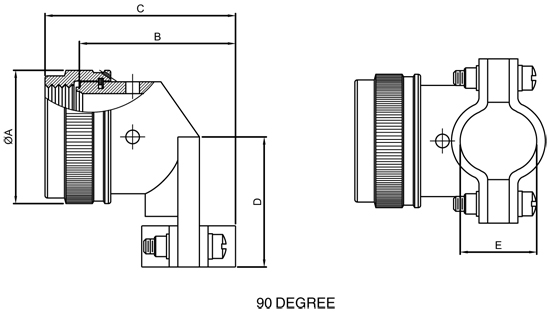

1 2 3 4 5 M85049/ 118 S 18 W MIL SERIES SLASH SHEET COUPLING DASH NUMBER FINISH AMPHENOL STRAIN RELIEF CLAMP FOR MIL-DTL-26482 SERIES II, MIL-DTL-5015 (MS345X), MIL-DTL-83723 SERIES III 90° SELF-LOCK/NON SELF-LOCK

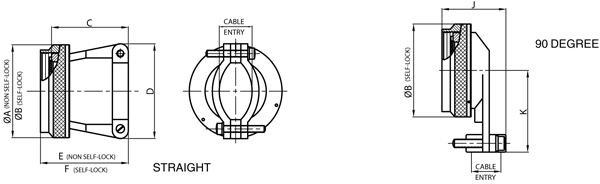

1 2 3 4 5 M85049/ 120 S 12 W MIL SERIES SLASH SHEET COUPLING DASH NUMBER FINISH M85049/49/47AMPHENOL STRAIN RELIEF CLAMP M85049/49/47 FOR MIL-DTL-38999 SERIES II & I STRAIGHT AND 90° SELF-LOCK/NON SELF-LOCK
1 2 3 4 5 M85049/ 49-2 S 16 W MIL SERIES SLASH SHEET COUPLING DASH NUMBER FINISH M85049/121/123AMPHENOL STRAIN RELIEF CLAMP M85049/121 MIL-DTL-38999 SERIES I & II STRAIGHT SELF-LOCK/NON SELF-LOCK

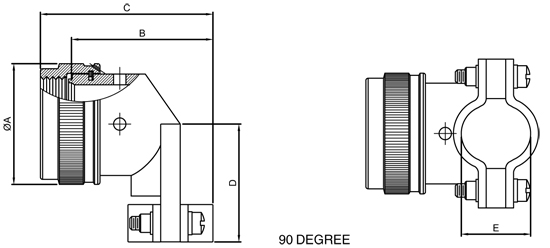

1 2 3 4 5 M85049/ 121 S 10 W MIL SERIES SLASH SHEET COUPLING DASH NUMBER FINISH AMPHENOL STRAIN RELIEF CLAMP M85049/123 MIL-DTL-38999 SERIES I & II 90° SELF-LOCK/NON SELF-LOCK

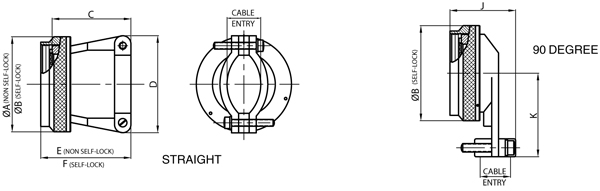

1 2 3 4 5 M85049/ 123 S 12 W MIL SERIES SLASH SHEET COUPLING DASH NUMBER FINISH M85049/38/39AMPHENOL STRAIN RELIEF CLAMP FOR M85049/38/39 MIL-DTL-38999 SERIES III & IV STRAIGHT AND 90° SELF-LOCK/NON SELF-LOCK
1 2 3 4 5 M85049/ 38 S 15 W MIL SERIES SLASH SHEET COUPLING SHELL SIZE FINISH M85049/124/126AMPHENOL STRAIN RELIEF CLAMP FOR M85049/124 MIL-DTL-38999 SERIES III & IV STRAIGHT SELF-LOCK/NON SELF-LOCK

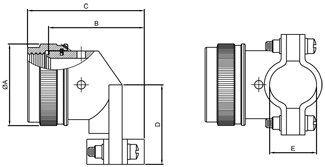

1 2 3 4 5 M85049/ 124 S 15 W MIL SERIES SLASH SHEET COUPLING DASH NUMBER FINISH AMPHENOL STRAIN RELIEF CLAMP M85049/126 FOR MIL-DTL-38999 SERIES III & IV 90° SELF-LOCK/NON SELF-LOCK
1 2 3 4 5 M85049/ 126 S 15 W MIL SERIES SLASH SHEET COUPLING DASH NUMBER FINISH |
|

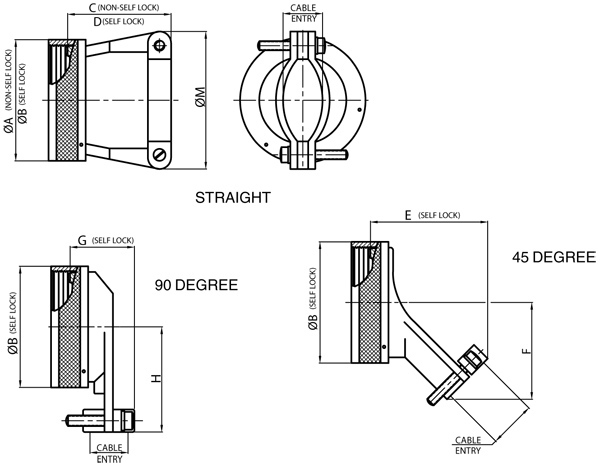

M85049/52/51/43AMPHENOL STRAIN RELIEF CLAMP M85049/52/51/43 FOR MIL-DTL-26482 SERIES II, MIL-DTL-5015 (MS345X), MIL-DTL-83723 SERIES III STRAIGHT, 90°, AND 45° SELF-LOCK/NON SELF-LOCK DIMENSIONS
Table - A MIL Part Number Designator Connector Shell Size/ A Dia. (Max) B Dia. (Max) C (Max) D (Max) E (Max) F (Max) G (Max) H (Max) M (Max) Cable Entry Dash No Code Min Max 08 08 0.62 (15.67) 0.89 (22.48) 0.63 (16.00) 0.73 (18.54) 1.32 (33.53) 0.77 (19.61) 0.93 (23.62) 0.75 (18.95) 0.78 (19.86) 0.13 (3.18) 0.20 (5.18) 10 10 0.73 (18.64) 1.01 (25.65) 0.74 (18.80) 0.85 (21.59) 1.36 (34.65) 0.80 (20.40) 1.02 (25.91) 0.81 (20.45) 0.86 (21.89) 0.19 (4.75) 0.29 (7.26) 12 7/12 0.86 (21.79) 1.14 (28.83) 0.86 (21.84) 0.98 (24.89) 1.44 (36.53) 0.87 (22.00) 1.21 (30.73) 0.87 (22.02) 1.00 (25.48) 0.29 (7.39) 0.42 (10.57) 14 12/14 0.98 (24.99) 1.26 (32.00) 0.86 (21.84) 0.98 (24.89) 1.48 (37.59) 0.93 (23.62) 1.27 (32.26) 0.93 (23.62) 1.06 (26.95) 0.35 (8.92) 0.48 (12.09) 16 19/16 1.11 (28.24) 1.39 (35.18) 0.99 (25.15) 1.10 (27.94) 1.59 (40.28) 0.99 (25.15) 1.42 (36.07) 0.99 (25.15) 1.33 (33.88) 0.50 (12.73) 0.63 (15.90) 18 27/18 1.22 (30.94) 1.51 (38.35) 1.24 (31.50) 1.35 (34.29) 1.70 (43.28) 1.11 (28.19) 1.53 (38.86) 1.17 (29.74) 1.47 (37.24) 0.52 (13.16) 0.71 (17.93) 20 37/20 1.35 (34.16) 1.64 (41.53) 1.36 (34.54) 1.48 (37.59) 1.75 (44.40) 1.17 (29.77) 1.65 (41.91) 1.23 (31.34) 1.57 (39.93) 0.58 (14.76) 0.83 (21.11) 22 22 1.47 (37.29) 1.76 (44.70) 1.49 (37.85) 1.60 (40.64) 1.79 (45.52) 1.24 (31.37) 1.78 (45.21) 1.30 (32.92) 1.69 (42.88) 0.64 (16.36) 0.96 (24.28) 24 24 1.59 (40.46) 1.89 (47.88) 1.61 (40.89) 1.73 (43.94) 1.84 (46.63) 1.30 (32.94) 1.90 (48.26) 1.36 (34.49) 1.79 (45.47) 0.71 (17.93) 1.08 (27.46) 28 28 1.97 (50.01) 2.14 (54.23) 1.76 (44.70) 1.88 (47.75) 1.96 (49.81) 1.54 (39.19) 2.20 (55.88) 1.57 (39.93) 2.04 (51.69) 0.75 (19.05) 1.19 (30.05) 32 32 2.22 (56.36) 2.40 (60.83) 1.95 (49.53) 2.13 (54.10) 2.05 (52.04) 1.67 (42.37) 2.27 (57.66) 1.80 (45.64) 2.39 (60.60) 0.88 (22.23) 1.25 (31.75) 36 36 2.47 (62.71) 2.64 (66.93) 2.33 (59.18) 2.44 (61.98) 2.09 (53.16) 1.79 (45.54) 2.39 (60.71) 1.92 (48.82) 2.50 (63.40) 0.94 (23.83) 1.38 (34.93) 40 40 2.72 (69.06) 2.89 (73.28) 2.51 (63.75) 2.63 (66.80) 2.09 (53.19) 1.92 (48.72) 2.52 (64.01) 2.05 (51.99) 2.57 (65.18) 0.94 (23.83) 1.00 (38.10) 44 44 2.97 (75.41) 3.14 (79.63) 2.89 (73.41) 3.00 (76.20) 2.36 (59.94) 2.13 (54.15) 2.77 (70.36) 2.30 (58.32) 2.86 (72.64) 1.19 (30.18) 1.75 (44.45) 48 48 3.22 (81.76) 3.39 (85.98) 3.26 (82.80) 3.40 (86.36) 2.45 (62.18) 2.26 (57.33) 2.89 (73.41) 2.42 (61.49) 3.34 (84.94) 1.31 (33.32) 1.88 (47.63) All dimensions for reference only. All dimensions in inches (millimeters in parentheses) MS8049/118/120AMPHENOL STRAIN RELIEF CLAMP M85049/118 FOR MIL-DTL-26482 SERIES II, MIL-DTL-5015 (MS345X), MIL-DTL-83723 SERIES III STRAIGHT SELF-LOCK/NON SELF-LOCK DIMENSIONS
Table - B MIL Part Number Designator Connector Shell Size/ Code (Ref.) A Dia. (Max) B Dia. (Max) C (Max) D (Max) E (Closed) Connector Shell Size ±0.031 ±0.787 08 8S 0.89 (22.61) 0.77/0.51 (19.56/12.95) 1.14 (28.96) 0.88 (22.35) 0.22 5.56 10 10S, 10SL 1.01 (25.65) 0.89/0.64 (22.61/16.26) 1.25 (31.75) 0.94 (23.88) 0.26 6.71 12 12, 12S 1.14 (28.96) 1.01/0.76 (25.65/19.30) 1.38 (35.05) 1.12 (28.45) 0.34 8.74 14 14, 14S 1.26 (32.00) 1.01/0.76 (25.65/19.30) 1.38 (35.05) 1.19 (30.23) 0.46 11.68 16 16, 16S 1.39 (35.31) 1.13/0.88 (28.70/22.35) 1.50 (38.10) 1.44 (36.58) 0.55 13.84 18 18 1.51 (38.35) 1.38/1.13 (35.05/28.70) 1.75 (44.45) 1.56 (39.62) 0.62 15.62 20 20 1.64 (41.66) 1.51/1.25 (38.35/31.75) 1.88 (47.75) 1.69 (42.93) 0.69 17.53 22 22 1.76 (44.70) 1.62/1.38 (41.15/35.05) 2.00 (50.80) 1.75 (44.45) 0.78 19.81 24 24 1.89 (48.01) 1.76/1.51 (44.70/38.35) 2.13 (54.10) 1.88 (47.75) 0.85 21.59 28 28 2.14 (54.36) 2.03/1.67 (51.56/42.42) 2.56 (65.02) 2.12 (53.85) 0.95 24.13 32 32 2.40 (60.96) 2.28/1.87 (57.91/47.50) 2.81 (71.37) 2.50 (63.50) 1.02 25.78 36 36 2.64 (67.06) 2.53/2.22 (64.26/56.39) 3.06 (77.72) 2.62 (66.55) 1.19 30.15 40 40 2.89 (73.41) 2.63/2.41 (66.80/61.21) 3.16 (80.26) 2.68 (68.07) 1.22 30.99 44 44 3.14 (79.76) 3.00/2.80 (76.20/71.12) 3.53 (89.66) 3.00 (76.20) 1.50 38.10 48 48 3.39 (86.11) 3.40/3.20 (86.36/81.28) 3.93 (99.82) 3.50 (88.90) 1.63 41.28 All dimensions for reference only. All dimensions in inches (millimeters in parentheses) AMPHENOL STRAIN RELIEF M85049/120 FOR MIL-DTL-26482 SERIES II, MIL-DTL-5015 (MS345X), MIL-DTL-83723 SERIES III STRAIGHT SELF-LOCK/NON SELF-LOCK DIMENSIONS
Table - C MIL Part Number Designator Connector Shell Size A Dia. (Max) B Dia. (Max) C (Max) D (Max) E (Closed) Dash No ±0.031 ±0.787 08 8S 0.88 (22.35) 0.93 (23.62) 1.29 (32.77) 0.81 (20.57) 0.22 5.56 10 10S, 10SL 0.94 (23.88) 1.02 (25.91) 1.38 (35.05) 0.87 (22.10) 0.26 6.71 12 12, 12S 1.12 (28.45) 1.21 (30.73) 1.57 (39.88) 0.93 (23.62) 0.34 8.74 14 14, 14S 1.19 (30.23) 1.27 (32.26) 1.63 (41.40) 1.00 (25.40) 0.46 11.68 16 16, 16S 1.44 (36.58) 1.42 (36.07) 1.78 (45.21) 1.06 (26.40) 0.55 13.84 18 18 1.56 (39.62) 1.53 (38.86) 1.89 (48.01) 1.23 (31.24) 0.62 15.62 20 20 1.69 (42.93) 1.65 (41.91) 2.01 (51.05) 1.30 (33.02) 0.70 17.73 22 22 1.75 (44.45) 1.78 (45.21) 2.14 (54.36) 1.36 (34.54) 0.78 19.81 24 24 1.88 (47.75) 1.90 (48.26) 2.26 (57.40) 1.42 (36.07) 0.85 21.59 28 28 2.12 (53.85) 2.20 (55.58) 2.72 (69.09) 1.63 (41.40) 0.95 24.13 32 32 2.50 (63.50) 2.27 (57.66) 2.79 (70.87) 1.86 (47.24) 1.02 25.78 36 36 2.62 (66.55) 2.39 (60.71) 2.91 (73.91) 1.98 (50.29) 1.19 30.15 40 40 2.68 (68.07) 2.52 (64.01) 3.04 (77.22) 2.10 (53.34) 1.22 30.99 44 44 3.00 (76.20) 2.77 (70.36) 3.29 (83.57) 2.36 (59.94) 1.50 38.10 48 48 3.50 (88.90) 2.89 (73.41) 3.41 (86.61) 2.48 (62.99) 1.63 41.28 All dimensions for reference only. All dimensions in inches (millimeters in parentheses) M85049/49/47AMPHENOL STRAIN RELIEF CLAMP M85049/49/47 FOR MIL-DTL-38999 SERIES I & II STRAIGHT, 90° SELF-LOCK/NON SELF-LOCK DIMENSIONS
Table - D MIL Part Number Designator Connector Shell Size/ A Dia. (Max) B Dia. (Max) C (Max) D (Max) E (Max) F (Max) J (Max) K (Max) Cable Entry Dash No Code Min Max 08 8/9 0.75 (19.05) 0.86 (21.82) 0.91 (23.11) 0.85 (21.59) 1.10 (27.94) 1.15 (29.21) 1.38 (35.05) 1.00 (25.40) 0.10 (2.49) 0.23 (5.94) 10 10/11 0.85 (21.59) 0.98 (24.99) 0.91 (23.11) 0.90 (22.86) 1.10 (27.94) 1.15 (29.21) 1.38 (35.05) 1.10 (27.94) 0.15 (3.89) 0.23 (5.94) 12 12/13 1.00 (25.40) 1.16 (29.36) 1.01 (25.65) 1.10 (27.94) 1.20 (30.48) 1.25 (31.75) 1.46 (37.08) 1.10 (27.94) 0.19 (4.83) 0.33 (8.33) 14 14/15 1.10 (27.94) 1.28 (32.54) 1.06 (26.92) 1.15 (29.21) 1.25 (31.75) 1.30 (33.02) 1.63 (41.40) 1.25 (31.75) 0.26 (6.60) 0.46 (11.61) 16 16/17 1.25 (31.75) 1.41 (35.71) 1.16 (29.46) 1.30 (33.02) 1.36 (34.44) 1.40 (35.56) 1.80 (45.72) 1.30 (33.02) 0.28 (7.19) 0.61 (15.60) 18 18/19 1.40 (35.56) 1.52 (38.51) 1.41 (35.81) 1.50 (38.10) 1.60 (40.64) 1.65 (41.91) 1.82 (46.23) 1.35 (34.29) 0.33 (8.26) 0.63 (16.10) 20 20/21 1.50 (38.10) 1.64 (41.68) 1.51 (38.35) 1.60 (40.64) 1.70 (43.21) 1.75 (44.45) 1.90 (48.26) 1.60 (40.64) 0.34 (8.71) 0.70 (17.73) 22 22/23 1.65 (41.91) 1.77 (44.86) 1.66 (42.16) 1.70 (43.18) 1.85 (46.99) 1.90 (48.26) 2.04 (51.82) 1.75 (44.45) 0.38 (9.68) 0.82 (20.90) 24 24/25 1.75 (44.45) 1.89 (48.03) 1.76 (44.70) 1.80 (45.72) 1.95 (49.56) 2.00 (50.80) 2.15 (54.61) 1.85 (46.99) 0.42 (10.62) 0.85 (21.67) All dimensions for reference only. All dimensions in inches (millimeters in parentheses) M85049/121/123AMPHENOL STRAIN RELIEF CLAMP M85049/121 FOR MIL-DTL-38999 SERIES I & II STRAIGHT, SELF-LOCK/NON SELF-LOCK DIMENSIONS
Table - E MIL Part Number Designator Connector Shell Size A Dia. (Max) B Length C (Max) D(Max) E (Closed) Dash No ±0.031 ±0.787 08 08 0.86 (21.79) 0.77/0.51 (19.56/12.95) 1.01 (25.65) 0.88 (22.35) 0.22 5.56 10 10 0.98 (24.99) 0.89/0.64 (22.61/16.26) 1.13 (28.70) 0.94 (23.88) 0.26 6.71 12 12 1.16 (29.39) 1.01/0.76 (25.65/19.30) 1.25 (31.75) 1.12 (28.45) 0.34 8.74 14 14 1.28 (32.49) 1.01/0.76 (25.65/19.30) 1.25 (31.75) 1.19 (30.23) 0.46 11.68 16 16 1.41 (35.71) 1.13/0.88 (28.70/22.35) 1.37 (34.80) 1.44 (36.58) 0.55 13.84 18 18 1.52 (38.51) 1.38/1.13 (35.05/28.70) 1.62 (41.15) 1.56 (39.62) 0.62 15.62 20 20 1.64 (41.71) 1.51/1.25 (38.35/31.75) 1.75 (44.45) 1.69 (42.93) 0.69 17.53 22 22 1.77 (44.91) 1.62/1.38 (41.15/35.05) 1.87 (47.50) 1.75 (44.45) 0.78 19.81 24 24 1.87 (47.47) 1.76/1.51 (44.70/38.35) 2.00 (50.80) 1.88 (47.75) 0.85 21.59 All dimensions for reference only. All dimensions in inches (millimeters in parentheses) AMPHENOL STRAIN RELIEF CLAMP M85049/123 FOR MIL-DTL-38999 SERIES I & II STRAIGHT, 90° SELF-LOCK/NON SELF-LOCK DIMENSIONS
Table - F MIL Part Number Designator Connector Shell Size A Dia. (Max) B (Max) C (Max) D(Max) E (Closed) Dash No ±0.031 ±0.787 08 08 0.86 (21.79) 0.86 (21.84) 1.10 (27.94) 0.81 (20.57) 0.22 5.56 10 10 0.98 (24.99) 0.94 (23.88) 1.18 (29.97) 0.87 (22.10) 0.26 6.71 12 12 1.16 (29.39) 1.14 (28.96) 1.38 (35.05) 0.93 (23.62) 0.34 8.74 14 14 1.28 (32.49) 1.20 (30.48) 1.44 (36.58) 0.99 (25.15) 0.46 11.68 16 16 1.41 (35.71) 1.34 (34.04) 1.58 (40.13) 1.06 (26.92) 0.55 13.84 18 18 1.52 (38.51) 1.46 (37.08) 1.70 (43.18) 1.23 (31.24) 0.62 15.62 20 20 1.64 (41.71) 1.58 (40.13) 1.82 (46.23) 1.30 (33.02) 0.69 17.53 22 22 1.77 (44.91) 1.71 (43.43) 1.95 (49.53) 1.36 (34.54) 0.78 19.81 24 24 1.87 (47.47) 1.83 (46.48) 2.07 (52.58) 1.42 (36.07) 0.85 21.59 All dimensions for reference only. All dimensions in inches (millimeters in parentheses) M85049/38/39AMPHENOL STRAIN RELIEF CLAMP M85049/38/39 FOR MIL-DTL-38999 SERIES III & IV STRAIGHT, 90° SELF-LOCK/NON SELF-LOCK DIMENSIONS
Table - G MIL Part Number Designator Connector Shell Size/ A Dia. (Max) B Dia. (Max) C (Max) D (Max) E (Max) F (Max) J (Max) K (Max) Cable Entry Connector Shell Size Code (Ref.) Min Max 09 09/A 0.75 (19.05) 0.86 (21.82) 0.91 (23.11) 0.85 (21.59) 1.10 (27.94) 1.21 (30.73) 1.31 (33.27) 1.00 (25.40) 0.10 (2.49) 0.23 (5.94) 11 11/B 0.85 (21.59) 0.98 (24.89) 0.91 (23.11) 0.90 (22.86) 1.10 (27.94) 1.21 (30.73) 1.31 (33.27) 1.10 (27.94) 0.15 (3.89) 0.23 (5.94) 13 13/C 1.00 (25.40) 1.16 (29.36) 1.01 (25.65) 1.10 (27.94) 1.20 (30.48) 1.31 (33.27) 1.51 (38.35) 1.10 (27.94) 0.19 (4.83) 0.33 (8.33) 15 15/D 1.10 (27.94) 1.28 (32.54) 1.06 (26.92) 1.15 (29.21) 1.25 (31.75) 1.35 (34.29) 1.55 (39.37) 1.25 (31.75) 0.26 (6.60) 0.46 (11.61) 17 17/E 1.25 (31.75) 1.41 (35.71) 1.16 (29.46) 1.30 (33.02) 1.36 (34.44) 1.45 (36.83) 1.71 (43.43) 1.30 (33.02) 0.28 (7.19) 0.61 (15.60) 19 19/F 1.40 (35.56) 1.52 (38.51) 1.41 (35.81) 1.50 (38.10) 1.60 (40.64) 1.71 (43.43) 1.81 (45.97) 1.35 (34.29) 0.33 (8.26) 0.63 (16.10) 21 21/G 1.50 (38.10) 1.64 (41.68) 1.51 (38.35) 1.60 (40.64) 1.70 (43.21) 1.81 (45.97) 1.95 (49.53) 1.60 (40.64) 0.34 (8.71) 0.70 (17.73) 23 23/H 1.65 (41.91) 1.77 (44.86) 1.66 (42.16) 1.70 (43.18) 1.85 (46.99) 1.95 (49.53) 2.10 (53.34) 1.75 (44.45) 0.38 (9.68) 0.82 (20.90) 25 25/J 1.75 (44.45) 1.89 (48.03) 1.76 (44.70) 1.80 (45.72) 1.95 (49.56) 2.05 (52.07) 2.21 (56.13) 1.85 (46.99) 0.42 (10.62) 0.85 (21.67) All dimensions for reference only. All dimensions in inches (millimeters in parentheses) M85049/124/126AMPHENOL STRAIN RELIEF CLAMP M85049/124/126 FOR MIL-DTL-38999 SERIES III & IV STRAIGHT AND 90° SELF-LOCK/NON SELF-LOCK DIMENSIONS
Table - H MIL Part Number Designator Connector Shell Size/ Code (Ref.) A Dia. (Max) B Length C (Max) D (Max) E (Closed) Connector Shell Size ±0.031 ±0.787 09 09/A 0.86 (21.79) 0.77/0.51 (19.56/12.95) 1.01 (25.65) 0.88 (22.35) 0.22 5.56 11 11/B 0.98 (24.99) 0.89/0.64 (22.61/16.26) 1.13 (28.70) 0.94 (23.88) 0.26 6.71 13 13/C 1.16 (29.39) 1.01/0.76 (25.65/19.30) 1.25 (31.75) 1.12 (28.45) 0.34 8.74 15 15/D 1.28 (32.49) 1.01/0.76 (25.65/19.30) 1.25 (31.75) 1.19 (30.23) 0.46 11.68 17 17/E 1.41 (35.71) 1.13/0.88 (28.70/22.35) 1.37 (34.80) 1.44 (36.58) 0.55 13.84 19 19/F 1.52 (38.51) 1.38/1.13 (35.05/28.70) 1.62 (41.15) 1.56 (39.62) 0.62 15.62 21 21/G 1.64 (41.71) 1.51/1.25 (38.35/31.75) 1.75 (44.45) 1.69 (42.93) 0.69 17.53 23 23/H 1.77 (44.91) 1.62/1.38 (41.15/35.05) 1.87 (47.50) 1.75 (44.45) 0.78 19.81 25 25/J 1.87 (47.47) 1.76/1.51 (44.70/38.35) 2.00 (50.80) 1.88 (47.75) 0.85 21.59 All dimensions for reference only. All dimensions in inches (millimeters in parentheses) |
