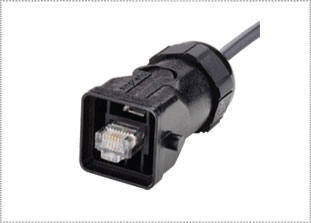

Amphenol RJF-EZ Series Ethernet Connectors
Ethernet connection system for harsh environments
Amphenol RJF EZ series of rectangular ethernet connectors allow for the use of an Ethernet Class D/ CAT5e connection for Ethernet over twisted-pair networks (10 BaseT,100 BaseTX or 1000 BaseT) in industrial and harsh environments. The RJF EZ series are plastic, rectangular connectors with quick lever coupling systems.
These connectors are excellent for harsh conditions – the Amphenol RJF EZ series’ RJStop® connection system (protective composite plug) protects from shock, dust and fluid (IP68 rated). No hazardous on-field cabling and grounding required!
|
AMPHENOL RJF EZ SERIES MAIN CHARACTERISTICS
- Composite material
- Compliant with IEC 60603-7 variant 13
- Sealed against fluids and dust (IP68)
- Shock, vibration and traction-resistant
- No-cabling operation in-field and no tools required
- Quick lever coupling
- RJ45 cordset retention in the plug: 70 N in the axis
- Mating cycles: 500 min.
- Compatible with cable diameter 0.216 in. (5.5 mm) to 0.275 in. (7.0 mm)
AMPHENOL RJF EZ SERIES ENVIRONMENTAL PROTECTION
- Sealing: IP68
- Salt Spray > 1000-hour
- Fire retardant/low smoke: UL94 VO and NFF 16102, DIN 5510-2
- Thermal shock: 5 cycles at -40°F to +212°F (-40°C to +100°C)
- Operating temperature: -40°F to +185°F (-40°C to +85°C)
AMPHENOL RJF EZ SERIES DATA TRANSMISSION
- 10 Base-T, 100 Base-TX and 1000 Base-T networks
- CAT5e per TIA/EIA 568B and Class D per ISO/IEC 11801
AMPHENOL RJF EZ SERIES TECH SPECS
Number of possible Codings (polari-
zations)
|
|
AMPHENOL RJF EZ SERIES APPLICATIONS
- Robotics
- Military data hubs
- Special machines
- Welding machines
- Communications
- CNC machines
- Process & motion control
- Diagnostics
|
|
AMPHENOL RJF EZ SERIES SELECT PART NUMBER
Receptacle Female RJ45 Back Termination
Receptacle Cordset Termination

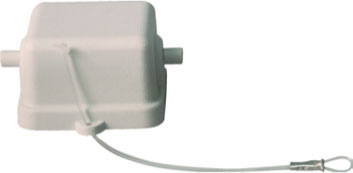

IP68 Dustcap for Receptacle Cord Length 2.36 (60.0)
** Select for cordset length
03 = 11.81 (0.30M)
05 = 19.68 (0.50M)
10 = 39.37 (1.00M)
15 = 59.05 (1.50M)
All dimensions in inches (millimeters in parentheses)
|
|
AMPHENOL RJF EZ SERIES RJF EZ6
Cable Exit Range .216 (5.5) to .275 (7.0)
All dimensions in inches (millimeters in parentheses)
AMPHENOL RJF EZ SERIES RJF EZ21
All dimensions in inches (millimeters in parentheses)
|
|

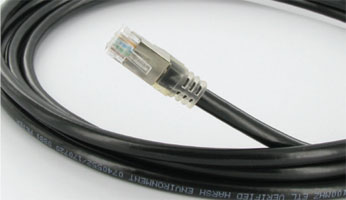

AMPHENOL RJF EZ SERIES CABLE CAT5e
General construction: A four-pair, 24 AWG, 100 Ohm SFTP round patch cable, designed to the ISO / IEC 11801 Category 5e requirements (CAT5e on 76m). The cable contains four twisted pairs, cabled, double-shielded with Kevlar reinforcement strands, jacketed in black UV-resistant polyurethane HFFR. Designed for fixed or portable applications in harsh environments.
HFFR: HALOGEN-FREE FLAME-RETARDANT
Jacket Compound Specification:
Halogen-free flame-retardant polyether-based polyurethane. Glossy finish.
Excellent hydrolysis resistance. High microbial resistance. UV-resistant. High flexibility.
AMPHENOL RJF EZ SERIES PHYSICAL CHARACTERISTICS
Conductors 24 AWG (0.25 mm2)
Tinned copper, 7 x 0.2 mm
Insulation Color-coded 568-B, Linear lowdensity polyethylene, Nom. Dia. 0.039” (1mm)
Assembly Pairs cabled with Kevlar-strength members and separation-tape wrapped
Shields Inner: Aluminum mylar 100% coverage
Outer: Tinned-copper braid 80% coverage
Jacket Black, special PUR compound
Weight 40 lbs / mft (59 kg/km)
Outside Dia. 0.28” (7.1 mm) nom.
Min. Bend Radius (During installation) 67.5mm (9 x O.D.)
Min. Bend Radius (During operation) 37.5mm (5 x O.D.)
Min. Flexes to Failure Passes IEC 61156-6 requirements
Temperature -40°F to +185°F (-40°C to +85°C)
Reel of Cable
(without RJ45 plug on ends)
AMPHENOL RJF EZ SERIES ELECTRICAL CHARACTERISTICS
DC Resistance 96 Ohms/KM @ 20°C
Impedance 100 ± 15 Ohms 1-100 MHz
Attenuation
772 KHz - 2.70 db/100m nom.
1 MHz - 3.15 db/100m nom.
4 MHz - 6.45 db/100m nom.
10 MHz - 9.90 db/100m nom.
16 MHz - 12.3 db/100m nom.
20 MHz - 13.8 db/100m nom.
31.25 MHz - 17.7 db/100m nom.
62.5 MHz - 25.6 db/100m nom.
100 MHz - 33 db/100m nom.
Capacitance 46pF/m nom. @ 1KHz
Capacitance Unbalance 3.4 pF/m max. @ 1KHz (wire to ground)
Insulation Resistance 150 M Ohm min.
Dielectric Strength VAC/1 min - 700 v/min.
Propagation Delay (100 MHz) 5.2 ns/m max. @ 100 MHz
Delay Skew 20 ns/100m max. @ 100 MHz
Resistance Unbalance 3% max. @ 20°
Structural Return Loss (100 MHz) 23 db/100m min. @ 1-20 MHz
Spark Test 3 KV (tested during production)
Velocity of propagation 67% nom.
All dimensions in inches (millimeters in parentheses)
|
|

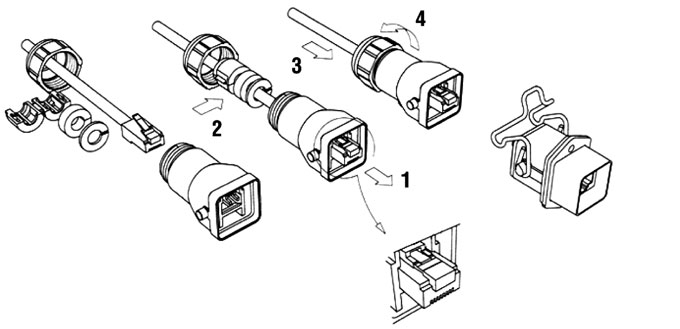

AMPHENOL RJF EZ SERIES ASSEMBLY INSTRUCTIONS
|
