Amphenol USBBFTV Series RJ Field Connectors (USB-B)
TWO USER-DEFINED POLARIZATION POSSIBILITIES FOR USB-B 2.0

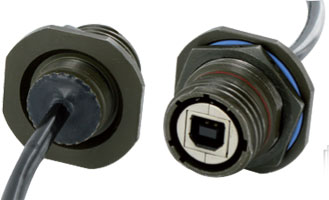

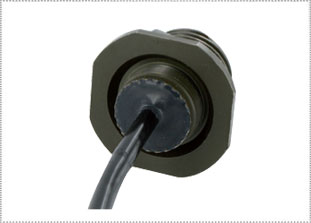

Amphenol USBBFTV (USB-B) series RF field connectors allow for the use of a USB-B 2.0 data connection in harsh environments over twisted-pair networks (Amphenol USBBFTV Series RJ Field Connectors). The USBBFTV series RJ Field connectors are metal circular connectors that use a Tri-Start Thread coupling mechanism (MIL-DTL-38999 series III-type) with anti-decoupling device. The USBBFTV series allows for two mechanical coding/polarization possibilities to be defined by the user.
These connectors are excellent for harsh conditions, , in robotics, military data hubs, special machines, welding machines, communications, CNC, motion control and diagnostics applications. The USBBFTV Series of connectors also support data transmission rates up to 480 Mb/s for high speeds.
The Amphenol USBBFTV (USB-B) series’ RJStop® connection system protects from shock, dust and fluid (IP68 Rating). No hazardous on-field cabling and grounding required!
|
AMPHENOL USBBFTV SERIES MAIN CHARACTERISTICS
- Sealed against fluids and dust (IP68)
- Shock, vibration and traction-resistant
- No cabling operation in-field and no tools required
- Improved EMI-protection
- Tri-Start thread coupling mechanism (MIL-DTL-38999 series III-type) with anti-decoupling device
- 2 mechanical coding / polarization possibilities by the user (receptacle insert rotation)
- USBF TV plug retention in the receptacle: 100 N in the axis
- Mating cycles: 500 to 1500
AMPHENOL USBBFTV SERIES ENVIRONMENTAL PROTECTION
- Sealing (when mated): IP68 (Temporary immersion)
- Salt Spray: 48-hour with nickel-plating > 500-hour with olive
drab cadmium
- Fire-retardant / low-smoke: UL94 V0 and NF F 16 101 &
16 102
- Vibrations: 10 – 500 Hz, 10 g, 3 axes: no discontinuity
> 1 micros
- Shocks: IK06; weight of 250 g drop from 40 cm [15.75 in] onto
connectors (mated pair)
- Humidity: 21 days, 109.4°F (43°C), 98% humidity
- Temperature Range: -40°F to +185°F (-40°C to +85°C)
AMPHENOL USBBFTV SERIES DATA TRANSMISSION
- USB Specification 2.0
- Data Rate: Up to 480 Mb/s for high-speed
AMPHENOL USBBFTV SERIES TECH SPECS
Number of possible Codings (polari-
zations)
|
|
AMPHENOL USBBFTV SERIES APPLICATIONS
- Embedded computers
- Data transfer
- Numerical control machine
|
|
AMPHENOL USBBFTV SERIES USBBFTV USB-B
AMPHENOL USBBFTV SERIES TRANSVERSALLY-SEALED
w/Backshell Plastic Gland w/Backshell Plastic Gland
* Coding A, B, C, D ** Select for Cordset Length: 03 = 11.81 (0.30M) 05 = 19.68 (0.50M) 10 = 39.37 (1.00M) 15 = 59.05 (1.50M)
Jam Nut
Solder (4 Tinned Holes)
Metal Backshell + Plastic Gland
|
|

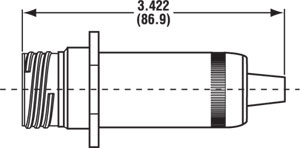

AMPHENOL USBBFTV SERIES USBBFTV
All dimensions in inches (millimeters in parentheses)
AMPHENOL USBBFTV SERIES USBBFTV2
Panel Cutout
All dimensions in inches (millimeters in parentheses)
AMPHENOL USBBFTV SERIES USBBFTV7
Panel Cutout
AMPHENOL USBBFTV SERIES USBBF TV 2PE/7PE-1
Backshell used with back termination type 1: USB-A receptacle
AMPHENOL USBBFTV SERIES USBBF TV 2PE(M)/7PE(M)-2
Backshell used with back termination type 2: Solder IP68
All dimensions in inches (millimeters in parentheses)
|
|
AMPHENOL USBBFTV SERIES SELF-CLOSING CAP
