Amphenol PPS Circular Connectors (Push-Pull Series)
FULLY-SUBMERSIBLE MINIATURE CONNECTOR

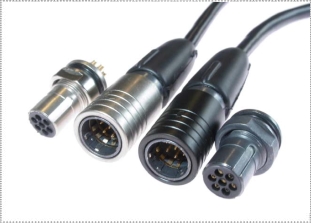

Amphenol PPS miniature circular connectors with Push-Pull technology and RoHS compliant. It is designed for use on equipment that is not submersed or left exposed to the elements for prolonged periods (such as communications systems) in industrial and harsh/rugged military environments. To mate, the plug is pushed onto the receptacle. The connector is locked in its rest position and is released by pulling back the coupling nut.
The PPS has a small outside diameter and several inserts are available, including high-density insert arrangements. The plugs can be fitted with EMC grounding fingers for increased screening effectiveness. The PPS connectors are rated for a minimum of 1000 matings and have an operating temperature range of -55C to +85C.
The plug has a black silver body and backshell with a black coupling nut. Other plating finishes available are electroless nickel and both are chemical and NBC resistant. Receptacles are available in black silver plating as standard and electroless nickel.
|
AMPHENOL PPS (PUSH PULL SERIES) - INSERT AVAILABILITY
AMPHENOL PPS (PUSH PULL SERIES) - INSERT SPECIFICATIONS
Contact Arrangement 115 Vac
Working Voltage (Sea Level) 115 Vac
Insulation Resistance (Sea Level) 1GΩ @ 500 Vdc
Current Rating (Individual Contact) 3A
Current Rating (all Contacts Simultaneously) 1A
AMPHENOL PPS (PUSH PULL SERIES) - CONTACT SPECS
Contact Resistance 5 mΩ initially - Less than 10 mΩ
Shell to Shell Conductivity 5 mΩ initially - Less than 10 mΩ
AMPHENOL PPS (PUSH PULL SERIES) - MECHANICAL
Materials Shell : Brass – See Part No. information for plating options
Contacts : Turned, Gold Plated
Inserts and Seal : Proprietary Thermoplastic Polyester Elastomer
AMPHENOL PPS (PUSH PULL SERIES) - ENVIRONMENTAL
Temperature -55° C / +85° C
Salt Spray 500 hours subject to selected plating finish
Fluids As per MIL-C-26482 Series I
Vibration and Shocky MIL-C-26482 Series I
Sealing IP67 Unmated Bulkhead Connectors
IP64 Mated Pair Interface
|
|
AMPHENOL PPS (PUSH PULL SERIES) - EXAMPLE
STEP 1: SELECT SERIES
PPS
STEP 2: SELECT STYLE
06 = Plug, Threaded Shell only
07 = Jam Nut Receptacle (Plain Shell only)
01 = In Line Receptacle (Threaded Shell only)
02 = Two Hole Panel Mount Receptacle
STEP 3: SELECT MOUNTING
T = Shell with Accessory Thread - Plug Shells Ungrounded
TG = Shell with Accessory Thread and Grounding Spring for Plug only
A = Plain Shell Receptacle only
STEP 4: SELECT NUMBER OF CONTACTS
05 Only
STEP 5: SELECT SHELL SIZE
05 = 5 Contacts
06 = 6 Contacts
07 = 7 Contacts
STEP 6: SELECT CONTACT TYPE
P = Pin in Plugs only
S = Socket in Receptacle only
STEP 7: SELECT KEYWAY ORIENTATION
A
B
STEP 8: PLUG CABLE VARIANT
001 = 6.3mm Parallel Ferrule
002 = 4.3mm Taper Ferrule
003 = 3.2mm Taper Ferrule
Receptacle Contact Style
001 = PCB Contacts
002 = Solder Bucket Contacts
STEP 9: SELECT PLATING FINISH
Receptacle Only
(970) = Black Silver Body and Black Silver Panel Nut
(416) = Electroless Nickel Body and Panel Nut
Plugs Only
(976) = Black Silver Body with Electroless Nickel Coupling Nut
Omit = Black Silver Plated Body and Backshell with Black Coupling Nut (standard)
|
