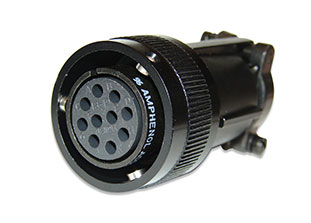

Amphenol ACA-B Series Connectors
RUGGED REVERSE BAYONET CONNECTORS FOR POWER AND SIGNAL APPLICATIONS
Amphenol ACA-B connectors are designed for commercial and industrial applications requiring a bayonet style coupling device for high power and/or signal. Similar in design to a SAE-AS50151, ACA-B’s are a quick, positive mating type of connector, perfect for markets such as factory automation, robotics, and process control equipment. Amphenol’s ACA-B series has proven itself valuable in the military ground vehicle and alternative energy markets because of its low cost, high reliability design. For full product details on the ACA-B bayonet series, see the specifications below.
|
FEATURESAMPHENOL ACA-B SERIES FEATURES
MATERIALS & FINISHESAMPHENOL ACA-B SERIES MATERIALS & FINISHES
Shell Aluminum alloy (can be grounded)
Shell Plating Olive drab chromate coating over cadmium plating, conductive black alloy, black alloy, electroless nickel, green zinc, gray zinc and black anodized
Contacts Copper alloy
Contact Platings Hard silver plating or gold plating
Insulator* Neoprene
Seals Silicone, Neoprene, or Viton®**
* Optional zero-halogen and high-temperature insulators are available. Contact us for information. ** Viton® is a registered trademark of DuPont DOW Elastomers ELECTRICAL DATAAMPHENOL ACA-B SERIES ELECTRICAL DATA
Operating Voltage/Test Voltage according to SAE-AS50151 (MIL-DTL-5015)H The indicated values for the operating voltage are limits concerning the electrical function. When the working voltage exceeds 50V, safety precautions must be in accordance with the following standards: VDE 0100, IEC 309-1
or applicable national standards.
Current Rating Contact Size Test Current (Amps) 16/16S 13 12 23 (60)* 8 46 (69)* 4 80 (120)* 0 150 (225)* *Test amps, multiconductor using Radsok contact Altitude Voltage Derating* Chart Nominal Distance Operating Voltage* Standard Sea Level Conditions Pressure Altitude† Pressure Altitude† MS Service Rating Airspace Creepage DC V AC VRMS Minimum Flashover Voltage Test Voltage AC (RMS) Minimum Flashover Voltage Test Voltage AC (RMS) Minimum Flashover Voltage Test Voltage AC (RMS) I 1/32 1/16 250 200 1,400 1,000 550 400 325 260 A 1/16 1/8 700 500 2,800 2,000 800 600 450 360 D 1/8 3/16 1,250 900 3,600 2,800 900 675 500 400 E 3/16 1/4 1,750 1,250 4,500 3,500 1,000 750 550 440 B 1/4 5/16 2,450 1,750 5,700 4,500 1,100 825 600 480 C 5/16 1 4,200 3,000 8,500 7,000 1,300 975 700 560 * No attempt has been made to recommend operating voltages. The designer must determine own operating voltage by the application of a safety factor to the above derating chart to compensate for circuit transients, surges, etc. † Not corrected for changes in density due to variations in temperature. Wire Range Sizes 26 AWG to 0 AWG (see contact selection)
Contact Resistance per SAE-AS50151 (MIL-DTL-5015)H p 3.15 Contact Size Contact Resistance Potential Voltage Drop in Millivolts Max. 16/16S 6 21 12 3 20 8 1/(0.44)* 12 (20)* 4 0.5/(0.23)* 10 (18)* 0 0.2/(0.18)* 10 (27)* *Using Radsok contact Insulation Resistance @77˚F (25˚C) > 5,000 Megohms
MECHANICALAMPHENOL ACA-B SERIES MECHANICAL
Operating Temperature -67˚ to +257˚F (-55˚ to +125˚C) Neoprene
Sealing 33-foot submersible
Sealed when mated. ≈ IP 67 and NEMA 4P Wire Sealing Range The connector is designed for individual wire sealing. Sealing of an outer
cable jacket on multiconductor cables must be accomplished with an
appropriate endbell. Sealing is only guaranteed if wires used are
according to MIL-W-5086 or within the listed ranges.
Sealing Range Contact Size Inches MM 16 .064 - .130 1.62 - 3.30 12 .114 - .170 2.89 - 4.31 8 .164 - .255 4.16 - 6.47 4 .272 - .370 6.90 - 9.30 0 .415 - .550 10.50 - 13.97 Insulation Strip Lengths See Contact Selection Chart
Mating Life 2,000 cycles minimum (AIB/GT) 500 cycles minimum (AIBC/ACA-B)
Salt Spray Olive drab chromate over cadmium - 500 hours
Non-conductive black alloy - 48 to 200 hours Conductive black alloy - 48 to 200 hours Black anodized - 500+ hours Electroless nickel - 48 hours Gray Zinc nickel - 500 hours Heat Neoprene low-smoke, zero-halogen (LSZH) 257˚F (+125˚C); Viton 392˚F (+200˚C)
Chemical Resistance Diesel Fuel, JP-4 , Hydraulic Fluid, Gasoline
48-hour intermittent spray for each chemical with no deterioration, followed by Contact Retention (CR), Insulation Resistance (IR), Dielectric Withstanding Voltage tests (DWV) Corrosion Resistance Olive Drab Cadmium-Plated 48 hours per SAE-AS50151 (MIL-DTL-5015) (3.17/4.6.13)
Fluid Immersion Hydraulic Fluid 20 hours per SAE-AS50151 (MIL-DTL-5015) (3.19/4.6.15)
Lubrication Oil 20 hours per SAE-AS50151 (MIL-DTL-5015) (3.19/4.6.15) Vibration Per MIL-STD-810C, method 516.2, procedure VIII
1.0 g peak from 5 to 25 Hz .030” double amplitude from 25 to 57 Hz 5g peak from 57 to 500 Hz Basic Shock Per MIL-STD-810C, method 516.2, procedure I pulse at half-sine
wave of 30g for 11 seconds
Gun fire Shock Per MIL-STD-810C, method 516.2, procedure IV pulse at half-sine
wave of 100g for 1.5 seconds
Ballistic Shock Per MIL-STD-810C, method 516.2, procedure IV pulse at half sine
wave of 200g for .5 seconds
Contact Type Solder, crimp, PC, co-ax, or thermocouple. Hard silver or gold plating.
Contact Insertion From rear with simple hand-tool. Removable, 5 cycles minimum.
Contact Retention Pin and socket contacts are designed to resist severe vibration and
repeated connection and disconnection. Contact retention and separation
is tested according to SAE-AS50151 (MIL-DTL-5015)H (4.6.6.1)
Contact Size Retention Force Min. 16 10 12 15 8 20 4 20 0 25 Number of Circuits 1 to 85
Polarization Key and keyway plus three point bayonet with optional rotational polarization.
Rear Accessories Maximum Torque
Size In./Lb. Max. 10SL 26 14S 44 16 50 16S 50 18 55 20 65 22 85 24 90 28 114 32 120 36 153 40 170 Thermocouple Codes Material Color Code Code Iron Black IR Constantan Yellow CON Copper alloy - Cu Chromel White CH Alumel Green AL Thermocouple Types: Approvals/ Agency Listing UL File# E115497
AMPHENOL ACA-B SERIES CROSS-SECTION
COMPONENTSAMPHENOL ACA-B SERIES COMPONENTS
PLUGS RECEPTACLES O-Ring AIB/GT AIBC/ACA-B AIB/GT AIBC/ACA-B Barrel/Shell
Insert/
Contacts
Wave Spring and
Coupling Nut
Individual Wire
Ferrule/Sleeve
Endbell/
|
AMPHENOL ACA-B SERIES CREATE PART NUMBER EXAMPLE
STEP 1 2 3 4 5 6 7 8 ACA 3106 E 18 1 S X B -F80 SERIES PREFIX SHELL STYLE CONNECTOR CLASS SHELL SIZE CONNECTOR MODIFICATION REVERSE BAYONET COUPLING ALTERNATIVE ROTATION CONTACT TYPE CONNECTOR ARRANGEMENT
Click here to download our How To Order Guide
|
|
PIN & SOCKET CRIMP CONTACTSAMPHENOL ACA-B SERIES PIN & SOCKET CRIMP CONTACTS
Pin Contact Socket Contact Wire Strip Length Wire Range
Part Number Part Number Wire Strip Wire Sealing Contact Size Wire Size AWG Silver Gold Silver Gold Inches Inches 16S† 16-18-20 12-14 14-16 18-20 20-22 22-24 AIC16S- AIC16S- AIC16S- AIC16S- AIC16S- AIC16S-24P AIC16S- AIC16S- AIC16S- AIC16S- AIC16S- AIC16S- AIC16S- AIC16S- AIC16S- AIC16S- AIC16S- AIC16S- AIC16S- AIC16S- AIC16S- AIC16S- AIC16S- AIC16S- - C4 C3 C13 C14 C2 0.312 (7.9) .090-.118 (2.3-3.0) 16 16-18-20 12-14 14-16 18-20 20-22 20-24 22-24 AIC16- AIC16- AIC16- AIC16- AIC16- AIC16- AIC16- AIC16- AIC16- AIC16- AIC16- AIC16- AIC16- AIC16- AIC16- AIC16- AIC16- AIC16- AIC16- AIC16- AIC16- AIC16- AIC16- AIC16- AIC16- AIC16- AIC16- AIC16- - C4 C3 C13 C14 C36 C2 0.312 (7.9) .090-.118 (2.3-3.0) 12 12-14 12 High-Power 8-10 10-12 14-16 16-18 18-20 20-22 AIC12-12P* - AIC12-8P AIC12-10P AIC12-14P AIC12-16P AIC12-18P AIC12-20P AIC12- - AIC12-8PG AIC12-10PG AIC12-14PG AIC12-16PG AIC12-18PG AIC12-20PG AIC12-12S* AIC12- AIC12-8S AIC12-10S AIC12-14S AIC12-16S AIC12-18S AIC12-20S AIC12- - AIC12-8SG AIC12-10SG AIC12-14SG AIC12-16SG AIC12-18SG AIC12-20SG C5 C8 C9 C7 C6 C40 0.312 (7.9) .126-.177 (3.2-4.5) 8 8 8 High-Power 10-12 12-14 AIC8-8P* - AIC8-10P AIC8-12P AIC8-8PG* - AIC8-10PG AIC8-12PG AIC8-8S* AIC8-8SRAD AIC8-10S AIC8-12S AIC8-8SG* - AIC8-10SG AIC8-12SG C10 C38 0.563 (14.3) .150-.256 (3.8-6.5) 4 4 4 High-Power 8 AIC4-4P* - AIC4-8P AIC4-4PG* - AIC4-8PG AIC4-4S* AIC4-4SRAD AIC4-8S AIC4-4SG* - AIC4-8SG C15 0.500 (12.7) .279-.366 (7.1-9.3) 0 0 0 High-Power 0-2 4 AIC0-0P* - AIC0-2P AIC0-4P AIC0-0PG* - AIC0-2PG AIC0-4PG AIC0-0S* AIC0-0SRAD AIC0-2S AIC0-4S AIC0-0SG* - AIC0-2SG AIC0-4SG C11 C12 0.750 (19.0) .394-.539 (10.0-13.7) *Bolded items are standard crimp contacts. Solder Thermocouple Contacts Contact Size Type Pins Sockets 16S† Alumel Chromel Iron Constantan 10-040799-02P* 10-040799-01P* 10-040799-03P* 10-040799-04P* 10-040799-02S* 10-040799-01S* 10-040799-03S* 10-040799-04S* 16 Alumel Chromel Iron Constantan 10-040799-12P* 10-040799-11P* 10-040799-13P* 10-040799-14P* 10-040799-12S* 10-040799-11S* 10-040799-13S* 10-040799-14S* 12 Alumel Chromel Iron Constantan 10-040799-42P* 10-040799-41P* 10-040799-43P* 10-040799-44P* 10-040799-42S* 10-040799-41S* 10-040799-43S* 10-040799-44S* Thermocouple Types: J = Iron-Constantan K = Alumel-Chromel T = Copper-Constantan E = Chromel-Constantan *Contact us for availability. † 16S contacts are used in 8S, 10S, 10SL, 12S, 14S & 16S connector sizes only. Accessories Tools
Wire Hole Filler Color Crimp Tools Crimp Locator & Die Sets Locator Color Pilot Pin/Insertion Guide for Sockets Insertion Tool Extraction Tool
Red Pin-BlueSocket-Green
Yellow AF8-(hand) WA27F-(pneumatic) †† TH29-1 Green 10-242758-012 DAK168-12 DRK59 Kit with Multiple Tips Red 400BHD Die Set - 10-242758-008 DAK282 DRK59 Kit with Multiple Tips Blue 400BHD Die Set - - AIC4INS AIC4EXT Yellow 400BHD Die Set - - AIC0INS AIC0EXT †† Contact us for additional tool accessories. All dimensions in inches (millimeters in parentheses) PIN & SOCKET CO-AX CONTACTSAMPHENOL ACA-B SERIES PIN & SOCKET CO-AX CONTACTS
Pin Contact Socket Contact Wire Strip Length Wire Range Accessories
Part Number Part Number Wire Sealing Range Inches (MM) Co-ax Contact Co-ax Wire Size Silver Gold Silver Gold Wire Strip Lengths Inches (MM) Min. Max. Wire Hole Filler 12 RG161/U RG174A/U RG179B/U RG187A/U RG188A/U RG316/U RG178B/U RG196A/U 21-33034-1 - 21-33014-21 21-33048-1( ) 21-33130-1( ) 21-33014-22 21-33033-1 - 21-33013-21 21-33047-1( ) 21-33129-1( ) 21-33013-22 0.126 0.177 Yellow 8 RG58C/U RG141A/U RG303/U RG59B/U RG62A/U RG62B/U RG210/U RG161/U RG174A/U RG179B/U RG187A/U RG188A/U RG316/U RG180B/U RG195A/U RG140/U RG302/U RG55B/U RG142A/U RG142B/U RG223/U 21-33034-2(1) 21-33034-5(1) 21-33034-3(1) 21-33034-6 21-33034-8 21-33034-4 21-33014-1(5) 21-33016-5(3) 21-33130-2( ) 21-33014-5(5) 21-33016-2(3) 21-33130-5( ) 21-33064- 21-33014-3(5) 21-33016-1(3) 21-33130-3( ) 21-33064- 21-33014-6(5) 21-33048-3( ) 21-33130-6( ) 21-33014-8(5) 21-33033-8 21-33130-8( ) 21-33014-5(5) 21-33130-4( ) 21-33033-2(1) 21-33048-2( ) 21-33033-3(1) 21-33033-3(1) 21-33033-6 - 21-33033-4 21-33013-1(5) 21-33047-2() 21-33015-5(3) 21-33129-2( ) 21-33013-5(5) 21-33015-2(3) 21-33129-3( ) 21-33063- 21-33013-3(5) 21-33015-1(3) 21-33129-3( ) 21-33063- 21-33013-(6) 21-33047-3( ) 21-33129-6( ) 21-33013-8(5) 21-33129-8( ) 21-33013-5(5) 21-33129-4( ) 0.150 0.256 White 4 RG59B/U RG62A/U RG62B/U RG210/U RG212/U RG55B/U RG142A/U RG142B/U RG223/U - 21-33060- 21-33060- 31-33060- - 21-33059- 21-33059- 21-33059- 0.279 0.366 Blue ( ) Various platings available. Availability of co-ax contacts varies widely. Contact us for details. Tools
Co-ax Contact Size Co-ax Wire Size Hand Crimp Tool Hand Crimp Tool Use Locator Co-ax Clamp Nut Wrench 12 RG161/U RG174A/U RG179B/U RG187A/U RG188A/U RG316/U RG178B/U RG196A/U M22520/10-01 M22520/10-05 A B 11-8676-1 8 RG58C/U RG141A/U RG303/U RG59B/U RG62A/U RG62B/U RG210/U RG161/U RG174A/U RG179B/U RG187A/U RG188A/U RG316/U RG180B/U RG195A/U RG140/U RG302/U RG55B/U RG142A/U RG142B/U RG223/U M22520/10-01 M22520/5-01 M22520/10-01 M22520/10-07 M22520/5-45 M22520/10-05 M22520/10-07 B B A B A 11-8676-2 11-8676-3 11-8676-2 4 RG59B/U RG62A/U RG62B/U RG210/U RG212/U RG55B/U RG142A/U RG142B/U RG223/U M22520/5-01 M22520/5-01 M22520/10-01 M22520/5-45 M22520/5-39 M22520/10-07 B A A 11-8676-4 All dimensions in inches (millimeters in parentheses) CONNECTOR TOOLSAMPHENOL ACA-B SERIES CONNECTOR TOOLS
TG70 Strap Wrench
TG69P Non-Marring Adjustable Endbell Pliers for Field Service 600 Series Production System The 600 series is a complete system for the proper assembly and torquing of connector endbells. The system includes a bench-mounted or hand-held torque wrench, plug and receptacle holders, and a range of endbell tightening tools. When used together, these tools provide the user with consistent endbell installations. Each item is shipped with detailed assembly instructions.
Plug and Receptacle Holders
SAE-AS50151 (MIL-DTL-5015) For AIT/MS & AIB/GT Shell Size Receptacles Plugs 8/8S 600B005-8R 600B005-8P 10S/SL 600B005-10R 600B005-10P 12/12S 600B005-12R 600B005-12P 14/14S 600B005-14R 600B005-14P 16/16S 600B005-16R 600B005-16P 18 600B005-18R 600B005-18P 20 600B005-20R 600B005-20P 22 600B005-22R 600B005-22P 24 600B005-24R 600B005-24P 28 600B005-28R 600B005-28P 32 600B005-32R 600B005-32P 36 600B005-36R 600B005-36P AMPHENOL ACA-B SERIES TORQUE VALUES
IMPORTANT NOTE: If barrel/shell has three threads or less, torque to 30 to 35 inch/Lbs (3.4 to 4.0 NM) per L-725-2. Size In./Lb. Max. 10SL 26 14S 44 16 50 16S 50 18 55 20 65 22 85 24 90 28 114 32 120 36 153 40 170 Rotations Pin Socket W = G W = H X = I X = J Y = K Y = L Z = M Z = N |
|
MS3057-AAMPHENOL ACA-B SERIES M3057-A CABLE CLAMP
Standard MS3057 cable clamps have dual-clamping action to provide a balanced, positive hold on the wires and greatly reduce moisture transmission. This cable clamp accepts MS3420 bushings. MS3420 bushings can be nested to reduce the inside diameter to more closely match the diameter of the cable or wire bundle. Standard Clamp Standard Clamp and Telescopic Bushing Shell Size Thread Class 2B Low-Cost Cast Zinc Aluminum W/ Brass Screws Aluminum W/ Stainless Steel Screws Maximum Cable Diameter Inch (MM) Zinc With Low-Cost Bushing Included Bushing ID Inch (MM) 10SL 5/8-24UNEF 97-3057-1004** MS3057-4A M85049/41-4A 0.312 (7.92) 97-3057-1004-1 MS3420-4 0.220 (5.6) 14S 3/4-20UNEF 97-3057-1007** MS3057-6A M85049/41-6A 0.438 (11.10) 97-3057-1007-1 MS3420-6 0.312 (7.9) 16/16S 7/8-20UNEF 97-3057-1008** MS3057-8A M85049/41-8A 0.562 (14.27) 97-3057-1008-1 MS3420-8 0.437 (11.1) 18 1-20UNEF 97-3057-1010** MS3057-10A M85049/41-10A 0.625 (15.88) 97-3057-1010-1 MS3420-10 0.562 (14.3) 20/22 1 3/16-18UNEF 97-3057-1012** MS3057-12A M85049/41-12A 0.750 97-3057-1012-1 MS3420-12 0.625 (15.9) 24/28 1 7/16-18UNEF 97-3057-1016** MS3057-16A M85049/41-16A 0.938 (23.80) 97-3057-1016-1 MS3420-16, -12 0.625 (15.9) 32 1 3/4-18UNS 97-3057-1020** MS3057-20A M85049/41-20A 1.250 (31.75) 97-3057-1020-1 MS3420-20, -16 0.750 (19.0) 36 2-18UNS 97-3057-1024** MS3057-24A M85049/41-24A 1.375 (34.92) 97-3057-1024-1 MS3420-24, -20 0.937 (23.8) 40 2 1/4-16UNS - MS3057-28A M85049/41-28A 1.625 (41.28) - - - ** Other platings are available. All dimensions in inches (millimeters in parentheses) MS3057-CAMPHENOL ACA-B SERIES MS3057-C WATERPROOF CABLE CLAMP
Wire Diameter Optional Bushings Shell Size Part Number Max. Min. Part Number Max. Wire Dia. 10SL MS3057-4C 0.312 (7.93) 0.188 (4.80) MS3420-4A 0.219 (5.56) 14S MS3057-6C 0.438 (11.12) 0.281 (7.10) MS3420-6A 0.312 (7.93) 16/16S MS3057-8C 0.530 (13.48) 0.312 (7.90) MS3420-8A 0.438 (11.10) 18 MS3057-10C 0.625 (15.87) 0.375 (9.50) MS3420-10A 0.438 (11.10) 20/22 MS3057-12C 0.750 (19.00) 0.500 (12.70) MS3420-12A 0.540 (13.74) 24/28 MS3057-16C 0.940 (23.80) 0.625 (15.90) MS3420-16A 0.750 (19.00) 32 MS3057-20C 1.25 (31.75) 0.921 (23.40) MS3420-20A 0.938 (23.80) 36 MS3057-24C 1.38 (35.00) 1.00 (25.40) MS3420-24A 1.12 (28.50) 40 MS3057-28C 1.62 (41.25) 1.25 (31.80) MS3420-28A 1.125 (31.75) All dimensions in inches (millimeters in parentheses) MS3420AMPHENOL ACA-B SERIES MS3420 TELESCOPING BUSHINGS
Shell Size First Bushing Part Number Inside Diameter 2nd Nested Bushing Inside Diameter Fits in Cable Clamp 10SL MS3420-4 .220 (5.59) NONE - MS3057-4A 14S MS3420-6 .312 (7.92) NONE - MS3057-6A 16S MS3420-8 .437 (11.10) NONE - MS3057-8A 16 MS3420-8 .437 (11.10) NONE - MS3057-8A 18 MS3420-10 .562 (14.30) NONE - MS3057-10A 20 MS3420-12 .625 (15.90) NONE - MS3057-12A 22 MS3420-12 .625 (15.90) NONE - MS3057-12A 24 MS3420-16 .750 (19.05) MS3420-12 .625 (15.90) MS3057-16A 28 MS3420-16 .750 (19.05) MS3420-12 .625 (15.90) MS3057-16A 32 MS3420-20 .937 (23.80) MS3420-16 .750 (19.05) MS3057-20A 36 MS3420-24 1.250 (31.75) MS3420-20 .937 (23.80) MS3057-24A 40 MS3420-28 1.375 (34.92) MS3420-24 1.250 (31.75) SE96-28A4 All dimensions in inches (millimeters in parentheses) MS3420-AAMPHENOL ACA-B SERIES MS3420-A REDUCTION BUSHINGS
For use with MS3057-C cable clamps (style-C) to reduce the wire sealing diameter. Bushings can be nested, one inside the other, to progressively reduce the inside diameter of the cable clamp. The column labeled “reduction bushings” shows the acceptable nesting options for each clamp. 9767AMPHENOL ACA-B SERIES 9767 CABLE CLAMPS
Max. Cable Outside Diameter Min. Cable Outside Diameter Shell Size Cable Clamp Inches MM Inches MM Thread Class 2B 10SL 9767-12-4 0.219 5.55 0.020 0.51 5/8-24 UNEF 14S 9767-14-4 0.219 5.55 0.020 0.51 3/4-20 UNEF 14S 9767-14-6 0.344 8.73 0.176 4.47 3/4-20 UNEF 16S/16 9767-16-4 0.219 5.55 0.020 0.51 3/4-20 UNEF 16S/16 9767-16-6 0.344 8.73 0.176 4.47 3/4-20 UNEF 16S/16 9767-16-8 0.438 11.12 0.177 4.50 7/8-20 UNEF 18 9767-18-6 0.344 8.73 0.176 4.47 1-20 UNEF 18 9767-18-8 0.438 11.12 0.177 4.50 1-20 UNEF 18 9767-18-10 0.563 14.29 0.292 7.42 1-20 UNEF 20/22 9767-22-8 0.438 11.12 0.177 4.50 1-3/16-18 UNEF 20/22 9767-22-10 0.563 14.29 0.292 7.42 1-3/16-18 UNEF 20/22 9767-22-12 0.688 17.46 0.370 9.40 1-3/16-18 UNEF 24/28 9767-28-10 0.563 14.29 0.292 7.42 1-7/16-18 UNEF 24/28 9767-28-12 0.688 17.46 0.370 9.40 1-7/16-18 UNEF 24/28 9767-28-16 0.844 21.43 0.536 13.61 1-7/16-18 UNEF 32 9767-32-20 1.031 26.19 0.590 14.99 1-3/4-18 UNS 36 9767-36-16 0.844 21.43 0.536 13.61 2-18 UNS GASKETSAMPHENOL ACA-B SERIES GASKETS
Synthetic rubber gaskets are used to ensure a moisture-tight seal between a receptacle and the panel. Gaskets are available for front or rear-panel mounting of styles 0, 2, 20, 30 and TB connectors. Gasket thickness is approximately .031 inches (1 mm), for nonconductive and low-temperature types. Conductive shielding gaskets contain an embedded metal screen for EMI/RFI shielding in addition to moisture sealing. Gaskets are available for front or rear-panel mounting of styles 30 and TB connectors. Gasket thickness is .020 inches (.5 mm). Front Mount Rear Mount Shell Size Non-Conductive Conductive Low-Temperature Non-Conductive 10SL 10-040450-010 10-040450-10S 10-036675-010 10-580649-011 14S 10-040450-014 10-040450-14S 10-036675-014 10-580649-014 16S 10-040450-016 10-040450-16S 10-036675-016 10-580649-016 16 10-040450-016 10-040450-16S 10-036675-016 10-580649-016 18 10-040450-018 10-040450-18S 10-036675-018 10-580649-018 20 10-040450-020 10-040450-20S 10-036675-020 10-580649-020 22 10-040450-022 10-040450-22S 10-036675-022 10-580649-022 24 10-040450-024 10-040450-24S 10-036675-024 10-580649-024 28 10-040450-028 10-040450-28S 10-036675-028 10-580649-028 32 10-040450-032 10-040450-32S 10-036675-032 10-580649-032 36 10-040450-036 10-040450-36S 10-036675-036 10-580649-036 40 10-040450-040 10-040450-40S 10-036675-040 10-580649-040 METAL DUST CAPSAMPHENOL ACA-B SERIES METAL DUST CAPS WITH SASH CHAIN
Metal dust caps are used to protect the contacts when the connectors are left unmated. Dust caps come with metal chain lanyards. Dummy Receptacles are for front or rear-panel mounting. AIB/GT Series connectors have bayonet ramps. The center of the connector is closed. Dummy receptacles mount on the same centers and have the same outside dimensions as a STYLE 2 receptacle. A version with a clearance hole through the middle of the connector is also available. Contact us for ordering information. Dust Caps Plug Cap Receptacle Dummy Receptacles Plug Seal Ring
10SL 10-580903-11* 10-580902-11* 10-580595-11* 10-564843-101 14S 10-580903-14* 10-580902-14* 10-580595-14* 10-564843-141 16S 10-580903-16* 10-580902-16* 10-580595-16* 10-564843-161 16 10-580903-17* 10-580902-17* 10-580595-17* 10-564843-161 18 10-580903-18* 10-580902-18* 10-580595-18* 10-564843-181 20 10-580903-20* 10-580902-20* 10-580595-20* 10-564843-201 22 10-580903-22* 10-580902-22* 10-580595-22* 10-564843-221 24 10-580903-24* 10-580902-24* 10-580595-24* 10-564843-241 28 10-580903-28* 10-580902-28* 10-580595-28* 10-564843-281 32 10-580903-32* 10-580902-32* 10-580595-32* 10-564843-321 36 10-580903-36* 10-580902-36* 10-580595-36* 10-564843-161 40 10-580903-40* 10-580902-40* 10-580595-40* 10-564843-401 *Select code for plating: Z = Black anodize 3 = Olive drab cadmium plate 9 = Olive drab cadmium nickel base G = Electroless nickel U = Green zinc Y = Black alloy |
|
SOLDER CONTACTSAMPHENOL ACA-B SERIES SOLDER CONTACTS
STEP 1: Slide the rear accessories over the wire bundle in the proper sequence for re-assembly: cable clamp and/or endbell first, then ferrule and (if used) coupling nut. STEP 2: Insert individual wires through the proper holes in the grommet. Use isopropyl alcohol as a lubricant. STEP 3: Solder wires to appropriate contacts on the rear of the connector. Information on standard soldering practices is available upon request. Please contact us. STEP 4: Fixture the connector for reassembly using endbell assembly tools. STEP 5: Slide the grommet down the wires (lubricating the grommet with isopropyl alcohol will help). STEP 6: Fill all unused grommet cavities with a wire hole filler to maintain the sealing integrity of the connector. STEP 7: Slide coupling nut, ferrule, and endbell accessories over rear of the connector and tighten. Click here for tooling. CRIMP TOOL OPERATIONAMPHENOL ACA-B SERIES CRIMP TOOL OPERATION
NOTE: Hand-crimp tools can be used with size 16S, 16 & 12 contacts. Size 8, 4 and 0 contacts require the use of air-powered crimp tools. Contact us for assistance in the use of these tools.

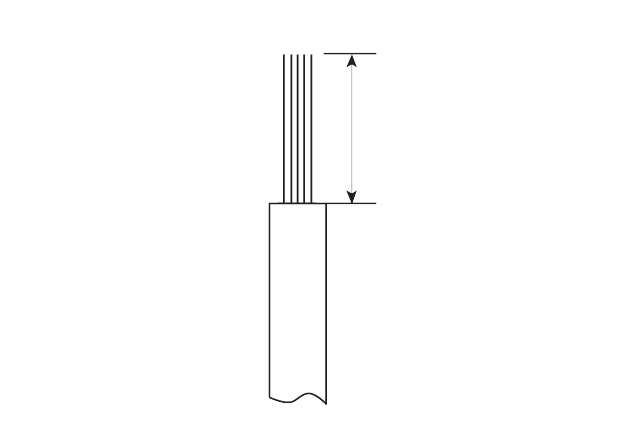

STEP 1: Strip the wires to the appropriate length. See strip lengths on the Contact Selection Guide. STEP 2: Open the crimp tool by squeezing the handles. Push the latch on the turret to pop up the locator. Attach the turret to the crimp tool using the two captive hex bolts in the turret. STEP 3: Select the proper locator position for your contact by rotating the locator until the proper color is aligned with the index mark. Push locator back down until it snaps into position. Contact Size Pin Locator Color Socket Locator Color 16S Red Red 16 Blue Green 16 Green Green
STEP 4: Adjust dial for proper wire gauge. To change the dial setting, remove the lock pin and lift center of dial. Turn to the desired wire gauge. Replace lock pin on dial. STEP 5: Cycle the tool before inserting the contact to be sure the tool is in the open position. Drop the contact, mating end first, into the crimp cavity of the tool. Squeeze the tool handle just enough to grip the contact without actually crimping it. STEP 6: Insert the stripped wire into the contact with a slight twisting motion. Be sure all wire strands are inside the contact. Squeeze the handle to cycle the tool. The handle will not release until the contact is completely crimped.
STEP 7: Remove the crimped contact. Pull on the wire slightly to be sure it is properly crimped. Be sure the contact is not bent or damaged in any way. Visually inspect the crimp.
Crimp Tensile Strength
Size Wire Gauge Lb.
20 20 12 14 70 8 8 185 4 4 450 0 0 800 CONTACT INSERTIONAMPHENOL ACA-B SERIES CONTACT INSERTION

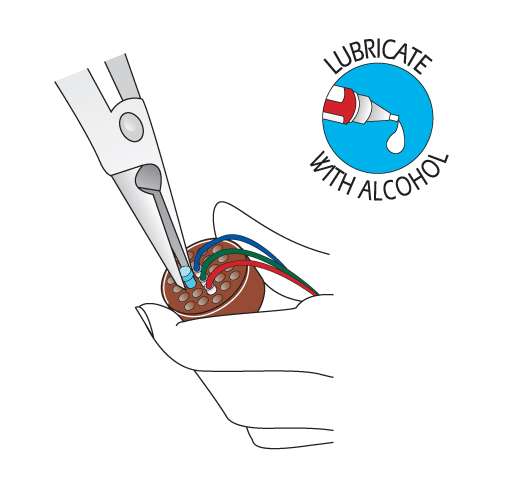

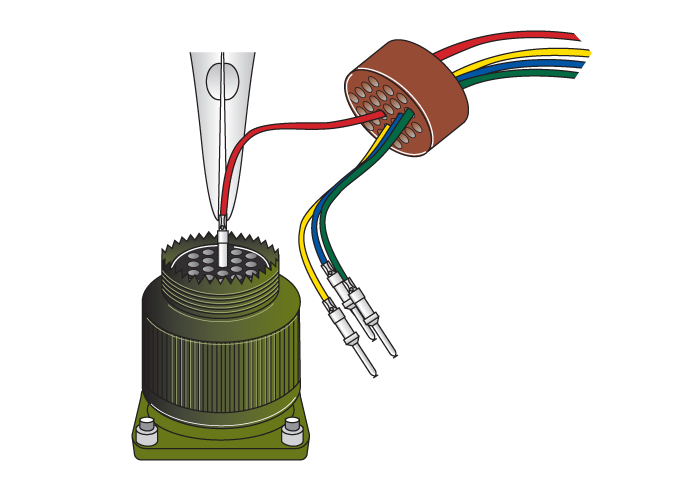

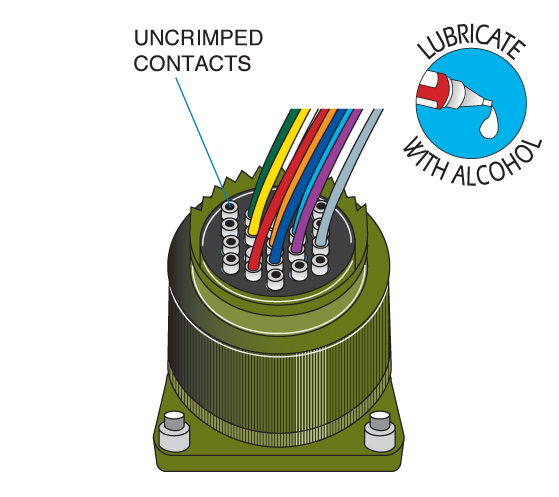

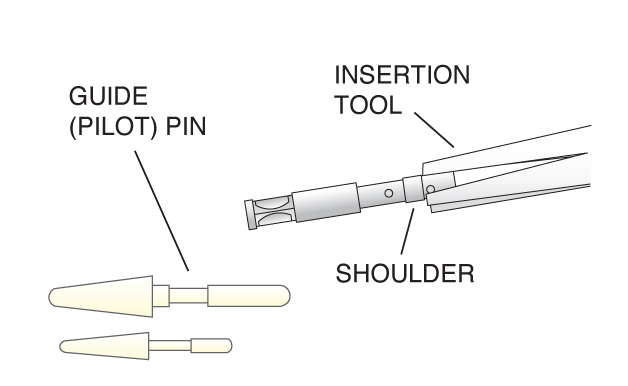

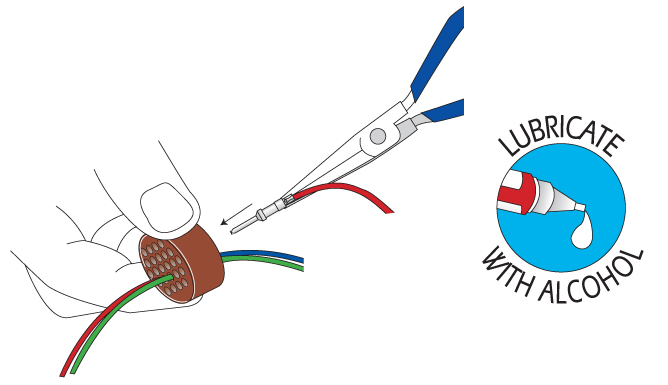

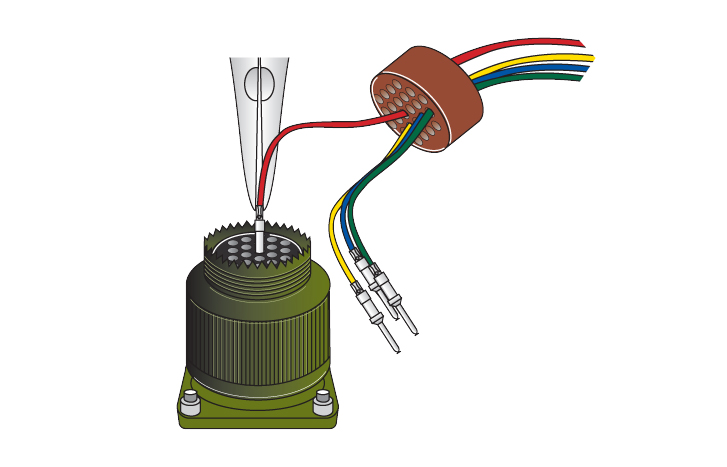

STEP 1: Slide the rear accessories over the wire bundle in the proper sequence for re-assembly: cable clamp and/or endbell first, then ferrule, and coupling nut. STEP 2: Use the proper insertion tool from the Contact Selection Chart. Place the contact in the tool. The tool should press against the shoulder of the contact. Contact sizes 16S, 16, and 12 use a pliers-style tool. Contact sizes 8, 4 and 0 use a tool with a C-shaped shaft. STEP 3: Lubricate the grommet with isopropyl alcohol (do not use any lubricant other than isopropyl alcohol). Insert the contact through the appropriate cavity in the grommet. Sizes 16S, 16 and 12 socket contacts must be installed using guide (pilot) pins. See the Contact Selection Guide for Insertion Guide (Pilot) Pin part numbers.

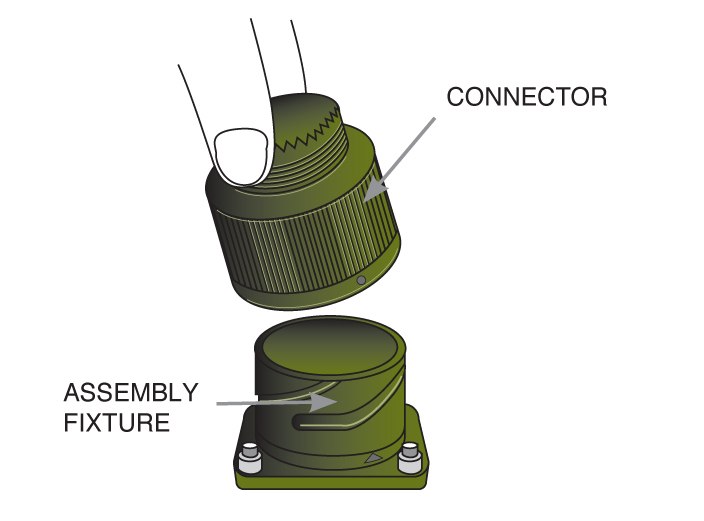

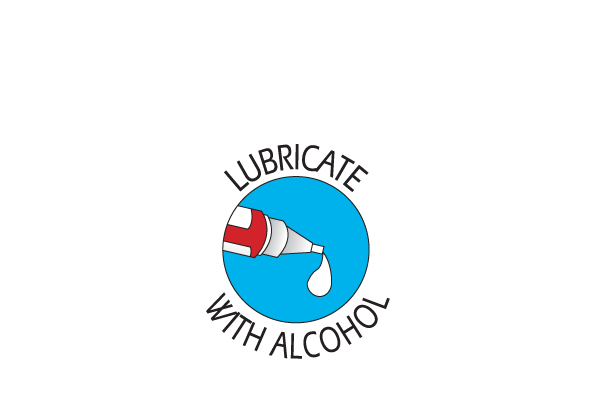

STEP 4: Place the connector into an assembly fixture (fixtures are available for production use, contact us.) If you are not using a fixture, be sure to allow clearance on the mating face of the connector for the guide pins to come through the connector during insertion. STEP 5: Lubricate the contact cavities of the connector insulator with isopropyl alcohol (do not use any other type of lubricant). STEP 6: Using guide pins where necessary, push straight down with a firm even pressure until the contact snaps into position in the proper cavity. Start at the center of the pattern and work toward the outer edges.

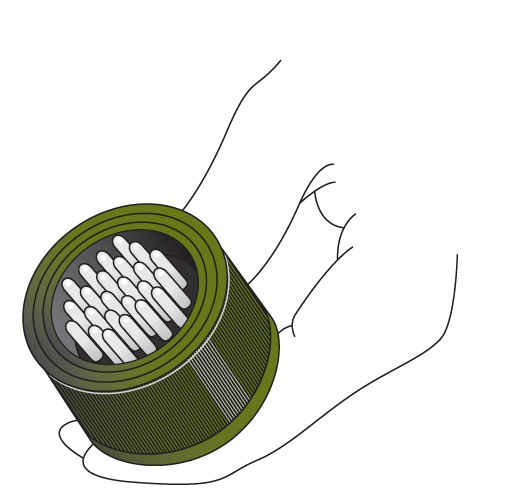

STEP 7: Fill any unused cavities with contacts. STEP 8: Check the mating face of the connector to ensure that all the same size contacts are on the same plane (fully inserted). If not, the contact is not fully inserted. Remove the contact using the proper extraction tool and procedure and reinsert. Do not attempt to reinsert the insertion tool to correct the problem. STEP 9: A wire hole filler must be inserted into the grommet behind the unused contacts to maintain the sealing integrity of the connector. See the Contact Selection Chart for wire hole fillers. STEP 10: Place the connector back in the fixture for re-assembly. Slide the connector accessories back down the cable over the rear of the connector and tighten. Use the appropriate endbell tools. CONTACT EXTRACTIONAMPHENOL ACA-B SERIES CONTACT EXTRACTION

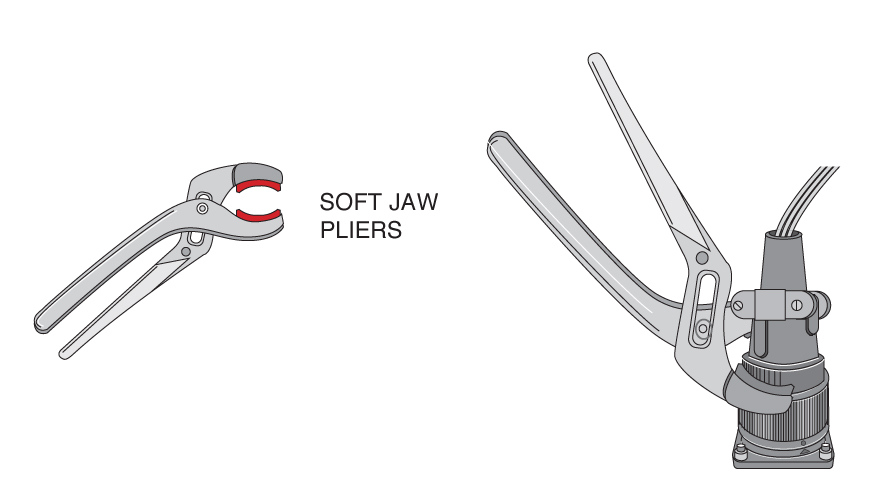

STEP 1: Remove the endbell accessories and slide them back over the wires. Use the appropriate endbell tools. STEP 2: Use the proper extraction tool from the Contact Selection Chart. The extraction tool can be used for both pin and socket contacts by removing the shaft from the handle and reversing it for pin or socket extraction.

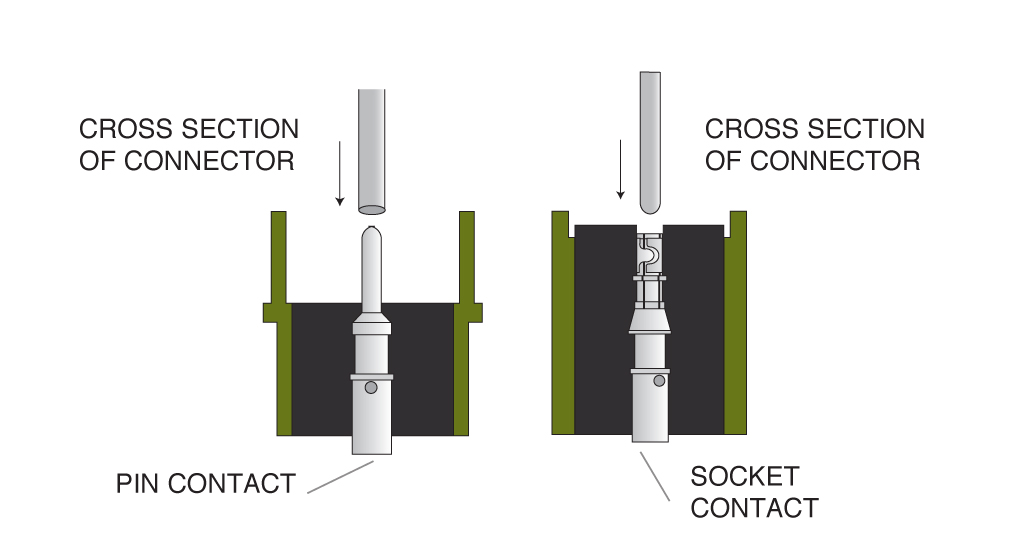

STEP 3: On the mating face of the connector, insert the tool over the pin contact or into the socket contact until the tool bottoms. Apply a slow continuous pressure to push the contact out the rear of the connector. When the shoulder of the tool “thunks” against the insulator, the contact is extracted. STEP 4: Carefully remove the extraction tool from the connector to avoid damage to the insulator. |
