Anderson Power Products™ SB^® 50 PCB Multipole Connector (Up To 50 Amps)

Anderson Power Products™ SB<sup>®</sup> Connectors 50 PCB Multipole

COMPACT HOT SWAPPING MULTIPOLE Anderson Power Products™ SB^® 50 CONNECTORS

Anderson Power Products™ SB^® 50 PCB Multipole Connectors leverage the innovative design of the Powerclaw^® family for the power electronics market makes connecting and disconnecting a snap, enabling safe and convenient "hot swapping" during equipment maintenance without the need to power down. Compact and robust, these Anderson Power Products™ SB^® connectors are rated at 55 amps for single pole and 50 amps for multipole connections. Mini horizontal and vertical Powerclaw^® contacts offer the same high current capacity as the original Powerclaws while providing the design engineer more options when board real estate is at a minimum.

FEATURES
SPECIFICATIONS
MECHANICAL
DRAWING
TOOLING
PDFS

FEATURES

SB^® 50 PCB MULTIPOLE CONNECTOR (UP TO 50 AMPS) FEATURES

Quick disconnect

Snap-On interface

Vertical mini-Powerclaw^® UL rated

Anti-static packaging

Vacuum packaging

BENEFITS

SB^® 50 PCB MULTIPOLE CONNECTOR (UP TO 50 AMPS) BENEFITS

Avoids the need for unfastening ring type terminals

Ensures foolproof assembly and proper connection

For current interruption (hot-plug) so that equipment can be hot swapped

Meets electronics industry PCB requirements

Prevents tarnishing of contacts during shelf life

SB^® 50 PCB MULTIPOLE CONNECTOR (UP TO 50 AMPS) SPECIFICATIONS

Electrical

Maximum Current* (per Tin Contact)

50 Amps

Maximum Voltage (AC or DC)

600 Volts

Temperature Rise at rated current

UL1977

Dielectric Voltage

MIL-STD-1344, Method 30013

Withstand

Type 1.

Contact Resistance

MIL-STD-1344, Method 3004, Type 1

Mechanical

Mating/Unmating Forces

15 lbf. Average (66 Newtons)

Sine Vibration

MIL-STD-1344, Method 2005, Test Condition I.

Mechanical Shock

MIL-STD-1344, Method 2004, Test Condition I.

Durability

10,000 cycles, APP Specification

Environmental

Temperature Cycling

MIL-STD-1344, Method 1003, Test Condition A.

Humidity

MIL-STD-1344, Method 3001, Type 1.

Material

Housing Material

Polycarbonate

Contact Material

Copper Alloy

Contact Plating: Tin

100 microinches Sn over 50 microinches Ni

Contact Plating: Silver

100 microinches Ag over 50 microinches Ni

Suggested Board Thickness

0.150" max.

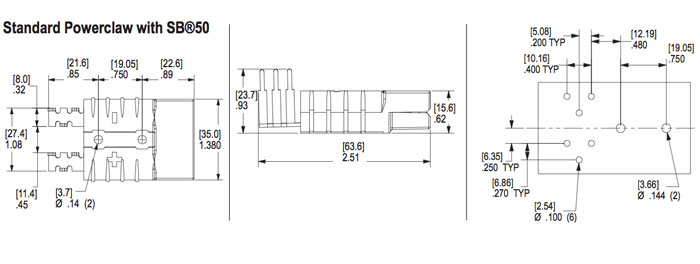

SB^® 50 PCB MULTIPOLE CONNECTOR (UP TO 50 AMPS) MECHANICAL DRAWING

SB 50 PCB Multipole Connector

SB^® 50 PCB MULTIPOLE CONNECTOR (UP TO 50 AMPS) TOOLING PDFS

1309 Mechanical Crimp Tool Operating Procedure

1368 Hydraulic Hand Crimp Tool

1367G1 Pneumatic Crimp Tool Data Sheet

1387G1 & 1387G2 Pneumatic Crimp Tool Data Sheet

Reeled Contacts Crimp Tooling
