Anderson Power Products™ Multipole SBS^® 50 Connector (Up To 110 Amps)

Anderson Power Products™ Multipole SBS<sup>®</sup> 50 Connector

SBS^® 50 MULTIPOLE CONNECTOR
(UP TO 110 AMPS)

The Patented SBS^® 50 connector is designed for high voltage applications where personal safety is critical. The SBS^® 50 connector meets the accessibility requirements of UL1977 section 10.2 and is recommended for over 50 volts.

The slim, ergonomic design, along with Anderson Power Products™ flat wipe contact technology makes hot plugging and unplugging easy and safe. The SBS^® 50 connector is manufactured using the same high quality materials that provide Anderson Power™ customers the robustness needed for systems demanding reliability and longevity.

Applications for this SBS^® 50 connector include: AC & DC power distribution, uninterruptible power supplies (UPS) and traction batteries.

FEATURES
SPECIFICATIONS
MECHANICAL
DRAWING
TOOLING
PDFS

FEATURES

SBS^® 50 MULTIPOLE CONNECTOR (UP TO 110 AMPS) FEATURES

Finger proof

Mechanical keyed housings

Ergonomic design

Molded side grooves

BENEFITS

SBS^® 50 MULTIPOLE CONNECTOR (UP TO 110 AMPS) BENEFITS

Minimizes the potential contact with live contacts, per UL 1977, section 10.2

Prevents accidental mating of connectors operating at different voltage levels

Is "user friendly" during connection and disconnection of the system

Allows for direct panel mounting, for panel thicknesses of .048 to .062 inches (1.22 to 1.57 mm) or a panel mount bracket

SBS^® 50 MULTIPOLE CONNECTOR (UP TO 110 AMPS) SPECIFICATIONS

Electrical

UL Current Rating (Amperes)*

UL Voltage Ratings (Volts)

600*

Contact Barrel Wire Size (AWG)

#6 to #16

Maximum Wire Insulation Diameter (inches)

0.44

Maximum Wire Insulation Diameter (mm)

11.2

Average Contact Resistance* (micro-ohms)

200

Dielectric Withstanding Voltage (AC)

2,200

Operating Temperature (°C)**

-20° to 105°

Operating Temperature (°F)

-4° to 221°

Mechanical

Contact Retention Force (lbf)

Average Connection/Disconnect (lbf)

Average Connection/Disconnect (N)

LIFE

a. No Load (mating cycles)

10,000

b. Under Load (Hot Plug 250 mating cycles @ 120V)

50A

Material

Flammability Rating of Housing Material

UL94 V-0

* UL Rated for 65°C largest wire or cable size
** Contact us for higher temperature rated connector / SB^®, UL and CSA Reference: This equipment is an Underwriters Laboratories Inc^® recognized component. It is also listed by the Canadian Standards Association as certified.

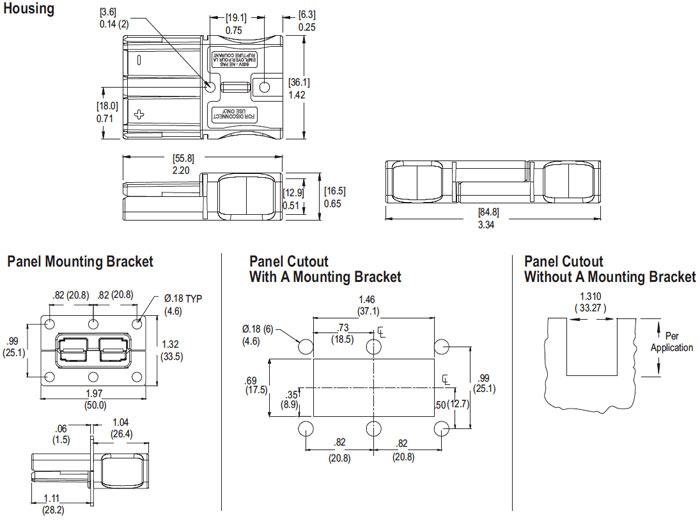

SBS^® 50 MULTIPOLE CONNECTOR (UP TO 110 AMPS) MECHANICAL DRAWING

SBS 50 Multipole Connector
