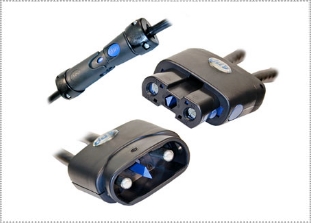

Anderson PowerMod® HP connectors are the innovative New Generation of High Power connectors for the Electronics Industry. The Anderson PowerMod High Power connector family provides; cost effective reliability, superior safety and ergonomics, with broad design flexibility. The positive latch and optional strain relief of Anderson PowerMod® High Power connectors ensure superior reliability. The contacts are extremely durable and rated for circuit interruption (true hot-pluggable). Our touch-safe female housing design with integral latch release presents a new standard for high power connector safety and ergonomics. The housings are black UL94 V-0 material with latches in blue for clear identification.
The Anderson PowerMod® High Power connector family offers excellent design flexibility with the availability of 10 different connector types.
|
POWERMOD® HP CONNECTORS (210 - 450 AMPS) FEATURES
- 210 to 450 amps UL rating
- Positive latching
- Available in straight, right angle, panel mount, blind mate and bus bar styles
- Touch safe female connectors
- Polarized dual pole connectors with optional hex key
- Strain relief option
- Low connector mating forces
- Silver plated, high conductivity contacts
- Ease of assembly
POWERMOD® HP CONNECTORS (210 - 450 AMPS) BENEFITS
- Integral latches with ergonomic release provide over 50 lbs retention
- The flexibility of the PowerMod® HP system serves a broad range of electronics applications
- Provide IP20 protection for safe, energized use outside the electronics cabinet
- Dual pole housings prevent shorting from reverse mating and the optional hex key allows the user to create unique mating schemes
- Reduces risk of wire insulation creep and reduces transmission of wire loads to contacts improving service life
- Connectors are easily mated and unmated
- Offers greater longevity for high-power, elevated temperature applications
- Intuitive design allows for simplicity of assembly
|
|
POWERMOD® HP CONNECTORS (210 - 450 AMPS) SPECIFICATIONS
UL Current Rating (Amperes) SP Series A / Series B UL Current Rating (Amperes) DP Series A / Series B CSA (30°C Rise / Amperes) SP Series A / Series B CSA (30°C Rise / Amperes) DP Series A / Series B Mating Force SP Series A / Series B 7 lbs. (31.14 N) / 16.5 lbs. (74 N) Mating Force DP Series A / Series B 15 lbs. (66.72 N) / 33 lbs. (147 N) Wire Size (AWG) Series A / Series B Wire Size (mm2) Series A / Series B Dielectric Withstanding Voltage Operating Temperature (°C) Operating Temperature (°F)
Mating Without Load (mating cycles) Mating Under Load (Hot Plug 250 mating cycles @ 120V)
|
|

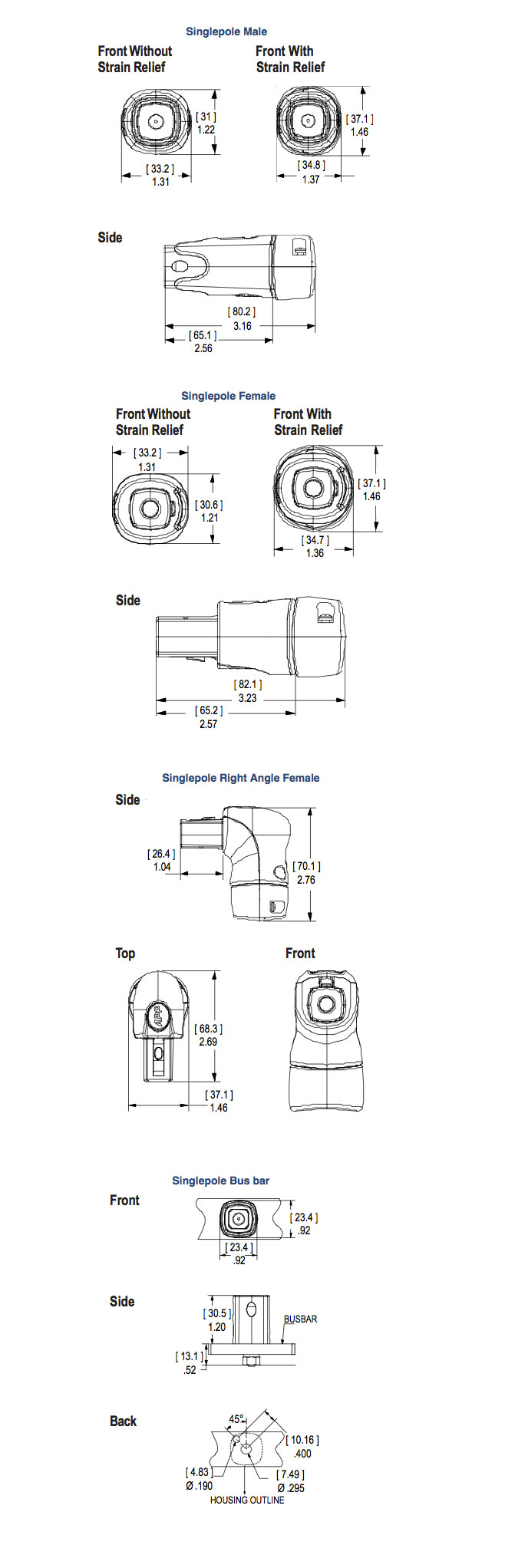

POWERMOD® HP CONNECTORS (210 - 450 AMPS) MECHANICAL DRAWING
|
|
