Anderson Power Products PCB 45 Powerpole® Wire to Board Connectors (Up To 45 Amps)
PCB 45 POWERPOLE® WIRE TO BOARD CONNECTORS (UP TO 45 AMPS)

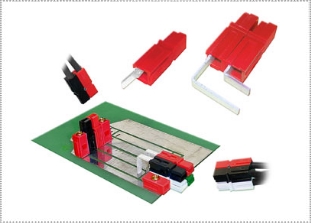

Anderson Power Products® High Current printed circuit board (PCB) contact series, when utilized with the Powerpole® 15/45 connector housings, provides a reliable wire to board PCB connection. They are UL Recognized at 45 amps, AC or DC. These wire to board connectors may be configured in 1 and 2 row configurations, in both vertical and right angle mounted terminations. These wire to board connectors provide an ideal solution for applications that require high current connections to a PCB.
PCB 45 POWERPOLE® CONNECTOR (UP TO 45 AMPS) FEATURES
- Current rating 45 amps
- Vertical and right angle terminations
- High durability
- Offered in pre-assembled 1 and 2 row configurations
- Individual housings and contacts also sold separately
PCB 45 POWERPOLE® CONNECTOR (UP TO 45 AMPS) BENEFITS
- Enables high current connections directly to the PCB
- Allows for design flexibility
- Rated up to 1,500 cycles (no load)
- Under Load (Hot Plug 250 cycles @ 120V)
- Reduces assembly costs of housings and contacts
- Pre-assembled configurations prevent accidental separation of housings
- Allows for customization of configurations
- Allows for color coding of housings to wires for ease of manufacturing
|
PCB 45 POWERPOLE® CONNECTOR (UP TO 45 AMPS) SPECIFICATIONS
UL Current Rating For Single Mated Pair
45 amps (for others see rating curves)
Max. Recommended Voltage - (per IEC 60950-1)
150V (pollution degree 3) - 250V (pollution degree 2)
Voltage Drop For Mated Pair
Connector Mating Force For Mated Pair
0.093 [2.4] - 0.125 [3.2]
Polycarbonate 94 V-0 rated
|
PCB 45 POWERPOLE® CONNECTOR (UP TO 45 AMPS) MECHANICAL DRAWING
|
PCB 45 POWERPOLE® CONNECTOR (UP TO 45 AMPS) TOOLING PDFS
|
