Anderson Power Products™ PP 10/30 Powerpole® Pin and Socket Connectors (Up To 30 Amps)
COST-EFFECTIVE, VERSATILE PIN & SOCKET CONNECTOR

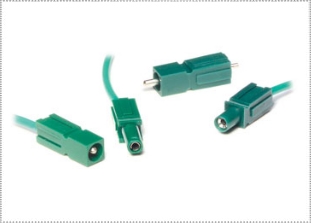

Powerpole® pin and socket connectors by Anderson Power Products™ provide cost-effective reliability, design flexibility and safety. These pin and socket connectors were designed as ground terminal for make-first/break-last connections and feature an interchangeable genderless design. A flat wiping contact system allows for minimal contact resistance at high current, with wiping action that cleans contact surfaces during connection/disconnection.
The dovetail feature allows you to interlock housings into vertical and horizontal configurations (can be assembled with standard Powerpole® PP15, Powerpole® PP30 and Powerpole® PP45 connectors), providing unique variations that are specific to each project.
The housings are modular and interchangeable, genderless interconnects. Insert contacts into housings and plug together for a low-cost solution to power interconnection. Powerpole® modular pin and socket connectors are available in 10 and 30 amp ratings for use through 600 Volts continuous, AC or DC operation.
For full details, see the specifications below.
|
PIN & SOCKET PP 10/30 POWERPOLE® CONNECTOR (UP TO 30 AMPS) FEATURES
- Make-first/Break-last connection
- Green housing
- Molded-in dovetails
- Silver plated contacts
- UL94 V-0 housing material
PIN & SOCKET PP 10/30 POWERPOLE® CONNECTOR (UP TO 30 AMPS) BENEFITS
- Provides safety and system integrity
- Indicates ground terminal
- Can be assembled into "keyed" configurations to preclude misconnections
- Offers greatest longevity when using high power, elevated temperature applications
- Provides security in knowledge the connector chosen meets strict UL flammability ratings
|
|
PIN & SOCKET PP 10/30 POWERPOLE® CONNECTOR (UP TO 30 AMPS) SPECIFICATIONS
UL Current Rating (Amperes)* UL Voltage Ratings (Volts)** Contact Barrel Wire Size (AWG) Contact Barrel Wire Size (mm²) Maximum Wire Insulation Diameter (inches) Maximum Wire Insulation Diameter (mm) AVG Contact Resistance* (micro-ohms)
Contact Retention Force (lbf) LIFE - No Load (Contact/Disconnect Cycles) Avg. Connection/Disconnect (lbf) Operating Temperature Range °C*** Operating Temperature Range °F
Flammability Rating of Housing Material
* UL Rated for 65°C largest wire or cable size
** Both AC & DC Voltage
*** Contact us for higher temperature rated connectors
**** Based on 10 AWG
|
|

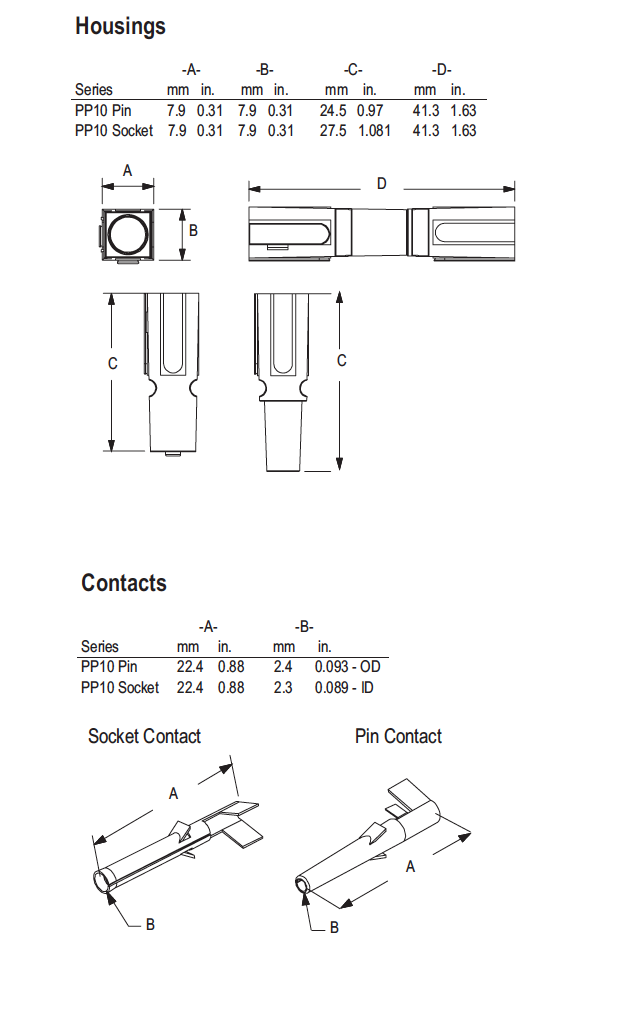

PIN & SOCKET PP 10/30 POWERPOLE® CONNECTOR (UP TO 30 AMPS) MECHANICAL DRAWING PP 10
PIN & SOCKET PP 10/30 POWERPOLE® CONNECTOR (UP TO 30 AMPS) MECHANICAL DRAWING PP 30
|
|
PIN & SOCKET PP 10/30 POWERPOLE® CONNECTOR (UP TO 30 AMPS) TOOLING PDFS
|
