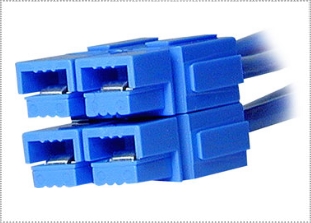

Anderson Power Products™ 15/45 Powerpole® Finger Proof Stackable Connectors (Up To 55 Amps)
TOUCH SAFE HIGH VOLTAGE STACKABLE CONNECTORS
Anderson Power Products™ 15/45 Finger Proof stackable connectors are designed specifically for high voltage applications where personal safety is critical. This Anderson Power Products™ 15/45 stackable connector meets the accessibility requirements of UL1977 section 10.2 and is recommended for applications over 50 volts. These Anderson Power Products™ 15/45 stackable connectors provide cost-effective reliability, design flexibility and safety for your products' manufacture, installation and maintenance. Anderson Power Products™ 15/45 stackable connectors provide 600 Volts continuous AC or DC operation. Wire sizes range from #10 to #20 AWG (5.3 to .5 mm2). Contacts are available in reeled and loose piece, to support production needs from low to high volumes.
Learn more about how these Anderson Power Products™ 15/45 Powerpole® connectors are supporting the growing demand of robotics-focused operations by checking out our blog post called: "PEI-Genesis: Supporting Next Generation Engineers".
|
PP 15/45 POWERPOLE® FINGER PROOF CONNECTOR (UP TO 55 AMPS) FEATURES
- Positive latching
- Variety of contact sizes
- Integral strain relief
PP 15/45 POWERPOLE® FINGER PROOF CONNECTOR (UP TO 55 AMPS) BENEFITS
- Provides security in applications where shock and/or vibration may be severe
- Enables flexibility in wiring sizes and allows customization
- Organizes individual wires and reduces risk of wire breakage
|
|
PP 15/45 POWERPOLE® FINGER PROOF CONNECTOR (UP TO 55 AMPS) SPECIFICATIONS
UL Current Rating (Amperes)* UL Voltage Ratings (Volts)** Contact Barrel Wire Size (AWG)
Contact Barrel Wire Size (mm2) Maximum Wire Insulation Diameter (inches) Maximum Wire Insulation Diameter (mm) Average Contact Resistance* (micro-ohms) Dialectric Withstanding Voltage (AC) Operating Temperature
Range °C*** Operating Temperature Range °F
Contact Retention Force (lbf) a. No Load
(Contact/Disconnect Cycles) b. Under Load (Hot Plug 250 Cycles @ 120V) Average Connection/
Disconnect (lbf) 3 - Low detent
5 - High detent 3 - Low detent
5 - High detent 3 - Low detent
5 - High detent
Flammability Rating of Housing Material
* UL Rated for 65°C largest wire or cable size
** Both AC & DC Voltage
*** Contact us for higher temperature rated connectors
|
|

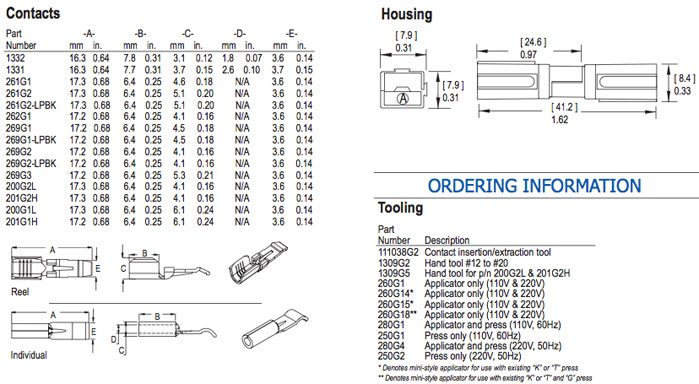

PP 15/45 POWERPOLE® FINGER PROOF CONNECTOR (UP TO 55 AMPS) MECHANICAL DRAWING
|
|
PP 15/45 POWERPOLE® FINGER PROOF CONNECTOR (UP TO 55 AMPS) TOOLING PDFS
|
