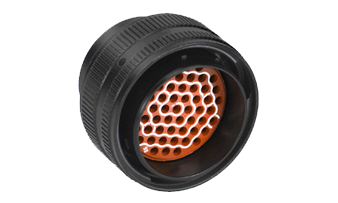

Cinch MIL-C-26500 / BACC (Omega) Connectors
HIGH PERFORMANCE CIRCULAR CONNECTORS
The C48 Series (MIL-C-26500/BACC 45 & 63 (Omega) Series) describes a family of connectors qualified to MIL-C-26500. While maintaining the MIL-C-26500 mating interface, this product has also been expanded to include qualifications to numerous Boeing specifications to satisfy general purpose requirements and unique product challenges for shielding, environmental sealing, fluid resistance, and vibration. The expanded Cinch C48 product family offers numerous product options qualified to Boeing high performance requirements and product solutions developed for alternate terminations styles/low-profile packaging. Part number variants include the following prefixes: Boeing callouts BACC45 & BACC63, MIL callout MS2426X, and Cinch commercial callout C48, C0909A, CN0966B, CN0966A, CN0967C, CN1020A AND CN1021A.
FEATURESCINCH MIL-DTL-26500/BACC (OMEGA) SERIES FEATURES
MATERIALS & FINISHESCINCH MIL-DTL-26500/BACC (OMEGA) SERIES MATERIALS & FINISHES
Tech Specs are for the MIL-DTL-26500 Series, refer to specific BACC specifications. Shell & Plating Shell Aluminum alloy
Plating Anodized
Contacts Copper alloy
Platings Gold-plated, 50 microinches per MIL-G-45204 Type II, Grade C, Class I
Insulator Glass Filled Epoxy
Grommet & Seals Silicone-based elastomer
ELECTRICAL DATACINCH MIL-DTL-26500/BACC (OMEGA) SERIES ELECTRICAL DATA
Contact Sizes 20, 16 and 12
Operating Voltage & Test Voltage (Unmated Condition) Operating Voltage & Test Voltage (Unmated Condition) Test Voltages Service Rating I Sea Level 1,500 Vac RMS Current Rating by Contact Size & Wire Accommodation (Test Amps) Wire Size 20 16 12 24 3.0 - - 22 5.0 - - 20 7.5 7.5 - 18 - 10.0 - 16 - 13.0 - 14 - - 17.0 12 - - 23.0 Contact Resistance of Mated Contacts End to-End Contact Size Max. Millivolt Drop 20 55 16 49 12 42 Insulation Resistance 5,000 megaohms minimum
MECHANICALCINCH MIL-DTL-26500/BACC (OMEGA) SERIES MECHANICAL
Operating Temperature -55°C to 200°C (-65°F to 392°F)
Contact Size Minimum Inches Maximum Inches Minimum MM Maximum MM 20 0.040 0.090 1.02 2.29 16 0.068 0.130 1.73 3.30 12 0.106 0.170 2.69 4.32 Insulation Strip Length Contact Size Strip Length 20 0.275 (6.99) 16 0.250 (6.35) 12 0.275 (6.99) All dimensions in inches (millimeters in parenthesis) Mating Life Threaded: 200 cycles minimum
Bayonet: 500 cycles minimum Salt Spray 96 hours
Ozone Resistance 0.015% by volume
Sine Vibration 20g at -55°C per MIL-DTL-26500G 4.6.9
Random Vibration 39.6 g rms, 48 hours
Shock 50 g rms
Contact Type Crimp, co-ax, or printed circuit
Number of Circuits 2 to 61
Contact Insertion Rear-insertion/front-extraction with high-quality metal hand tools
Contact Axial Load Newtons ±10% Axial Load Pounds ±10% 20 89 20 16 111 25 12 133 30 12 (Shielded) 133 30 Polarization Five keyways with optional master keyway rotations
(Note: insert and main keyways remain fixed) Approvals MIL-DTL-26500
CINCH MIL-DTL-26500/BACC (OMEGA) SERIES CROSS-SECTION
 |
|
CINCH MIL-DTL-26500/BACC (OMEGA) SERIES APPLICATIONS
|
CREATE PN MILITARYCINCH MIL-DTL-26500/BACC (OMEGA) SERIES MILITARY PART NUMBER EXAMPLE
1 2A 3 2B 4 5 6 MS24266R 14 T 12 S N -LC SHELL STYLE SHELL SIZE COUPLING STYLE LAYOUT CONTACT KEYING MODIFIER  Click here to download full pdf
WHEN CHOOSING LAYOUT First Number = Step 2A – Shell Size, Dash = Step 3 – Coupling Style, Second Number = 2B – Layout STEP 1: SELECT SHELL STYLE, PLUG OR RECEPTACLE
MS24264R_B MS24264R_T MS24266R_B MS24266R_T
MS24265R_B MS24265R_T
Read Less STEP 2: SELECT LAYOUT
Contacts Layout Number Service Rating Total Number 20 16 12 8 8-2 I 2 2 8-3 I 3 3 10-2S I 2 2 10-5 I 5 5 10-20 I 2 2 12-3 I 3 3 12-12 I 12 12 14-3 I 3 2 1* 14-4 I 4 4** 14-7 I 7 7 14-12 I 12 9 3 14-15 I 15 15 16-10 I 10 10 16-24 I 24 24 18-8 I 8 8** 18-11 I 11 10 1* 18-14 I 14 14 18-31 I 31 31 20-16 I 16 16 20-25 I 25 19 6** 20-28 I 28 24 4** 20-39 I 39 37 2 20-41 I 41 41 22-12 I 12 12** 22-19 I 19 19 22-32 I 32 26 6** 22-55 I 55 55 24-43 I 43 23 20 24-57 I 57 55 2** 24-61 I 61 61 * Shielded Contact (-LC for Pin Insert Only, M39029 Pin QPLD not available) ** Power Contact supplied, can be interchanged with Shielded contact S = Socket Insert Only LAYOUTS BY NUMBER OF CONTACTS
View of Mating-Face of Pin InsertDrawing not to scale; mating face view of pin insert shown (socket view is opposite) 2 Contacts 3
Layout 8-2 10-2S 10-20 8-3 12-3 14-3 # of Contacts 2#20 2#20 2#16 3-#20 3-#16 2#16, 1#8 Service Rating I I I I I I 4 5 7 8 10 11
Layout 14-4 10-5 14-7 18-8 16-10 18-11 # of Contacts 4#12 5#20 7#16 8#12 10#16 10#16, 1#8 Service Rating I I I I I I 12 Contacts 14 15 16
Layout 12-12 14-12 22-12 18-14 14-15 20-16 # of Contacts 12#20 9#20, 3#16 12#12 14#16 15#20 16#16 Service Rating I I I I I I 19 24 25 28 31 32
Layout 22-19 16-24 20-25 20-28 18-31 22-32 # of Contacts 19#16 24#20 19#20, 6#12 24#20, 4#12 31#20 26#20, 6#12 Service Rating I I I I I I 39 41 43 55 57 61
Layout 20-39 20-41 24-43 22-55 24-57 24-61 # of Contacts 39#20 41#20 23#20, 20#16 55#20 55#20, 2#12 61#20 Service Rating I I I I I I S = Socket Insert Only Read Less STEP 3: SELECT COUPLING TYPE
STEP 4: SELECT CONTACT
STEP 5: SELECT KEYING
Normal For Connector Size 8 and 10 For Connector Size 12, 14, 16, 18, 20, 22, 24, and 28 Polarizations A B C D A B C D Normal (N) 105° 140° 215° 265° 105° 140° 215° 265° 6 102° 132° 248° 320° 18° 149° 192° 259° 7 80° 118° 230° 312° 92° 152° 222° 342° 8 35° 140° 205° 275° 84° 152° 204° 334° 9 64° 155° 234° 304° 24° 135° 199° 240° 10 or Y* 25° 115° 220° 270° 98° 152° 268° 338° *Not available in Size 8 Connector. See individual part number systems. Read Less STEP 6: SELECT MODIFIER
LC = less contacts, wire hole fillers. (Purchase Order must state Less Contacts) BACC45FS & BACC45FMCINCH MIL-DTL-26500/BACC (OMEGA) SERIES BACC45FS & FM THREADED (ANODIZED PLATED) PART NUMBER EXAMPLE
1 2A 3 2B 4 5 6 BACC45FM 16 - 24 S 6 H SHELL STYLE SHELL SIZE CABLE CLAMP LAYOUT CONTACT KEYING MODIFIER Click here to download full pdf
WHEN CHOOSING LAYOUT First Number = Step 2A – Shell Size, Dash = Step 3 – Cable Clamp, Second Number = 2B – Layout STEP 1: SELECT SHELL STYLE, PLUG OR RECEPTACLE
BACC45FM BACC45FS STEP 2: SELECT LAYOUT
Contacts Layout Number Service Rating Total Number 20 16 12 (1) 8 (2) 10-5 I 5 5 12-3 I 3 3 12-12 I 12 12 14-3 I 3 2 1* 14-4 I 4 4** 14-7 I 7 7 14-15 I 15 15 16-10 I 10 10 16-24 I 24 24 18-8 I 8 8** 18-11 I 11 10 1* 18-14 I 14 14 18-31 I 31 31 22-12 I 12 12** 22-19 I 19 19 22-55 I 55 55 * Shielded Contact Supplied ** Power Contact supplied, can be interchanged with Shielded contact (Boeing Size) Reference Read Less STEP 3: SELECT CABLE CLAMP
- = No Cable Clamp
C = MS27291 Straight Saddle Clamp STEP 4: SELECT CONTACT
STEP 5: SELECT KEYING
Mating Face Shell Size Polarization A B C D
Normal 6 7 8 9 10 105° 102° 80° 35° 64° 25° 140° 132° 118° 140° 155° 115° 215° 248° 230° 205° 234° 220° 265° 320° 312° 275° 304° 270° Shell Size Polarization A B C D
Normal 6 7 8 9 10 105° 18° 92° 84° 24° 98° 140° 149° 152° 152° 135° 152° 215° 192° 222° 204° 199° 268° 265° 259° 342° 334° 240° 338° STEP 6: SELECT MODIFIER
H = Without contacts and Seal Plugs Blank = With contacts and Seal Plugs Read Less BACC THREADED MATING GUIDE
BACC Threaded Mating Guide
= Per Boeing Spec
= Test purpose only Read Less BACC63BV THREADEDCINCH MIL-DTL-26500/BACC (OMEGA) SERIES BACC63BV THREADED RECEPTACLE HIGH VIBRATION PART NUMBER EXAMPLE
1 2A 3 2B 4 5 6 BACC63BV 16 H 24 S 6 H SHELL STYLE SHELL SIZE PLATING/ LAYOUT CONTACT KEYING MODIFIER Click here to download full pdf
WHEN CHOOSING LAYOUT First Number = Step 2A – Shell Size, Dash = Step 3 – Plating/Material, Second Number = 2B – Layout STEP 1: SELECT SHELL STYLE, PLUG OR RECEPTACLE
BACC63BV BACC63BP STEP 2: SELECT LAYOUT
Contacts Layout Number Service Rating Total Number 20 16 12 (1) 8 (2) 8-3 I 3 3 10-2 I 2 2 10-5 I 5 5 10-20 I 2 2 12-3 I 3 3 12-12 I 12 12 14-3 I 3 2 1* 14-4 I 4 4** 14-7 I 7 7 14-12 I 12 9 3 14-15 I 15 15 16-10 I 10 10 16-24 I 24 24 18-8 I 8 8** 18-11 I 11 10 1* 18-14 I 14 14 18-31 I 31 31 20-16 I 16 16 20-25 I 25 19 6** 20-28 I 28 24 4** 20-39 I 39 37 2 20-41 I 41 41 22-12 I 12 12** 22-19 I 19 19 22-32 I 32 26 6** 22-55 I 55 55 24-30 I 30 30 24-43 I 43 23 20 24-57 I 57 55 2** 24-61 I 61 61 28-42 I 42 42 * Shielded Contact Supplied ** Power Contact supplied, can be interchanged with Shielded contact (Boeing Size) Reference Read Less STEP 3: SELECT PLATING / MATERIAL
A = Anodized Aluminum with Rear Accessory Teeth Per MS3155 (Inactive Superseded by H) Read Less STEP 4: SELECT CONTACT
STEP 5: SELECT KEYING
Mating Face of Receptacle Shell Size Polarization A B C D
Normal 6 7 8 9 105° 102° 80° 35° 64° 140° 132° 118° 140° 155° 215° 248° 230° 205° 234° 265° 320° 312° 275° 304° 10 10 25° 115° 220° 270° Shell Size Polarization A B C D
Normal 6 7 8 9 10 105° 18° 92° 84° 24° 98° 140° 149° 152° 152° 135° 152° 215° 192° 222° 204° 199° 268° 265° 259° 342° 334° 240° 338° Read Less STEP 6: SELECT MODIFIER
H = Without contacts and Seal Plugs Blank = With contacts and Seal Plugs Read Less BACC THREADED MATING GUIDE
BACC Threaded Mating Guide
= Per Boeing Spec
= Test purpose only Read Less BACC63BP THREADEDCINCH MIL-DTL-26500/BACC (OMEGA) SERIES BACC63BP THREADED PLUG - SELF LOCKING PART NUMBER EXAMPLE
1 2A 3 2B 4 5 6 BACC63BP 16 H 24 P 6 H SHELL STYLE SHELL SIZE PLATING/ LAYOUT CONTACT KEYING MODIFIER Click here to download full pdf
WHEN CHOOSING LAYOUT First Number = Step 2A – Shell Size, Dash = Step 3 – Plating/Material, Second Number = 2B – Layout STEP 1: SELECT SHELL STYLE, PLUG OR RECEPTACLE
BACC63BV BACC63BP STEP 2: SELECT LAYOUT
Contacts Layout Number Service Rating Total Number 20 16 12 (1) 8 (2) 8-3 I 3 3 10-2 I 2 2 10-5 I 5 5 10-20 I 2 2 12-3 I 3 3 12-12 I 12 12 14-3 I 3 2 1* 14-4 I 4 4** 14-7 I 7 7 14-12 I 12 9 3 14-15 I 15 15 16-10 I 10 10 16-24 I 24 24 18-8 I 8 8** 18-11 I 11 10 1* 18-14 I 14 14 18-31 I 31 31 20-16 I 16 16 20-25 I 25 19 6** 20-28 I 28 24 4** 20-39 I 39 37 2 20-41 I 41 41 22-12 I 12 12** 22-19 I 19 19 22-32 I 32 26 6** 22-55 I 55 55 24-30 I 30 30 24-43 I 43 23 20 24-57 I 57 55 2** 24-61 I 61 61 28-42 I 42 42 * Shielded Contact Supplied ** Power Contact supplied, can be interchanged with Shielded contact (Boeing Size) Reference Read Less STEP 3: SELECT PLATING / MATERIAL
A = Anodized Aluminum with Rear Accessory Teeth Per MS3155 (Inactive Superseded by H) Read Less STEP 4: SELECT CONTACT
STEP 5: SELECT KEYING
Mating Face Shell Size Polarization A B C D
Normal 6 7 8 9 105° 102° 80° 35° 64° 140° 132° 118° 140° 155° 215° 248° 230° 205° 234° 265° 320° 312° 275° 304° 10 10 25° 115° 220° 270° Shell Size Polarization A B C D
Normal 6 7 8 9 10 105° 18° 92° 84° 24° 98° 140° 149° 152° 152° 135° 152° 215° 192° 222° 204° 199° 268° 265° 259° 342° 334° 240° 338° Read Less STEP 6: SELECT MODIFIER
H = Without contacts and Seal Plugs Blank = With contacts and Seal Plugs Read Less BACC THREADED MATING GUIDE
BACC Threaded Mating Guide
= Per Boeing Spec
= Test purpose only Read Less BACC45FN & BACC45FTCINCH MIL-DTL-26500/BACC (OMEGA) SERIES BACC45FN & FT BAYONET (ANODIZED PLATED) PART NUMBER EXAMPLE
1 2A 3 2B 4 5 6 BACC45FN 20 - 41 S 6 H SHELL STYLE SHELL SIZE CABLE CLAMP LAYOUT CONTACT KEYING MODIFIER Click here to download full pdf
WHEN CHOOSING LAYOUT First Number = Step 2A – Shell Size, Dash = Step 3 – Cable Clamp, Second Number = 2B – Layout STEP 1: SELECT SHELL STYLE, PLUG OR RECEPTACLE
BACC45FN BACC45FT STEP 2: SELECT LAYOUT
Contacts Layout Number Service Rating Total Number 20 16 12 (2) 8 (1) 8-2 I 2 2 8-3 I 3 3 10-2A I 2 2 10-5 I 5 5 10-20 I 2 2 12-3 I 3 3 12-12 I 12 12 14-3 I 3 2 1* 14-4 I 4 4** 14-7 I 7 7 14-12 I 12 9 3 14-15 I 15 15 16-10 I 10 10 16-24 I 24 24 18-8 I 8 8** 18-11 I 11 10 1* 18-14 I 14 14 18-31 I 31 31 20-16 I 16 16 20-25 I 25 19 6** 20-28 I 28 24 4** 20-39 I 39 37 2 20-41 I 41 41 22-12 I 12 12** 22-19 I 19 19 22-32 I 32 26 6** 22-55 I 55 55 24-43 I 43 23 20 24-57 I 57 55 2** 24-61 I 61 61 * Shielded Contact Supplied ** Power Contact supplied, can be interchanged with Shielded contact (Boeing Size) Reference Read Less STEP 3: SELECT CABLE CLAMP
- = No Cable Clamp
C = MS27291 Straight Saddle Clamp STEP 4: SELECT CONTACT
STEP 5: SELECT KEYING
Mating Face N = Normal Standard Mating Face 8 = Check for Availability Bayonet Pin Location Shell Size Polarization A B C D E F G
Normal 6 7 8 9 105° 102° 80° 35° 64° 140° 132° 118° 140° 155° 215° 248° 230° 205° 234° 265° 320° 312° 275° 304° 60° 46° 46° 60° 89° 180° 166° 166° 180° 209° 300° 286° 286° 300° 329° 10 10 25° 115° 220° 270° 60° 180° 300° Bayonet Pin Location Shell Size Polarization A B C D E F G
Normal 6 7 8 9 10 105° 18° 92° 84° 24° 98° 140° 149° 152° 152° 135° 152° 215° 192° 222° 204° 199° 268° 265° 259° 342° 334° 240° 338°
Read Less STEP 6: SELECT MODIFIER
H = Without contacts and Seal Plugs Blank = With contacts and Seal Plugs Read Less BACC BAYONET MATING GUIDE
BACC Bayonet Mating Guide
= Per Boeing Spec
= Test purpose only Read Less BACC63CC BAYONETCINCH MIL-DTL-26500/BACC (OMEGA) SERIES BACC63CC BAYONET (BRIGHT CADMIUM PLATE OVER NICKEL) PART NUMBER EXAMPLE
1 2 3 4 5 BACC63CC 20-41 S 7 H SHELL STYLE SHELL SIZE-LAYOUT CONTACT KEYING MODIFIER Click here to download full pdf
STEP 1: SELECT SHELL STYLE, PLUG OR RECEPTACLE
BACC63CC BACC63CB STEP 2: SELECT LAYOUT
Contacts Layout Number Service Rating Total Number 20 16 12 (2) 8 (1) 8-2 I 2 2 8-3 I 3 3 10-2A I 2 2 10-5 I 5 5 10-20 I 2 2 12-3 I 3 3 12-12 I 12 12 14-3 I 3 2 1* 14-4 I 4 4** 14-7 I 7 7 14-12 I 12 9 3 14-15 I 15 15 16-10 I 10 10 16-24 I 24 24 18-8 I 8 8** 18-11 I 11 10 1* 18-14 I 14 14 18-31 I 31 31 20-16 I 16 16 20-25 I 25 19 6** 20-28 I 28 24 4** 20-39 I 39 37 2 20-41 I 41 41 22-12 I 12 12** 22-19 I 19 19 22-32 I 32 26 6** 22-55 I 55 55 24-30 I 30 30 24-43 I 43 23 20 24-57 I 57 55 2** 24-61 I 61 61 28-42 I 42 42 * Shielded Contact Supplied ** Power Contact supplied, can be interchanged with Shielded contact (Boeing Size) Reference Read Less STEP 3: SELECT CONTACT
STEP 4: SELECT KEYING
Mating Face N = Normal Standard Mating Face 8 = Check for Availability Bayonet Pin Location Shell Size Polarization A B C D E F G
Normal 6 7 8 9 105° 102° 80° 35° 64° 140° 132° 118° 140° 155° 215° 248° 230° 205° 234° 265° 320° 312° 275° 304° 60° 46° 46° 60° 89° 180° 166° 166° 180° 209° 300° 286° 286° 300° 329° 10 10 25° 115° 220° 270° 60° 180° 300° Bayonet Pin Location Shell Size Polarization A B C D E F G
Normal 6 7 8 9 10 105° 18° 92° 84° 24° 98° 140° 149° 152° 152° 135° 152° 215° 192° 222° 204° 199° 268° 265° 259° 342° 334° 240° 338°
Read Less STEP 5: SELECT MODIFIER
H = Without contacts and Seal Plugs Blank = With contacts and Seal Plugs Read Less BACC BAYONET MATING GUIDE
BACC Bayonet Mating Guide
= Per Boeing Spec
= Test purpose only Read Less BACC63BN BAYONETCINCH MIL-DTL-26500/BACC (OMEGA) SERIES BACC63BN BAYONET (ANODIZED PLATING ONLY) PART NUMBER EXAMPLE
1 2A 3 2B 4 5 6 BACC63BN 20 - 41 P 6 H SHELL STYLE SHELL SIZE CABLE CLAMP LAYOUT CONTACT KEYING MODIFIER Click here to download full pdf
WHEN CHOOSING LAYOUT First Number = Step 2A – Shell Size, Dash = Step 3 – Cable Clamp, Second Number = 2B – Layout STEP 1: SELECT SHELL STYLE, PLUG OR RECEPTACLE
BACC45FN BACC63CC BACC63BN
MS24264R MS24265R Read Less STEP 2: SELECT LAYOUT
Contacts Layout Number Service Rating Total Number 20 16 12 (2) 8-2 I 2 2 8-3 I 3 3 10-2A I 2 2 10-5 I 5 5 10-20 I 2 2 12-3 I 3 3 12-12 I 12 12 14-4 I 4 4** 14-7 I 7 7 14-12 I 12 9 3 14-15 I 15 15 16-10 I 10 10 16-24 I 24 24 18-8 I 8 8** 18-14 I 14 14 18-31 I 31 31 20-16 I 16 16 20-25 I 25 19 6** 20-28 I 28 24 4** 20-39 I 39 37 2 20-41 I 41 41 22-12 I 12 12** 22-19 I 19 19 22-32 I 32 26 6** 22-55 I 55 55 24-43 I 43 23 20 24-61 I 61 61 ** Power Contact supplied, can be interchanged with Shielded contact (Boeing Size) Reference Read Less STEP 3: SELECT CABLE CLAMP
STEP 4: SELECT CONTACT
STEP 5: SELECT KEYING
Mating Face Shell Size Polarization A B C D
Normal 6 7 8 9 105° 102° 80° 35° 64° 140° 132° 118° 140° 155° 215° 248° 230° 205° 234° 265° 320° 312° 275° 304° 10 10 25° 115° 220° 270° Shell Size Polarization A B C D
Normal 6 7 8 9 10 105° 18° 92° 84° 24° 98° 140° 149° 152° 152° 135° 152° 215° 192° 222° 204° 199° 268° 265° 259° 342° 334° 240° 338° Read Less STEP 6: SELECT MODIFIER
H = Without contacts and Seal Plugs Blank = With contacts and Seal Plugs Read Less BACC BAYONET MATING GUIDE
BACC Bayonet Mating Guide
= Per Boeing Spec
= Test purpose only Read Less BACC63CB BAYONETCINCH MIL-DTL-26500/BACC (OMEGA) SERIES BACC63CB BAYONET PART NUMBER EXAMPLE
1 2A 3 2B 4 5 6 BACC63CB 20 - 41 P 7 H SHELL STYLE SHELL SIZE PLATING/ LAYOUT CONTACT KEYING MODIFIER Click here to download full pdf
WHEN CHOOSING LAYOUT First Number = Step 2A – Shell Size, Dash = Step 3 – Plating/Material, Second Number = 2B – Layout STEP 1: SELECT SHELL STYLE, PLUG OR RECEPTACLE
BACC63CC BACC63CB STEP 2: SELECT LAYOUT
Contacts Layout Number Service Rating Total Number 20 16 12 (2) 8 (1) 8-2 I 2 2 8-3 I 3 3 10-2A I 2 2 10-5 I 5 5 10-20 I 2 2 12-3 I 3 3 12-12 I 12 12 14-3 I 3 2 1* 14-4 I 4 4** 14-7 I 7 7 14-12 I 12 9 3 14-15 I 15 15 16-10 I 10 10 16-24 I 24 24 18-8 I 8 8** 18-11 I 11 10 1* 18-14 I 14 14 18-31 I 31 31 20-16 I 16 16 20-25 I 25 19 6** 20-28 I 28 24 4** 20-39 I 39 37 2 20-41 I 41 41 22-12 I 12 12** 22-19 I 19 19 22-32 I 32 26 6** 22-55 I 55 55 24-30 I 30 30 24-43 I 43 23 20 24-57 I 57 55 2** 24-61 I 61 61 28-42 I 42 42 * Shielded Contact Supplied ** Power Contact supplied, can be interchanged with Shielded contact (Boeing Size) Reference Read Less STEP 3: SELECT PLATING/MATERIAL
STEP 4: SELECT CONTACT
STEP 5: SELECT KEYING
Mating Face of Receptacle Shell Size Polarization A B C D
Normal 6 7 8 9 105° 102° 80° 35° 64° 140° 132° 118° 140° 155° 215° 248° 230° 205° 234° 265° 320° 312° 275° 304° 10 10 25° 115° 220° 270° Shell Size Polarization A B C D
Normal 6 7 8 9 10 105° 18° 92° 84° 24° 98° 140° 149° 152° 152° 135° 152° 215° 192° 222° 204° 199° 268° 265° 259° 342° 334° 240° 338° Read Less STEP 6: SELECT MODIFIER
H = Without contacts and Seal Plugs Blank = With contacts and Seal Plugs Read Less BACC BAYONET MATING GUIDE
BACC Bayonet Mating Guide
= Per Boeing Spec
= Test purpose only Read Less |
MIL SPEC CONTACTSCINCH MIL-DTL-26500/BACC (OMEGA) SERIES CONTACTS — MIL SPEC - PINS
MIL-DTL-26500 (MS2426_) Pins Size Wire Size Part Number Color Bands Color Bands Color Bands Strip Hole Filler Hole Filler 20 20-24 M39029/31-627 Blue Red Violet 0.275 MS27488-20-2 Red 16 16-20 M39029/31-229 Red Red White 0.250 MS27488-16-2 Blue 12 12-14 M39029/31-235 Red Orange Green 0.275 MS27488-12-2 Yellow
MIL-DTL-26500 (MS2426_) Coaxial Size Cable Part Number Color Bands Color Bands Color Bands Strip Hole Filler Hole Filler 12 - M39029/54-342 Orange Yellow Red MS27488-12-2 Yellow 8 - 10-60479-41 Orange Yellow Orange MS27488-8-3 Red All dimensions in inches (millimeters in parentheses) unless otherwise stated. CINCH MIL-DTL-26500/BACC (OMEGA) SERIES CONTACTS — MIL SPEC - SOCKETS
MIL-DTL-26500 (MS2426_) Sockets Size Wire Size Part Number Color Bands Color Bands Color Bands Strip Hole Filler Hole Filler 20 20-24 M39029/32-260 Red Blue Black 0.275 MS27488-20-2 Red 16 16-20 M39029/32-248 Red Yellow Gray 0.250 MS27488-16-2 Blue 12 12-14 M39029/32-254 Red Green Yellow 0.275 MS27488-12-2 Yellow
MIL-DTL-26500 (MS2426_) Coaxial Size Cable Part Number Color Bands Color Bands Color Bands Strip Hole Filler Hole Filler 12 - M39029/55-344 Orange Yellow Yellow MS27488-12-2 Yellow 8 - M39029/55-345 Orange Yellow Green MS27488-8-3 Red All dimensions in inches (millimeters in parentheses) unless otherwise stated. MIL SPEC TOOLSCINCH MIL-DTL-26500/BACC (OMEGA) SERIES TOOLS — MIL SPEC - PINS
MIL-DTL-26500 (MS2426_) Pins Crimp Tools Insertion/Extraction Size Hand Crimp Power Turret Color Use Metal Insertion Tool Metal Extraction Tool 20 M22520/1-01 WA27F M22520/1-02 Red M81969/17-03 M81969/19-07 16 M22520/1-01 WA27F M22520/1-02 Blue M81969/17-04 M81969/19-08 12 M22520/1-01 WA27F M22520/1-02 Yellow M81969/17-05 M81969/19-09
MIL-DTL-26500 (MS2426_) Coaxial Crimp Tools Insertion/Extraction Size Hand Crimp Turret/ Hand Crimp Outer Crimping Die Metal Insertion Tool Metal Extraction Tool 12 M22520/ M22520/ M22520/ M22520/ M81969/ M81969/ 8 M22520/ M22520/ M22520/ M22520/ M81969/ M81969/ CINCH MIL-DTL-26500/BACC (OMEGA) SERIES TOOLS — MIL SPEC - SOCKETS
MIL-DTL-26500 (MS2426_) Sockets Crimp Tools Insertion/Extraction Size Hand Crimp Power Turret Color Use Metal Insertion Tool Metal Extraction Tool 20 M22520/1-01 WA27F M22520/1-02 Red M81969/17-03 M81969/19-07 16 M22520/1-01 WA27F M22520/1-02 Blue M81969/17-04 M81969/19-08 12 M22520/1-01 WA27F M22520/1-02 Yellow M81969/17-05 M81969/19-09
MIL-DTL-26500 (MS2426_) Coaxial Crimp Tools Insertion/Extraction Size Hand Crimp Turret/ Hand Crimp Outer Crimping Die Metal Insertion Tool Metal Extraction Tool 12 M22520/ M22520/ M22520/ M22520/ M81969/ M81969/ 8 M22520/ M22520/ M22520/ M22520/ M81969/ M81969/ BACC45 & BACC63 CONTACTSCINCH MIL-DTL-26500/BACC (OMEGA) SERIES CONTACTS — BACC - PINS
BACC45 & BACC63 Pins Size Wire Size Part Number Strip Length Hole Filler Hole Filler 20 20-24 BACC47CN1S 0.275 (6.99) MS27488-20-2 Red 16 16-20 BACC47CN2S 0.250 (6.35) MS27488-16-2 Blue 12 12-14 BACC47CN3S 0.275 (6.99) MS27488-12-2 Yellow
BACC45 & BACC63 Coaxial Size Wire Size Part Number Strip Length Hole Filler Hole Filler 1 Shielded - BACC47EX1 MS27488-12-2 Yellow 2 Shielded - BACC47EX2 MS27488-8-3 Red All dimensions in inches (millimeters in parentheses) unless otherwise stated. CINCH MIL-DTL-26500/BACC (OMEGA) SERIES CONTACTS — BACC - SOCKETS
BACC45 & BACC63 Sockets Size Wire Size Part Number Strip Length Hole Filler Hole Filler 20 20-24 BACC47CP1S 0.275 (6.99) MS27488-20-2 Red 16 16-20 BACC47CP2S 0.250 (6.35) MS27488-16-2 Blue 12 12-14 BACC47CP3S 0.275 (6.99) MS27488-12-2 Yellow
BACC45 & BACC63 Coaxial Size Wire Size Part Number Strip Length Hole Filler Hole Filler 1 Shielded - BACC47EZ1 MS27488-12-2 Yellow 2 Shielded - BACC47EZ2 MS27488-8-3 Red All dimensions in inches (millimeters in parentheses) unless otherwise stated. BACC45 & BACC63 TOOLSCINCH MIL-DTL-26500/BACC (OMEGA) SERIES TOOLS — BACC - PINS
BACC45 & BACC63 Pins Crimp Tools Insertion/Extraction Size Hand Crimp Power Crimp Turret Color Use Metal Insertion Metal Extraction 20 M22520/1-01 WA27F M22520/1-02 Yellow M81969/17-03 M81969/19-07 16 M22520/1-01 WA27F M22520/1-02 Yellow M81969/17-04 M81969/19-08 12 M22520/1-01 WA27F M22520/1-02 Yellow M81969/17-05 M81969/19-09
BACC45 & BACC63 Coaxial Crimp Tools Insertion/Extraction Size Hand Crimp Turret/ Hand Crimp Crimping Metal Insertion Metal Extraction 1 Shielded M22520/ M22520/ M22520/ M22520/ M81969/ M81969/ 2 Shielded M22520/ M22520/ M22520/ M22520/ M81969/ M81969/ CINCH MIL-DTL-26500/BACC (OMEGA) SERIES TOOLS — BACC - SOCKETS
BACC45 & BACC63 Sockets Crimp Tools Insertion/Extraction Size Hand Crimp Power Crimp Turret Color Use Metal Insertion Metal Extraction 20 M22520/1-01 WA27F M22520/1-02 Red M81969/17-03 M81969/19-07 16 M22520/1-01 WA27F M22520/1-02 Blue M81969/17-04 M81969/19-08 12 M22520/1-01 WA27F M22520/1-02 Yellow M81969/17-05 M81969/19-09
BACC45 & BACC63 Coaxial Crimp Tools Insertion/Extraction Size Hand Crimp Turret/ Hand Crimp Crimping Metal Insertion Metal Extraction 1 Shielded M22520/ M22520/ M22520/ M22520/ M81969/ M81969/ 2 Shielded M22520/ M22520/ M22520/ M22520/ M81969/ M81969/ |
PLUGSCINCH MIL-DTL-26500/BACC (OMEGA) SERIES THREADED COUPLING PLUGS
Threaded Coupling MS24266RxxTxxxx BACC45FS*
Shell Size A Dia. B Dia. C Max. D Thread UNEF-2A 08 0.328 (8.33) 0.437 (11.10) 0.776 (19.71) 0.437-28 10 0.420 (10.67) 0.562 (14.27) 0.906 (23.01) 0.562-24 12 0.580 (14.73) 0.750 (19.05) 1.078 (27.38) 0.750-20 14 0.664 (16.87) 0.812 (20.62) 1.141 (28.98) 0.812-20 16 0.769 (19.53) 0.938 (23.83) 1.266 (32.16) 0.937-20 18 0.903 (22.94) 1.062 (26.97) 1.375 (34.93) 1.062-18 20 1.033 (26.24) 1.182 (30.02) 1.510 (38.35) 1.187-18 22 1.152 (29.26) 1.312 (33.32) 1.625 (41.28) 1.312-18 24 1.128 (28.66) 1.432 (36.37) 1.760 (44.70) 1.437-18 * Refer to Boeing Specifications All dimensions in inches (millimeters in parentheses) CINCH MIL-DTL-26500/BACC (OMEGA) SERIES BAYONET COUPLING PLUGS
Bayonet Coupling MS24266RxxBxxxx BACC45FT*
Shell Size A Dia. B Dia. C Max. D Thread UNEF-2A 08 0.328 (8.33) 0.437 (11.10) 0.776 (19.71) 0.437-28 10 0.420 (10.67) 0.562 (14.27) 0.906 (23.01) 0.562-24 12 0.580 (14.73) 0.750 (19.05) 1.078 (27.38) 0.750-20 14 0.664 (16.87) 0.812 (20.62) 1.141 (28.98) 0.812-20 16 0.769 (19.53) 0.938 (23.83) 1.266 (32.16) 0.937-20 18 0.903 (22.94) 1.062 (26.97) 1.375 (34.93) 1.062-18 20 1.033 (26.24) 1.182 (30.02) 1.510 (38.35) 1.187-18 22 1.152 (29.26) 1.312 (33.32) 1.625 (41.28) 1.312-18 24 1.128 (28.66) 1.432 (36.37) 1.760 (44.70) 1.437-18 *Refer to Boeing Specifications All dimensions in inches (millimeters in parentheses) RECEPTACLESCINCH MIL-DTL-26500/BACC (OMEGA) SERIES SQUARE FLANGE, THREADED COUPLING RECEPTACLES
Square Flange Threaded Coupling MS24264RxxTxxxx BACC45FM*
Shell Size A +/- 0.005 (0.127) B +/- 0.005 (0.127) C Max. Dia. D Max. F Max. G Thread UNEF-2A H Thread UNEF-2A J Min. K Min. 08 0.812 (20.62) 0.594 (15.09) 0.125 (3.18) 0.561 (14.25) 0.437 (11.10) 0.562-24 0.437-28 0.620 (15.75) 0.447 (11.35) 10 0.937 (23.80) 0.719 (18.26) 0.125 (3.18) 0.696 (17.68) 0.562 (14.27) 0.687-24 0.562-24 0.748 (19.00) 0.572 (14.53) 12 1.031 (26.19) 0.812 (20.62) 0.125 (3.18) 0.875 (22.23) 0.750 (19.05) 0.875-20 0.750-20 0.913 (23.19) 0.760 (19.30) 14 1.125 (28.58) 0.906 (23.01) 0.125 (3.18) 0.935 (23.75) 0.812 (20.62) 0.937-20 0.812-20 0.980 (24.89) 0.822 (20.88) 16 1.250 (31.75) 0.969 (24.61) 0.125 (3.18) 1.062 (26.97) 0.938 (23.83) 1.062-18 0.937-20 1.107 (28.12) 0.948 (24.08) 18 1.343 (34.11) 1.062 (26.97) 0.125 (3.18) 1.187 (30.15) 1.062 (26.97) 1.187-18 1.062-18 1.209 (30.71) 1.072 (27.23) 20 1.437 (36.50) 1.156 (29.36) 0.125 (3.18) 1.312 (33.32) 1.182 (30.02) 1.312-18 1.187-18 1.337 (33.96) 1.192 (30.28) 22 1.562 (39.67) 1.250 (31.75) 0.125 (3.18) 1.437 (36.50) 1.312 (33.32) 1.437-18 1.312-18 1.452 (36.88) 1.322 (33.58) 24 1.703 (43.26) 1.375 (34.93) 0.154 (3.91) 1.562 (39.67) 1.432 (36.37) 1.562-18 1.437-18 1.577 (40.06) 1.442 (36.63) * Refer to Boeing Specifications All dimensions in inches (millimeters in parentheses) CINCH MIL-DTL-26500/BACC (OMEGA) SERIES SQUARE FLANGE, BAYONET COUPLING RECEPTACLES
Square Flange Bayonet Coupling MS24264RxxBxxxx BACC45FN*
Shell Size A +/- 0.005 (0.127) B +/- 0.005 (0.127) C Max. Dia. D Max. F Max. H Thread UNEF-2A J Min. K Min. 08 0.812 (20.62) 0.594 (15.09) 0.125 (3.18) 0.561 (14.25) 0.437 (11.10) 0.437-28 0.620 (15.75) 0.447 (11.35) 10 0.937 (23.80) 0.719 (18.26) 0.125 (3.18) 0.696 (17.68) 0.562 (14.27) 0.562-24 0.748 (19.00) 0.572 (14.53) 12 1.031 (26.19) 0.812 (20.62) 0.125 (3.18) 0.875 (22.23) 0.750 (19.05) 0.750-20 0.913 (23.19) 0.760 (19.30) 14 1.125 (28.58) 0.906 (23.01) 0.125 (3.18) 0.935 (23.75) 0.812 (20.62) 0.812-20 0.980 (24.89) 0.822 (20.88) 16 1.250 (31.75) 0.969 (24.61) 0.125 (3.18) 1.062 (26.97) 0.938 (23.83) 0.937-20 1.107 (28.12) 0.948 (24.08) 18 1.343 (34.11) 1.062 (26.97) 0.125 (3.18) 1.187 (30.15) 1.062 (26.97) 1.062-18 1.209 (30.71) 1.072 (27.23) 20 1.437 (36.50) 1.156 (29.36) 0.125 (3.18) 1.312 (33.32) 1.182 (30.02) 1.187-18 1.337 (33.96) 1.192 (30.28) 22 1.562 (39.67) 1.250 (31.75) 0.125 (3.18) 1.437 (36.50) 1.312 (33.32) 1.312-18 1.452 (36.88) 1.322 (33.58) 24 1.703 (43.26) 1.375 (34.93) 0.154 (3.91) 1.562 (39.67) 1.432 (36.37) 1.437-18 1.577 (40.06) 1.442 (36.63) * Refer to Boeing Specifications All dimensions in inches (millimeters in parentheses) CINCH MIL-DTL-26500/BACC (OMEGA) SERIES JAM NUT, THREADED COUPLING RECEPTACLES
Jam Nut Threaded Coupling MS24265RxxTxxxx
Shell Size A +/- 0.005 (0.127) B Max. C +/- 0.003 (0.076) D Max. E Max. Dia. G Max. H Thread UNEF-2A J Thread UNEF-2A K Thread UNEF-2A 08 0.979 (24.87) 0.828 (21.03) 0.593 (15.06) 1.068 (27.13) 0.561 (14.25) 0.437 (11.10) 0.562-24 0.625-20** 0.437-28 10 1.104 (28.04) 0.953 (24.21) 0.718 (18.24) 1.192 (30.28) 0.696 (17.68) 0.562 (14.27) 0.687-24 0.750-20 0.562-24 12 1.291 (32.79) 1.140 (28.96) 0.905 (22.99) 1.380 (35.05) 0.875 (22.23) 0.750 (19.05) 0.875-20 0.937-20 0.750-20 14 1.391 (35.33) 1.250 (31.75) 0.968 (24.59) 1.505 (38.23) 0.935 (23.75) 0.812 (20.62) 0.937-20 1.000-20 0.812-20 16 1.516 (38.51) 1.329 (33.76) 1.093 (27.76) 1.630 (41.40) 1.062 (26.97) 0.938 (23.83) 1.062-18 1.125-20** 0.937-20 18 1.641 (41.68) 1.455 (36.96) 1.217 (30.91) 1.740 (44.20) 1.187 (30.15) 1.062 (26.97) 1.187-18 1.250-20** 1.062-18 20 1.766 (44.86) 1.642 (41.71) 1.342 (34.09) 1.860 (47.24) 1.312 (33.32) 1.182 (30.02) 1.312-18 1.375-18 1.187-18 22 1.954 (49.63) 1.705 (43.31) 1.467 (37.26) 2.040 (51.82) 1.437 (36.50) 1.312 (33.32) 1.437-18 1.500-20** 1.312-18 24 2.079 (52.81) 1.892 (48.06) 1.592 (40.44) 2.160 (54.86) 1.562 (39.67) 1.432 (36.37) 1.562-18 1.625-18 1.437-18 **Thread UN-2A CINCH MIL-DTL-26500/BACC (OMEGA) SERIES JAM NUT, BAYONET COUPLING RECEPTACLES
Jam Nut Bayonet Coupling MS24265RxxBxxxx
Shell Size A +/- 0.005 (0.127) B Max. Hex. C +/- 0.003 (0.076) D Max. E Max. Dia. G Max. J Thread UNEF-2A K Thread UNEF-2A 08 0.979 (24.87) 0.828 (21.03) 0.593 (15.06) 1.068 (27.13) 0.561 (14.25) 0.437 (11.10) 0.625-20** 0.437-28 10 1.104 (28.04) 0.953 (24.21) 0.718 (18.24) 1.192 (30.28) 0.696 (17.68) 0.562 (14.27) 0.750-20 0.562-24 12 1.291 (32.79) 1.140 (28.96) 0.905 (22.99) 1.380 (35.05) 0.875 (22.23) 0.750 (19.05) 0.937-20 0.750-20 14 1.391 (35.33) 1.250 (31.75) 0.968 (24.59) 1.505 (38.23) 0.935 (23.75) 0.812 (20.62) 1.000-20 0.812-20 16 1.516 (38.51) 1.329 (33.76) 1.093 (27.76) 1.630 (41.40) 1.062 (26.97) 0.938 (23.83) 1.125-20** 0.937-20 18 1.641 (41.68) 1.455 (36.96) 1.217 (30.91) 1.740 (44.20) 1.187 (30.15) 1.062 (26.97) 1.250-20** 1.062-18 20 1.766 (44.86) 1.642 (41.71) 1.342 (34.09) 1.860 (47.24) 1.312 (33.32) 1.182 (30.02) 1.375-18 1.187-18 22 1.954 (49.63) 1.705 (43.31) 1.467 (37.26) 2.040 (51.82) 1.437 (36.50) 1.312 (33.32) 1.500-20** 1.312-18 24 2.079 (52.81) 1.892 (48.06) 1.592 (40.44) 2.160 (54.86) 1.562 (39.67) 1.432 (36.37) 1.625-18 1.437-18 ** Thread UN-2A PANEL CUTOUTSCINCH MIL-DTL-26500/BACC (OMEGA) SERIES — PANEL CUTOUTS & THICKNESS - WALL MOUNT RECEPTACLE
Shell Size M Min. N Min. K +/-.005 (.127) 8 0.620 (15.75) 0.447 (11.35) 0.594 (15.09) 10 0.748 (19.00) 0.572 (14.53) 0.719 (18.26) 12 0.913 (23.19) 0.760 (19.30) 0.812 (20.62) 14 0.980 (24.89) 0.822 (20.88) 0.906 (23.01) 16 1.107 (28.12) 0.948 (24.08) 0.969 (24.61) 18 1.209 (30.71) 1.072 (27.23) 1.062 (26.97) 20 1.337 (33.96) 1.192 (30.28) 1.156 (29.36) 22 1.452 (36.88) 1.322 (33.58) 1.250 (31.75) 24 1.577 (40.06) 1.442 (36.63) 1.375 (34.93) 28 1.827 (46.41) 1.760 (44.70) 1.562 (39.67)
CINCH MIL-DTL-26500/BACC (OMEGA) SERIES — PANEL CUTOUTS & THICKNESS - JAM NUT RECEPTACLE
Shell Size G +/-.005 (.127) H +/-.005 (.127) Recommended Minimum Torque 8 0.605 (15.35) 0.635 (16.13) 28 10 0.730 (18.54) .760 (19.30) 36 12 0.917 (23.29) 0.947 (24.05) 56 14 0.980 (24.89) 1.010 (25.65) 64.5 16 1.105 (28.07) 1.135 (28.83) 69 18 1.225 (31.12) 1.260 (32.00) 81 20 1.350 (34.29) 1.385 (35.18) 102 22 1.475 (37.47) 1.510 (38.35) 122.5 24 1.600 (40.64) 1.635 (41.53) 144 28 1.856 (47.14) 1.885 (47.88)
|
|
MS TYPE CABLE CLAMPSCINCH MIL-DTL-26500/BACC (OMEGA) SERIES MS TYPE CABLE CLAMPS
For Connector Types MS2426_ BACC45FM BACC45FS BACC45FN BACC45FT BACC63BN
Shell Size Straight Right Angle 8 MS27291-13 MS27559-1 10 MS27291-1 MS27559-2 12 MS27291-2 MS27559-3 14 MS27291-3 MS27559-4 16 MS27291-4 MS27559-5 18 MS27291-5 MS27559-6 20 MS27291-14 MS27559-7 22 MS27291-6 MS27559-8 24 MS27291-15 MS27559-9 Anodized Plated Aluminum BACC SINGLE LEG TY-WRAPCINCH MIL-DTL-26500/BACC (OMEGA) SERIES BACC SINGLE LEG (TY-WRAP)
For Connector Types BACC45FM BACC45FS BACC45FT BACC45FN
Single Leg (Ty-Wrap) - Aluminum Composite - Ryton (Black) Composite - Ultem (Amber) Shell Size Straight Right Angle Straight Straight 8 BACC10GH8 BACC10JC8 BACC10JS8 BACC10JS8A 10 BACC10GH10 BACC10JC10 BACC10JS10 BACC10JS10A 12 BACC10GH12 BACC10JC12 BACC10JS12 BACC10JS12A 14 BACC10GH14 BACC10JC14 BACC10JS14 BACC10JS14A 16 BACC10GH16 BACC10JC16 BACC10JS16 BACC10JS16A 18 BACC10GH18 BACC10JC18 BACC10JS18 BACC10JS18A 20 BACC10GH20 BACC10JC20 BACC10JS20 BACC10JS20A 22 BACC10GH22 BACC10JC22 BACC10JS22 BACC10JS22A 24 BACC10GH24 BACC10JC24 BACC10JS24 BACC10JS24A Anodized Plated Aluminum BACC CABLE CLAMP ALUMINUMCINCH MIL-DTL-26500/BACC (OMEGA) SERIES BACC CABLE CLAMP ALUMINUM
For Connector Types BACC63CB BACC63CC BACC63BV BACC63BP
Cable Clamp - Aluminum Cable Range Shell Size Straight Right Angle Min. Max. 8 BACC10HF8* BACC10HG8xx 0.125 0.204 10 BACC10HF10* BACC10HG10xx 0.187 0.286 12 BACC10HF12* BACC10HG12xx 0.291 0.416 14 BACC10HF14* BACC10HG14xx 0.351 0.476 16 BACC10HF16* BACC10HG16xx 0.501 0.625 18 BACC10HF18* BACC10HG18xx 0.518 0.706 20 BACC10HF20* BACC10HG20xx 0.581 0.831 22 BACC10HF22* BACC10HG22xx 0.644 0.956 24 BACC10HF24* BACC10HG24xx 0.706 1.081 28 BACC10HF28* BACC10HG28xx 0.750 1.187
BACC CABLE CLAMP ALUMINUM - SELF LOCKCINCH MIL-DTL-26500/BACC (OMEGA) SERIES BACC CABLE CLAMP ALUMINUM - SELF LOCKING
For Connector Types BACC63CB BACC63CC BACC63BV BACC63BP
Self Locking Cable Clamp - Aluminum Cable Range Shell Size Straight Right Angle 45 Degree Min. Max. 8 BACC10KD8 BACC10KE8 BACC10KF8 0.125 0.204 10 BACC10KD10 BACC10KE10 BACC10KF10 0.187 0.286 12 BACC10KD12 BACC10KE12 BACC10KF12 0.291 0.416 14 BACC10KD14 BACC10KE14 BACC10KF14 0.351 0.476 16 BACC10KD16 BACC10KE16 BACC10KF16 0.501 0.625 18 BACC10KD18 BACC10KE18 BACC10KF18 0.518 0.706 20 BACC10KD20 BACC10KE20 BACC10KF20 0.581 0.831 22 BACC10KD22 BACC10KE22 BACC10KF22 0.644 0.956 24 BACC10KD24 BACC10KE24 BACC10KF24 0.706 1.081 28 BACC10KD28 BACC10KE28 BACC10KF28 0.750 1.187 Olive Drab Cadmium Plated Aluminum BACC CABLE CLAMP STAINLESS STEELCINCH MIL-DTL-26500/BACC (OMEGA) SERIES BACC CABLE CLAMP STAINLESS STEEL
For Connector Types BACC63BP BACC63BV BACC63CB
Cable Clamp - Stainless Steel Cable Range Shell Size Straight Right Angle Min. Max. 8 BACC10HD8A BACC10HE8A 0.125 0.204 10 BACC10HD10A BACC10HE10A 0.187 0.286 12 BACC10HD12A BACC10HE12A 0.291 0.416 14 BACC10HD14A BACC10HE14A 0.351 0.476 16 BACC10HD16A BACC10HE16A 0.501 0.625 18 BACC10HD18A BACC10HE18A 0.518 0.706 20 BACC10HD20A BACC10HE20A 0.581 0.831 22 BACC10HD22A BACC10HE22A 0.644 0.956 24 BACC10HD24A BACC10HE24A 0.706 1.081 28 BACC10HD28A BACC10HE28A 0.750 1.187 CINCH MIL-DTL-26500/BACC (OMEGA) SERIES BACC CABLE CLAMP STAINLESS STEEL - SELF LOCKING
Self Locking Cable Clamp - Stainless Steel Cable Range Shell Size Straight Right Angle 45 Degree Min. Max. 8 BACC10KA8 BACC10KB8 BACC10KC8 0.125 0.204 10 BACC10KA10 BACC10KB10 BACC10KC10 0.187 0.286 12 BACC10KA12 BACC10KB12 BACC10KC12 0.291 0.416 14 BACC10KA14 BACC10KB14 BACC10KC14 0.351 0.476 16 BACC10KA16 BACC10KB16 BACC10KC16 0.501 0.625 18 BACC10KA18 BACC10KB18 BACC10KC18 0.518 0.706 20 BACC10KA20 BACC10KB20 BACC10KC20 0.581 0.831 22 BACC10KA22 BACC10KB22 BACC10KC22 0.644 0.956 24 BACC10KA24 BACC10KB24 BACC10KC24 0.706 1.081 28 BACC10KA28 BACC10KB28 BACC10KC28 0.750 1.187 |
|
WIRE STRIPPINGCINCH MIL-DTL-26500/BACC (OMEGA) SERIES WIRE STRIPPING
Wire Size A 20 .275 (6.99) 16 .250 (6.35) 12 .275 (6.99) All dimensions in inches (millimeters in parentheses) CONTACT CRIMPINGCINCH MIL-DTL-26500/BACC (OMEGA) SERIES CONTACT CRIMPING
Correct
STEP 1: Insert wire into rear of contact. Wire insulation must press against rear of contact. Wire must be visible through inspection hole. STEP 2: M22520 series crimp tool and locator is recommended. See Contact and Tool Table for choice of turret head and selection setting according to contact size, part number and wire gauge size. STEP 3: Insert contact and wire into tool jaws. To crimp, squeeze handles together fully until ratchet releases and allows handles to expand; otherwise, contact cannot be extracted from tool jaws. Maintain slight insertion pressure on wire while crimping contact to wire. CONTACT INSERTIONCINCH MIL-DTL-26500/BACC (OMEGA) SERIES CONTACT INSERTION
STEP 1: Remove hardware from plug or receptacle and slip over wire bundle in proper order for reassembly. STEP 2: Using proper plastic or metal insertion tool for corresponding contact, position wire in tip of the tool so that the tool tip presses against the contact shoulder. STEP 3: Press tool against contact shoulder and, with firm and even pressure, insert wired contact and tool tip into center contact cavity.
STEP 4: When contact bottoms, a slight “click” can be heard as tines of metal retaining clip snap into place behind contact shoulder. STEP 5: Remove tool and pull back lightly on wire to make sure contact is properly seated. Repeat operation with remainder of contacts to be inserted, beginning with the center cavity and working outward in alternating rows. STEP 6: After all contacts are inserted, fill any empty cavities with wire sealing plugs. Reassemble plug or receptacle hardware. CONTACT EXTRACTIONCINCH MIL-DTL-26500/BACC (OMEGA) SERIES CONTACT EXTRACTION
STEP 1: Remove hardware from plug or receptacle and slide hardware back along wire bundle. STEP 2: Using plastic or metal extraction tool with proper color code corresponding to contact size, place wire in tool. STEP 3: Insert tool into contact cavity until tool tip bottoms against the contact shoulder, expanding clip retaining tines. STEP 4: Hold wire firmly in tool and extract wired contact and tool. Repeat operation for all contacts to be extracted. STEP 5: Fill any empty cavities with wire sealing plugs. Reassemble plug or receptacle hardware. |
