ITT Cannon CA Bayonet Connectors
ULTRA RELIABLE REVERSE BAYONET CONNECTORS
ITT Cannon's CA Bayonet versatile and highly reliable connector series is an improvement on the well established MIL-DTL-5015 standard featuring a superior quarter turn, 3-point reverse bayonet coupling design for rapid mating and unmating. Designed to the VG95234 specification these connectors are ideal for a wide range of harsh environment applications where exceptional shock, vibration and environmental protection is required.
The series is available in VG approved Cadmium and its VG approved RoHS compliant replacement Tin Zinc J plating as well as other RoHS compliant plating options such as Black Zinc Cobalt and Blue Generation Zinc Nickel. With approximately 140 contact arrangement options, 12 shell sizes accommodating 1- 65 circuits and diverse accessory options these connectors provide extensive versatility for different requirements.
PEI-Genesis also offers proprietary CB series for customized CA Bayonet solutions.
|
FEATURESITT CANNON CB SERIES CONNECTORS FEATURES
MATERIALS & FINISHESITT CANNON CB SERIES CONNECTORS MATERIALS & FINISHES
Shell Aluminum alloy (shells can be grounded)
Shell Plating Olive drab chromate coating over cadmium plating, Zinc Cobalt (black or green), Blue Zinc Nickel
Contacts Copper alloy
Contact Platings Hard silver plating or gold plating
Insulator* Resilient polychloroprene (Neoprene)
Seals Silicone or Neoprene
*Optional zero halogen and high temperature insulators are available. Contact us for information. ELECTRICAL DATAITT CANNON CB SERIES CONNECTORS ELECTRICAL DATA
Operating Voltage/Test Voltage According to MIL-DTL-5015 Service Rating Operating Voltage Test Voltage AC Vrms Air Spacing Nom. (Inches) Creepage Distance Nom. (Inches) DC V AC Vrms I 250 200 1,000 - 1/16 A 700 500 2,000 1/16 1/8 D 1,250 900 2,800 1/8 3/16 E 1,750 1,250 3,500 3/16 1/4 B 2,450 1,750 4,500 1/4 5/16 The indicated values for the Operating Voltage are limits concerning the electrical function. In any case, when the working voltage exceeds 50V, safety precautions must be in accordance with the following standards: VDE 0100, IEC 309-1 or applicable national standards. NOTE: High Voltage Cartridge Contacts are available. These cartridges are used in either size 8 or 4 contact cavities using 20 AWG contact rated 7.5 amps max and working voltages up to 5000 Vdc - 3500 Vac. Contact us for details. Current Rating at 68° F (+20°C) Contact (CA-B/CB) Max. Current Contact Resistance Milliohm Max. Potential Drop 16/16S 22 16.0 49 12 41 3.0 42 8 74 1.0 26 4 135 0.5 23 0 245 0.2 21 **Maximum total current to be carried per connector in wire bundles as specified in MIL-W-5088. Contact resistance when tested to MIL-C-39029 will not exceed voltage drops listed in above table. Wire Range Sizes 26 AWG to 0 AWG
Insulation Resistance >1000 Megohm (CA-Bayonet)
According to VG95319 Test 5.12 and VG95210 Part 32, Test condition B. MECHANICALITT CANNON CB SERIES CONNECTORS MECHANICAL
Operating Temperature -55° to 125°C (-67°F to 257°F) Neoprene
Sealing Fully submersible to 1 bar (35 feet) when mated. Meets IP67, DIN 40 050 and VG 95234.

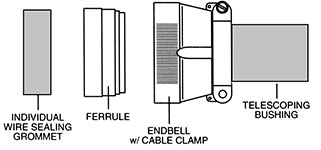

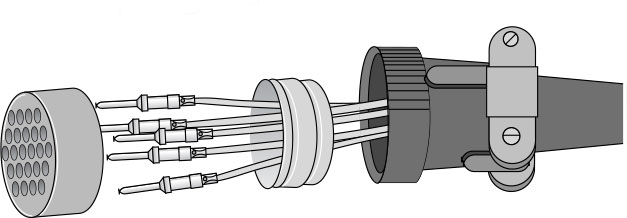

Wire Sealing Range The connector is designed for individual wire sealing. Sealing of an outer cable jacket on multiconductor cables must be accomplished with an appropriate endbell. Sealing is only guaranteed if wires according to MIL-W-5086 or within the listed ranges are used.
Insulation O.D. Limit Contact Size Wire Size Min.(inches) Min.(mm) Max.(inches) Max.(mm) 16 16 .087 2.2 .110 2.8 12 12 .122 3.1 .138 3.5 8 8 .220 5.6 .256 6.5 4 4 .335 8.5 .370 9.40 0 0 .452 11.5 .512 13.0 Mating Life 500 cycles minimum (to VG 95234)
Salt Spray Meets VG 95234, Test 5.34
Heat +125°C (+257°F) for 1000 hours
Chemical Resistance Tested unmated and mated according to VG 95234 for hydraulic fluid, lubricating oil, fuels, humidity,water, salt water, solvents and corrosion resistance.
Vibration 200 m/s2 at 10 to 2,000 Hz. To VG 95234 Test 5.16.
Shock 50g 11ms, three major axes. To VG 95234 Test 5.17.
Contact Type Solder, crimp, PC, high voltage, first-mate last-break, or thermocouple. Hard silver or gold plating.
Number of Circuits 1 to 65

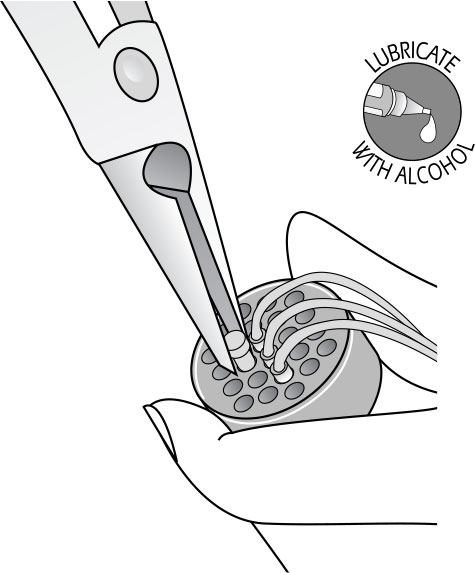

Contact Insertion From rear with simple hand tool. Removable, 5 cycles minimum.
Content Retention Pin and socket contacts are designed to resist severe vibration and repeated connection and disconnection. Contact retention and separation is tested according to VG 95319 Part 2. (Contact retention to test 5.4 with test force in mating direction. Separation force test 5.7 using required test gauge.)
Retention Force Separation Force Min. Axial Load Separation Force Min. Contact Size Newtons Lbs. Newtons Lbs. Gauge Newtons Lbs. Newtons Lbs. 16 35 (7.9) 1 (.22) G 1.56 44 (10) 1 (0.25) 12 55 (12.4) 1.5 (.34) G 2.36 67 (15) 2 (0.5) 8 80 (18.0) 3 (.67) G 3.58 89 (20) 4 (0.75) 4 90 (20.2) 4 (.90) G 5.69 89 (20) 4 (1) 0 95 (21.4) 8.5 (1.9) G 9.04 111 (25) 9 (2) Polarization Key and keyway plus three point bayonet with optional rotational polarization.
Approvals/Specifications • VG 95234
• MIL-DTL-5015 |
|
ITT CANNON CB SERIES CONNECTORS APPLICATIONS
Industrial environments requiring extreme environmental reliability and ease of mating and unmating, such as:
|
|
STEP 1 & 2: STYLEITT CANNON CB SERIES CONNECTORS PART NUMBER EXAMPLE
1 2 3 4 5 6 7 8 9 CB 6 E 10SL-3 P S CONNECTOR TYPE SHELL STYLE ENDBELLS CABLE CLAMP/BOOT (If needed) LAYOUT CONTACT POSITION (omit for normal) CONTACT TYPE PLATING
Click here to download full Create Part Number pdf
STEP 1: CHOOSE CONNECTOR TYPE
CB STEP 2: SELECT SHELL STYLE, PLUG OR RECEPTACLE
Barrel (EMI/RFI)
(PVC)
(PVC) Wavespring
V4 and VW4 = for shell sizes 10SL, 12S, 14S, 16S, 18, 20, 22 and 24 STEP 3: ENDBELLSSTEP 3: CHOOSE ENDBELLS
See "Endbells" section for a description of each endbell.
▲ Contact us with NPT thread size, Sealtite conduit diameter or cable OD for D, NPT, ST, PG or endbell part number. STEP 4: CLAMPSTEP 4: CHOOSE CABLE CLAMP (IF APPLICABLE)
▲ Contact us with NPT thread size, Sealtite conduit diameter or cable OD for D, NPT, ST, PG or endbell part number. STEP 5: LAYOUTSTEP 5: CHOOSE LAYOUT
Page 1
Series Contact Sizes Layout MS CT CB VG Total 20 16 12 8 4 0 8S-1
1 1 10S-2
1 1 10SL-3
3 3 10SL-4
2 2 10SL-51
2 2 10SL-52
2 2 10SL-53
2 2 10SL-54
3 3 10SL-55
3 3 10SL-56
2 2 10SL-57
2 2 10SL-58
3 3 10SL-59
2 2 10SL-60
2 2 10SL-61
2 2 10SL-62
3 3 10SL-63
3 3 10SL-64
3 3 10SL-A4
5 5 12S-1
2 2 12S-2
2 2 12S-3
2 2 12S-4
1 1 12S-51
2 2 12S-54
2 2 12S-55
2 2 12S-56
2 2 12S-57
2 2 12S-58
2 2 12S-59
2 2 12S-60
2 2 12S-61
2 2 12S-62
2 2 12SA10
12-5
1 1 14S-1
3 3 14S-2
4 4 Degrees of Rotation Layout
W X Y Z Service Rating 8S-1 - - - - A 10S-2 - - - - A 10SL-3 - - - - A 10SL-4 - - - - A 10SL-51
10SL-4 45° A=Ir.; B=Con. 10SL-52
10SL-4 45° A=Cu; B=Con. 10SL-53
10SL-4 45° A=Al.; B=Ch. 10SL-54
10SL-3 A=Ir.; B=Con.; C=Cu 10SL-55
10SL-3 A=Al.; B=Ch.; C=Cu 10SL-56
10SL-4 A=Al.; B=Ch. 10SL-57
10SL-4 A=Ch.; B=Con. 10SL-58
10SL-3 A=Ch.; B=Al.; C=Cu 10SL-59
10SL-4 A=Ch.; B=Al. 10SL-60
10SL-4 45° A=Ir.; B=Con. 10SL-61
10SL-4 A=Cu; B=Con. 10SL-62
10SL-3 A=Cu; B=Al.; C=Ir. 10SL-63
10SL-3 A, C=Con.; B=Ch. 10SL-64
10SL-3 A,C=Ch.; B=Al. 10SL-A4 Contact us for valid rotations A 12S-1 12S-3 100° A 12S-2 12S-3 250° A 12S-3 70 145 215 290 A 12S-4 - - - - D 12S-51
12S-3 315° A=Ch.; B=Al. 12S-54
12S-3 315° A=Ir.; B=Con. 12S-55
12S-3 45° A=Cu; B=Con. 12S-56
12S-3 A=Al.; B=Ch. 12S-57
12S-3 60° A=Ch.; B=Al. 12S-58
12S-3 120° A=Ir.; B=Con. 12S-59
12S-3 A=Ir.; B=Con. 12S-60
12S-3 A=Cu; B=Con. 12S-61
12S-3 A=Ch.; B=Con. 12S-62
12S-3 A=Ch.; B=Al. 12SA10 Contact us for valid rotations I 12-5 - - - - D 14S-1 - - - - A 14S-2 - 120 240 - I Contact Metallurgy Key: Alumel (Al.) Chromel (Ch.) Constantan (Con.) Copper (Cu) Iron (Ir.) Thermocouple ( Read Less Page 2
Series Contact Sizes Layout MS CT CB VG Total 20 16 12 8 4 0 14S-4
1 1 14S-5
5 5 14S-6
6 6 14S-7
3 3 14S-9
2 2 14S-10
4 4 14S-11
4 4 14S-12
3 3 14S-13
3 3 14S-14
4 4 14S-51
2 2 14S-52
4 4 14S-53
2 2 14S-54
6 6 14S-55
4 4 14S-56
4 4 14S-57
4 4 14S-58
3 3 14S-59
2 2 14S-60
2 2 14S-61
6 6 14S-63
6 6 14S-64
4 4 14S-65
6 6 14S-67
6 6 14S-68
4 4 14S-69
3 3 14S-70
4 4 14S-71
4 4 14S-72
2 2 14S-73
4 4 14S-74
4 4 14S-75
4 4 14S-76
4 4 14S-77
4 4 Degrees of Rotation Layout
W X Y Z Service Rating 14S-4 - - - - D 14S-5 - 110 - - I 14S-6 - - - - I 14S-7 90 180 270 - A 14S-9 70 145 215 290 A 14S-10 14S-2 100° I 14S-11 14S-2 250° I 14S-12 14S-1 100° A 14S-13 14S-1 260° A 14S-14 14S-2 260° I 14S-51
14S-9 90° A=Al.; B=Ch. 14S-52
14S-2 45° A, B=Cu; C=Al.; D=Ch. 14S-53
14S-9 90° A=Ir.; B=Con. 14S-54
14S-6 45° A, C, E=Ir.; B, D, F=Con. 14S-55
14S-2 45° A,C=Ir; B,D=Con. 14S-56
14S-2 45° A=Ir; B=Con.; C, D=Cu 14S-57
14S-2 45° A, C=Al.; B, D=Ch. 14S-58
14S-7 45° A=Al.; B=Ch.; C=Cu 14S-59
14S-9 90° A=Cu; B=Con. 14S-60
14S-9 A=Al.; B=Ch. 14S-61
14S-6 45° A=Al.; B=Ch.; C=Ir.; D=Con.; E, F=Cu 14S-63
14S-6 A,C=Al.; B, D=Ch.; E=Ir.; F=Con. 14S-64
14S-2 A, C=Con.; B, D=Cu 14S-65
14S-6 A, C, E=Cu; B, D, F=Con. 14S-67
14S-6 A=Al.; B=Ch.; Balance=Cu 14S-68
14S-2 45° A=Ch.; B=Con.; C, D=Cu 14S-69
14S-7 A=Con.; B=Ch.; C=Cu 14S-70
14S-2 A, D=Ch; B, C=Al. 14S-71
14S-2 A, B, D=Cu; C=Con. 14S-72
14S-9 A=Con.; B=Cu 14S-73
14S-2 A, B=Cu; C=Al.; D=Ch. 14S-74
14S-2 90° A, B=Ch.; C, D=Al. 14S-75
14S-2 A, B=Cu; C, D=Con. 14S-76
14S-2 A, C=Al.; B, D=Ch. 14S-77
14S-2 A, D=Al.; B, C=Ch. Contact Metallurgy Key: Alumel (Al.) Chromel (Ch.) Constantan (Con.) Copper (Cu) Iron (Ir.) Thermocouple ( Read Less Page 3
Series Contact Sizes Layout MS CT CB VG Total 20 16 12 8 4 0 14S-78
2 2 14SA7
7 7 14-3
1 1 16S-1
7 7 16S-4
2 2 16S-5
3 3 16S-6
3 3 16S-8
5 5 16S-14
3 3 16S-15
2 2 16S-16
2 2 16S-17
3 3 16S-52
2 2 16S-54
7 7 16S-55
7 7 16SA18
7 7 16SA19
7 7 16SA20
7 7 16SA21
7 7 16-7
3 2 1 16-9
4 2 2 16-10
3 3 16-11
2 2 16-12
1 1 16-13
2 2 16-52
2 2 16-53
4 2 2 16-55
1 3 16-56
2 2 16-57
3 3 16-58
3 3 16-60
2 2 16-62
2 2 18-1
10 10 18-3
2 2 18-4
4 4 18-5
3 1 2 18-6
1 1 18-7
1 1 18-8
8 7 1 18-9
7 5 2 18-10
4 4 18-11
5 5 18-12
6 6 18-13
4 3 1 18-15
4 4 Degrees of Rotation Layout
W X Y Z Service Rating 14S-78
14S-9 A=Ch.; B=Al. 14SA7 - - - - A 14-3 - - - - A 16S-1 80 - - 280 A 16S-4 35 110 250 325 D 16S-5 70 145 25 290 A 16S-6 90 180 270 - A 16S-8 - 170 265 - A 16S-14 16S-4 110° A 16S-15 16S-5 110° D 16S-16 16S-4 250° D 16S-17 16S-5 250° A 16S-52
16S-4 A=Ch.; B=Al. 16S-54
16S-1 A=Al.; B=Ch.; Balance=Cu 16S-55
16S-1 A=Con.; Balance=Cu 16SA18 16S-1 100° A 16SA19 16S-1 260° A 16SA20 16S-1 110° A 16SA21 16S-1 250° A 16-7 80 110 250 280 A 16-9 35 110 250 325 A 16-10 90 180 270 - A 16-11 35 110 250 325 A 16-12 - - - - A 16-13
35 110 250 325 A=Ir.; B=Con. 16-52
16-11 90° A=Al.; B=Ch. 16-53
16-9 70° A=Al.; C=Ch.; B, D=Cu 16-55
16-10 45° A=Al.; B=Ch.; C=Cu 16-56
16-13 90° A=Con.; B=Cu 16-57
16-10 A=Al.; B=Cu; C=Ch. 16-58
16-10 A=Con.; B, C=Cu 16-60
16-13 A=Al.; B=Ch. 16-62
16-11 A=Con.; B=Cu 18-1 70 145 215 290 A(B,C,F,G); 18-3 35 110 250 325 D 18-4 35 110 250 325 D 18-5 80 110 250 280 D 18-6 - - - - D 18-7 - - - - B 18-8 70 - - 290 A 18-9 80 110 250 280 I 18-10 - 120 240 - A 18-11 - 170 265 - A 18-12 80 - - 280 A 18-13 80 110 250 280 A 18-15
18-10 315° A, C=Ir.; B, D=Con. Contact Metallurgy Key: Alumel (Al.) Chromel (Ch.) Constantan (Con.) Copper (Cu) Iron (Ir.) Thermocouple ( Read Less Page 4
Series Contact Sizes Layout MS CT CB VG Total 20 16 12 8 4 0 18-17
7 5 2 18-18
7 5 2 18-19
10 10 18-20
5 5 18-21
3 3 18-22
3 3 18-23
10 10 18-24
10 10 18-25
2 2 18-26
2 2 18-27
3 1 2 18-28
3 1 2 18-29
5 5 18-30
5 5 18-31
5 5 18-51
6 6 18-52
5 5 18-53
6 6 18-54
4 4 18-56
10 10 18-57
6 6 18-59
6 6 18-60
5 5 18-61
6 6 18-62
6 6 18-63
4 4 18-65
6 6 18-66
10 10 18-67
6 6 18-68
5 5 18-69
10 10 18-70
5 5 18-71
4 4 18-72
4 4 18-73
7 5 2 18-74
6 6 Degrees of Rotation Layout
W X Y Z Service Rating 18-17 18-9 100° I 18-18 18-9 250° I 18-19 - 120 240 - A 18-20 90 180 270 - A 18-21 70 145 215 290 D 18-22 70 145 215 290 D 18-23 18-1 100° A(B,C,F,G); 18-24 18-1 250° A(B,C,F,G); 18-25 18-3 100° D 18-26 18-3 250° D 18-27 18-5 100° D 18-28 18-5 250° D 18-29 90 180 270 - A 18-30 18-20 110° A 18-31 18-20 260° A 18-51
18-12 A=Ir.; B, E=Con.; D=Cu; C, F=Dummy 18-52
18-11 A=Ir.; B=Con.; C=Ch.; D=Al.; E=Dummy 18-53
18-12 A, D=Ir.; B, E=Con.; D=Cu; C, F=Dummy 18-54
18-15 A, C=Al.; B, D=Ch. 18-56
18-1 45° A, C, E, G, I=Ir.; B, D, F, H, J=Con. 18-57
18-12 45° A, C, E=Al.; B, D, F=Ch. 18-59
18-12 45° A, C=Ir.; B, E, F=Con.; D=Cu 18-60
18-11 45° A, D=Al.; B, C=Ch.; E=Cu 18-61
18-12 A, C=Ir.; B, D=Con.; E=Ch; F=Al. 18-62
18-12 A, B, C=Ir.; D, E, F=Con. 18-63
18-15 A, C=Con.; B, D=Cu 18-65
18-12 A=Ir.; B=Con.; Balance=Cu 18-66
18-1 A, C, E, G, I=Cu; B,D,F,H,J=Con. 18-67
18-12 A, C, E=Cu; B, D, F=Con. 18-68
18-11 A, D=Al.; B, C=Ch.; E=Cu 18-69
18-1 A=Al.; B=Ch.; Balance=Cu 18-70
18-11 A=Ir.; B=Con.; C=Ch.; D=Al; E=Cu 18-71
18-15 A=Con.; Balance=Cu 18-72
18-15 D=Con.; Balance=Cu 18-73
18-9 A=Al.; D=Ch.; Balance=Cu 18-74
18-12 A=Ch.; B=Al.; D=Ir.; E=Cu; C, F=Con. Contact Metallurgy Key: Alumel (Al.) Chromel (Ch.) Constantan (Con.) Copper (Cu) Iron (Ir.) Thermocouple ( Read Less Page 5
Series Contact Sizes Layout MS CT CB VG Total 20 16 12 8 4 0 18A31
10 10 20-2
1 1 20-3
3 3 20-4
4 4 20-6
3 3 20-7
8 8 20-8
6 4 2 20-11
13 13 20-14
5 3 2 20-15
7 7 20-16
9 7 2 20-17
6 1 5 20-18
9 6 3 20-19
3 3 20-22
6 3 3 20-23
2 2 20-24
4 2 2 20-25
13 13 20-27
14 14 20-29
17 17 20-30
13 13 20-32
8 8 20-33
11 11 20-52
4 4 20-56
8 8 20-60
8 8 20-61
17 17 20-62
7 7 20-64
14 14 20-65
14 14 20-67
9 7 2 20-68
8 8 20-69
14 14 20-70
17 17 20-71
17 17 20-74
17 17 20-75
7 7 20-77
9 7 2 20-80
14 14 20-81
14 14 20-82
17 17 20A9
9 9 20A16
13 13 20A37
4 4 Degrees of Rotation Layout
W X Y Z Service Rating 18A31 18-1 110° A (B, C, F, G); 20-2 - - - - D 20-3 70 145 215 290 D 20-4 45 110 250 - D 20-6 70 145 215 290 D 20-7 80 110 250 280 A (B, C, F, G); 20-8 80 110 250 280 I 20-11 - - - - I 20-14 80 110 250 280 A 20-15 80 - - 280 A 20-16 80 110 250 280 A 20-17 90 180 270 - A 20-18 35 110 250 325 A 20-19 90 180 270 - A 20-22 80 110 250 280 A 20-23 35 110 250 325 A 20-24 35 110 250 325 A 20-25 20-11 100° I 20-27 35 110 250 325 A 20-29 80 - - 280 A 20-30 20-11 250° I 20-32 20-7 260° A (B, C, F, G); 20-33 - - - 280 A 20-52
20-4 315° A=Ir.; B=Con.; C=Ch.; D=Al. 20-56
20-7 45° A, B, G, H=Ir.; C, D, E, F=Con. 20-60
20-7 45° D=Ch.; E=Al.; Balance=Cu 20-61
20-29 45° A, B, M=Cu; Balance=Con. 20-62
20-15 80° A, C, E=Al.; B, D, F=Ch.; G=Cu 20-64
20-27 A=Al.; C=Ch.; Balance=Cu 20-65
20-27 A, B, C, D, E, F, G=Ir.; H, I, J, K, L, M, N=Con. 20-67
20-16 H=Al.; I=Ch.; Balance=Cu 20-68
20-7 A, B, G, H=Con.; C, D, E, F=Cu 20-69
20-27 A, B, C, D, E, F, G=Cu; H, I, J, K, L, M, N=Con. 20-70
20-29 A, C, E, G, J, L, N, R, T=Ir.; B, D, F, H, K, M, P, S=Con. 20-71
20-29 S=Al.; R=Ch.; Balance=Cu 20-74
20-29 A, C, E, G, J, L, N, R=Ir.; B, D, F, H, K, M, P, S=Con.; T=Cu 20-75
20-15 G=Al.; Balance=Ch. 20-77
20-16 A=Con.; Balance=Cu 20-80
20-27 A, C, E, G, I, K, M=Cu; B, D, F, H, J, L, N=Con. 20-81
20-27 A, C, E, G, I, K, M=Cu; B, D, F, H, J, L, N=Al. 20-82
20-29 A, C, E, G, J, L, N, R=Al.; B, D, F, H, K, M, P, S=Ch.; T=Cu 20A9 - 110 250 - D (J), 20A16 20-11 182° I 20A37 20-4 250° D Contact Metallurgy Key: Alumel (Al.) Chromel (Ch.) Constantan (Con.) Copper (Cu) Iron (Ir.) Thermocouple ( Read Less Page 6
Series Contact Sizes Layout MS CT CB VG Total 20 16 12 8 4 0 20A48
19 19 22-1
2 2 22-2
3 3 22-4
4 2 2 22-5
6 4 2 22-6
3 1 2 22-7
1 1 22-8
2 2 22-9
3 3 22-10
4 4 22-11
2 2 22-12
5 3 2 22-13
5 1 4 22-14
19 19 22-15
6 1 5 22-16
9 6 3 22-17
9 8 1 22-18
8 8 22-19
14 14 22-20
9 9 22-21
3 2 1 22-22
4 4 22-23
8 8 22-27
9 8 1 22-28
7 7 22-30
19 19 22-31
2 2 22-32
6 4 2 22-57
19 19 22-60
19 19 22-62
8 8 22-68
14 14 22-69
14 14 22-71
19 19 22-72
6 4 2 Degrees of Rotation Layout
W X Y Z Service Rating 20A48 - 80 280 - I 22-1 35 110 250 325 D 22-2 70 145 215 290 D 22-4 35 110 250 325 A 22-5 35 110 250 325 D 22-6 80 110 250 280 D 22-7 - - - - E 22-8 35 110 250 325 E 22-9 70 145 215 290 E 22-10 35 110 250 325 E 22-11 35 110 250 325 B 22-12 80 110 250 280 A 22-13 35 110 250 325 A(A-D); D(E) 22-14 80 - - 280 A 22-15 80 110 250 280 A(A-C,E,F); E(D) 22-16 80 110 250 280 A 22-17 80 110 250 280 D(A); 22-18 80 110 250 280 A(C-E); 22-19 80 110 250 280 A 22-20 35 110 250 325 A 22-21 80 110 250 280 A 22-22 - 110 250 - A 22-23 35 - 250 - D(H); A(all others) 22-27 80 - 250 280 D(J); A(all others) 22-28 80 - - 280 A 22-30 22-14 100° A 22-31 22-11 100° B 22-32 22-5 260° D 22-57
22-14 45° A, C, E, G, J, L, N, R=Ir.; B, D, F, H, K, M, P, S=Con.; T, U, V=Cu 22-60
22-14 45° U=Al.; N=Ch.; Balance=Cu 22-62
22-23 60° A, B, F, G=Al.; C, D, E, H=Ch. 22-68
22-19 45° A, C, E, G, J, L, M=Ir.; B, D, F, H, K, P, N=Con. 22-69
22-19 45° A, C, E, G, J, L, M=Cu; B, D, F, H, K, P, N=Con. 22-71
22-14 V=Al.; U=Ch.; Balance=Cu 22-72
22-5 B=Al.; E=Ch.; Balance=Cu Contact Metallurgy Key: Alumel (Al.) Chromel (Ch.) Constantan (Con.) Copper (Cu) Iron (Ir.) Thermocouple ( Read Less Page 7
Series Contact Sizes Layout MS CT CB VG Total 20 16 12 8 4 0 22-73
6 4 2 22-74
8 8 22-75
8 8 22-77
14 14 22-78
19 19 22-79
4 4 24-2
7 7 24-5
16 16 24-6
8 8 24-7
16 14 2 24-9
2 2 24-10
7 7 24-11
9 6 3 24-12
5 3 2 24-15
16 16 24-19
12 12 24-20
11 9 2 24-22
4 4 24-24
16 16 24-25
8 8 24-26
8 8 24-27
7 7 24-28
24 24 24-56
11 9 2 24-57
24 24 24-62
24 24 24-63
24 24 24-64
16 16 24-68
24 24 24-81
16 14 2 24A24
12 12 24A28
28 28 24A35
16 14 2 28-1
9 6 3 28-2
14 12 2 28-4
9 7 2 28-5
5 2 1 2 28-7
2 2 28-9
12 6 6 Degrees of Rotation Layout
W X Y Z Service Rating 22-73
22-5 E=Al.; B=Ch.; Balance=Cu 22-74
22-23 A, C, E, G=Ir.; B, D, F, H=Con. 22-75
22-23 A=Al.; B, D, G, H=Cu; C=Ch.; E=Ir.; F=Con. 22-77
22-19 B, D, F, H, J, K, M, P=Cu; A, E, L=Ir.; C, G, N=Con. 22-78
22-14 A, C, E, G, H, K, M, P, R, T=Con.; Balance=Cu 22-79
22-10 A, C=Con.; B, D=Cu 24-2 80 - - 280 D 24-5 80 110 250 280 A 24-6 80 110 250 280 D(A,G,H); 24-7 80 110 250 280 A 24-9 35 110 250 325 A 24-10 80 - - 280 A 24-11 35 110 250 325 A 24-12 80 110 250 280 A 24-15 24-5 100° A 24-19 - - - - A 24-20 80 110 250 280 D 24-22 45 110 250 - D 24-24 24-5 250° A 24-25 24-6 100° D(A,G,H); 24-26 24-6 250° D(A,G,H); 24-27 80 - - 280 E 24-28 80 110 250 280 I 24-56
24-20 45° E=Al.; F=Ch.; Balance=Cu 24-57
24-28 45° A, C, J, V, Y, W, K, E, H, U, S, M=Ch.; Balance=Al. 24-62
24-28 A, C, E, G=Ir.; B, D, F, H=Con.; R, T=Ch.; S, U=Al.; Balance=Cu 24-63
24-28 A, C, E, G, J, L, K, N, S, U, W, Y=Cu; B, D, F, H, Q, R, M, P, T, V, X, Z=Con. 24-64
24-5 A, B, C, D, E, F, G, H=Ir.; J, K, L, M, N, P, R, S=Con. 24-68
24-28 D=Con.; Balance=Cu 24-81
24-7 A, C, E, G, I, K, M, N, P=Cu; B, D, F, H, J, L, O=Con. 24A24 Contact us for valid rotations A 24A28 65 146 235 - I 24A35 24-7 100° A 28-1 80 110 250 280 D (A,E,J); 28-2 35 110 250 325 D 28-4 80 110 250 280 E (G,P,S); 28-5 35 110 250 325 D 28-7 35 110 250 325 D 28-9 80 110 250 280 D Contact Metallurgy Key: Alumel (Al.) Chromel (Ch.) Constantan (Con.) Copper (Cu.) Iron (Ir.) Thermocouple ( Read Less Page 8
Series Contact Sizes Layout MS CT CB VG Total 20 16 12 8 4 0 28-10
7 3 2 2 28-11
22 18 4 28-12
26 26 28-13
26 26 28-14
11 11 28-15
35 35 28-16
20 20 28-17
15 15 28-19
10 6 4 28-20
14 4 10 28-21
37 37 28-22
6 3 3 28-51
12 12 28-53
22 18 4 28-58
14 4 10 28-59
17 10 7 28-61
37 37 28-63
14 4 10 28-64
35 35 28-65
26 26 28-67
20 20 28-68
35 35 28-69
22 18 4 28-70
22 18 4 28-77
22 18 4 28-81
37 37 28A16
9 5 4 28A51
43 43 28A63
28 19 9 32-1
5 3 2 32-2
5 2 3 Degrees of Rotation Layout
W X Y Z Service Rating 28-10 80 110 250 280 D(G); A(all others) 28-11 80 110 250 280 A 28-12 90 180 270 - A 28-13 28-12 100° A 28-14 80 110 250 280 D 28-15 80 110 250 280 A 28-16 80 110 250 280 A 28-17 80 110 250 280 A(A-L); B(R); 28-19 80 110 250 280 A(C, E, G, J, K, L); 28-20 80 110 250 280 A 28-21 80 110 250 280 A 28-22 70 145 215 290 D 28-51 80 135 195 - A 28-53
28-11 45° J, L=Al.; K, M=Ch.; Balance=Cu 28-58
28-20 45° A, C, E, G, K, M=Al.; B, D, F, H, L, N=Ch.; J, P=Cu 28-59 - - - - A 28-61
28-21 45° A, C, J, Z, M, R, N, A, K, F, H, X, K, H, T, M, N, D=Ir.; Balance=Con. 28-63
28-20 45° A, C, E, G, J=Al.; B, D, F, H, P=Ch.; Balance=Cu 28-64
28-15 A, D=Al.; B, J=Ch.; C, D, E, F, G, N, P, R, S, H, J, K, L, M, W, X, Y, Z=Con.; Balance=Cu 28-65
28-12 A, C, E, G, J, L, N, R, T, V=Ir.; X, Z=Al.; B, D, F, H, K, M, P, S, U, W=Con.; Y, A=Ch.; B, D=Cu 28-67
28-16 U=Con.; Balance=Cu 28-68
28-15 45° T=Al; U=Ch; Balance=Cu 28-69
28-11 G=Al.; R=Ch.; Balance=Cu 28-70
28-11 A=Al.; B=Ch.; Balance=Cu 28-77
28-11 J=Con.; Balance=Cu 28-81
28-21 A, D, S, Z, N, S=Ir.; B, J, K, F, G, R=Con.; G, L, P, B, E, J=Al.; F, H, T, X, H, K=Ch.; Balance=Cu 28A16 Contact us for valid rotation A(E); I(all others) 28A51 Contact us for valid rotation A 28A63 - 110 260 - A 32-1 80 110 250 280 E(A); D(all others) 32-2 70 145 215 290 E Contact Metallurgy Key: Alumel (Al.) Chromel (Ch.) Constantan (Con.) Copper (Cu) Iron (Ir.) Thermocouple ( Read Less Page 9
Series Contact Sizes Layout MS CT CB VG Total 20 16 12 8 4 0 32-5
2 2 32-6
23 16 2 3 2 32-7
35 28 7 32-8
30 24 6 32-9
14 12 2 32-13
23 18 5 32-15
8 6 2 32-17
4 4 32-19
5 3 2 32-20
23 16 2 3 2 32-51
30 24 6 32-55
30 24 6 32A10
54 54 32A29
23 16 2 3 2 32A30
5 3 2 32A47
47 47 32A55
55 55 32A69
61 41 20 36-3
6 3 3 36-4
3 3 36-5
4 4 36-6
6 4 2 36-7
47 40 7 36-8
47 46 1 36-9
31 14 14 2 1 36-10
48 48 36-11
48 48 36-12
48 48 36-14
16 6 5 5 36-15
35 35 36-16
47 40 7 36-17
47 40 7 36-18
31 14 14 2 1 36-21
31 14 14 2 1 36-53
47 40 7 36A34
52 52 36A35
8 4 4 36A46
27 27 36A98
39 31 8 36A99
65 50 15 36A70
16 5 11 Degrees of Rotation Layout
W X Y Z Service Rating 32-5 35 110 250 325 D 32-6 80 110 250 280 A 32-7 80 125 235 280 I(A, B, H, J); 32-8 80 125 235 280 A 32-9 80 110 250 280 D 32-13 80 110 250 280 D 32-15 35 110 250 280 D 32-17 45 110 250 - D 32-19 32-1 260° E(A); 32-20 32-6 260° A 32-51
32-8 90° M=Ch; N=Al; Balance=Cu 32-55
32-8 125° M,N=Ch; O,P=Al; Balance=Cu 32A10 Contact us for valid rotations A 32A29 32-6 250° A 32A30 32-1 100° E(A); 32A47 Contact us for valid rotations A 32A55 80 110 250 280 A 32A69 - 110 250 - I 36-3 70 145 215 290 D 36-4 70 145 215 290 A(B, C); D(A) 36-5 45 120 240 - A 36-6 35 110 250 325 A 36-7 80 110 250 280 A 36-8 80 110 250 280 A 36-9 80 125 235 280 A 36-10 80 125 235 280 A 36-11 36-10 100° A 36-12 36-10 250° A 36-14 90 180 270 - D 36-15 60 125 245 305 D(M); 36-16 36-7 100° 36-17 36-7 250° A 36-18 36-9 100° A 36-21 36-9 260° A 36-53
36-7 45° U, V, W=Al.; X, Y, Z=Ch.; Balance=Cu 36A34 Contact us for valid rotations A 36A35 Contact us for valid rotations A 36A46 Contact us for valid rotations A 36A98 Contact us for valid rotations I 36A99 Contact us for valid rotations I 36A70 - - - - I Contact Metallurgy Key: Alumel (Al.) Chromel (Ch.) Constantan (Con.) Copper (Cu) Iron (Ir.) Thermocouple ( LAYOUTS BY NUMBER OF CONTACTS
View from mating face of pin insulator * = Most Popular 1 Contact
Layout 8S-1 10S-2 12S-4 12-5 14S-4 16-12 18-6 18-7 20-2 22-7 # of Contacts 1-#16 1-#16 1-#16 1-#12 1-#16 1-#4 1-#4 1-#8 1-#0 1-#0 Series
Service Rating A A D D D A D B D E 2 Contacts
Layout 10SL-4* 12S-3* 14S-9* 16S-4 16-11 18-3 20-23 # of Contacts 2-#16 2-#16 2-#16 2-#16 2-#12 2-#12 2-#8 Series
Service Rating A A D A A D A
Layout 22-1 22-8 22-11 24-9 28-7 32-5 # of Contacts 2-#8 2-#12 2-#16 2-#4 2-#4 2-#0 Series
Service Rating D E B A D D 3 Contacts
Layout 10SL-3* 14S-1 14S-7* 16S-5 16S-6 16-7 16-10* 18-5 18-21 18-22 # of Contacts 3-#16 3-#16 3-#16 3-#16 3-#16 2-#16; 1-#8 3-#12 1-#16; 2-#12 3-#12 3-#16 Series
Service Rating A A A A A A A D D D
Layout 20-3 20-6 20-19 22-2 22-6 22-9 22-21 36-4 # of Contacts 3-#12 3-#16 3-#8 3-#8 1-#16; 2-#8 3-#12 2-#16; 1-#0 3-#0 Series
Service Rating D D A D D E A D(A); 4 Contacts
Layout 12SA-10 14S-2* 16-9 18-4* 18-10* 18-13 20-4* 20-24 22-4 # of Contacts 4-#16 4-#16 2-#16; 2-#12 4-#16 4-#12 3-#12; 1-#8 4-#12 2-#16; 2-#8 2-#12; 2-#8 Series
Service Rating I I A D A A D A A
Layout 22-10 22-22* 24-4 24-22* 32-17 36-5 # of Contacts 4-#16 4-#8 3-#16; 1-#0 4-#8 4-#4 4-#0 Series
Service Rating E A D D D A 5 Contacts
Layout 10SLA4 14S-5* 16S-8* 18-11* 18-20 20-14 22-12 22-13 24-12 # of Contacts 5-#20 5-#16 5-#16 5-#12 5-#16 3-#12; 2-#8 3-#16; 2-#8 1-#16; 4-#12 3-#12; 2-#4 Series
Service Rating A I A A A A D A(A,D); D(E) A 5 Contacts (cont.) 6 Contacts
Layout 28-5 32-1 14S-6* 18-12 20-8 20-17 20-22 # of Contacts 2-#16; 1-#12; 2-#4 3-#12; 2-#0 6-#16 6-#16 4-#16; 2-#8 1-#16; 5-#12 3-#16; 3-#8 Series
Service Rating D E(A); D(balance) I A I A A
Layout 22-5 22-15 28-22 36-3 36-6 # of Contacts 4-#16; 2-#12 1-#16; 5-#12 3-#16; 3-#4 3-#12; 3-#0 4-#4; 2-#0 Series
Service Rating D A(A,B,C,E,F); E(D) D D A 7 Contacts
Layout 14SA7 16S-1* 18-9 20-15* 22-28 24-2 24-10 24-27 28-10 # of Contacts 7#16 7-#16 5-#16; 2-#12 7-#12 7-#12 7-#12 7-#8 7-#16 3-#12; 2-#8; 2-#4 Series
Service Rating I A I A A D A E D(G); A(balance) 8 Contacts
Layout 18-8* 20-7* 22-18 22-23 24-6 32-15 36A35 # of Contacts 7-#16; 1-#12 8-#16 8-#16 8-#12 8-#12 6-#12; 2-#0 4-#16; 4-#0 Series
Service Rating A A(C-F); D(balance) A(C-E) D(H); A(balance) D(A,G,H); A(balance) D A 9 Contacts
Layout 20A9 20-16 20-18* 22-16 22-17 22-20 22-27 # of Contacts 9-#12 7-#16; 2-#12 6-#16; 3-#12 6-#16; 3-#12 8-#16; 1-#12 9-#16 8-#16; 1-#8 Series
Service Rating D(J); all others I A A A D(A); A(balance) A D(J); A(balance) 9 Contacts 10 Contacts
Layout 24-11* 28-1 28A16 18-1* 18-19 28-19 # of Contacts 6-#12; 3-#8 6-#12; 3-#8 5-#16; 4-#4 10-#16 10-#16 6-#16; 4-#12 Series
Service Rating A D(A,E,J); A(balance) A A(B,C,F,G); I(balance) A A(C,E,J,K,L); B(H,M); D(A,B) 11 Contacts 12 Contacts
Layout 20-33 24-20 28-14 24-19 24A24 28-9 28-51 # of Contacts 11-#16 9-#16; 2-#12 11-#16 12-#16 12-#12 6-#16; 6-#12 12-#12 Series
Service Rating A D D A A D D 13 Contacts 14 Contacts
Layout 20-11 20-27* 22-19* 28-2 28-20 32-9 # of Contacts 13-#16 14-#16 14-#16 12-#16; 2-#12 4-#16; 10-#12 12-#16; 2-#4 Series
Service Rating I A A D A D 15 Contacts 16 Contacts
Layout 28-17* 24-5 24-7* 36-14 36A70 # of Contacts 15-#16 16-#16 14-#16; 2-#12 6-#16; 5-#12; 5-#8 5-#16; 11#4 Series
Service Rating A(A-L); B(R); D(M-P) A A D - 17 Contacts 18 Contacts 19 Contacts
Layout 20-29* 36A16 20A48 22-14* # of Contacts 17-#16 18-#12 19-#16 19-#16 Series
Service Rating A A I A 20 Contacts 22 Contacts 23 Contacts
Layout 28-16 28-11* 32-6 32-13 # of Contacts 20-#16 18-#16; 4-#12 16-#16; 2-#12; 3-#8; 2-#4 18-#16; 5-#12 Series
Service Rating A A A D 24 Contacts 26 Contacts 27 Contacts 28 Contacts
Layout 24-28* 28-12* 36A46 24A28 28A63 # of Contacts 24-#16 26-#16 27-#12 28-#16 9-#12; 19-#16 Series
Service Rating I A A I A 30 Contacts 31 Contacts 35 Contacts
Layout 32-8 36-9 28-15* 32-7* # of Contacts 24-#16; 6-#12 14-#16; 14-#12; 2-#8; 1-#4 35-#16 28-#16; 7-#12 Series
Service Rating A A A I(A,B,H,J) A(balance) 35 Contacts 37 Contacts
Layout 36-15 28-21* # of Contacts 35-#16 37-#16 Series
Service Rating D(M); A(balance) A 39 Contacts 43 Contacts 47 Contacts 48 Contacts
Layout 36A98 28A51 32A47 36-7* 36-8 36-10* # of Contacts 8-#8; 31-#16 43-#16 47-#16 40-#16; 7-#12 46-#16; 1-#12 48-#16 Series
Service Rating I A A A A A Contacts 52 54 55 56 61 65
Layout 36A34 32A10 32A55 36A66 32A69 36A99 # of Contacts 52-#16 54-#16 55-#16 52-#16; 4-#12 20-#16; 41-#20 50-#20; 15-#16 Series
Service Rating A A A A A I Read Less STEP 8: CONTACTSTEP 8: CHOOSE CONTACT TYPE
S = Solder C = Crimp* H = PC** 0 = Less contacts * When using a “C” in part number, the connector is supplied with the standard size crimp contacts for its layout (part number marked with “G#” in crimp Contact Selection Chart. If reduced or enlarged crimp contacts are required, specify connector 0 (less contacts) and order contacts separately. ** Contact us for PC post diameters and lengths. Available for 16S, 16 and 12 size contacts. STEP 9: PLATINGSSTEP 9: CHOOSE PLATINGS
AU = Gold A34 = Bright Nickel 48 hr Salt Spray (RoHS, conductive, CB Series only)
A239 = Black Zinc Cobalt 48 hr Salt Spray (RoHS, conductive, CB Series only) Call with NPT thread size, Sealtite conduit diameter, or cable OD for D, NPT, ST, PG, or endbell part number *** CB = Olive drab chromate over cadmium. |
= CA/MS
= CB
|
CRIMP CONTACTSITT CANNON CB SERIES CRIMP CONTACTS
Contact Wire Silver Gold Silver Gold Wire Strip 16S 16 12 16-18* 20-22 22-26 12-14 14-16 16-18* 20-22 22-26 12-14* 16-18 CB16S-16P* CB16S-20P CB16S-22P CB16-12P CB16-14P CB16-16P* CB16-20P CB16-22P CB12-12P* CB12-16P CB16S-16PG* CB16S-20PG CB16S-22PG CB16-12PG CB16-14PG CB16-16PG* CB16-20PG CB16-22PG CB12-12PG* CB12-16PG G5 G6 G13 G12 G9 G10 G16 CB16S-16S* CB16S-20S CB16S-22S CB16-12S CB16-14S CB16-16S* CB16-20S CB16-22S CB12-12S* CB12-16S CB16S-16SG* CB16S-20SG CB16S-22SG CB16-12SG CB16-14SG CB16-16SG* CB16-20SG CB16-22SG CB12-12SG* CB12-16SG G5 G6 G13 G12 G9 G10 G16 .245 (6.2) 8 4 0 8-10* 10 12-14 4* 6 0* 2 4 CB8-8P* CB8-10P CB8-12P CB4-4P* CB4-6P CB0-0P* CB0-2P CB0-4P - - - - - - - - G42 G40 G44 G48 G47 CB8-8S* CB8-10S CB8-12S CB4-4S* CB4-6S CB0-0S* CB0-2S CB0-4S - - - - - - - - G42 G40 G44 G48 G47 .465 (11.8) .540 (13.7) Part Numbers marked with * are the standard for that contact size. All dimensions are shown in inches (millimeters in parentheses) Wire Range Accessories
Contact Size Insulation O.D. Min. Insulation O.D. Max. Wire Hole Fillers Hole Filler Color 16S 16 12 .089 (2.2) .089 (2.2) .089 (2.2) .089 (2.2) .089 (2.2) .089 (2.2) .089 (2.2) .089 (2.2) .122 (3.1) .122 (3.1) .110 (2.8) .110 (2.8) .110 (2.8) .110 (2.8) .110 (2.8) .110 (2.8) .110 (2.8) .110 (2.8) .138 (3.5) .138 (3.5) 225-0017-000 225-0017-000 225-0017-000 225-0017-000 225-0017-000 225-0017-000 225-0017-000 225-0017-000 225-0018-000 225-0018-000 Blue Blue Blue Blue Blue Blue Blue Blue Yellow Yellow 8 4 0 .220 (5.6) .220 (5.6) .220 (5.6) .335 (8.5) .335 (8.5) .452 (11.5) .452 (11.5) .452 (11.5) .256 (6.5) .256 (6.5) .256 (6.5) .370 (9.4) .370 (9.4) .512 (13.0) .512 (13.0) .512 (13.0) MS27488-8-3 MS27488-8-3 MS27488-8-3 MS27488-4-3 MS27488-4-3 MS27488-0-3 MS27488-0-3 MS27488-0-3 Red Red Red Blue Blue Yellow Yellow Yellow Tools
Contact Size Hand Crimp Tool Hand Tool Turret Use Locator Color Power Crimp Tool Power Crimp Locator Insertion/ Extraction Tool Insertion Guide Pins 16S 16 12 AF8 AF8 AF8 AF8 AF8 AF8 AF8 AF8 AF8 AF8 TH452 TH452 TH452 TH452 TH452 TH452 TH452 TH452 TH452 TH452 Blue△/Green◆ Blue△/Green◆ Blue△/Green◆ Green△/Red◆ Green△/Red# Green△/Red◆ Green△/Red◆ Green△/Red◆ Red Red WA27F WA27F WA27F WA27F WA27F WA27F WA27F WA27F WA27F WA27F Use hand tool turret with power tool CIT-F80-16* CET-F80-16† CIT-F80-12* CET-F80-12† 226-1017-000 226-1017-000 226-1017-000 226-1017-000 226-1017-000 226-1017-000 226-1017-000 226-1017-000 226-1018-000 226-1018-000 8 4 0 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A 400BHD 400BHD 400BHD 400BHD 400BHD 400BHD 400BHD 400BHD CCH8-KIT CCH8-KIT CCH8-KIT CCH4-KIT CCH4-KIT CCH0-KIT CCH0-KIT CCH0-KIT CIT-8* CET-8† CIT-4* CET-4† CIT-0* CET-0† N/A N/A N/A N/A N/A N/A N/A N/A * Insertion tool † Extraction tool △ Pin ◆ Socket All dimensions are shown in inches (millimeters in parenthesis) COMPONENTSITT CANNON CB SERIES COMPONENTS Receptacle Plug
|
|
CB 2ITT CANNON CB SERIES CONNECTORS — CT 2 STYLES
Shell Size M N P Max. R S T L KK 10SL 0.717 0.717 0.110 0.717 1.000 0.126 0.972 0.638 12S 0.717 0.843 0.126 0.811 1.102 0.126 0.972 0.638 14S 0.717 0.969 0.126 0.906 1.181 0.126 0.972 0.756 16S 0.717 1.079 0.126 0.969 1.280 0.126 0.972 0.882 16 0.846 1.079 0.126 0.969 1.28 0.126 1.331 0.882 18 0.907 1.213 0.157 1.063 1.378 0.126 1.331 1.008 20 0.907 1.346 0.157 1.157 1.496 0.126 1.331 1.142 22 0.907 1.472 0.157 1.252 1.614 0.126 1.331 1.268 24 0.907 1.610 0.157 1.374 1.752 0.146 1.331 1.390 28 0.947 1.839 0.157 1.563 2.000 0.146 1.331 1.630 32 0.947 2.102 0.157 1.752 2.244 0.169 1.331 1.882 36 0.947 2.346 0.157 1.937 2.500 0.169 1.331 2.071 All dimensions in inches (millimeters in parentheses) CB 0ITT CANNON CB SERIES CONNECTORS — CB 0 STYLES WITH E ENDBELL
E - ENDBELL
Shell Size M N P Max. R S T L B Thread 2A L2 XX2 Max XX2 Min 10SL 0.717 0.717 0.110 0.717 1.000 0.126 1.276 9/16-24 2.244 0.256 0.140 12S 0.717 0.843 0.126 0.811 1.102 0.126 1.276 5/8-24 2.244 0.256 0.140 14S 0.717 0.969 0.126 0.906 1.181 0.126 1.276 3/4-20 2.323 0.354 0.195 16S 0.717 1.079 0.126 0.969 1.280 0.126 1.276 7/8-20 2.362 0.433 0.255 16 0.907 1.079 0.126 0.969 1.280 0.126 1.575 7/8-20 2.677 0.433 0.255 18 0.907 1.213 0.157 1.063 1.378 0.126 1.634 1-20 2.835 0.559 0.285 20 0.907 1.346 0.157 1.157 1.496 0.126 1.634 1-1/8- 2.835 0.622 0.350 22 0.907 1.472 0.157 1.252 1.614 0.126 1.634 1-1/4- 2.835 0.622 0.350 24 0.907 1.610 0.157 1.374 1.752 0.146 1.634 1-3/8- 3.071 0.843 0.468 28 0.947 1.839 0.157 1.563 2.000 0.146 1.673 1-5/8- 3.110 0.843 0.468 32 0.947 2.102 0.157 1.752 2.244 0.169 1.673 1-7/8- 3.071 1.051 0.664 36 0.947 2.346 0.157 1.937 2.500 0.169 1.673 2-1/8- 3.071 1.248 0.694 ITT CANNON CB SERIES CONNECTORS — CB 0 STYLES WITH R ENDBELL
R - ENDBELL
Shell Size M N P Max. R S T L B Thread 2A L3 KK 10SL 0.717 0.717 0.110 0.717 1.000 0.126 1.276 9/16-24 1.969 0.378 12S 0.717 0.843 0.126 0.811 1.102 0.126 1.276 5/8-24 2.047 0.406 14S 0.717 0.969 0.126 0.906 1.181 0.126 1.276 3/4-20 2.047 0.488 16S 0.717 1.079 0.126 0.969 1.280 0.126 1.276 7/8-20 2.283 0.606 16 0.907 1.079 0.126 0.969 1.280 0.126 1.575 7/8-20 2.283 0.606 18 0.907 1.213 0.157 1.063 1.378 0.126 1.634 1-20 2.559 0.724 20 0.907 1.346 0.157 1.157 1.496 0.126 1.634 1-1/8- 2.559 0.866 22 0.907 1.472 0.157 1.252 1.614 0.126 1.634 1-1/4- 2.559 0.972 24 0.907 1.610 0.157 1.374 1.752 0.146 1.634 1-3/8- 2.638 1.087 28 0.947 1.839 0.157 1.563 2.000 0.146 1.673 1-5/8- 2.638 1.244 32 0.947 2.102 0.157 1.752 2.244 0.169 1.673 1-7/8- 2.638 1.516 36 0.947 2.346 0.157 1.937 2.500 0.169 1.673 2-1/8- 2.638 1.752 ITT CANNON CB SERIES CONNECTORS — CB 0 STYLES WITH F ENDBELL
F - ENDBELL
Shell Size M N P Max. R S T L B Thread 2A L4 B Thread 2A 10SL 0.717 0.717 0.110 0.717 1.000 0.126 1.276 9/16-24 2.047 5/8-24 12S 0.717 0.843 0.126 0.811 1.102 0.126 1.276 5/8-24 2.047 5/8-24 14S 0.717 0.969 0.126 0.906 1.181 0.126 1.276 3/4-20 2.047 3/4-20 16S 0.717 1.079 0.126 0.969 1.280 0.126 1.276 7/8-20 2.323 7/8-20 16 0.907 1.079 0.126 0.969 1.280 0.126 1.575 7/8-20 2.323 7/8-20 18 0.907 1.213 0.157 1.063 1.378 0.126 1.634 1-20 2.480 1-20 20 0.907 1.346 0.157 1.157 1.496 0.126 1.634 1-1/8- 2.480 1-3/16-18 22 0.907 1.472 0.157 1.252 1.614 0.126 1.634 1-1/4- 2.598 1-3/16-18 24 0.907 1.610 0.157 1.374 1.752 0.146 1.634 1-3/8- 2.717 1-7/16-18 28 0.947 1.839 0.157 1.563 2.000 0.146 1.673 1-5/8- 2.756 1-7/16-18 32 0.947 2.102 0.157 1.752 2.244 0.169 1.673 1-7/8- 2.795 1-3/4-18 36 0.947 2.346 0.157 1.937 2.500 0.169 1.673 2-1/8- 2.874 2-18 ITT CANNON CB SERIES CONNECTORS — CB 0 STYLES WITH P ENDBELL
P - ENDBELL
Shell Size M N P Max. R S T L B Thread 2A B Thread 2A 10SL 0.717 0.717 0.110 0.717 1.000 0.126 1.276 9/16-24 1.531 12S 0.717 0.843 0.126 0.811 1.102 0.126 1.276 5/8-24 1.531 14S 0.717 0.969 0.126 0.906 1.181 0.126 1.276 3/4-20 1.531 16S 0.717 1.079 0.126 0.969 1.280 0.126 1.276 7/8-20 1.531 16 0.907 1.079 0.126 0.969 1.280 0.126 1.575 7/8-20 1.968 18 0.907 1.213 0.157 1.063 1.378 0.126 1.634 1-20 1.968 20 0.907 1.346 0.157 1.157 1.496 0.126 1.634 1-1/8- 2.188 22 0.907 1.472 0.157 1.252 1.614 0.126 1.634 1-1/4- 2.188 24 0.907 1.610 0.157 1.374 1.752 0.146 1.634 1-3/8- 2.188 28 0.947 1.839 0.157 1.563 2.000 0.146 1.673 1-5/8- 2.188 32 0.947 2.102 0.157 1.752 2.244 0.169 1.673 1-7/8- 2.188 36 0.947 2.346 0.157 1.937 2.500 0.169 1.673 2-1/8- 2.188 ITT CANNON CB SERIES CONNECTORS — CB 0 STYLES WITH N ENDBELL
N - ENDBELL
Shell Size M N P Max. R S T L B Thread 2A L2 K2 Z2 BB2 JJ2 10SL 0.717 0.717 0.110 0.717 1.000 0.126 1.276 9/16-24 2.244 0.461 0.303 0.524 0.610 12S 0.717 0.843 0.126 0.811 1.102 0.126 1.276 5/8-24 2.244 0.461 0.311 0.524 0.610 14S 0.717 0.969 0.126 0.906 1.181 0.126 1.276 3/4-20 2.244 0.461 0.417 0.669 0.752 16S 0.717 1.079 0.126 0.969 1.280 0.126 1.276 7/8-20 2.244 0.461 0.531 0.862 0.941 16 0.907 1.079 0.126 0.969 1.280 0.126 1.575 7/8-20 2.480 0.453 0.531 0.862 0.941 18 0.907 1.213 0.157 1.063 1.378 0.126 1.634 1-20 2.559 0.453 0.575 0.862 0.941 20 0.907 1.346 0.157 1.157 1.496 0.126 1.634 1-1/8- 2.677 0.500 0.736 1.031 1.165 22 0.907 1.472 0.157 1.252 1.614 0.126 1.634 1-1/4- 2.677 0.500 0.819 1.031 1.165 24 0.907 1.610 0.157 1.374 1.752 0.146 1.634 1-3/8- 2.756 0.500 0.969 1.358 1.488 28 0.947 1.839 0.157 1.563 2.000 0.146 1.673 1-5/8- 2.795 0.500 1.063 1.358 1.488 32 0.947 2.102 0.157 1.752 2.244 0.169 1.673 1-7/8- 2.913 0.598 1.311 1.717 1.882 36 0.947 2.346 0.157 1.937 2.500 0.169 1.673 2-1/8- 2.913 0.598 1.516 1.717 1.882 ITT CANNON CB SERIES CONNECTORS — CB 0 STYLES WITH M ENDBELL
M - ENDBELL
Shell Size M N P Max. R S T L B Thread 2A L3 K3 Z3 BB3 JJ3 10SL 0.717 0.717 0.110 0.717 1.000 0.126 1.276 9/16-24 2.165 (55.0) 0.669 (17.0) 0.303 (7.7) 0.642 (16.3) 0.728 (18.5) 12S 0.717 0.843 0.126 0.811 1.102 0.126 1.276 5/8-24 2.283 (58.0) 0.669 (17.0) 0.366 (9.3) 0.669 (17.0) 0.787 (20.0) 14S 0.717 0.969 0.126 0.906 1.181 0.126 1.276 3/4-20 2.283 (58.0) 0.669 (17.0) 0.417 (10.6) 0.787 (20.0) 0.866 (22.0) 16S 0.717 1.079 0.126 0.969 1.280 0.126 1.276 7/8-20 2.756 (70.0) 0.709 (18.0) 0.531 (13.5) 0.906 (23.0) 0.984 (25.0) 16 0.907 1.079 0.126 0.969 1.280 0.126 1.575 7/8-20 2.756 (70.0) 0.709 (18.0) 0.531 (13.5) 0.906 (23.0) 0.984 (25.0) 18 0.907 1.213 0.157 1.063 1.378 0.126 1.634 1-20 2.756 (70.0) 0.709 (18.0) 0.575 (14.6) 0.965 (24.5) 1.102 (28.0) 20 0.907 1.346 0.157 1.157 1.496 0.126 1.634 1-1/8- 2.756 (70.0) 0.709 (18.0) 0.728 (18.5) 1.122 (28.5) 1.260 (32.0) 22 0.907 1.472 0.157 1.252 1.614 0.126 1.634 1-1/4- 2.756 (70.0) 0.709 (18.0) 0.819 (20.8) 1.201 (30.5) 1.339 (34.0) 24 0.907 1.610 0.157 1.374 1.752 0.146 1.634 1-3/8- 2.756 (70.0) 0.709 (18.0) 0.969 (24.6) 1.358 (34.5) 1.496 (38.0) 28 0.947 1.839 0.157 1.563 2.000 0.146 1.673 1-5/8- 2.756 (70.0) 0.709 (18.0) 1.063 (27.0) 1.476 (37.5) 1.614 (41.0) 32 0.947 2.102 0.157 1.752 2.244 0.169 1.673 1-7/8- 2.953 (75.0) 0.709 (18.0) 1.311 (33.3) 1.732 (44.0) 1.890 (48.0) 36 0.947 2.346 0.157 1.937 2.500 0.169 1.673 2-1/8- 3.346 (85.0) 0.709 (18.0) 1.516 (38.5) 2.008 (51.0) 2.165 (55.0) All dimensions in inches (millimeters in parentheses) CB 1ITT CANNON CB SERIES CONNECTORS — CB 1 STYLES WITH E ENDBELL
E - ENDBELL
Shell Size M N P Max. Q S L B Thread 2A L2 XX2 Max XX2 Min 10SL 0.717 0.717 0.110 0.811 0.992 1.276 9/16-24 2.244 0.256 0.140 12S 0.843 0.843 0.126 0.929 1.094 1.276 5/8-24 2.244 0.256 0.140 14S 0.969 0.969 0.126 1.000 1.173 1.276 3/4-20 2.323 0.354 0.195 16S 1.079 1.079 0.126 1.126 1.272 1.276 7/8-20 2.362 0.433 0.255 16 1.079 1.079 0.126 1.126 1.272 1.575 7/8-20 2.677 0.433 0.255 18 1.213 1.213 0.157 1.248 1.370 1.634 1-20 2.835 0.559 0.285 20 1.346 1.346 0.157 1.374 1.488 1.634 1-1/8- 2.835 0.622 0.350 22 1.472 1.472 0.157 1.500 1.618 1.634 1-1/4- 2.835 0.622 0.350 24 1.610 1.610 0.157 1.626 1.756 1.634 1-3/8- 3.071 0.843 0.468 28 1.839 1.839 0.157 1.874 2.004 1.673 1-5/8- 3.110 0.843 0.468 32 2.102 2.102 0.157 2.126 2.248 1.673 1-7/8- 3.071 1.051 0.664 36 2.346 2.346 0.157 2.386 2.504 1.673 2-1/8- 3.071 1.248 0.694 ITT CANNON CB SERIES CONNECTORS — CB 1 STYLES WITH R ENDBELL
R - ENDBELL Shell Size M N P Max. Q S L B Thread 2A L3 KK 10SL 0.717 0.717 0.110 0.811 0.992 1.276 9/16-24 1.969 0.378 12S 0.843 0.843 0.126 0.929 1.094 1.276 5/8-24 2.047 0.406 14S 0.969 0.969 0.126 1.000 1.173 1.276 3/4-20 2.047 0.488 16S 1.079 1.079 0.126 1.126 1.272 1.276 7/8-20 2.283 0.606 16 1.079 1.079 0.126 1.126 1.272 1.575 7/8-20 2.283 0.606 18 1.213 1.213 0.157 1.248 1.370 1.634 1-20 2.559 0.724 20 1.346 1.346 0.157 1.374 1.488 1.634 1-1/8- 2.559 0.866 22 1.472 1.472 0.157 1.500 1.618 1.634 1-1/4- 2.559 0.972 24 1.610 1.610 0.157 1.626 1.756 1.634 1-3/8- 2.638 1.087 28 1.839 1.839 0.157 1.874 2.004 1.673 1-5/8- 2.638 1.244 32 2.102 2.102 0.157 2.126 2.248 1.673 1-7/8- 2.638 1.516 36 2.346 2.346 0.157 2.386 2.504 1.673 2-1/8- 2.638 1.752 ITT CANNON CB SERIES CONNECTORS — CB 1 STYLES WITH F ENDBELL
F - ENDBELL
Shell Size M N P Max. Q S L B Thread 2A L3 KK 10SL 0.717 0.717 0.110 0.811 0.992 1.276 9/16-24 2.047 5/8-24UNEF 12S 0.843 0.843 0.126 0.929 1.094 1.276 5/8-24 2.047 5/8-24UNEF 14S 0.969 0.969 0.126 1.000 1.173 1.276 3/4-20 2.047 3/4-20UNEF 16S 1.079 1.079 0.126 1.126 1.272 1.276 7/8-20 2.323 7/8-20UNEF 16 1.079 1.079 0.126 1.126 1.272 1.575 7/8-20 2.323 7/8-20UNEF 18 1.213 1.213 0.157 1.248 1.370 1.634 1-20 2.480 1-20UNEF 20 1.346 1.346 0.157 1.374 1.488 1.634 1-1/8- 2.480 1-3/16-18UNEF 22 1.472 1.472 0.157 1.500 1.618 1.634 1-1/4- 2.598 1-3/16-18UNEF 24 1.610 1.610 0.157 1.626 1.756 1.634 1-3/8- 2.717 1-7/16-18UNEF 28 1.839 1.839 0.157 1.874 2.004 1.673 1-5/8- 2.756 1-7/16-18UNEF 32 2.102 2.102 0.157 2.126 2.248 1.673 1-7/8- 2.795 1-3/4-18NS 36 2.346 2.346 0.157 2.386 2.504 1.673 2-1/8- 2.874 2-18NS ITT CANNON CB SERIES CONNECTORS — CB 1 STYLES WITH P ENDBELL
P - ENDBELL
Shell Size M N P Max. Q S L B Thread 2A L5 10SL 0.717 0.717 0.110 0.811 0.992 1.276 9/16-24 1.531 12S 0.843 0.843 0.126 0.929 1.094 1.276 5/8-24 1.531 14S 0.969 0.969 0.126 1.000 1.173 1.276 3/4-20 1.531 16S 1.079 1.079 0.126 1.126 1.272 1.276 7/8-20 1.531 16 1.079 1.079 0.126 1.126 1.272 1.575 7/8-20 1.968 18 1.213 1.213 0.157 1.248 1.370 1.634 1-20 1.968 20 1.346 1.346 0.157 1.374 1.488 1.634 1-1/8- 2.188 22 1.472 1.472 0.157 1.500 1.618 1.634 1-1/4- 2.188 24 1.610 1.610 0.157 1.626 1.756 1.634 1-3/8- 2.188 28 1.839 1.839 0.157 1.874 2.004 1.673 1-5/8- 2.188 32 2.102 2.102 0.157 2.126 2.248 1.673 1-7/8- 2.188 36 2.346 2.346 0.157 2.386 2.504 1.673 2-1/8- 2.188 ITT CANNON CB SERIES CONNECTORS — CB 1 STYLES WITH N ENDBELL
N - ENDBELL Shell Size M N P Max. Q S L B Thread 2A L2 K2 Z2 BB2 JJ2 10SL 0.717 0.717 0.110 0.811 0.992 1.276 9/16-24 2.244 0.461 0.303 0.524 0.610 12S 0.843 0.843 0.126 0.929 1.094 1.276 5/8-24 2.244 0.461 0.311 0.524 0.610 14S 0.969 0.969 0.126 1.000 1.173 1.276 3/4-20 2.244 0.461 0.417 0.669 0.752 16S 1.079 1.079 0.126 1.126 1.272 1.276 7/8-20 2.244 0.461 0.531 0.862 0.941 16 1.079 1.079 0.126 1.126 1.272 1.575 7/8-20 2.480 0.453 0.531 0.862 0.941 18 1.213 1.213 0.157 1.248 1.370 1.634 1-20 2.559 0.453 0.575 0.862 0.941 20 1.346 1.346 0.157 1.374 1.488 1.634 1-1/8- 2.677 0.500 0.736 1.031 1.165 22 1.472 1.472 0.157 1.500 1.618 1.634 1-1/4- 2.677 0.500 0.819 1.031 1.165 24 1.610 1.610 0.157 1.626 1.756 1.634 1-3/8- 2.756 0.500 0.969 1.358 1.488 28 1.839 1.839 0.157 1.874 2.004 1.673 1-5/8- 2.795 0.500 1.063 1.358 1.488 32 2.102 2.102 0.157 2.126 2.248 1.673 1-7/8- 2.913 0.598 1.311 1.717 1.882 36 2.346 2.346 0.157 2.386 2.504 1.673 2-1/8- 2.913 0.598 1.516 1.717 1.882 ITT CANNON CB SERIES CONNECTORS — CB 1 STYLES WITH M ENDBELL
M - ENDBELL Shell Size M N P Max. Q S +.016 L ±.012 B Thread 2A L3 K3 Z3 BB3 JJ3 10SL 0.717 0.717 0.110 0.811 0.992 1.276 9/16-24 2.165 0.669 0.303 0.642 0.728 12S 0.843 0.843 0.126 0.929 1.094 1.276 5/8-24 2.283 0.669 0.366 0.669 0.787 14S 0.969 0.969 0.126 1.000 1.173 1.276 3/4-20 2.283 0.669 0.417 0.787 0.866 16S 1.079 1.079 0.126 1.126 1.272 1.276 7/8-20 2.756 0.709 0.531 0.906 0.984 16 1.079 1.079 0.126 1.126 1.272 1.575 7/8-20 2.480 0.709 0.531 0.906 0.984 18 1.213 1.213 0.157 1.248 1.370 1.634 1-20 2.756 0.709 0.575 0.965 1.102 20 1.346 1.346 0.157 1.374 1.488 1.634 1-1/8- 2.756 0.709 0.728 1.122 1.260 22 1.472 1.472 0.157 1.500 1.618 1.634 1-1/4- 2.756 0.709 0.819 1.201 1.339 24 1.610 1.610 0.157 1.626 1.756 1.634 1-3/8- 2.756 0.709 0.969 1.358 1.496 28 1.839 1.839 0.157 1.874 2.004 1.673 1-5/8- 2.756 0.709 1.063 1.476 1.614 32 2.102 2.102 0.157 2.126 2.248 1.673 1-7/8- 2.953 0.709 1.311 1.732 1.890 36 2.346 2.346 0.157 2.386 2.504 1.673 2-1/8- 3.346 0.709 1.516 2.008 2.165 All dimensions in inches (millimeters in parentheses) CB 4, 6ITT CANNON CB SERIES CONNECTORS — CB 4, 6 STYLES
E - ENDBELL R - ENDBELL F - ENDBELL P - ENDBELL
Shell Size Q Q1 Max. L1 B Thread 2A L2 XX2 Max XX2 Min L3 KK L4 B Thread 2A L5 10SL 0.898 1.122 0.969 9/16-24 2.165 0.256 0.140 1.969 0.378 1.969 5/8-24 1.562 12S 1.024 - 0.969 5/8-24 2.165 0.256 0.140 1.969 0.406 1.969 5/8-24 1.562 14S 1.150 1.378 0.969 3/4-20 2.362 0.354 0.195 1.969 0.488 1.969 3/4-20 1.562 16S 1.260 1.496 0.969 7/8-20 2.362 0.433 0.255 1.969 0.606 1.969 7/8-20 1.562 16 1.260 1.496 1.343 7/8-20 2.756 0.433 0.255 2.362 0.606 2.362 7/8-20 2.000 18 1.437 1.713 1.343 1-20 2.953 0.559 0.285 2.441 0.724 2.362 1-20 2.000 20 1.571 1.811 1.343 1-1/8-18 2.953 0.622 0.350 2.441 0.866 2.362 1-3/16- 2.125 22 1.697 1.988 (50.5) 1.343 1-1/4-18 2.953 0.622 0.350 2.441 0.972 2.362 1-3/16- 2.125 24 1.835 2.126 1.406 1-3/8-18 3.543 0.843 0.468 2.441 1.087 2.559 1-7/16-UNEF18 2.125 28 2.102 2.402 1.406 1-5/8-18 3.543 0.843 0.468 (11.9) 2.441 1.244 2.559 1-7/16-UNEF18 2.125 32 2.366 2.661 1.469 1-7/8-16 3.543 1.051 0.664 2.441 1.516 2.559 1-3/4-18 2.180 36 2.610 2.925 1.469 2-1/8-16 3.937 1.248 0.694 2.441 1.752 3.150 2-18 2.180 All dimensions in inches (millimeters in parentheses) CB 6ITT CANNON CB SERIES CONNECTORS — CB 6 STYLES WITH N ENDBELL
N - ENDBELL
Shell Size Q Q1 Max. L1 B Thread 2A L2 K2 Z2 BB2 JJ2 10SL 0.898 1.122 0.969 9/16-24 1.969 0.461 0.303 0.524 0.610 12S 1.024 - 0.969 5/8-24 1.969 0.461 0.311 0.524 0.610 14S 1.150 1.378 0.969 3/4-20 1.969 0.461 0.417 0.669 0.752 16S 1.260 1.496 0.969 7/8-20 1.969 0.461 0.531 0.862 0.941 16 1.260 1.496 1.343 7/8-20 2.362 0.461 0.531 0.862 0.941 18 1.437 1.713 1.343 1-20 2.362 0.461 0.575 0.862 0.941 20 1.571 1.811 1.343 1-1/8-18 2.559 0.500 0.736 1.031 1.165 22 1.697 1.988 1.343 1-1/4-18 2.559 0.500 0.819 1.031 1.165 24 1.835 2.126 1.406 1-3/8-18 2.559 0.500 0.969 1.358 1.488 28 2.102 2.402 1.406 1-5/8-18 2.559 0.500 1.063 1.358 1.488 32 2.366 2.661 1.469 1-7/8-16 2.756 0.598 1.311 1.717 1.882 36 2.610 2.925 1.469 2-1/8-16 3.150 0.598 1.516 1.717 1.882 ITT CANNON CB SERIES CONNECTORS — CB 6 STYLES WITH M ENDBELL
M - ENDBELL
Shell Size Q Q1 Max. L1 B Thread 2A L3 K3 Z3 BB3 JJ3 10SL 0.898 1.122 0.969 9/16-24 2.165 0.669 0.303 0.642 0.728 12S 1.024 - 0.969 5/8-24 2.165 0.669 0.366 0.669 0.787 14S 1.150 1.378 0.969 3/4-20 2.165 0.669 0.417 0.787 0.866 16S 1.260 1.496 0.969 7/8-20 2.362 0.709 0.531 0.906 0.984 16 1.260 1.496 1.343 7/8-20 2.756 0.709 0.531 0.906 0.984 18 1.437 1.713 1.343 1-20 2.756 0.709 0.575 0.965 1.102 20 1.571 1.811 1.343 1-1/8-18 2.756 0.709 0.728 1.122 1.260 22 1.697 1.988 1.343 1-1/4-18 2.559 0.709 0.819 1.201 1.339 24 1.835 2.126 1.406 1-3/8-18 2.756 0.709 0.969 1.358 1.496 28 2.102 2.402 1.406 1-5/8-18 2.756 0.709 1.063 1.476 1.614 32 2.366 2.661 1.469 1-7/8-16 2.756 0.709 1.311 1.732 1.890 36 2.610 2.925 1.469 2-1/8-16 3.150 0.709 1.516 2.008 2.165 All dimensions in inches (millimeters in parentheses) CB 6TITT CANNON CB SERIES CONNECTORS — CB 6T STYLES
6 & 4 Barrel CB6T Endbell CB6TP
Shell Size Q (CB 6) Q1 (CB 4) L1 B Thread 2A L2 B Thread 2A L3 10SL 0.898 1.122 0.969 9/16-24 2.188 5/8-24 1.463 12S 1.024 - 0.969 5/8-24 2.188 5/8-24 1.600 14S 1.150 1.378 0.969 3/4-20 2.312 3/4-20 1.600 16S 1.260 1.496 0.969 7/8-20 2.406 7/8-20 1.600 16 1.260 1.496 1.343 7/8-20 2.781 7/8-20 1.910 18 1.437 1.713 1.343 1-20 2.844 1-20 2.100 20 1.571 1.811 1.343 1-1/8-18 3.250 1-3/16-18 2.100 22 1.697 1.988 1.343 1-1/4-18 3.250 1-3/16-18 2.100 24 1.835 2.126 1.406 1-3/8-18 3.719 1-7/16-18 2.281 28 2.102 2.402 1.406 1-5/8-18 3.719 1-7/16-18 2.485 32 2.366 2.661 1.469 1-7/8-16 4.188 1-3/4-18 2.485 36 2.610 2.925 1.469 2-1/8-16 4.297 2-18 2.485 All dimensions in inches (millimeters in parentheses) CB 7ITT CANNON CB SERIES CONNECTORS — CB 7 STYLES
Shell Size B Thread 2A J Min J Max L ±.012 (0.30) M +.016 (0.40) N -.006 (0.15) P Max L ±.004 (0.10) S +.018 (0.40) D F 10SL 7/8-20 0.051 0.236 1.150 1.024 0.717 0.126 1.240 1.252 0.894 0.823 14S 1-1/8-18 0.051 0.236 1.150 1.024 0.969 0.126 1.492 1.500 1.134 1.071 16S 1-1/4-18 0.051 0.236 1.150 1.024 1.079 0.126 1.614 1.622 1.260 1.197 16 1-1/4-18 0.051 0.236 1.484 1.358 1.079 0.157 1.614 1.622 1.260 1.197 18 1-3/8-18 0.051 0.236 1.575 1.417 1.213 0.157 1.764 1.772 1.382 1.323 20 1-1/2-18 0.051 0.236 1.575 1.417 1.346 0.157 1.929 1.937 1.504 1.449 22 1-5/818 0.051 0.236 1.575 1.417 1.472 0.157 2.055 2.063 1.654 1.571 (39.9) 24 1-3/4-18 0.051 0.236 1.575 1.417 1.610 0.157 2.165 2.173 1.760 1.697 28 2-18 0.051 0.236 1.575 1.417 1.839 0.157 2.441 2.449 2.012 1.937 32 2-1/4-16 0.051 0.236 1.575 1.417 2.102 0.157 2.677 2.685 2.260 2.193 36 2-1/2- 0.051 0.236 1.575 1.417 2.346 0.157 2.953 2.961 2.512 2.441 All dimensions in inches (millimeters in parentheses) CB 9ITT CANNON CB SERIES CONNECTORS — CB 9 STYLES
Shell M N P Max R S T L Panel 10SL 0.559 0.717 0.110 0.717 1.000 0.126 1.476 0.325 12S 0.559 0.843 0.126 0.811 1.102 0.126 1.476 0.325 14S 0.559 0.969 0.126 0.906 1.181 0.126 1.476 0.325 16S 0.559 1.079 0.126 0.969 1.280 0.126 1.476 0.325 16 0.748 1.079 0.126 0.969 1.280 0.126 2.024 0.445 18 0.748 1.213 0.157 1.063 1.378 0.126 2.024 0.445 20 0.748 1.346 0.157 1.157 1.496 0.126 2.024 0.445 22 0.748 1.472 0.157 1.252 1.614 0.126 2.024 0.445 24 0.811 1.610 0.157 1.374 1.752 0.146 2.024 0.383 28 0.811 1.839 0.157 1.563 2.000 0.146 2.024 0.383 32 0.874 2.102 0.157 1.752 2.244 0.169 2.024 0.320 36 0.874 2.346 0.157 1.937 2.500 0.169 2.024 0.383 All dimensions in inches (millimeters in parentheses) CB PC PINITT CANNON CB SERIES CONNECTORS — CB PC PIN STYLES NOTE: Please call for centerline spacing of individual layouts.
Shell M N P Max R S T L KK 10SL 0.717 0.717 0.110 0.717 1.000 0.126 0.972 0.638 12S 0.717 0.843 0.126 0.811 1.102 0.126 0.972 0.638 14S 0.717 0.969 0.126 0.906 1.181 0.126 0.972 0.756 16S 0.717 1.079 0.126 0.969 1.280 0.126 0.972 0.882 16 0.846 1.079 0.126 0.969 1.280 0.126 1.331 0.882 18 0.907 1.213 0.157 1.063 1.378 0.126 1.331 1.008 20 0.907 1.346 0.157 1.157 1.496 0.126 1.331 1.142 22 0.907 1.472 0.157 1.252 1.614 0.126 1.331 1.268 24 0.907 1.610 0.157 1.374 1.752 0.146 1.331 1.390 28 0.947 1.839 0.157 1.563 2.000 0.146 1.331 1.630 32 0.947 2.102 0.157 1.752 2.244 0.169 1.331 1.882 36 0.947 2.346 0.157 1.937 2.500 0.169 1.331 2.130 All dimensions in inches (millimeters in parentheses) PANEL CUTOUT & THICKNESSITT CANNON CB SERIES CONNECTORS — PANEL CUTOUTS
Flange
Shell Size G H J K 10SL/10S 0.717 0.134 0.646 0.728 12S/12 0.811 0.134 0.646 0.854 14S/14 0.906 0.134 0.776 0.980 16S 0.969 0.134 0.902 1.091 16 0.969 0.134 0.902 1.091 18 1.063 0.134 1.028 1.224 20 1.157 0.134 1.161 1.358 22 1.252 0.134 1.287 1.488 24 1.374 0.154 1.417 1.626 28 1.563 0.154 1.654 1.854 32 1.752 0.177 1.902 2.362 36 1.937 0.177 2.150 2.362
Style CB7 Rear Mount Shell Size H K 10SL 0.823 0.894 12S 0.949 1.012 14S 1.071 1.134 16S 1.197 1.260 16 1.197 1.260 18 1.323 1.382 20 1.449 1.504 22 1.571 1.654 24 1.697 1.760 28 1.937 2.012 32 2.193 2.260 36 2.441 2.512 ITT CANNON CB SERIES CONNECTORS — PANEL THICKNESS
Shell Size Front Mount Rear Mount 10SL .315 .138 12S .315 .138 14S .315 .138 16S .315 .138 16 .256 .138 18 .315 .138 20 .315 .138 22 .315 .138 24 .315 .197 28 .315 .197 32 .354 .236 36 .354 .236 All dimensions in inches (millimeters in parentheses) |
|
ITT CANNON CB SERIES CONNECTORS ENDBELLS Style J
Wire Diameter [inches (mm) Shell Size Maximum Minimum 10SL .31 (8.0) .13 (3.3) 14S .44 (11.2) .21 (5.3) 16S .53 (13.5) .32 (8.1) 16 .53 (13.5) .32 (8.1) 18 .63 (15.9) .43 (10.9) 20 .75 (19.1) .49 (11.9) 22 .75 (19.1) .49 (11.9) 24 .94 (23.9) .67 (17.0) 28 .94 (23.9) .67 (17.0) 32 1.25 (31.8) .96 (24.4) 36 1.37 (34.9) 1.07 (27.4) Style U (potted preffered)
This endbell is for use with unshielded, braided-shield or cable to terminate and extend the shield through the connector. There are three basic ways to terminate the U and D style endbell. One version uses a metal, constant-force spring to captivate the shield and can be reused/reworked if the connector needs to be serviced. The second version uses a stainless steel strap to lock the shield to the endbell. The third version is to use our conductive cloth EMI shield tape to easily tape the endbell to the shield. Heat shrink boots are used to environmentally seal the endbell and provide a smooth, finished appearance. Style I
This endbell is internally threaded to accept externally threaded NPT pipe threads. A broad range of standard NPT thread sizes can be accommodated. Contact us for ordering information. Style X
Style ST
Style E
Style R
Style N
Style M
Assembly of Shielded Endbell (using optional shrink boot) Style L
Style F
Style T
Style P
Style PG
Lower-cost, metal, gland-seal endbell which comes in a variety of wire sealing ranges. Contact us with your cable outside diameter for appropriate part number. |
MS3057-AITT CANNON CB SERIES CONNECTORS MS3057-A CABLE CLAMP
Standard MS3057 cable clamps have a dual clamping action to provide a balanced, positive hold on the wires and greatly reduce moisture transmission. This cable clamp accepts MS3420 bushings. MS3420 bushings can be nested to reduce the inside diameter to more closely match the diameter of the cable or wire bundle. Standard Clamp Standard Clamp and Telescopic Bushing Shell Size Thread 2B Low Cost Aluminum Aluminum Max. Cable Diameter inch(mm) Low Cost Zinc with Bushing Includes This Bushing Bushing ID inch(mm) 8S/10S 1/2-28UNEF 97-3057-1003 MS3057-3A M85049/41-3A .220 (5.58) 97-3057-1003-1 MS3420-3 0.130 (3.3) 10SL 5/8-24UNEF 97-3057-1004 MS3057-4A M85049/41-4A .312 (7.92) 97-3057-1004-1 MS3420-4 0.220 (5.6) 12/12S/12SL 5/8-24UNEF 97-3057-1004 MS3057-4A M85049/41-4A .312 (7.92) 97-3057-1004-1 MS3420-4 0.220 (5.6) 14/14S 3/4-20UNEF 97-3057-1007 MS3057-6A M85049/41-6A .438 (11.13) 97-3057-1007-1 MS3420-6 0.312 (7.9) 16/16S 7/8-20UNEF 97-3057-1008 MS3057-8A M85049/41-8A .562 (14.27) 97-3057-1008-1 MS3420-8 0.437 (11.1) 18 1-20UNEF 97-3057-1010 MS3057-10A M85049/41-10A .625 (15.88) 97-3057-1010-1 MS3420-10 0.562 (14.3) 20/22 1 3/16-18UNEF 97-3057-1012 MS3057-12A M85049/41-12A .750 (19.05) 97-3057-1012-1 MS3420-12 0.625 (15.9) 24/28 1 7/16-18UNEF 97-3057-1016 MS3057-16A M85049/41-16A .938 (23.83) 97-3057-1016-1 MS3420-16, -12 0.625 (15.9) 32 1 3/4-18UNEF 97-3057-1020 MS3057-20A M85049/41-20A 1.250 (31.75) 97-3057-1020-1 MS3420-20, -16 0.750 (19.1) 36 2-18UNS 97-3057-1024 MS3057-24A M85049/41-24A 1.375 (34.92) 97-3057-1024-1 MS3420-24, -20 0.937 (23.8) 40 2 1/4UNS-16 - MS3057-28A M85049/41-28A 1.625 (41.28) - - - All dimensions in inches (millimeters in parentheses) MS3057-CITT CANNON CB SERIES CONNECTORS MS3057-C WATERPROOF CABLE CLAMP
Standard MS3057-C waterproof cable clamp with mechanical strain relief for use with style F, L and T endbells. Internal neoprene gland and compression ring will seal a broad range of round cable diameters as listed below. For reduction of cable diameters, order the appropriate MS3420A bushing in table. Wire Diameter [inches(mm)] Optional Bushings Shell Size Part Number Max. Min. Part Number Max Wire Dia. 10SL/12S MS3057-4C .312 (7.93) .188 (4.80) MS3420-4A .219 (5.56) 14S MS3057-6C .438 (11.12) .281 (7.10) MS3420-6A .312 (7.93) 16/16S MS3057-8C .530 (13.48) .312 (7.90) MS3420-8A .438 (11.10) 18 MS3057-10C .625 (15.87) .375 (9.50) MS3420-10A .438 (11.10) 20/22 MS3057-12C .750 (19.00) .500 (12.70) MS3420-12A .540 (13.74) 24/28 MS3057-16C .940 (23.8) .625 (15.90) MS3420-16A .750 (19.00) 32 MS3057-20C 1.25 (31.75) .921 (23.4) MS3420-20A .938 (23.80) 36 MS3057-24C 1.38 (35.00) 1.00 (25.40) MS3420-24A 1.12 (28.5) 40 MS3057-28C 1.62 (41.25) 1.25 (31.80) MS3420-28A 1.25 (31.75) All dimensions in inches (millimeters in parentheses) MS3420ITT CANNON CB SERIES CONNECTORS MS3420 TELESCOPING BUSHING
For use with style A cable clamps and CB/CT style E/F endbells to eliminate dust, dirt and oil from entering the cable clamp. Bushings can be nested, one inside the other, to reduce the inside diameter and form a better seal against the cable jacket. Each bushing will accept the next smallest bushing. Shell 1st Bushing Inside 2nd Nested Inside Fits in 10SL MS3420-4 .220 (5.59) NONE - MS3057-4A 12S MS3420-4 .220 (5.59) NONE - MS3057-4A 14S MS3420-6 .312 (7.92) NONE - MS3057-6A 16S MS3420-8 .437 (11.10) NONE - MS3057-8A 16 MS3420-8 .437 (11.10) NONE - MS3057-8A 18 MS3420-10 .562 (14.30) NONE - MS3057-10A 20 MS3420-12 .625 (15.90) NONE - MS3057-12A 22 MS3420-12 .625 (15.90) NONE - MS3057-12A 24 MS3420-16 .750 (19.05) MS3420-12 .625 (15.90) MS3057-16A 28 MS3420-16 .750 (19.05) MS3420-12 .625 (15.90) MS3057-16A 32 MS3420-20 .937 (23.80) MS3420-16 .750 (19.05) MS3057-20A 36 MS3420-24 1.250 (31.75) MS3420-20 .937 (23.80) MS3057-24A 40 MS3420-28 1.375 (34.92) MS3420-24 1.250 (31.75) SE96-28A4 ITT CANNON CB SERIES CONNECTORS MS3420-A REDUCTION BUSHING
For use with MS3057-C cable clamps (Style C) to reduce the wire sealing diameter. Bushings can be nested, one inside the other, to progressively reduce the inside diameter of the cable clamp. The column labeled Optional Bushings shows the acceptable nesting options for each clamp. 9767ITT CANNON CB SERIES CONNECTORS 9767 CABLE CLAMPS
9767 waterproof cable clamp with mechanical strain relief. An internal neoprene gland seal bushing and compression washer will seal a broad range of round cable diameters as listed below. Max. Cable OD Min. Cable OD Shell Size Cable Clamp Part Number inches (mm) inches (mm) Thread 2B 10SL, 12S 9767-12-4 0.219 (5.55) 0.020 (0.51) 5/8-24 UNEF 14S 9767-14-4 0.219 (5.55) 0.020 (0.51) 3/4-20 UNEF 14S 9767-14-6 0.344 (8.73) 0.176 (4.47) 3/4-20 UNEF 16S, 16 9767-16-4 0.219 (5.55) 0.020 (0.51) 7/8-20 UNEF 16S, 16 9767-16-6 0.344 (8.73) 0.176 (4.47) 7/8-20 UNEF 16S, 16 9767-16-8 0.438 (11.12) 0.177 (4.50) 7/8-20 UNEF 18 9767-18-6 0.344 (8.73) 0.176 (4.47) 1-20 UNEF 18 9767-18-8 0.438 (11.12) 0.177 (4.50) 1-20 UNEF 18 9767-18-10 0.563 (14.29) 0.292 (7.42) 1-20 UNEF 20, 22 9767-22-8 0.438 (11.12) 0.177 (4.50) 1-3/16-18 UNEF 20, 22 9767-22-10 0.563 (14.29) 0.292 (7.42) 1-3/16-18 UNEF 20, 22 9767-22-12 0.688 (17.46) 0.370 (9.40) 1-3/16-18 UNEF 24, 28 9767-28-10 0.563 (14.29) 0.292 (7.42) 1-7/16-18 UNEF 24, 28 9767-28-12 0.688 (17.46) 0.370 (9.40) 1-7/16-18 UNEF 24, 28 9767-28-16 0.844 (21.43) 0.536 (13.61) 1-7/16-18 UNEF 32 9767-32-20 1.031 (26.19) 0.590 (14.99) 1-3/4-18 UNS 36 9767-36-16 0.844 (21.43) 0.536 (13.61) 2-18 UNS All dimensions in inches (millimeters in parentheses) GASKETSITT CANNON CB SERIES CONNECTORS GASKETS
POLYCHLOROPRENE gaskets are used to insure a moisture tight seal between a receptacle and the panel. Gaskets are available for front or rear panel mounting of STYLE 0, 2, and 9 connectors. Gasket thickness is approximately .037" (1.0 mm). Front Mounting Rear Mounting Shell Size Non-Conductive Conductive Non-Conductive Conductive 10S, 10SL MS52000-2 075-8512-001 075-8501-000 075-8501-001 12S, 12 MS52000-3 075-8513-001 075-8502-000 075-8502-001 14S, 14 MS52000-4 075-8514-001 075-8503-000 075-8503-001 16S MS52000-5 075-8515-001 075-8504-000 075-8504-001 16 MS52000-5 075-8515-001 075-8504-000 075-8504-001 18 MS52000-6 075-8516-001 075-8505-000 075-8505-001 20 MS52000-7 075-8517-001 075-8506-000 075-8506-001 22 MS52000-8 075-8518-001 075-8507-000 075-8507-001 24 MS52000-9 075-8519-001 075-8508-000 075-8508-001 28 MS52000-10 075-8520-001 075-8509-000 075-8509-001 32 MS52000-12 075-8521-001 075-8510-000 075-8510-001 36 MS52000-13 075-8522-001 075-8511-000 075-8511-001 DUST CAPSITT CANNON CB SERIES CONNECTORS METAL DUST CAPS WITH SASH CHAIN
For Plug Styles 4 & 6 For Receptacle Styles 0, 1, 2, 7 & 9 Shell Size CAD OD A232 A34 CAD OD A232 A34 10SL CA121004-1 CA121004-71 CA121004-701 CA121003-1 CA121003-71 CA121003-701 12S CA121004-2 CA121004-72 CA121004-702 CA121003-2 CA121003-72 CA121003-702 14S CA121004-3 CA121004-73 CA121004-703 CA121003-3 CA121003-73 CA121003-703 16S CA121004-4 CA121004-74 CA121004-704 CA121003-4 CA121003-74 CA121003-704 16 CA121004-5 CA121004-75 CA121004-705 CA121003-5 CA121003-75 CA121003-705 18 CA121004-6 CA121004-76 CA121004-706 CA121003-6 CA121003-76 CA121003-706 20 CA121004-7 CA121004-77 CA121004-707 CA121003-7 CA121003-77 CA121003-707 22 CA121004-8 CA121004-78 CA121004-708 CA121003-8 CA121003-78 CA121003-708 24 CA121004-9 CA121004-79 CA121004-709 CA121003-9 CA121003-79 CA121003-709 28 CA121004-10 CA121004-80 CA121004-710 CA121003-10 CA121003-80 CA121003-710 32 CA121004-11 CA121004-81 CA121004-711 CA121003-11 CA121003-81 CA121003-711 36 CA121004-12 CA121004-82 CA121004-712 CA121003-12 CA121003-82 CA121003-712 A233, A239, A240 platings available, please contact us. DUMMY RECEPTACLESITT CANNON CB SERIES CONNECTORS DUMMY RECEPTACLES Dummy Receptacles are for front or rear panel mounting. CB/CAB series have bayonet ramps; the center of the connector is closed. Dummy receptacles mount on the same centers and have the same outside dimensions as a STYLE 2 receptacle. The material is aluminum alloy and has an olive chromate over cadmium plating. A version with a clearance hole through the middle of the connector is also available. Contact us for ordering information. Shell Size CB/CAB
10SL 248-8501-000 12S 248-8502-000 14S 248-8503-000 16S 248-8504-000 16 248-8505-000 18 248-8506-000 20 248-8507-000 22 248-8508-000 24 248-8509-000 28 248-8510-000 32 248-8511-000 36 248-8512-000 SEAL RINGSITT CANNON CB SERIES CONNECTORS SEAL RINGS Replacement seal rings for CB series STYLE 4 and 6 connectors. Contact us for replacement CT.
Shell Size Neoprene Silicone D9 Inside Dia. 10SL 980-8550-000 980-8550-002 .354 (9.0) 12S 980-8551-000 N/A .452 (11.5) 14S 980-8552-000 980-8552-002 .551 (14.0) 16/16S 980-8553-000 980-8553-002 .670 (17.0) 18 980-8554-000 980-8554-002 .768 (19.5) 20 980-8555-000 980-8555-002 .886 (22.5) 22 980-8556-000 980-8556-002 1.00 (25.4) 24 980-8557-000 980-8557-002 1.12 (28.5) 28 980-8558-000 980-8558-002 1.38 (34.0) 32 980-8559-000 980-8559-002 1.57 (40.0) 36 980-8560-000 980-8560-002 1.83 (45.0) 40 N/A 980-8561-002 1.97 (50.0) |
SOLDER CONTACTSITT CANNON CB SERIES CONNECTORS SOLDER CONTACTS
STEP 1: Slide the rear accessories over the wire bundle in the proper sequence for reassembly: cable clamp and/or endbell first, then ferrule and (if used) coupling nut. STEP 2: Insert individual wires through the proper holes in the grommet. Use isopropyl alcohol as a lubricant. STEP 3: Solder wires to appropriate contacts on the rear of the connector. ITT Cannon document RPI234 covers standard soldering practices and is available upon request by fax or mail, please contact us. STEP 4: Fixture the connector for reassembly using endbell assembly tools. STEP 5: Slide the grommet down the wires (lubricating the grommet with isopropyl alcohol will help). STEP 6: Fill all unused grommet cavities with a wire hole filler to maintain the sealing integrity of the connector. STEP 7: Slide coupling nut, ferrule and endbell accessories over rear of the connector and tighten. CRIMP TOOL OPERATIONITT CANNON CB SERIES CONNECTORS CRIMP TOOL OPERATION Hand Crimp Tool NOTE: Hand crimp tools can be used with size 16S, 16 & 12 contacts. Size 8, 4 and 0 contacts require the use of air powered crimp tools. Contact us for assistance in the use of these tools.
STEP 1: Strip the wires to the appropriate length. STEP 2: Open the AF8 crimp tool by squeezing the handles. Push the latch on the turret to pop up the locator. Attach the turret to the crimp tool using the two captive hex bolts in the turret. STEP 3: Select the proper locator position for your contact by rotating the locator until the proper color is aligned with the index mark. Push locator back down until it snaps into position. TH452 Contact Size Pin Locator Color Socket Locator Color 16S Blue Blue 16 Green Red 12 Red Red
STEP 4: Adjust dial for proper wire gauge. To change the dial setting, remove the lock pin and lift center of dial. Turn to the desired wire gauge. Replace lock pin on dial. STEP 5: Cycle the tool before inserting the contact to be sure the tool is in the open position. Drop the contact, mating end first, into the crimp cavity of the tool. Squeeze the tool handle just enough to grip the contact without actually crimping it. STEP 6: Insert the stripped wire into the contact with a slight twisting motion. Be sure all wire strands are inside the contact. Squeeze the handle to cycle the tool. The handle will not release until the contact is completely crimped.
STEP 7: Remove the crimped contact. Pull on the wire slightly to be sure it is properly crimped. Be sure the contact is not bent or damaged in any way. Visually inspect the crimp: TENSILE STRENGTH AWG N (lbs) 16/16S 150 12 300 8 600 4 1200 0 2400 CONTACT INSERTIONITT CANNON CB SERIES CONNECTORS INSERTION OF CONTACTS
STEP 1: Slide the rear accessories over the wire bundle in the proper sequence for reassembly: cable clamp and/or endbell first, then ferrule, and (if used) coupling nut. STEP 2: Use the proper insertion tool. Place the contact in the tool. The tool should press against the shoulder of the contact. Contact sizes 16S, 16, and 12 use a pliers style tool. Contact sizes 8, 4 and 0 use a tool with a ‘C’ shaped shaft. STEP 3: Lubricate the grommet with isopropyl alcohol (do not use any lubricant other than isopropyl alcohol). Insert the contact through the appropriate cavity in the grommet. Sizes 16S, 16 and 12 Socket contacts must be installed using guide pins.
STEP 4: Place the connector into an assembly fixture (fixtures are available for production use, contact us.) If you are not using a fixture, be sure to allow clearance on the mating face of the connector for the guide pins to come through the connector during insertion. STEP 5: Lubricate the contact cavities of the connector insulator with isopropyl alcohol (do not use any other type of lubricant). STEP 6: Using guide pins where necessary, push straight down with a firm even pressure until the contact snaps into position in the proper cavity. Start at the center of the pattern and work toward the outer edges.
STEP 7: Fill any unused cavities with contacts. STEP 8: Check the mating face of the connector to insure that all the same size contacts are on the same plane (fully inserted). If not, the contact is not fully inserted. Remove the contact using the proper extraction tool and procedure and reinsert. Do not attempt to reinsert the insertion tool to correct the problem. STEP 9: A wire hole filler must be inserted into the grommet behind the unused contacts to maintain the sealing integrity of the connector. STEP 10: Place the connector back in the fixture for reassembly. Slide the connector accessories back down the cable over the rear of the connector and tighten. CONTACT EXTRACTIONITT CANNON CB SERIES CONNECTORS EXTRACTION OF CONTACTS
STEP 1: Remove the endbell accessories and slide them back over the wires. STEP 2: Use the proper extraction tool. The extraction tool can be used for both pin and socket contacts by removing the shaft from the handle and reversing it for pin or socket extraction. STEP 3: On the mating face of the connector, insert the tool over the pin contact or into the socket contact until the tool bottoms. Apply a slow continuous pressure to push the contact out the rear of the connector. When the shoulder of the tool “thunks” against the insulator, the contact is extracted. STEP 4: Carefully remove the extraction tool from the connector to avoid damage to the insulator. |
Philadelphia
19116
Click here for the contact information of the branch nearest you.
